Engine Oil Pump Overhaul (2.4 L Engine) (2017 2018 2019): Reassembly

NOTE:  Where icon is shown, further information shown below.

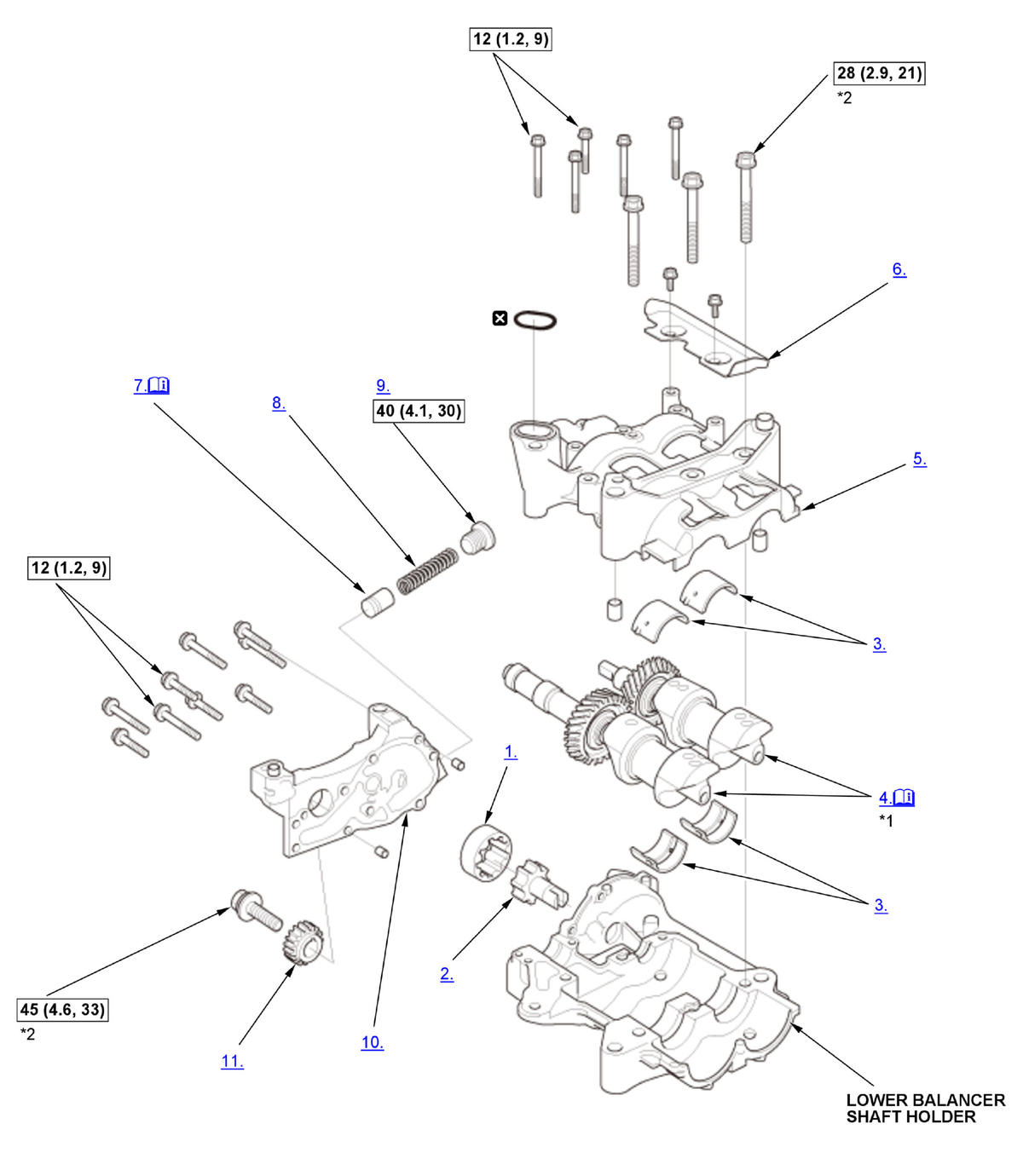

1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace
*1	These parts have inspection items.
*2	Apply new engine oil to the bolt threads.

1. Outer Rotor - Install
2. Inner Rotor - Install
3. Balancer Shaft Bearing - Install
4. Front Balancer Shaft and Rear Balancer Shaft - Install

   Courtesy of HONDA, U.S.A., INC.

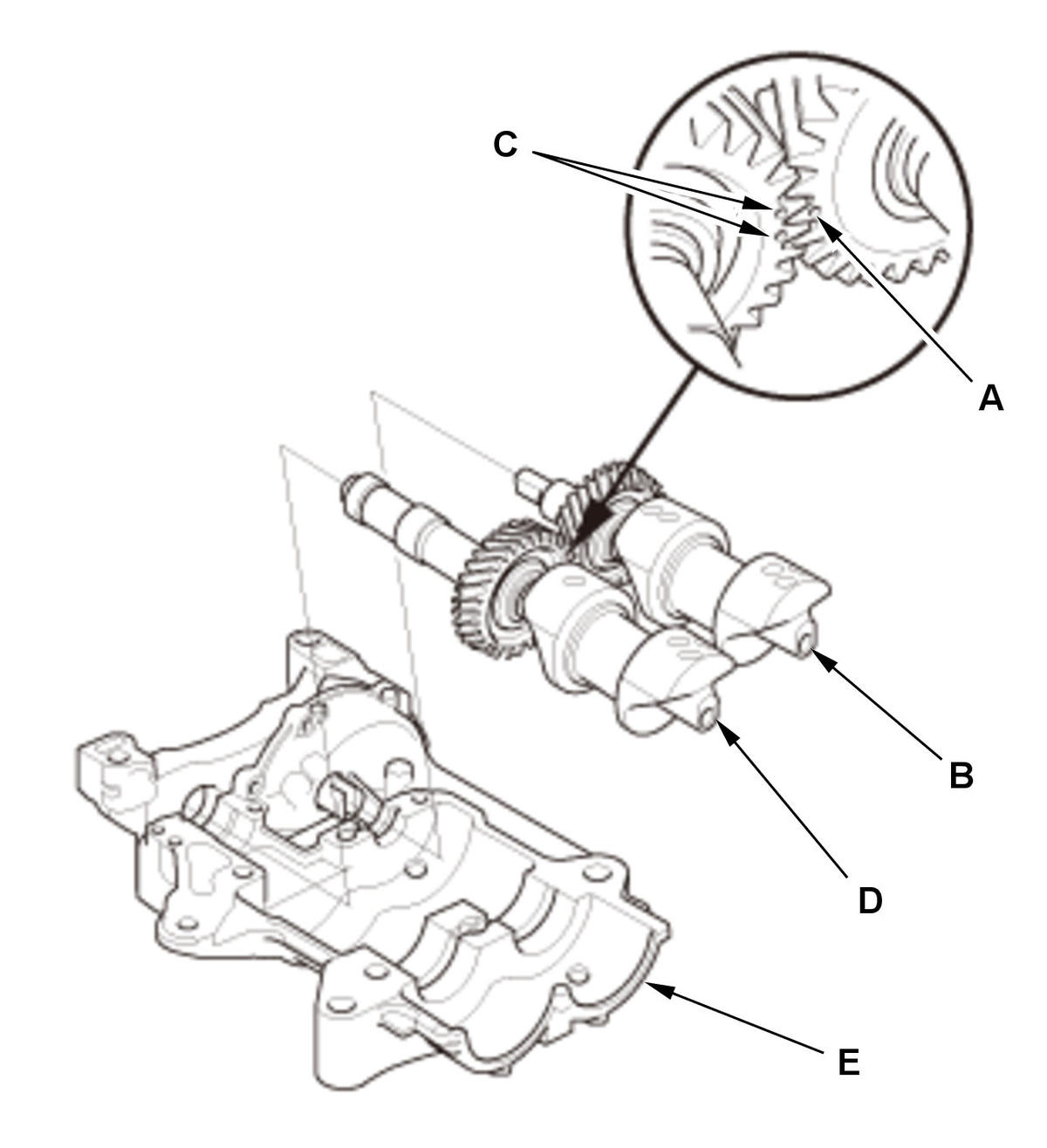

   1. Align the punch mark (A) on the rear balancer shaft (B) in the center of the two punch marks (C) on the front balancer shaft (D), then install the balancer shafts on the lower balancer shaft holder (E).

5. Upper Balancer Shaft Holder - Install
6. Baffle Plate - Install
7. Relief Valve - Install

   NOTE:  Valve must slide freely in housing bore. Replace the oil pump as assembly if scored.

8. Spring - Install
9. Sealing Bolt - Install
10. Oil Pump Housing - Install
11. Oil Pump Sprocket - Install
