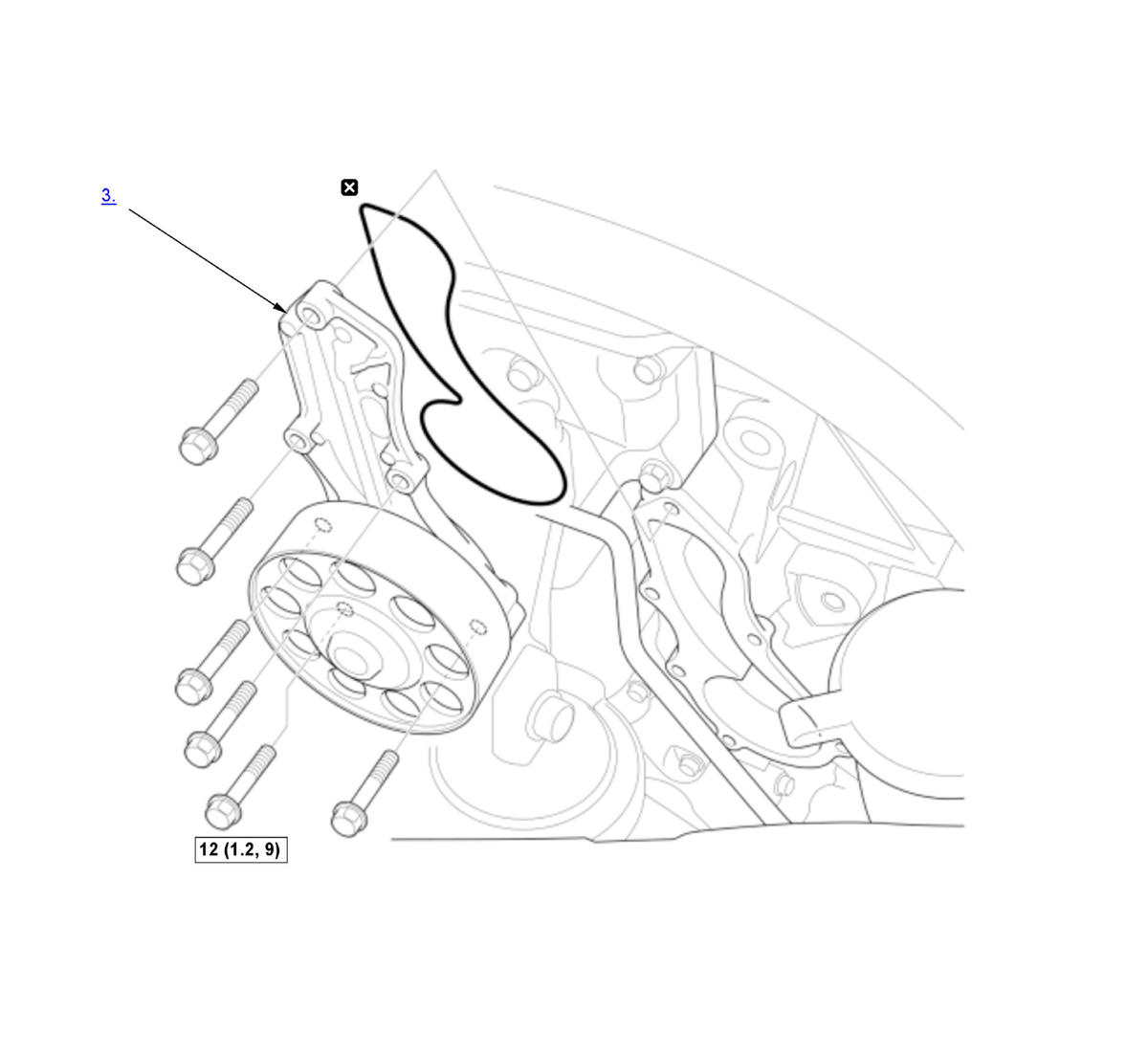

Removal and Installation
| Torque: N.m (kgf.m, lbf.ft) | |
| Replace |
- Engine Coolant - Drain
- Alternator - Remove
- Water Pump - Remove
- All Removed Parts - Install
1. Install the parts in the reverse order of removal.
NOTE:- Inspect and clean the O-ring groove and the mating surface of the engine block.
- After installing all the removed parts, refill the radiator with engine coolant, and bleed the air from the cooling system .
