Water Pump Removal, Installation, and Inspection (2.4 L Engine) (2017 2018 2019): Inspection

Drive Belt - Remove

Water Pump - Inspect

Courtesy of HONDA, U.S.A., INC.

1. Turn the water pump pulley counterclockwise, and check that it turns freely and smoothly. If it does not turn smoothly, replace the water pump.

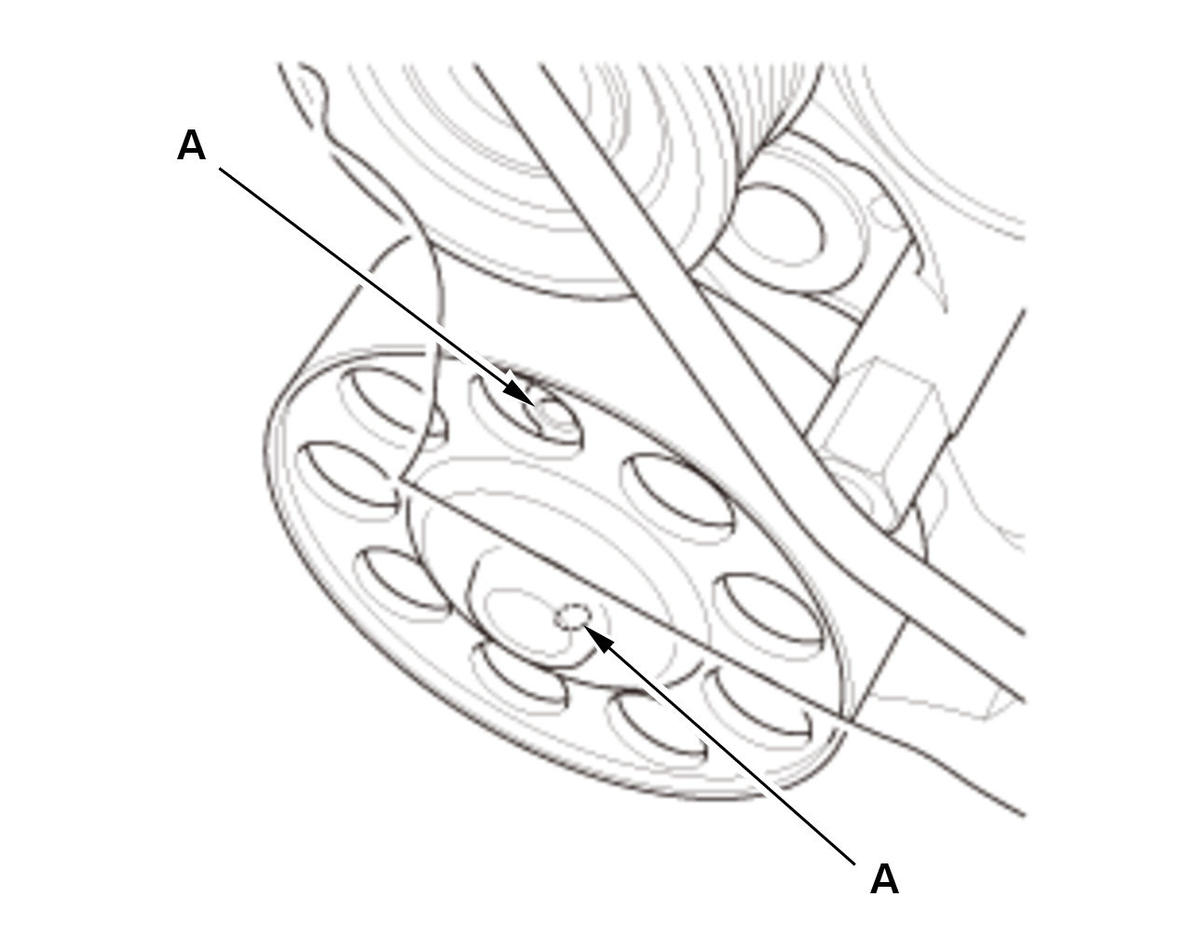

NOTE: When you check the water pump, you may see a small amount of "weeping" from the bleed holes (A). This is normal.

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
