Removal and Installation

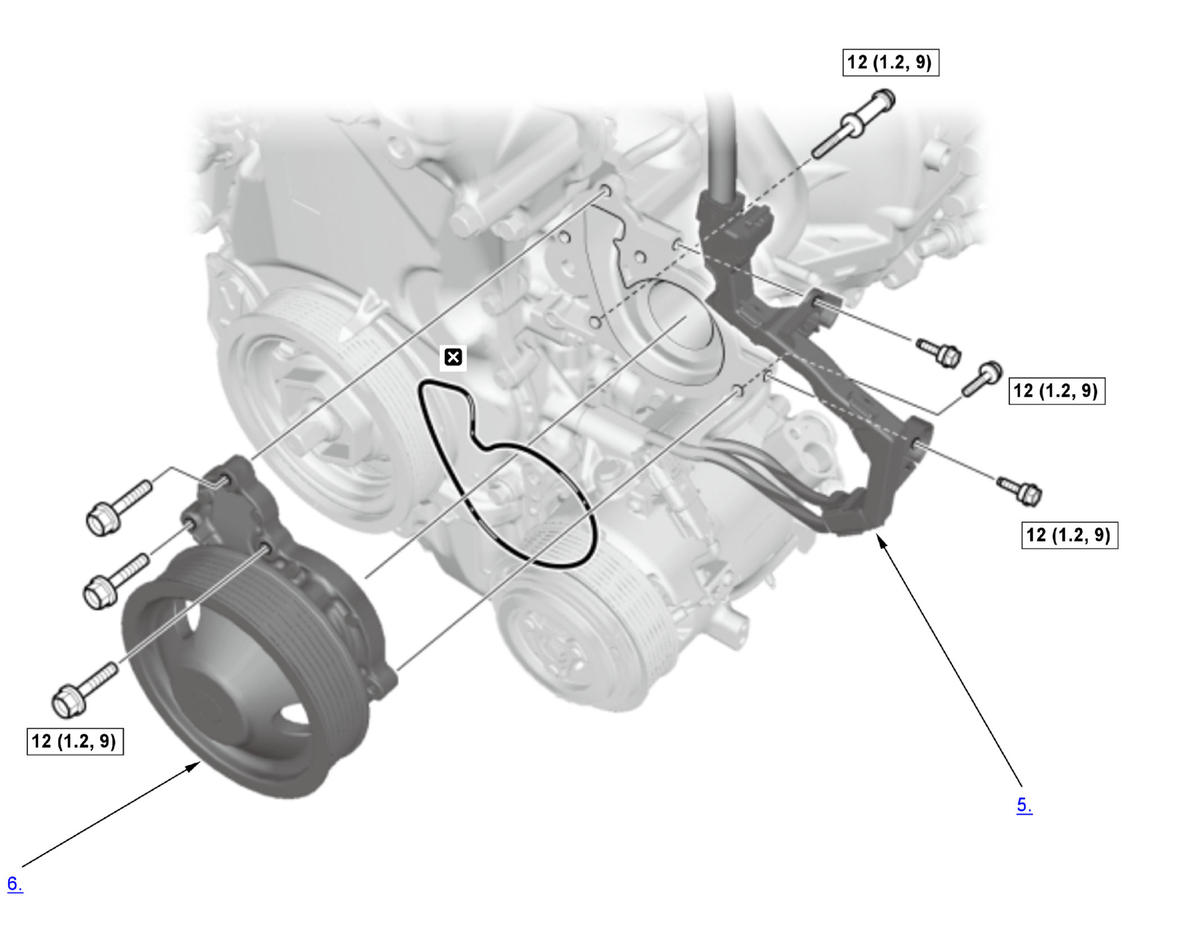

Fig 1: Water Pump Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
NOTE:

Inspect and clean the O-ring groove and the mating surface of the water passage.
After installing all the removed parts, refill the radiator with engine coolant, and bleed the air from the cooling system .
