Removal and Installation

NOTE:  Where icon is shown, further information shown below.

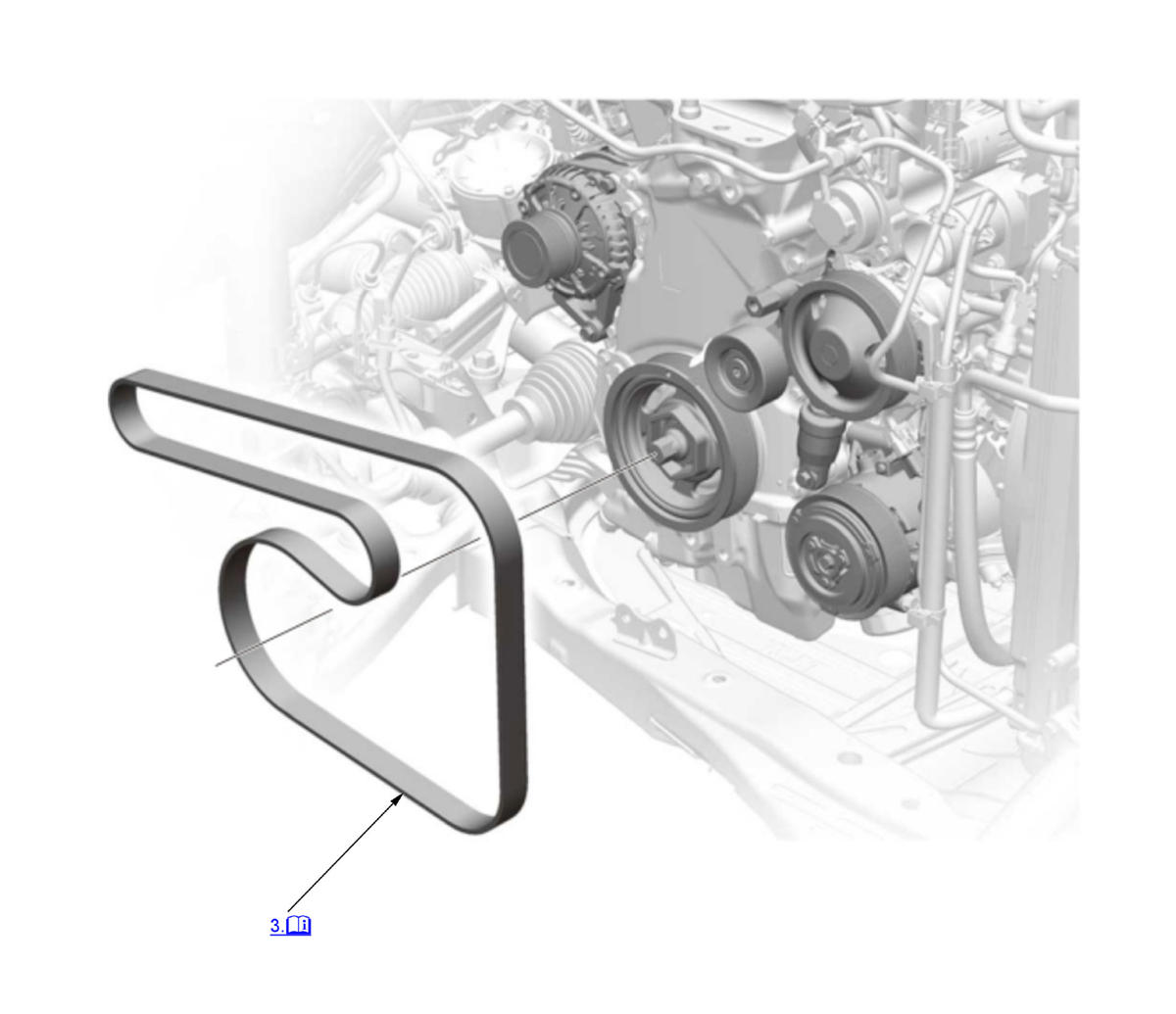

Fig 1: Drive Belt Routing

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes, and precautions

1. Right Front Wheel - Remove
2. Engine Undercover - Remove
3. Drive Belt - Remove

   Courtesy of HONDA, U.S.A., INC.

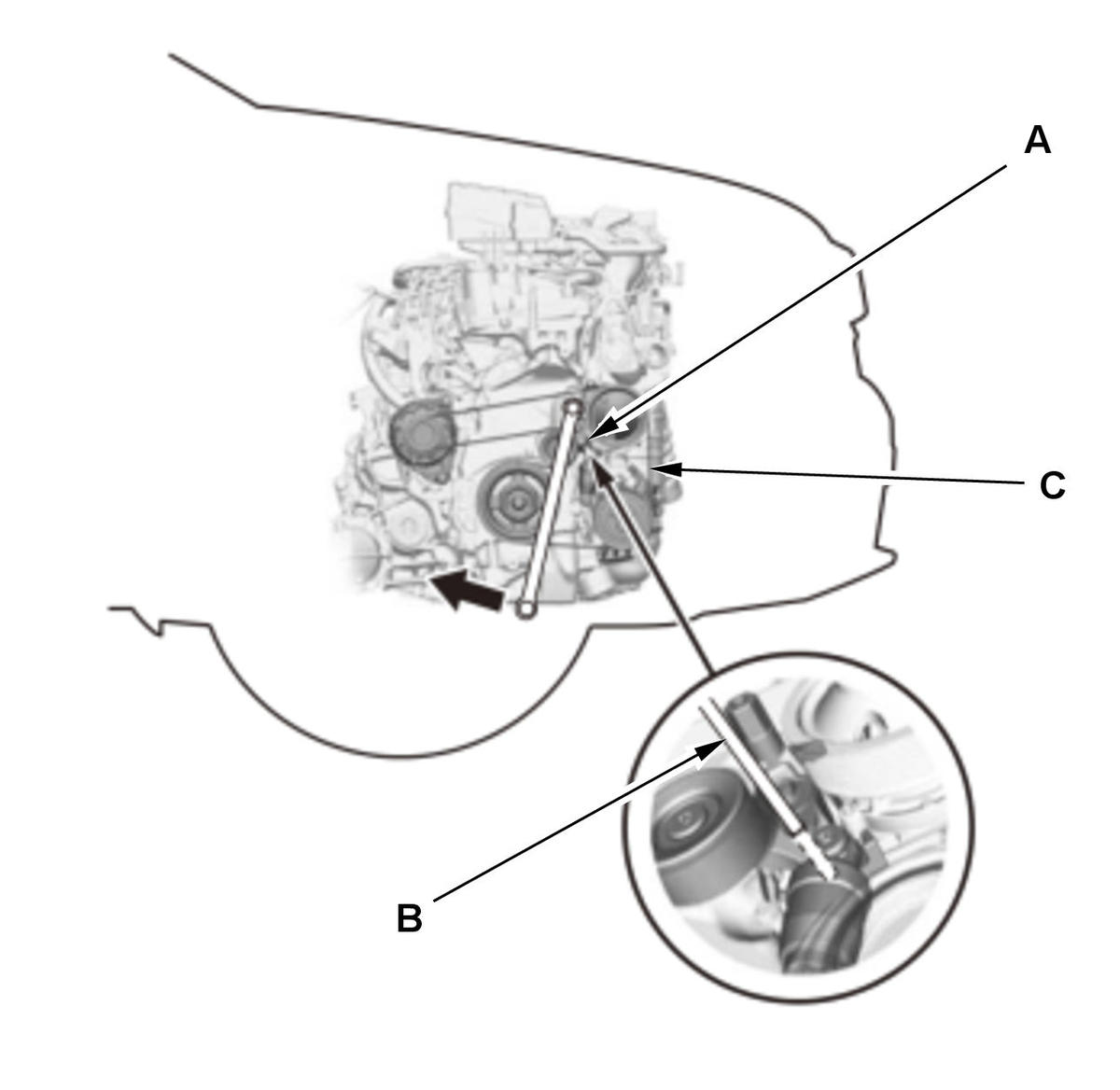

   1. Attach a wrench to the drive belt auto-tensioner (A) and move it in the direction shown. Fix the drive belt auto-tensioner by aligning the water passage hole with drive belt auto-tensioner hole and inserting a 6 x 45 mm (15/64 x 1.77 in) pin (B) deep into the holes. NOTE:  This is a hydraulic type auto-tensioner, so you must turn the wrench slowly. 2. Remove the drive belt (C).

4. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
