Cooling System Description (1.5 L Engine)

Overview

The coolant system uses a liquid cooling pressure circulation type, which is a bottom bypass system with a thermostat located at the water inlet side.

Cooling Circuit

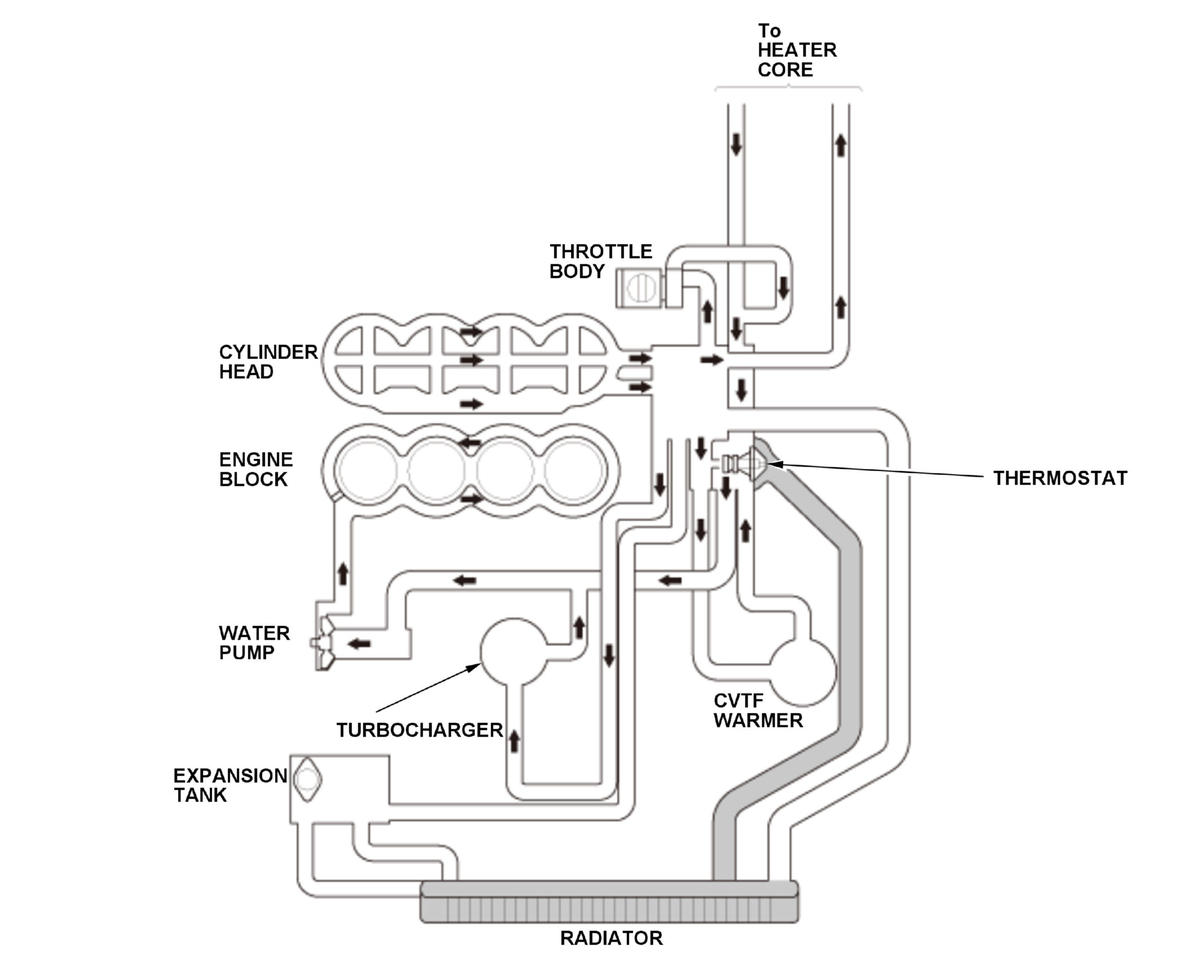

Thermostat Close

Courtesy of HONDA, U.S.A., INC.

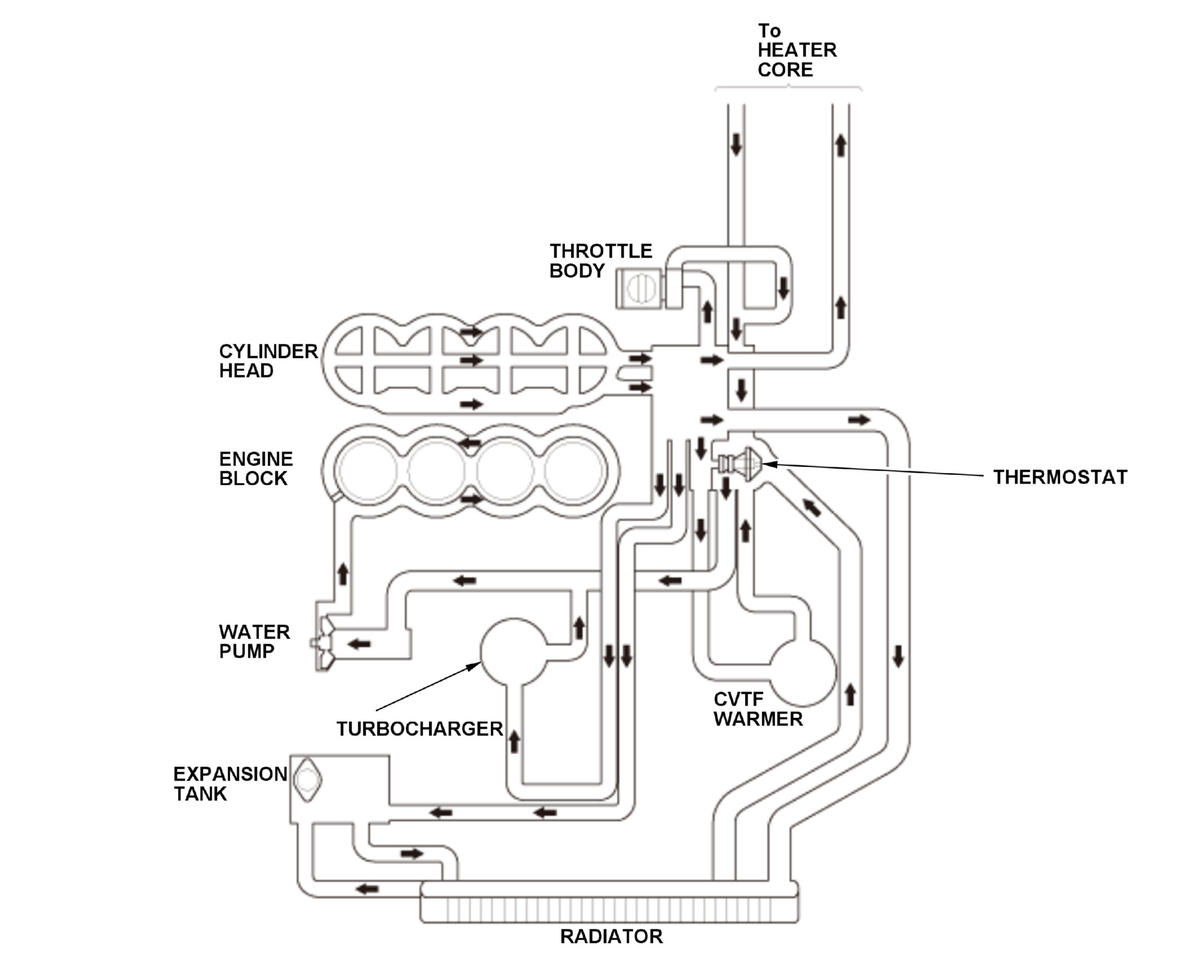

Thermostat Open

Courtesy of HONDA, U.S.A., INC.
