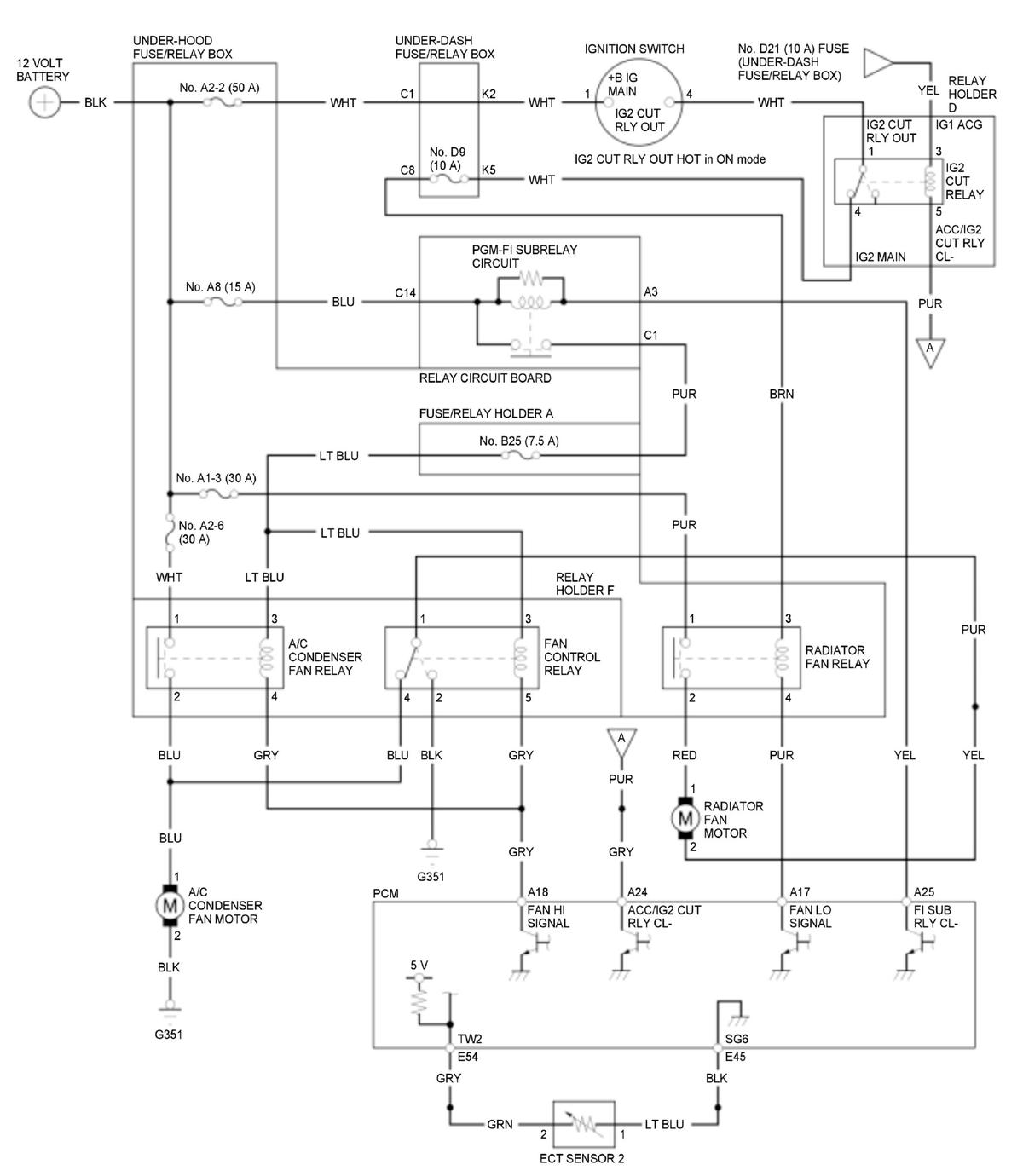

Cooling Fan Controls Circuit Diagram (1.5 L Engine (Without Keyless Access System)) (2020 2021)
Cooling Fan Controls Circuit Diagram (1.5 L Engine (Without Keyless Access System)) (2020 2021)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
