Relay Box Locations and Control Unit Locations
>>
Relay Locations
>>
Engine Compartment - 2/2 (With Fuse Holder A)
Engine Compartment - 2/2 (With Fuse Holder A)

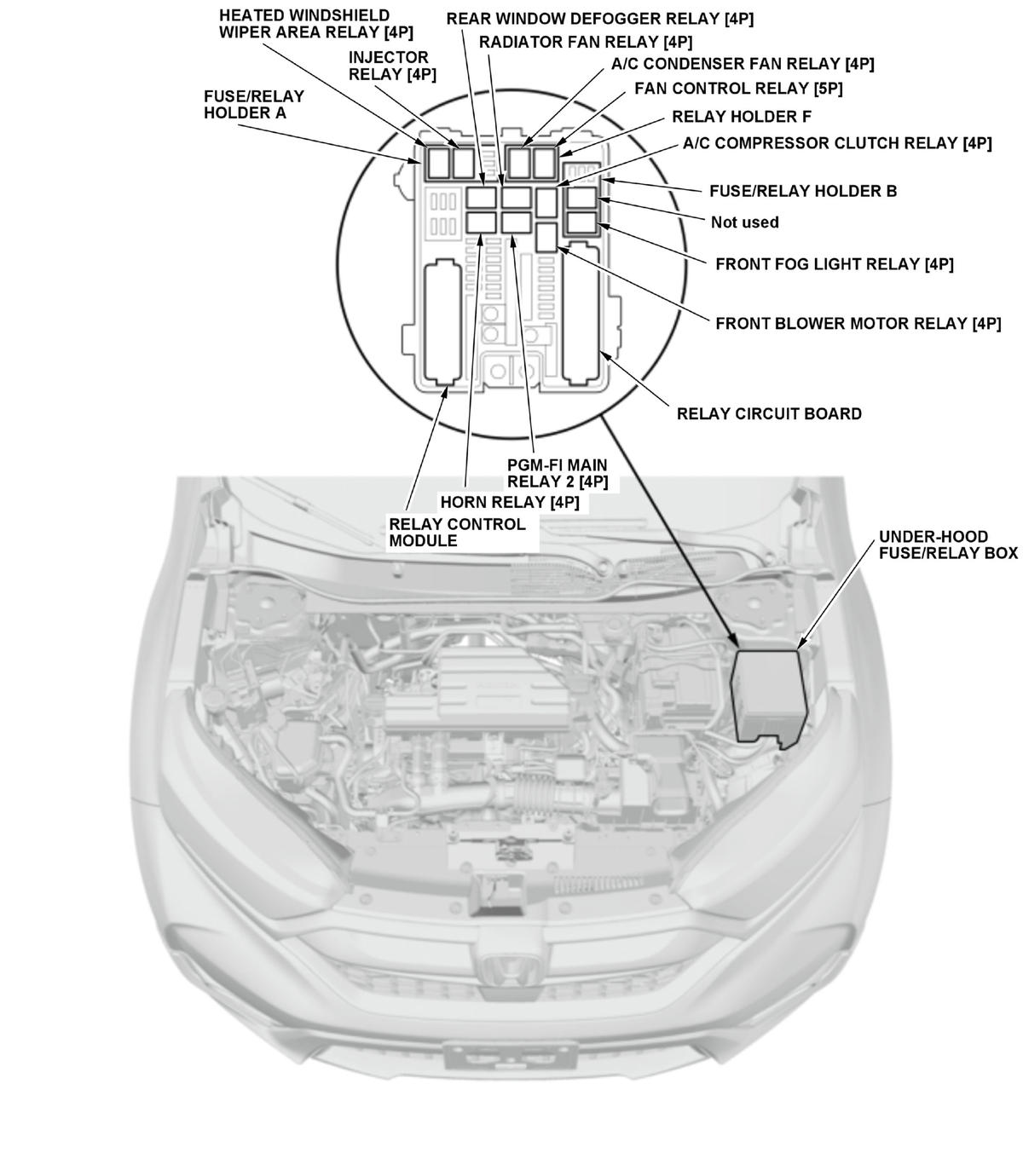

Engine Compartment - 2/2 (With Fuse Holder A) Location
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
