Relay Box Locations and Control Unit Locations
>>
Relay Locations
>>

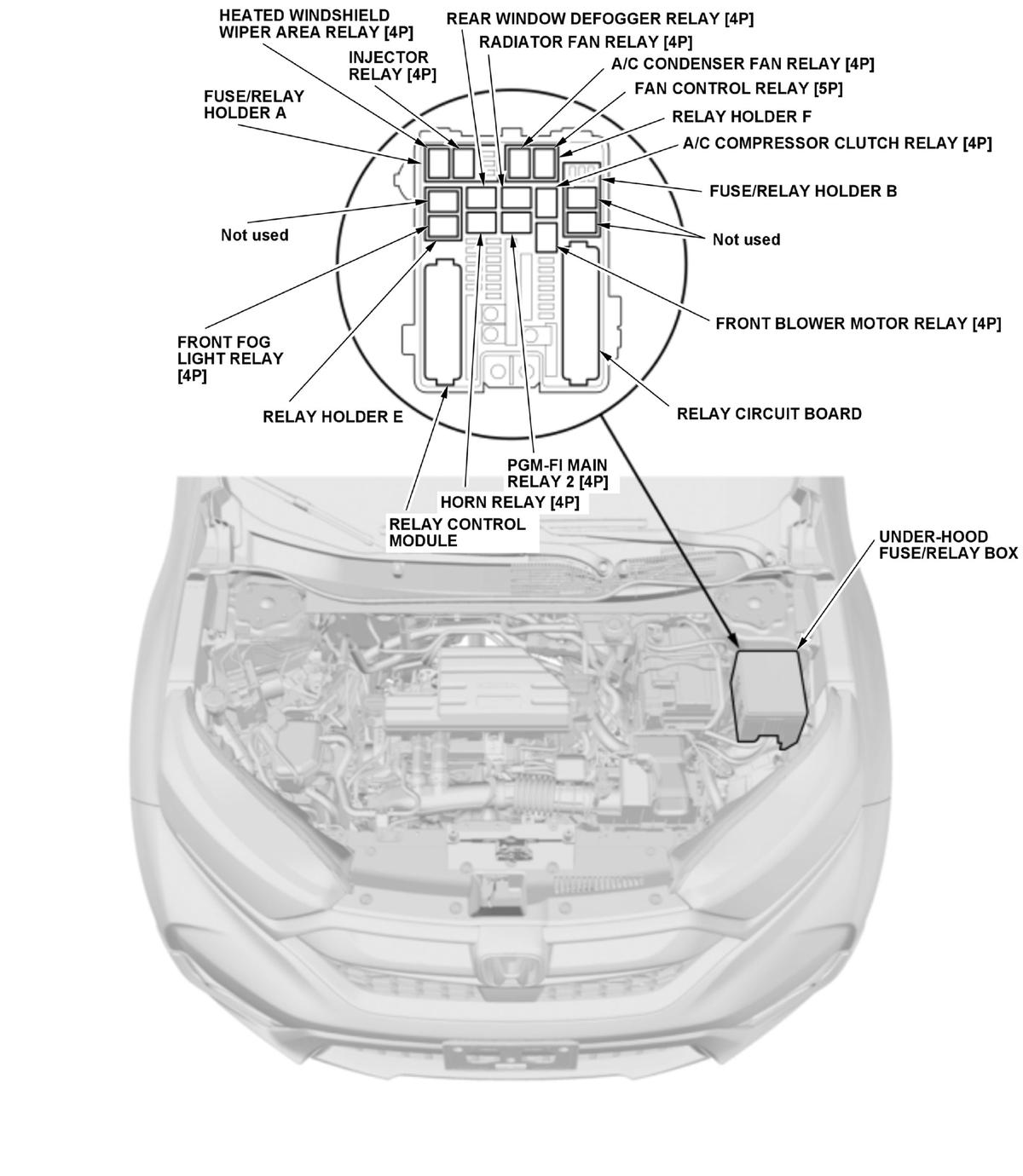

Engine Compartment - 1/2 (With Relay Holder E)
Engine Compartment - 1/2 (With Relay Holder E)
Engine Compartment - 1/2 (With Relay Holder E) Location
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
