Under-Hood Fuse/Relay Box

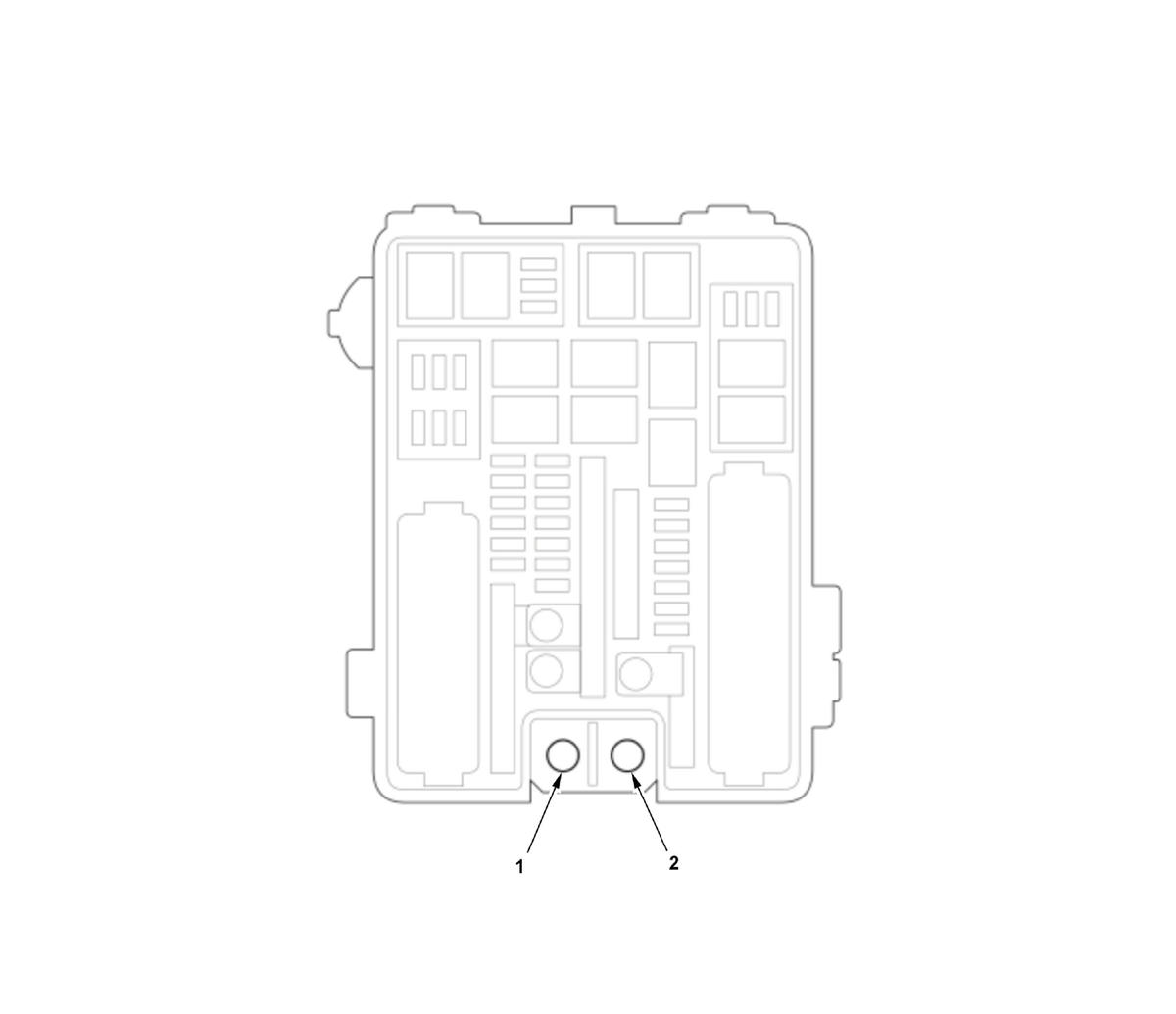

Fig 1: Under-Hood Fuse/Relay Box Component Locations
GHH424165Courtesy of HONDA, U.S.A., INC.
Under-Hood Fuse/Relay Box Legend

Socket Ref Terminal Connects to Notes
T1 1 --- Starter cable
T101 2 --- Engine wire harness
