Junction Connector Connector End View (C016) (Female)

Fig 1: Junction Connector C016 Connector View (Female)
G00673972Courtesy of HONDA, U.S.A., INC.
No.  Color  Name
2 PNK B-CAN_H
5 PNK B-CAN_H
6 PNK B-CAN_H
8 PNK B-CAN_H
11 BLU B-CAN_L
14 BLU B-CAN_L
15 BLU B-CAN_L
17 BLU B-CAN_L

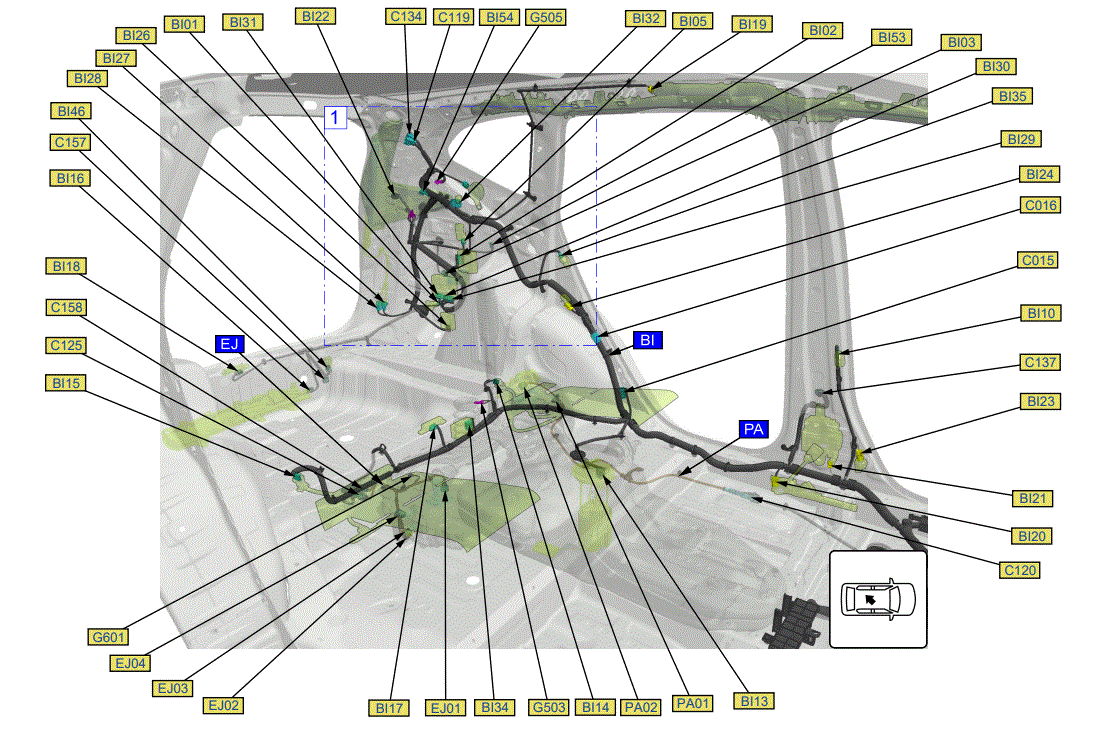

Fig 2: Junction Connector C016 Connector Location (Female)
G00673976Courtesy of HONDA, U.S.A., INC.

BI: Floor Wire Harness

Call Out  Connector Name  Male/Female  Connector Type  Notes
BI01 Cargo Area Accessory Power Socket 2P Connector Female Component Connector
BI02 AWD Control Unit 24P Connector Female Component Connector
BI03 Left Side BSI Radar Unit 6P Connector Female Component Connector
BI05 Left Cargo Area Light 2P Connector Female Component Connector
BI10 Driver's Door Switch 1P Connector Female Component Connector
BI13 Fuel Tank Unit 4P Connector Female Component Connector
BI14 Left Rear Seat Cushion Heater 4P Connector Female Component Connector
BI15 Right Rear Seat Cushion Heater 4P Connector Female Component Connector
BI16 Hands Free Access Power Tailgate Control Unit/Sensor 3P Connector Female Component Connector
BI17 Rear Interior LF Antenna 2P Connector Female Component Connector
BI18 Rear Bumper LF Antenna 2P Connector Female Component Connector
BI19 Left Side Curtain Airbag Inflator 2P Connector Female Component Connector
BI20 Driver's Seat Belt Outer Lamp Tensioner 2P Connector Female Component Connector
BI21 Driver's Seat Belt Tensioner 2P Connector Female Component Connector
BI22 Left Tailgate 8P Connector Female Component Connector
BI23 Left Side Impact Sensor (First) 4P Connector Female Component Connector
BI24 Left Side Impact Sensor (Second) 2P Connector Female Component Connector
BI26 Parking and Back-Up Sensor Control Unit 16P Connector Female Component Connector
BI27 Power Tailgate Drive Unit Connector A (2P) Male Component Connector
BI28 Power Tailgate Drive Unit Connector B (6P) Male Component Connector
BI29 Power Tailgate Control Unit Connector A (24P) Female Component Connector
BI30 Power Tailgate Control Unit Connector B (10P) Female Component Connector
BI31 Power Tailgate Control Unit Connector C (5P) Female Component Connector
BI32 Relay Holder A   Component Connector
BI34 Rear Seat Heater Control Unit 24P Connector Female Component Connector
BI35 Left Rear Door Switch 1P Connector Female Component Connector
BI46 Keyless Buzzer 3P Connector Female Component Connector
BI53 Option Connector (2P) (for Hands Free Access Power Tailgate Control Unit/Sensor) Female YOP Connector (Optional Connector)
BI54 Trailer Lighting 6P Connector Male YOP Connector (Optional Connector)
C119 C119   In-line Connector
C120 C120   In-line Connector
C125 C125   In-line Connector
C134 C134   In-line Connector
C137 C137   In-line Connector
C157 C157   In-line Connector
C158 C158   In-line Connector
C015 C015   Junction Connector
C016 C016   Junction Connector
G503 G503   Ground
G505 G505   Ground

EJ: Rear Differential Subharness

Call Out  Connector Name  Male/Female  Connector Type  Notes
EJ01 Rear Differential Pump Motor 2P Connector Female Component Connector
EJ02 Rear Differential Fluid Temperature Sensor 2P Connector Female Component Connector
EJ03 Rear Differential Fluid Pressure Sensor 3P Connector Female Component Connector
EJ04 Rear Differential Solenoid Valve 1P Connector Female Component Connector
C125 C125   In-line Connector
C158 C158   In-line Connector
G601 G601   Ground

PA: Left-Rear Electric Parking Brake Actuator Wire Harness

Call Out  Connector Name  Male/Female  Connector Type  Notes
PA01 Left-Rear Wheel Speed Sensor 2P Connector Female Component Connector
PA02 Left-Rear Electric Parking Brake Actuator 2P Connector Female Component Connector
C120 C120   In-line Connector
