Junction Connector Connector End View (C002) (Female)

Fig 1: Junction Connector C002 Connector View (Female)
G00673964Courtesy of HONDA, U.S.A., INC.
No.  Color  Name
1 PNK B-CAN_H
2 PNK B-CAN_H
4 PNK B-CAN_H
5 PNK B-CAN_H
6 PNK B-CAN_H
7 PNK B-CAN_H
8 BLU B-CAN_L
10 BLU B-CAN_L
11 BLU B-CAN_L
13 BLU B-CAN_L
14 BLU B-CAN_L
15 BLU B-CAN_L
16 BLU B-CAN_L
17 BLU B-CAN_L

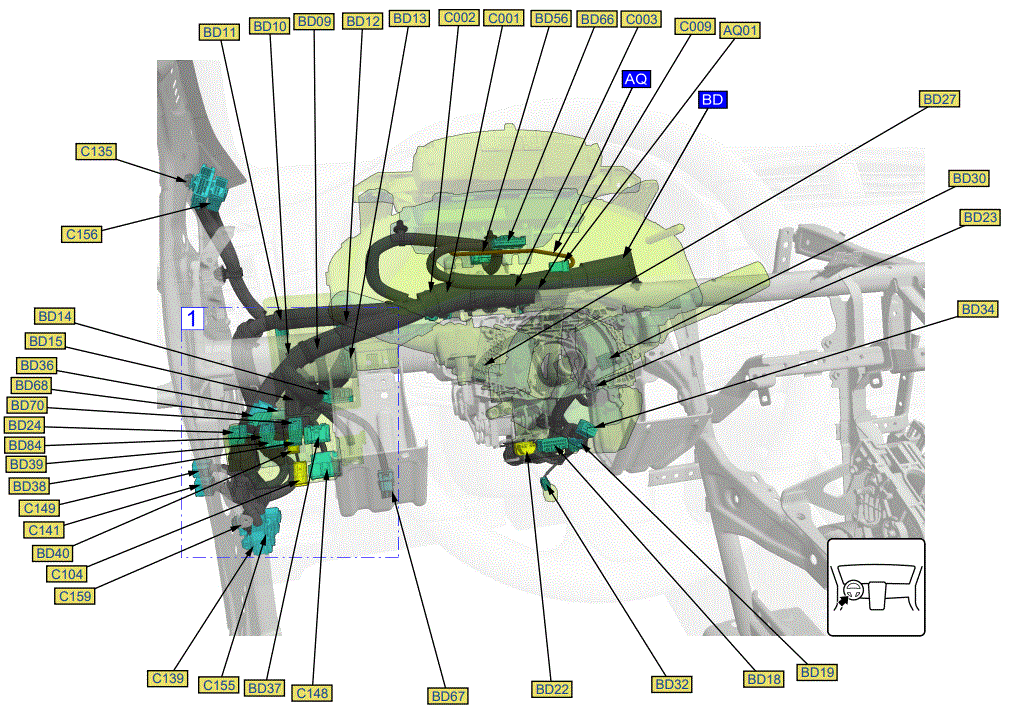

Fig 2: Junction Connector C002 Connector Location (Female)
G00673980Courtesy of HONDA, U.S.A., INC.

AQ: LVDS2 Harness

Call Out  Connector Name  Male/Female  Connector Type  Notes
AQ01 Gauge Control Module Connector C (3P) Female Component Connector

BD: Dashboard Wire Harness

Call Out  Connector Name  Male/Female  Connector Type  Notes
BD09 Body Control Module Connector A (14P) Female Component Connector
BD10 Body Control Module Connector B (36P) Female Component Connector
BD11 Body Control Module Connector C (28P) Female Component Connector
BD12 Body Control Module Connector D (40P) Female Component Connector
BD13 Body Control Module Connector E (24P) Female Component Connector
BD14 Body Control Module Connector F (36P) Female Component Connector
BD15 Body Control Module Connector G (32P) Female Component Connector
BD18 Cable Reel Connector A (20P) Female Component Connector
BD19 Cable Reel Connector C (2P) Female Component Connector
BD22 Cable Reel Connector B (4P) Female Component Connector
BD23 CAN Gateway 12P Connector Female Component Connector
BD24 CMBS OFF Switch/RDM Switch 10P Connector Female Component Connector
BD27 Combination Light Switch 12P Connector Female Component Connector
BD30 Wiper/Washer Switch 10P Connector Female Component Connector
BD32 Driver's Footwell Light 2P Connector Female Component Connector
BD34 Electric Steering Lock 12P Connector Female Component Connector
BD36 Under-Dash Fuse/Relay Box Connector K (5P) Female Component Connector
BD37 Under-Dash Fuse/Relay Box Connector E (18P) Female Component Connector
BD38 Under-Dash Fuse/Relay Box Connector F (12P) Female Component Connector
BD39 Under-Dash Fuse/Relay Box Connector G (20P) Female Component Connector
BD40 Under-Dash Fuse/Relay Box Connector D (4P) Female Component Connector
BD56 Head Up Display 28P Connector Female Component Connector
BD66 Gauge Control Module Connector A (32P) Female Component Connector
BD70 Driver's Power Tailgate Switch/Ultrasonic Sensor Off Switch 12P Connector Female Component Connector
BD84 VSA OFF Switch 4P Connector Female Component Connector
BD67 Data Link Connector (DLC) Female YOP Connector (Optional Connector)
BD68 Optional Connector (6P) Male YOP Connector (Optional Connector)
C104 C104   In-line Connector
C135 C135   In-line Connector
C139 C139   In-line Connector
C141 C141   In-line Connector
C148 C148   In-line Connector
C149 C149   In-line Connector
C155 C155   In-line Connector
C156 C156   In-line Connector
C159 C159   In-line Connector
C001 C001   Junction Connector
C002 C002   Junction Connector
C003 C003   Junction Connector
C009 C009   Junction Connector
