Accessory Power Sockets Circuit Diagram
Accessory Power Sockets Circuit Diagram

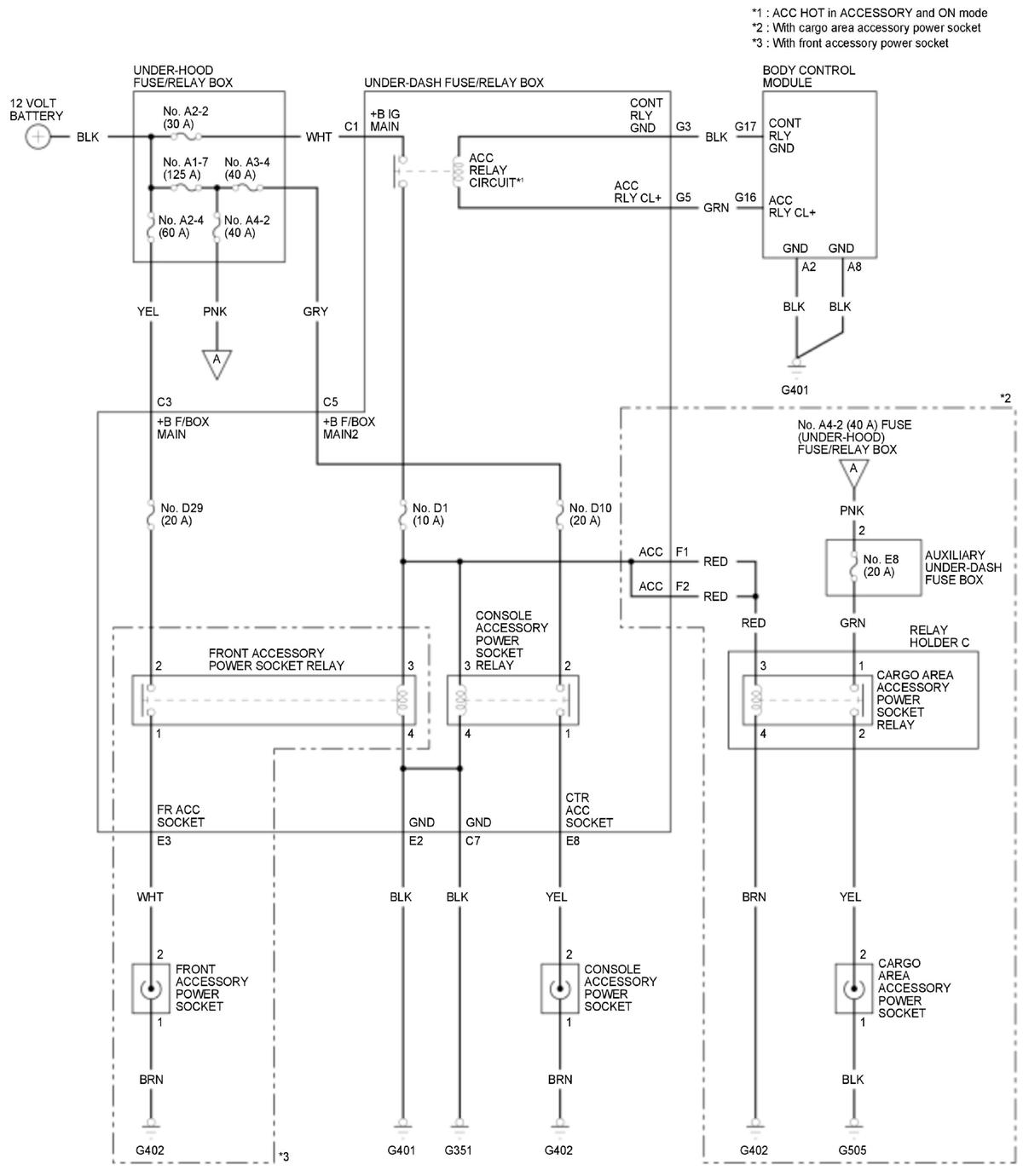

With keyless access system
Courtesy of HONDA, U.S.A., INC.

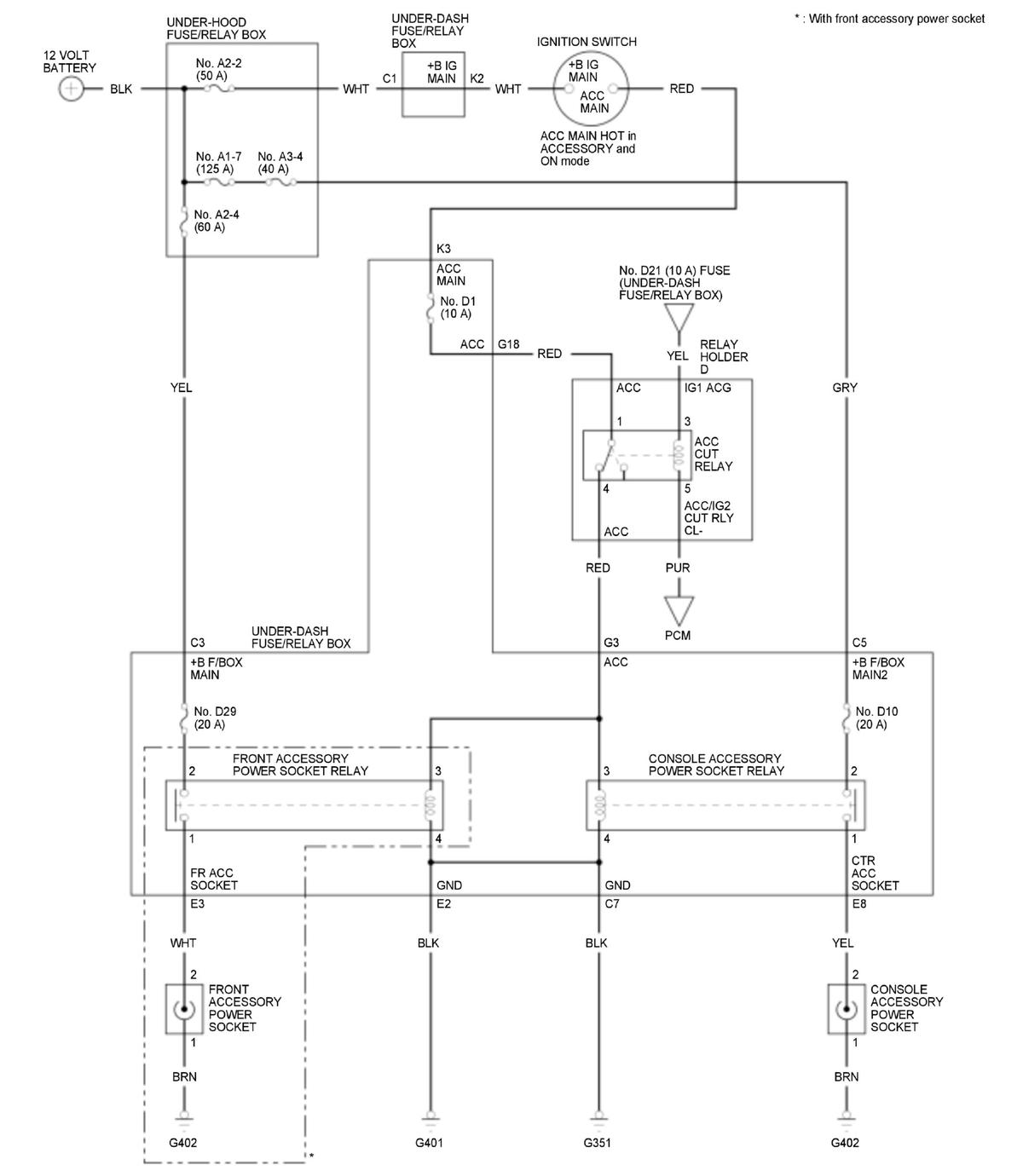

Without keyless access system
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
