Ignition Switch Removal, Installation, and Test: Test

  1. Ignition Switch - Test
    GHH424193GHH424194Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH424193GHH424194Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

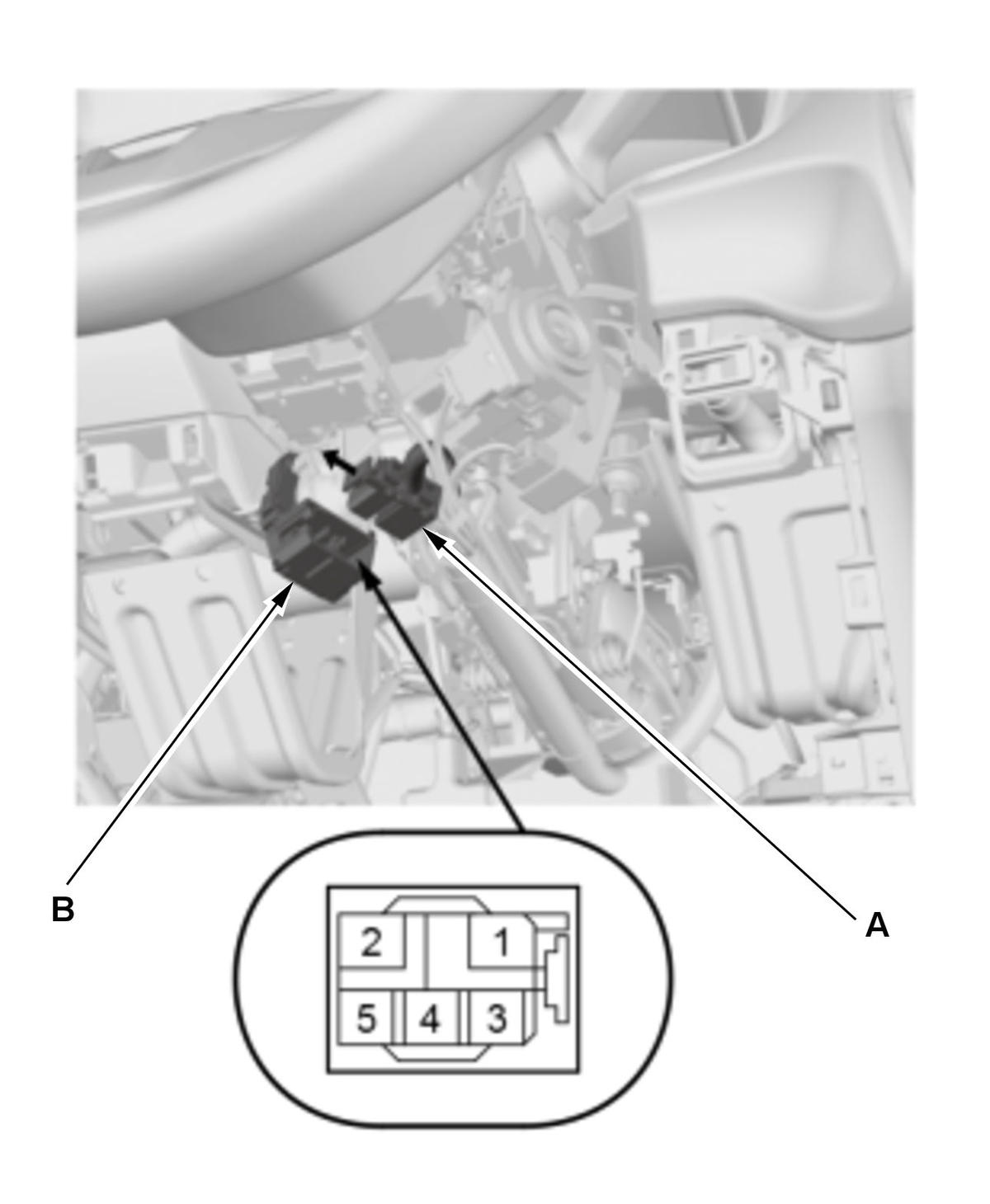

    		 1. Disconnect the connector (A).

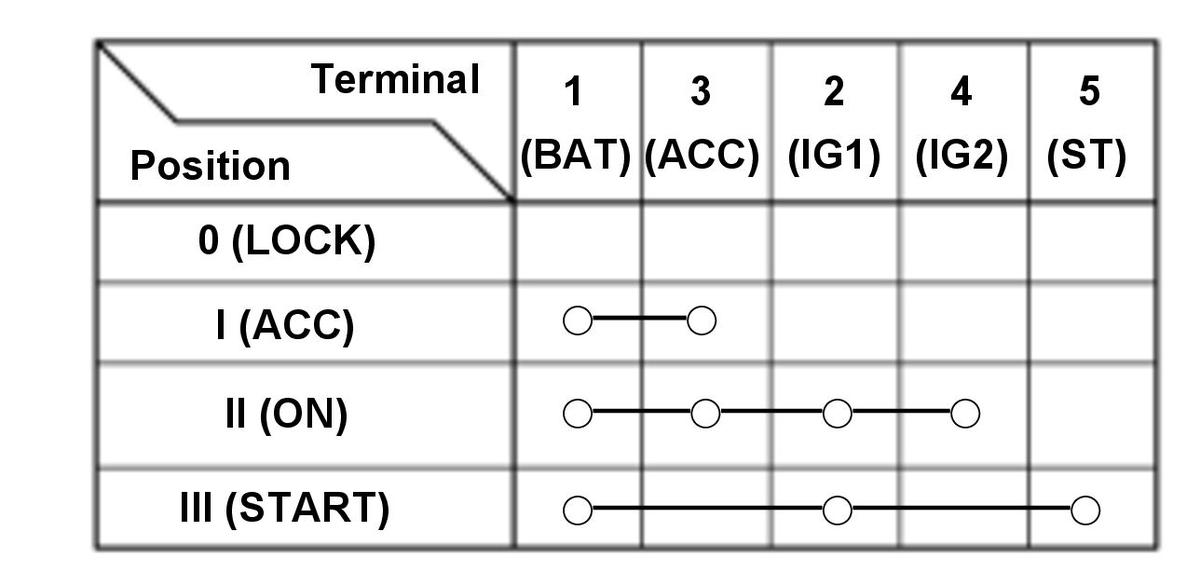

    2. Check for continuity between the terminals in each switch position according to the table.

    3. If the continuity is not as specified, replace the ignition switch (B).
  2. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
