Exploded View

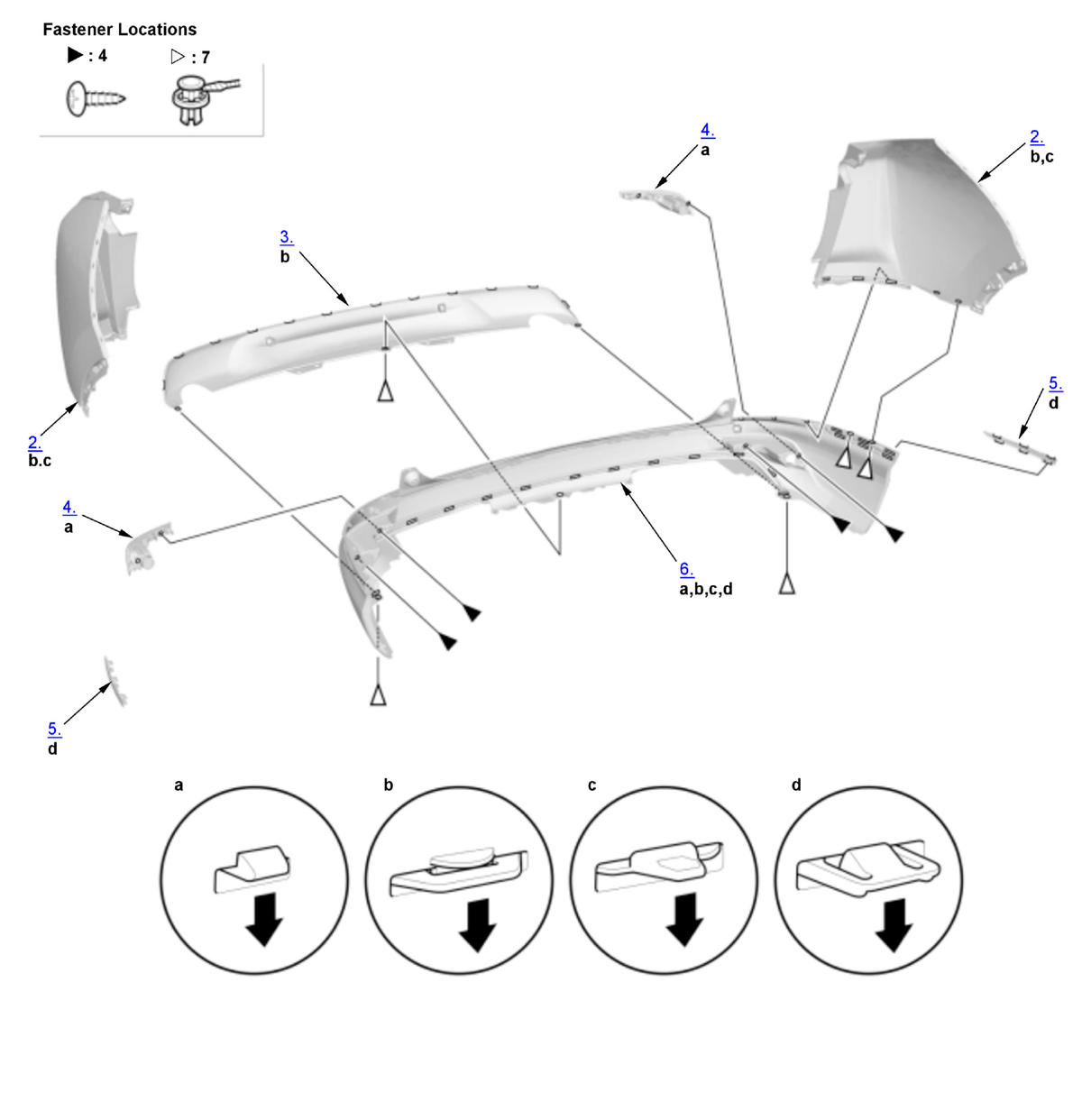

1

'17-19

Courtesy of HONDA, U.S.A., INC.

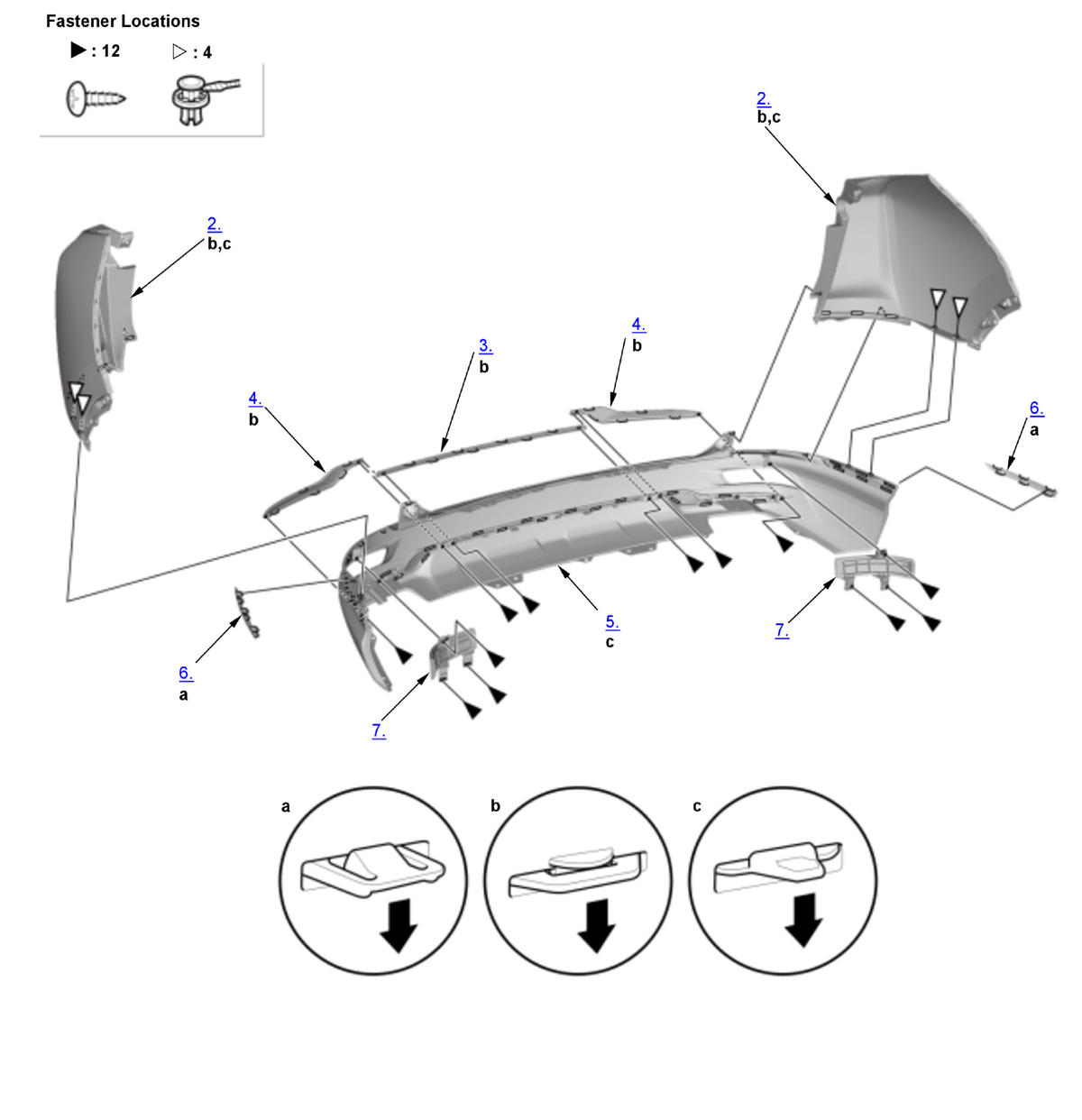

2

'20-21

Courtesy of HONDA, U.S.A., INC.

'17-19

1. Rear Bumper - Remove
2. Rear Bumper Side Face - Remove
3. Rear Bumper Lower Trim - Remove
4. Rear Bumper Reflector - Remove
5. Rear Bumper Side Molding - Remove
6. Rear Bumper Lower Face - Remove
7. All Disassembled Parts - Reassemble

   1. Reassemble the parts in the reverse order of disassembly.

   '20-21

8. Rear Bumper - Remove
9. Rear Bumper Side Face - Remove
10. Rear Bumper Center Lower Molding - Remove
11. Rear Bumper Side Lower Molding - Remove
12. Rear Bumper Lower Face - Remove
13. Rear Bumper Side Molding - Remove
14. Rear Bumper Reflector - Remove
15. All Disassembled Parts - Reassemble

    1. Reassemble the parts in the reverse order of disassembly.
