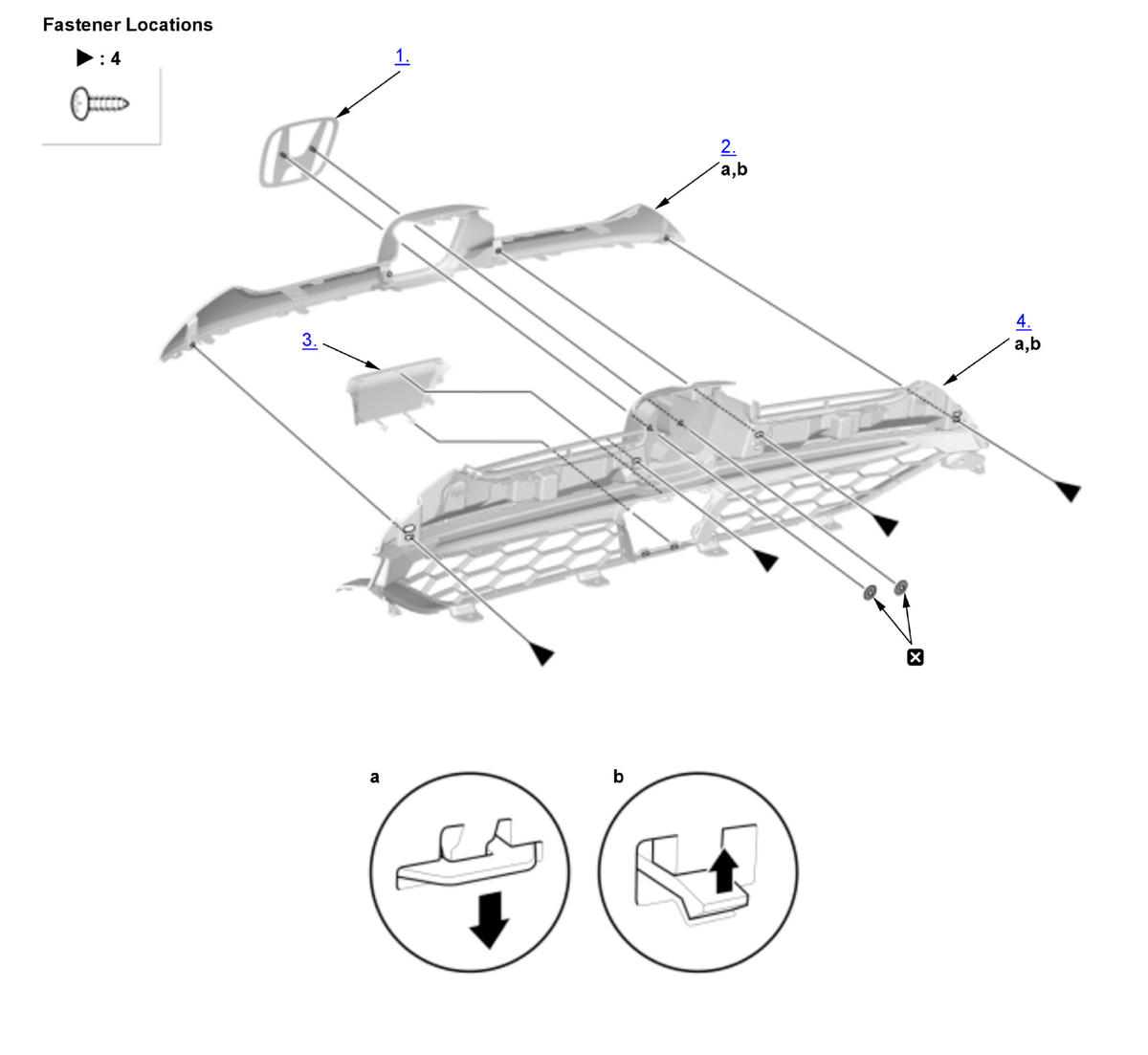

Exploded View

1

'17-19With Millimeter Wave Rader

Courtesy of HONDA, U.S.A., INC.

Replace

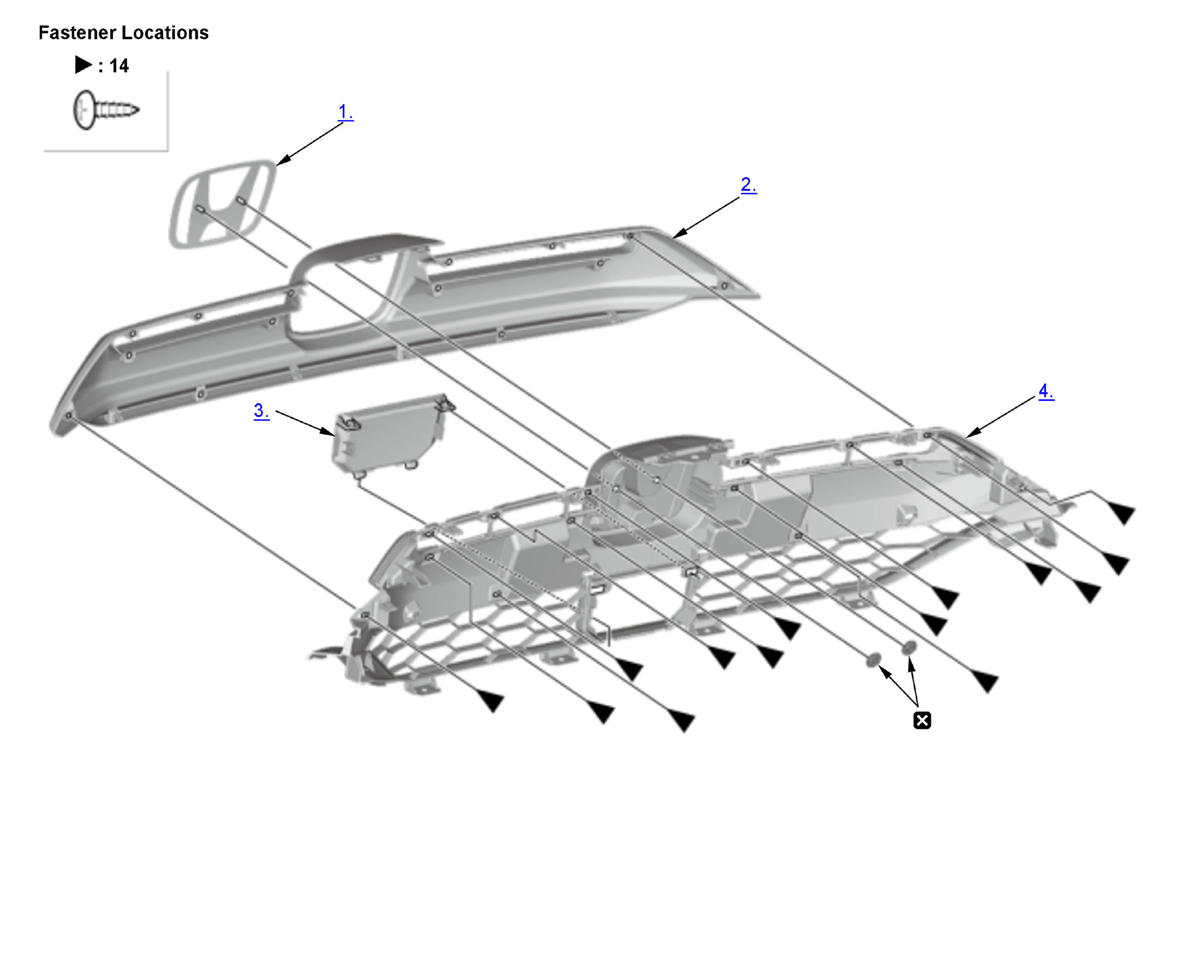

2

'17-19Without Millimeter Wave Rader

Courtesy of HONDA, U.S.A., INC.

Replace

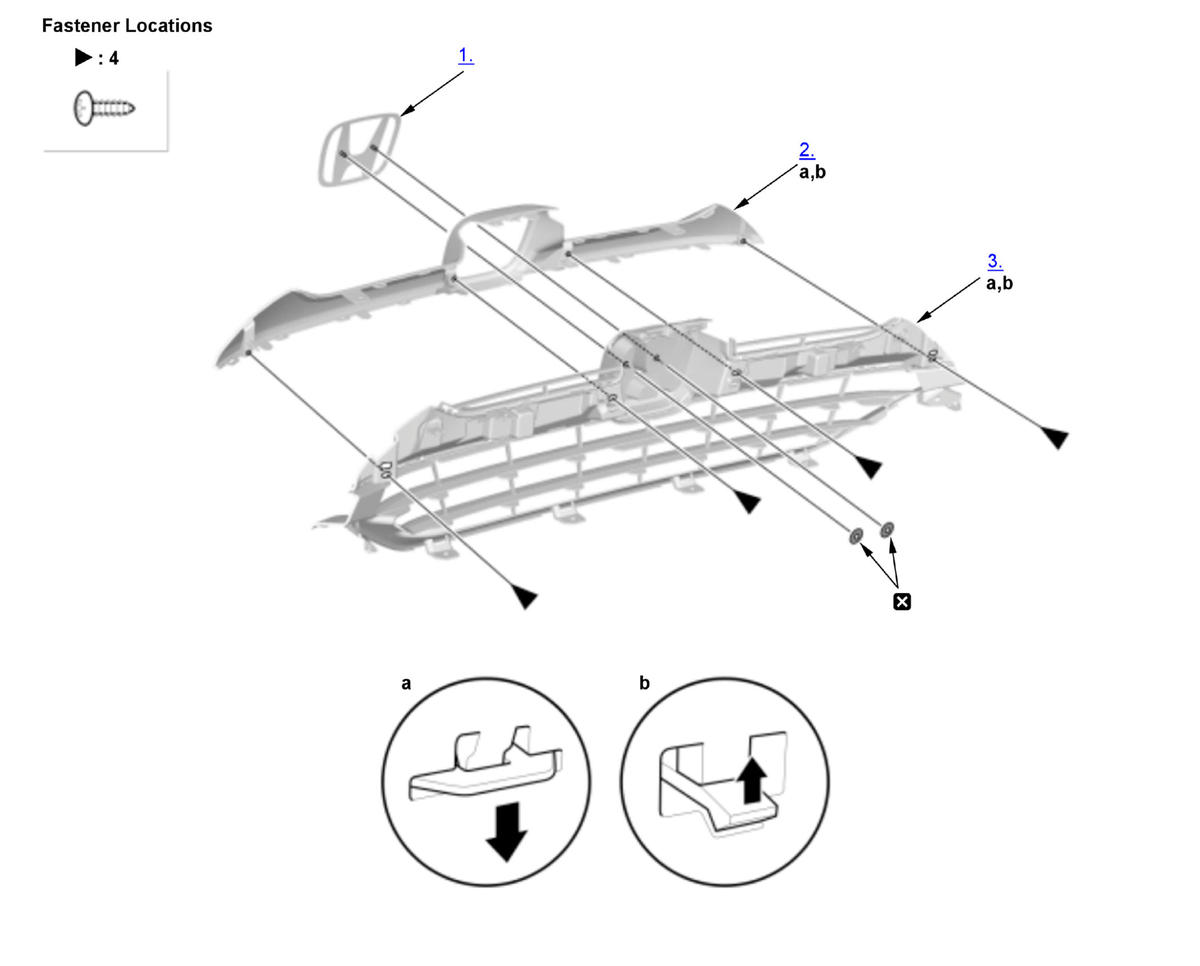

3

'20-21

Courtesy of HONDA, U.S.A., INC.

Replace

'17-19With Millimeter Wave Rader

1. Emblem - Remove
2. Front Grille Molding - Remove
3. Front Grille Rader Cover - Remove
4. Front Grille Base - Remove
5. All Disassembled Parts - Reassemble

   1. Reassemble the parts in the reverse order of disassembly.

   '17-19Without Millimeter Wave Rader

6. Emblem - Remove
7. Front Grille Molding - Remove
8. Front Grille Base - Remove
9. All Disassembled Parts - Reassemble

   1. Reassemble the parts in the reverse order of disassembly.

   '20-21

10. Emblem - Remove
11. Front Grille Molding - Remove
12. Front Grille Rader Cover - Remove
13. Front Grille Base - Remove
14. All Disassembled Parts - Reassemble

    1. Reassemble the parts in the reverse order of disassembly.
