Exploded View

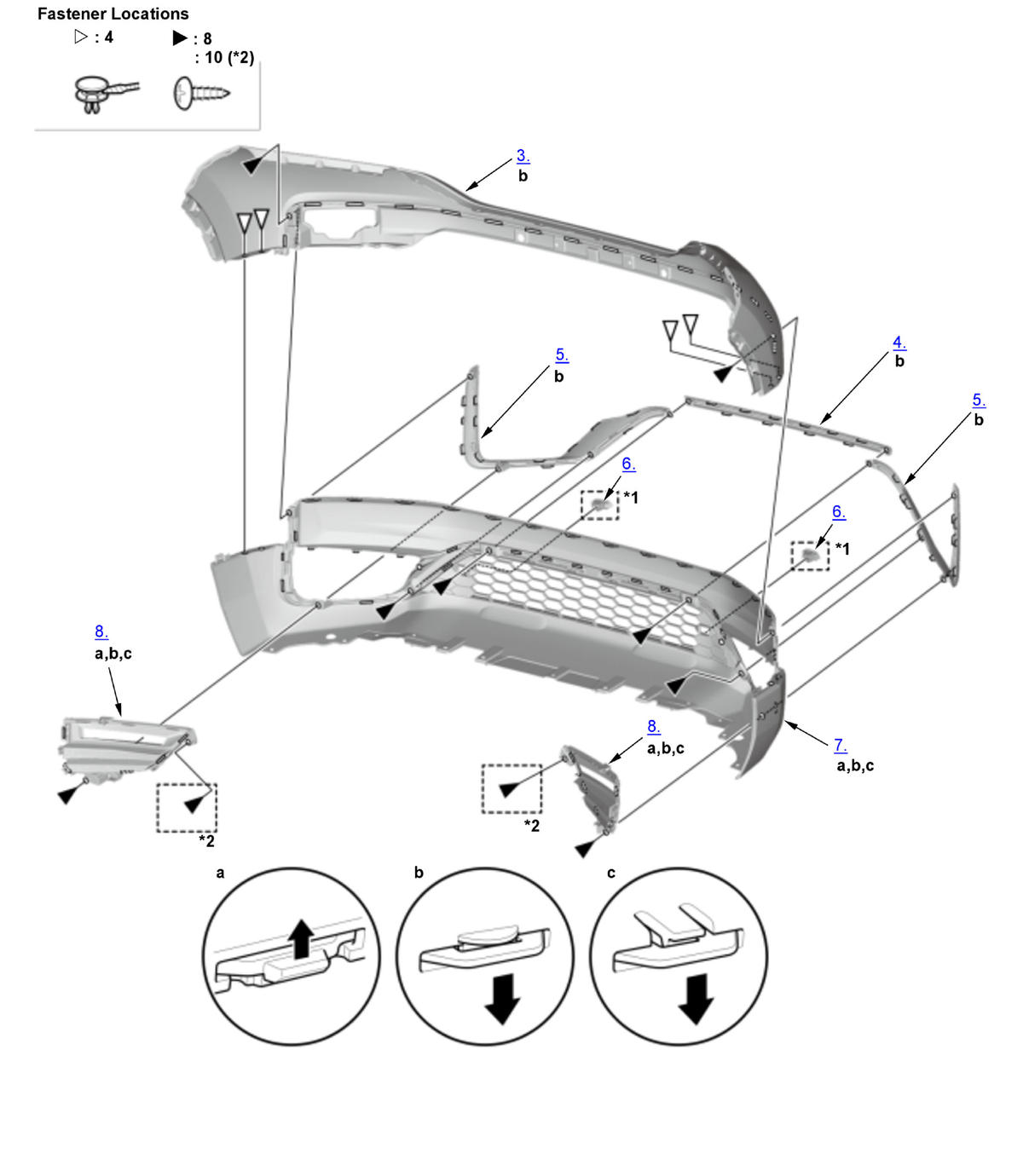

1

'17-19

Courtesy of HONDA, U.S.A., INC.

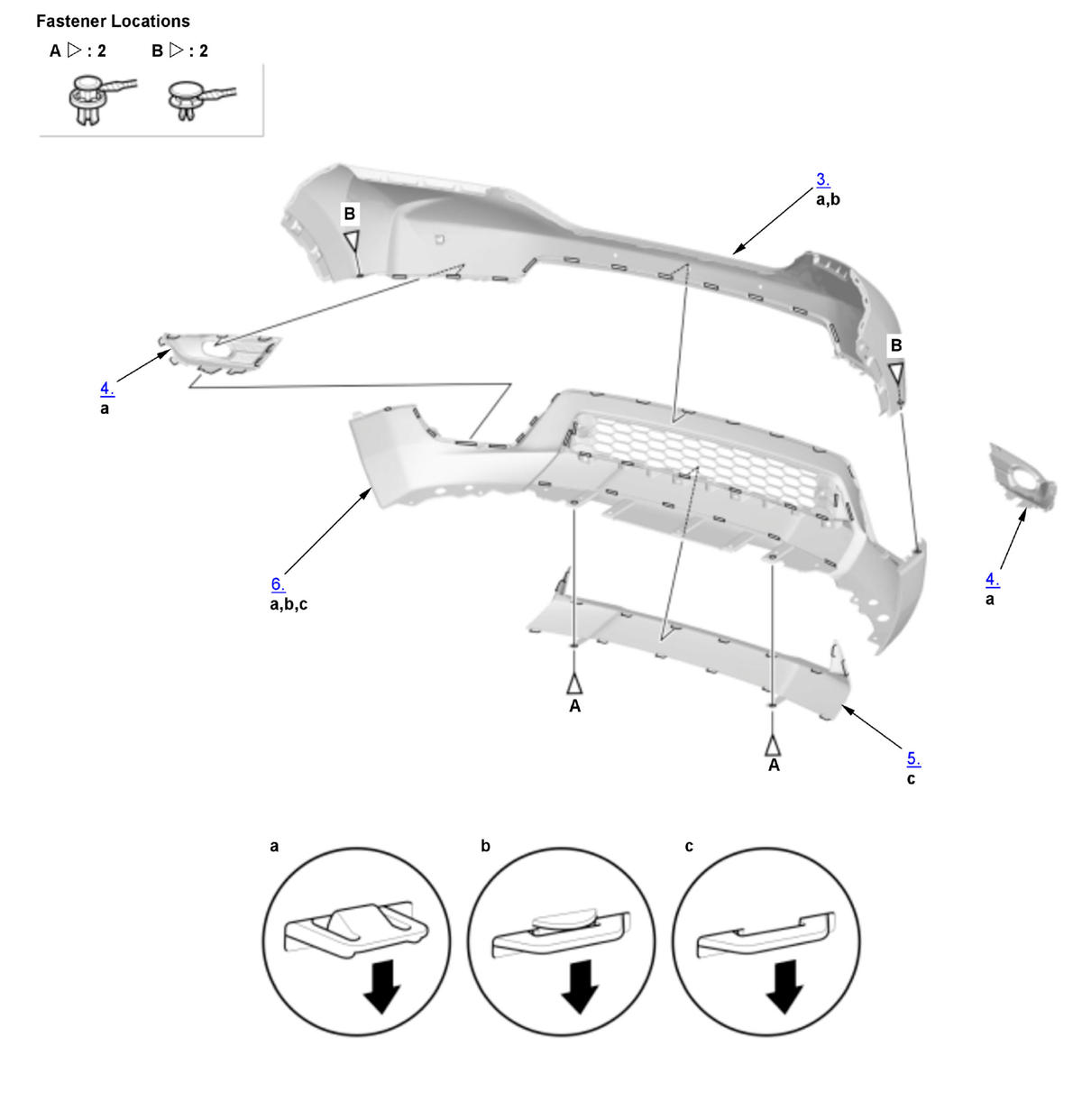

2

'20-21

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
*1	Without front center sensor
*2	With front fog light (5-LED type)

'17-19

1. Front Bumper - Remove
2. Front Grille - Remove
3. Front Bumper Face - Remove
4. Front Bumper Fog Covers - Remove
5. Front Bumper Lower Trim - Remove
6. Front Bumper Lower Face - Remove
7. All Disassembled Parts - Reassemble

   1. Reassemble the parts in the reverse order of disassembly.

   '20-21

8. Front Bumper - Remove
9. Front Grille - Remove
10. Front Bumper Face - Remove
11. Front Bumper Center Lower Molding - Remove
12. Front Bumper Side Lower Molding - Remove
13. Front Bumper Parking Sensor Cover - Remove
14. Front Bumper Lower Face - Remove
15. Front Bumper Fog Covers - Remove
16. All Disassembled Parts - Reassemble

    1. Reassemble the parts in the reverse order of disassembly.
