Resetting the Parking and Back-Up Sensor Control Unit (2020 2021): Procedure

Reset the parking and back-up sensor control unit after doing any of the following actions:

• When you replace the parking and back-up sensor.
• When you change the parking and back-up sensor mounting location from the original location.

NOTE:  Before performing the resetting procedure, make sure that each the parking and back-up sensor is connected.

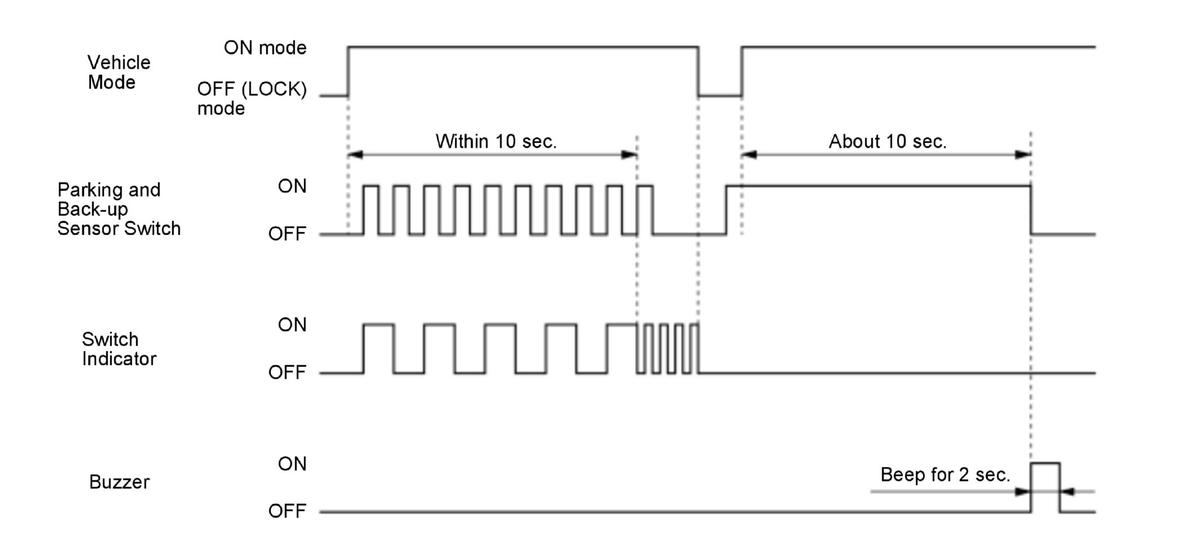

Resetting Procedure

1. Turn the vehicle to the ON mode.

2. Press the parking and back-up sensor switch 10 times, within 10 seconds.

NOTE:  The parking and back-up sensor switch indicator will blinks.

3. Turn the vehicle to the OFF (LOCK) mode.

4. Press and hold the parking and back-up sensor switch.

5. Turn the vehicle to the ON mode.

6. Wait about 10 seconds.

NOTE:  When the resetting of the parking and back-up sensor control unit is successful, the buzzer sounds for 2 seconds.

Courtesy of HONDA, U.S.A., INC.

7. Press the parking and back-up sensor switch.

8. Make sure that the system works normally.
