The Gauge Drive Circuit Check

When entering the self-diagnostic mode, the tachometer (without multi-information display), the fuel gauge, and the engine coolant temperature gauge sweep from the minimum position to the maximum position, then return to the minimum position.

NOTE:  After the beeper stops sounding and the gauge needles return to the minimum position, pressing the SEL/RESET knob starts the Beeper Drive Circuit Check (one beep) and the Gauge Drive Circuit Check again. The check cannot be started again until the gauge needles return to the minimum position.

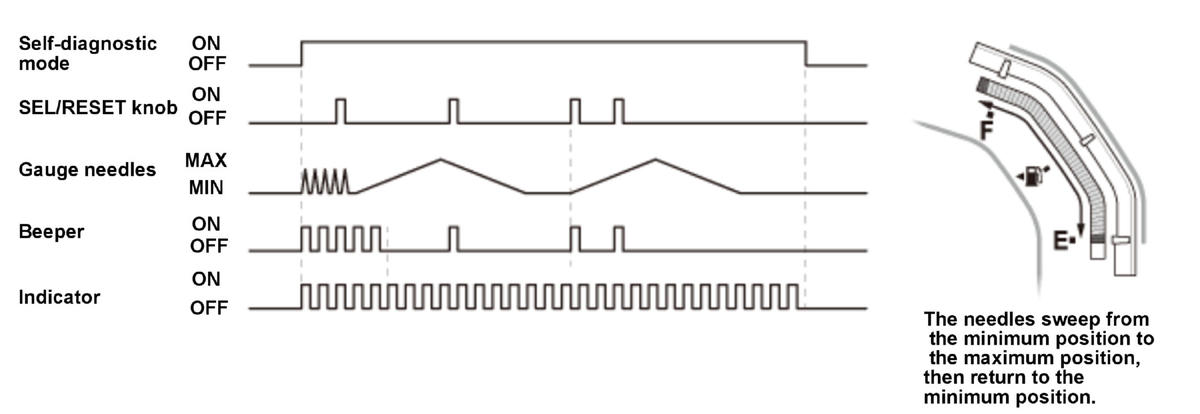

With Multi-Information Display

Courtesy of HONDA, U.S.A., INC.

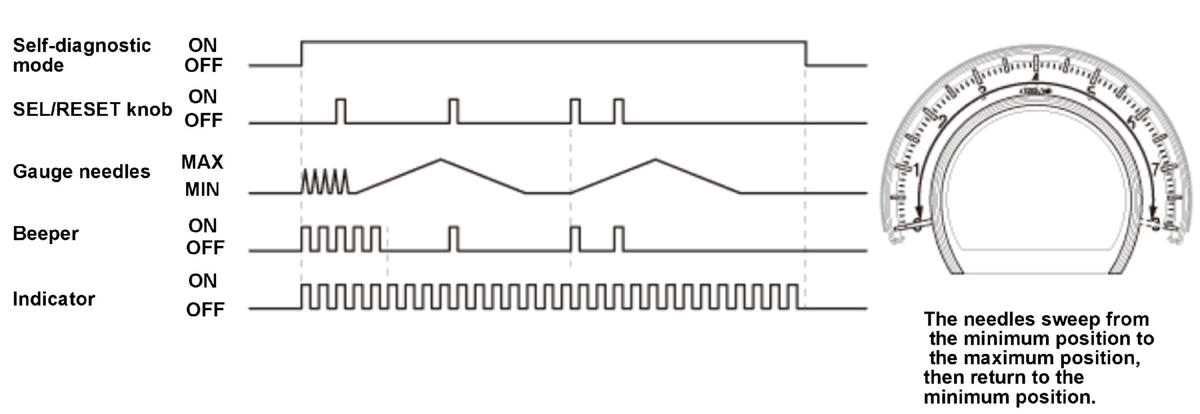

Without Multi-Information Display

Courtesy of HONDA, U.S.A., INC.
