Home >> Honda >> 2021 >> CR-V EX-L, AWD >> Repair and Diagnosis >> Electrical >> Gauges >> Gauges - Testing & Troubleshooting (Except Hybrid) >> Component Location Index >> Safety Indicator System Component Location Index

Safety Indicator System Component Location Index

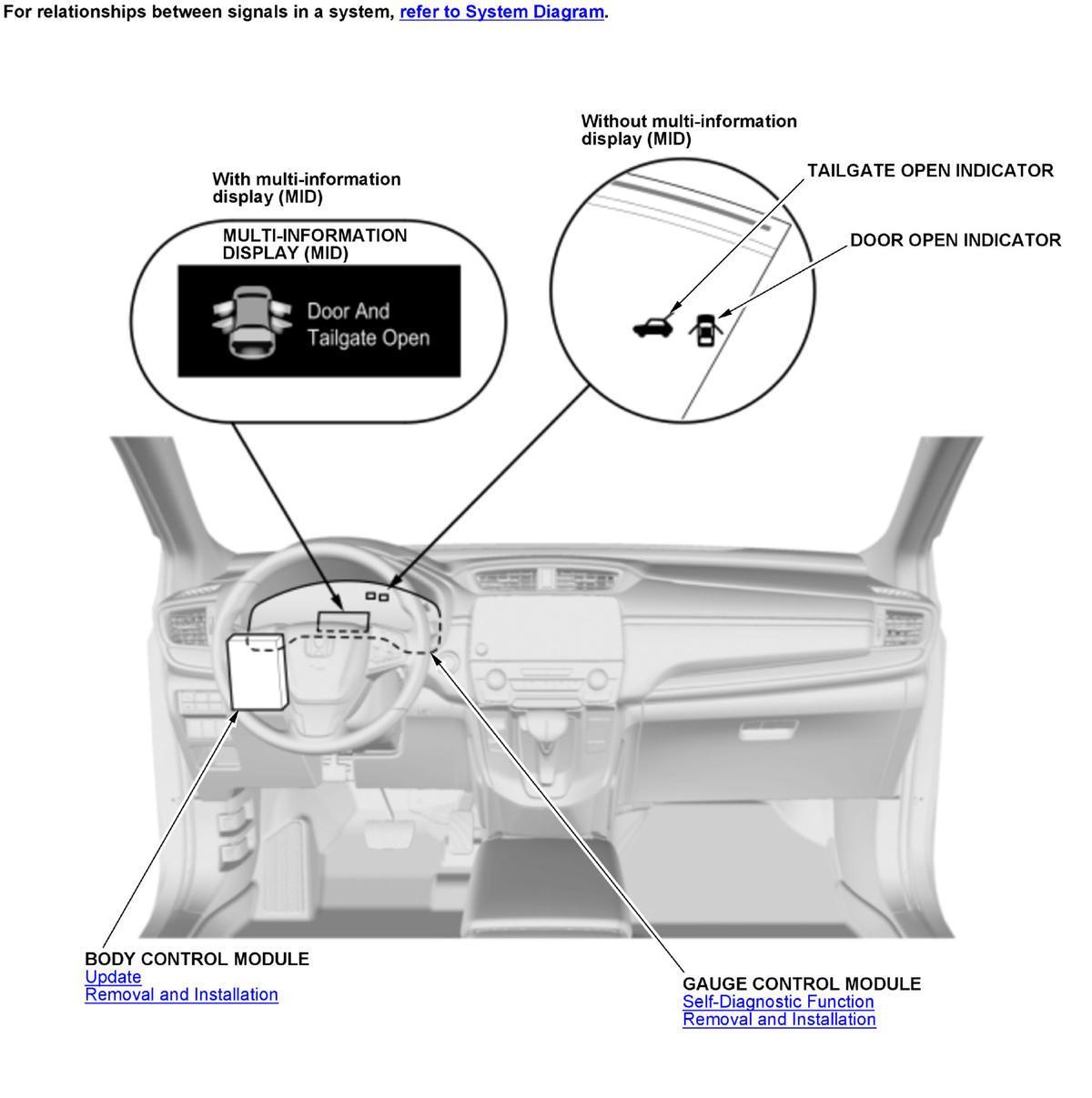

GHH428369

Courtesy of HONDA, U.S.A., INC.

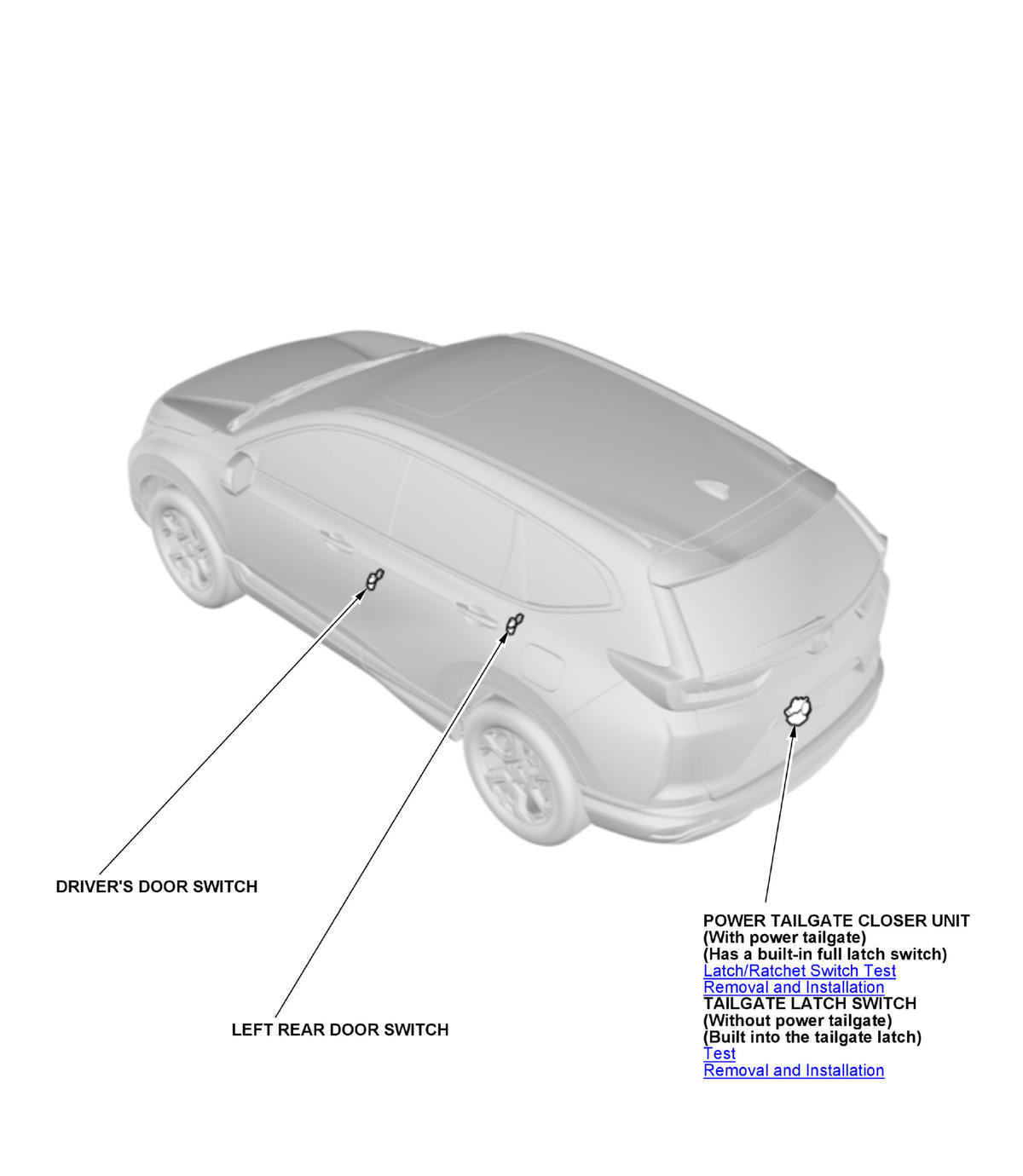

GHH428370

Courtesy of HONDA, U.S.A., INC.

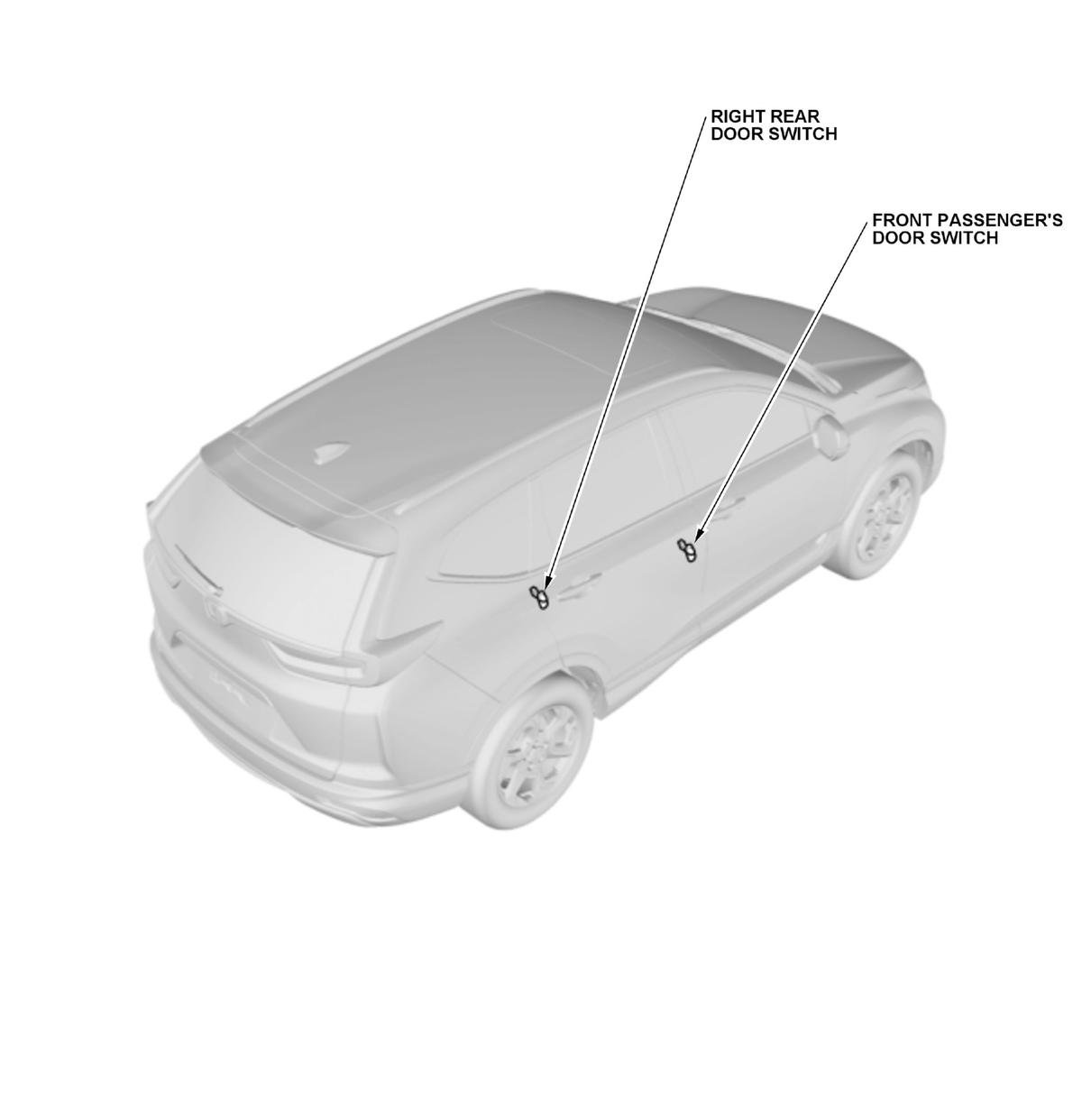

GHH428371

Courtesy of HONDA, U.S.A., INC.
