Home >> Honda >> 2021 >> CR-V EX-L, AWD >> Repair and Diagnosis >> Electrical >> Gauges >> Gauges - Testing & Troubleshooting (Except Hybrid) >> Component Location Index >> Parking and Back-Up Sensor System Component Location Index (2020 2021)

Parking and Back-Up Sensor System Component Location Index (2020 2021)

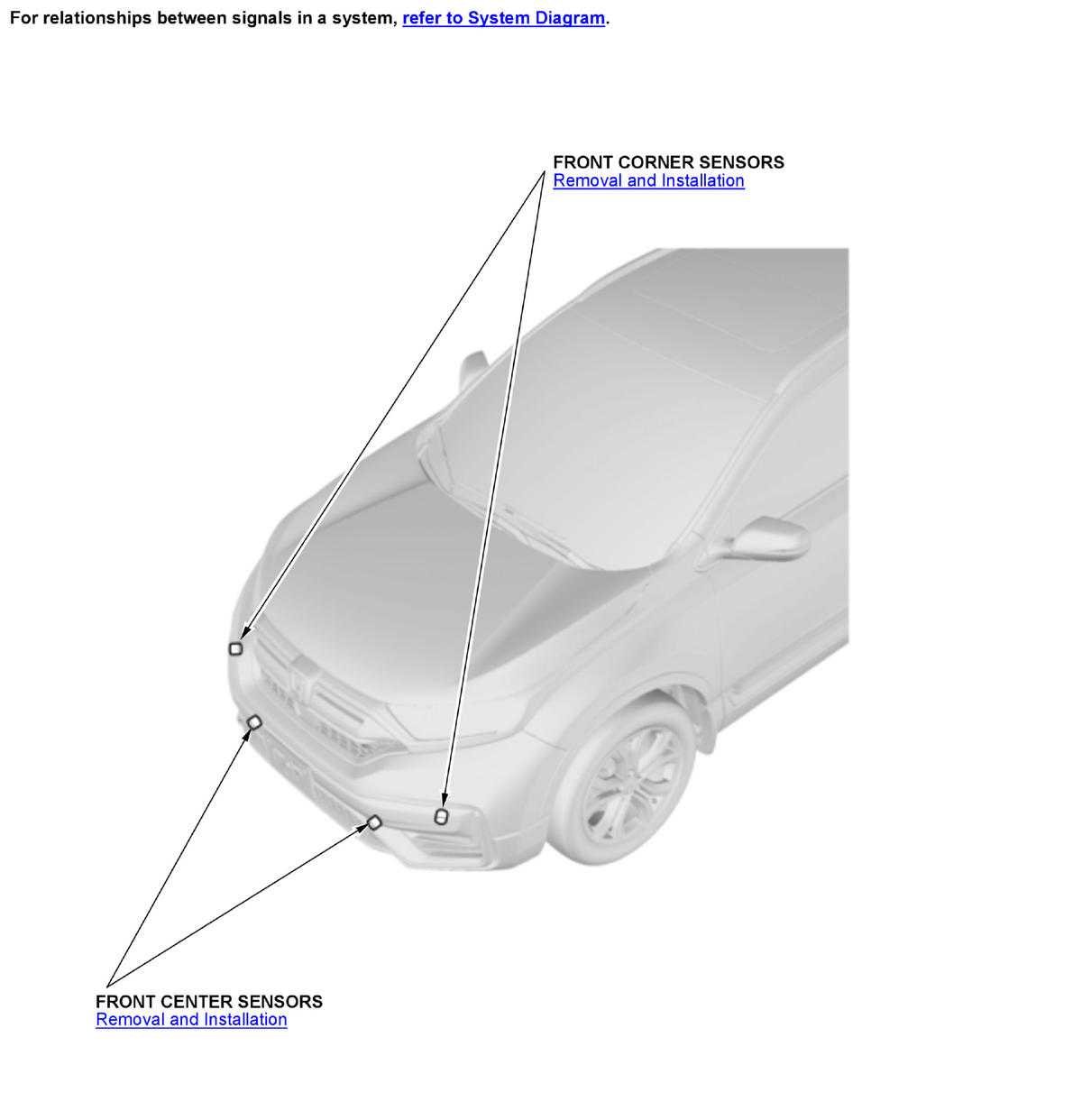

GHH428363

Courtesy of HONDA, U.S.A., INC.

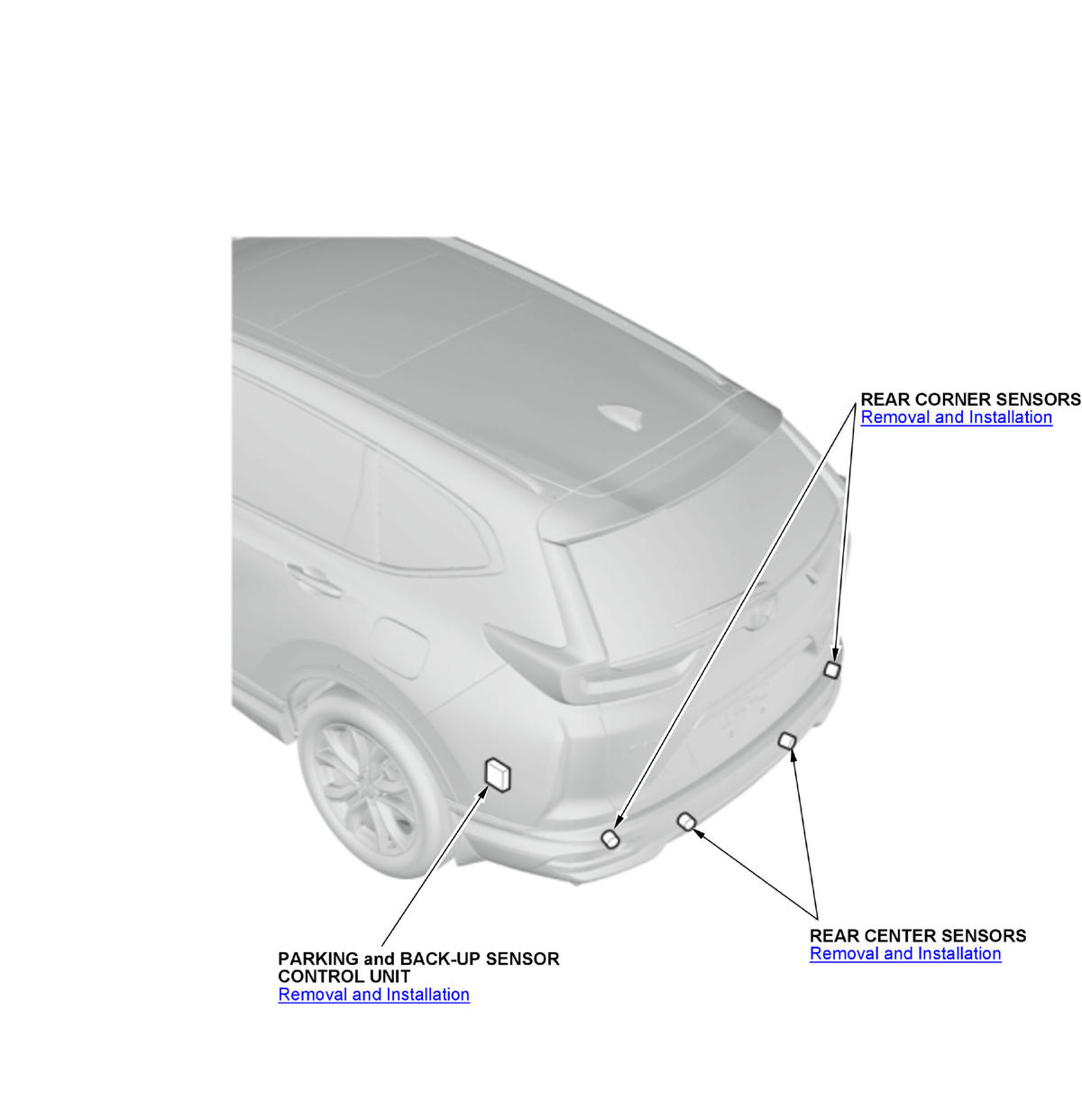

GHH428364

Courtesy of HONDA, U.S.A., INC.

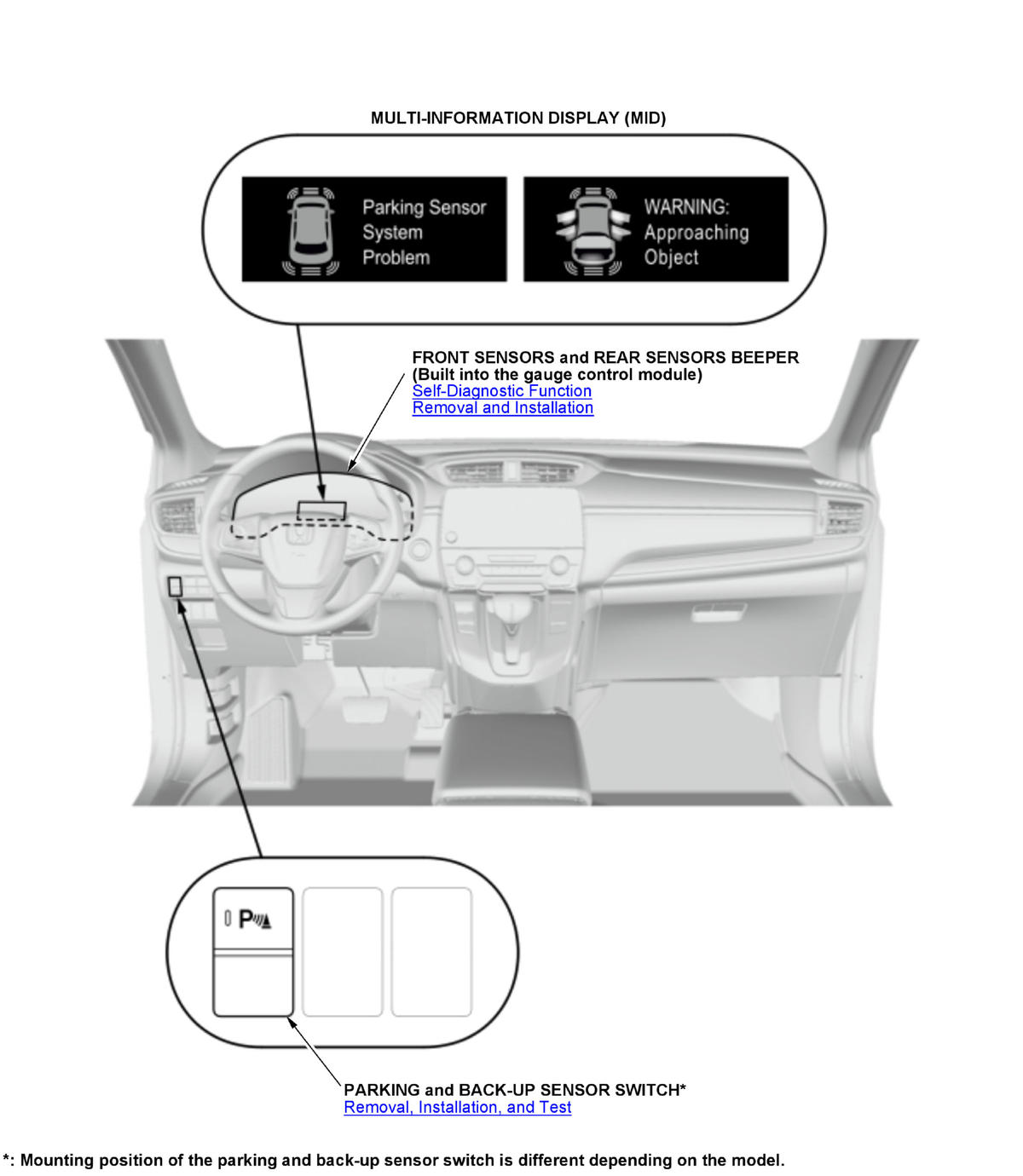

GHH428365

Courtesy of HONDA, U.S.A., INC.
