Circuit Diagram
>>

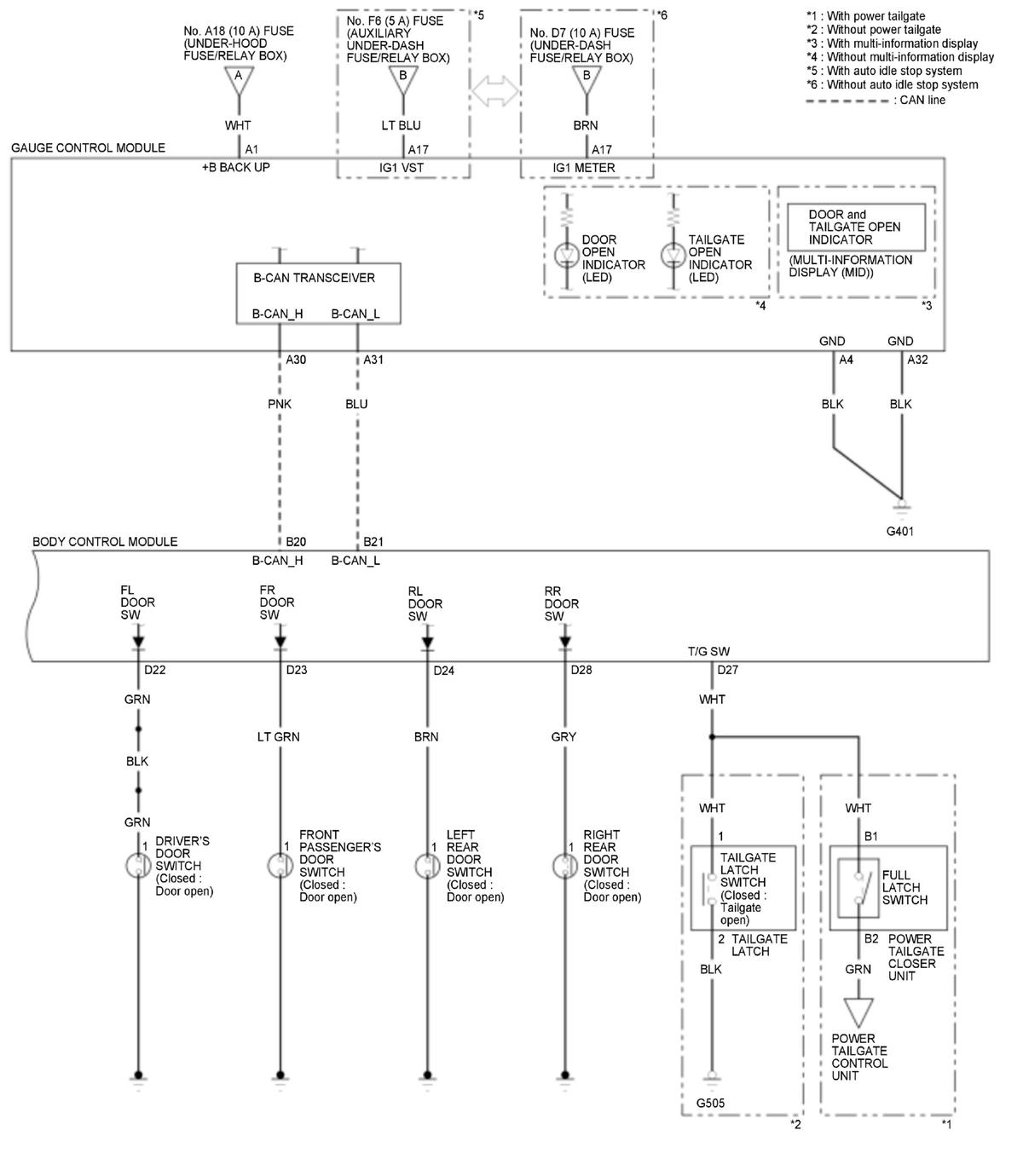

Safety Indicator System Circuit Diagram
Safety Indicator System Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
