Parking and Back-Up Sensor System Circuit Diagram (2020 2021)

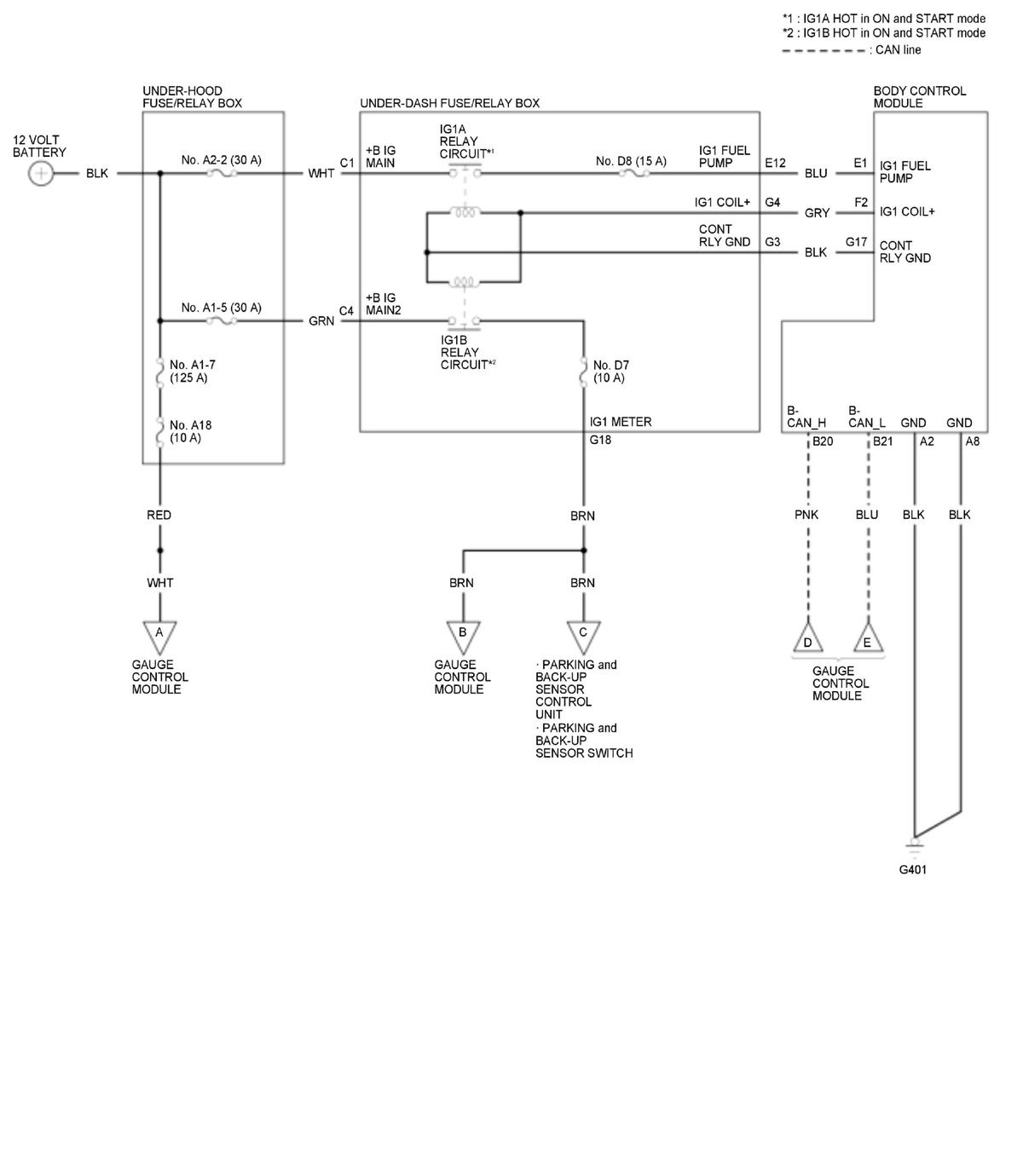

GHH428334

Courtesy of HONDA, U.S.A., INC.

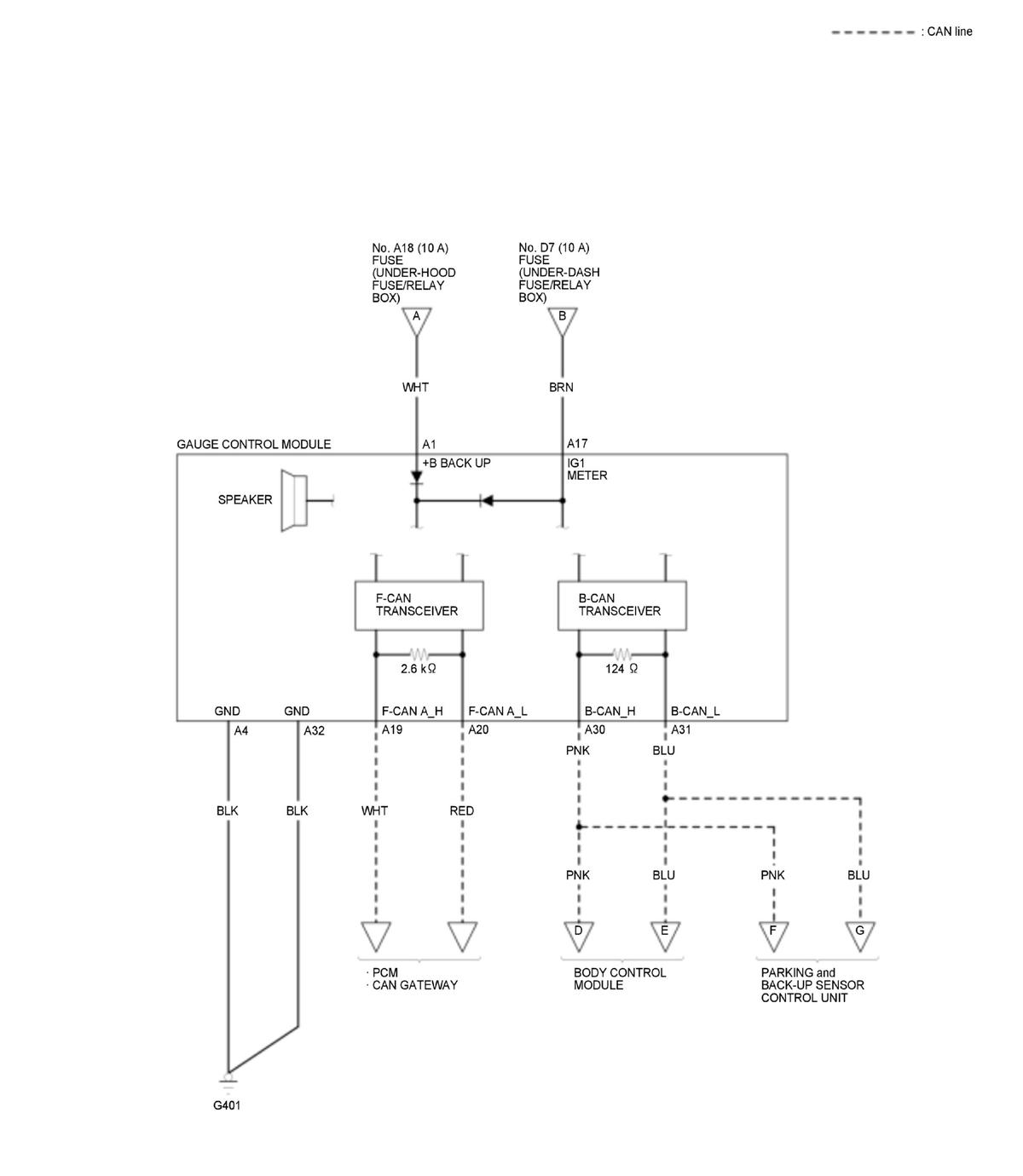

GHH428335

Courtesy of HONDA, U.S.A., INC.

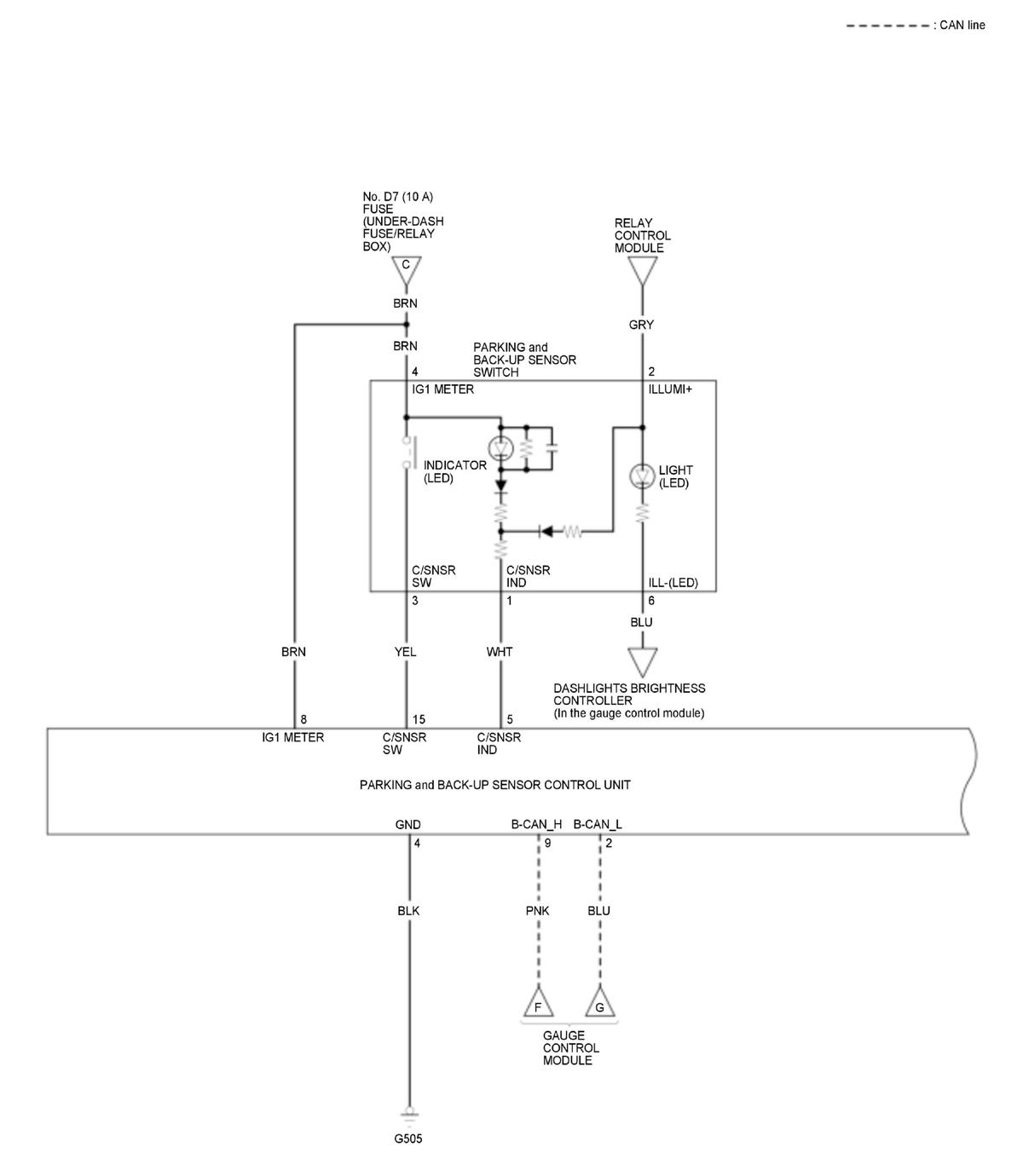

GHH428336

Courtesy of HONDA, U.S.A., INC.

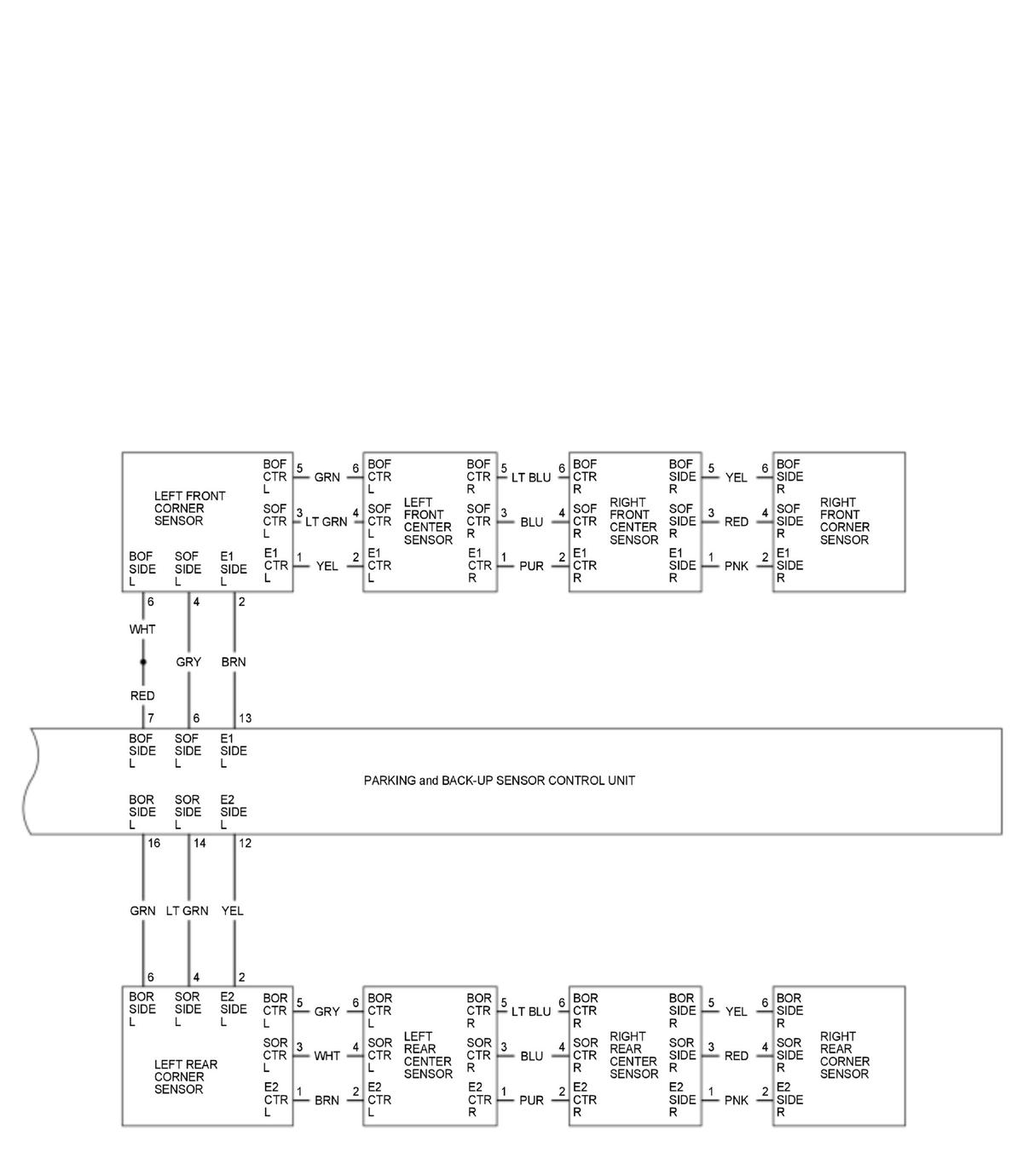

GHH428337

Courtesy of HONDA, U.S.A., INC.
