Gauges Circuit Diagram

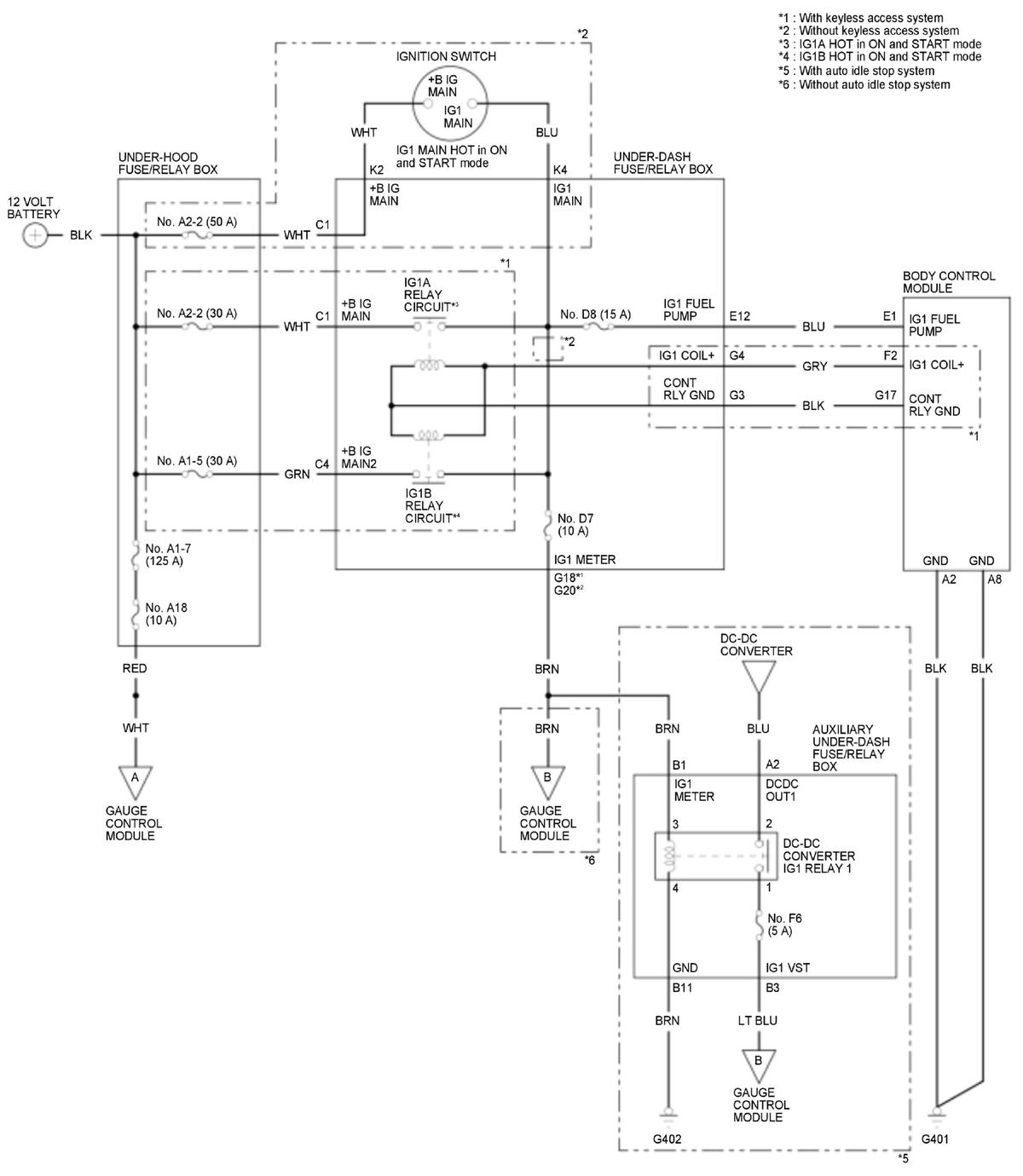

GHH428329Courtesy of HONDA, U.S.A., INC.

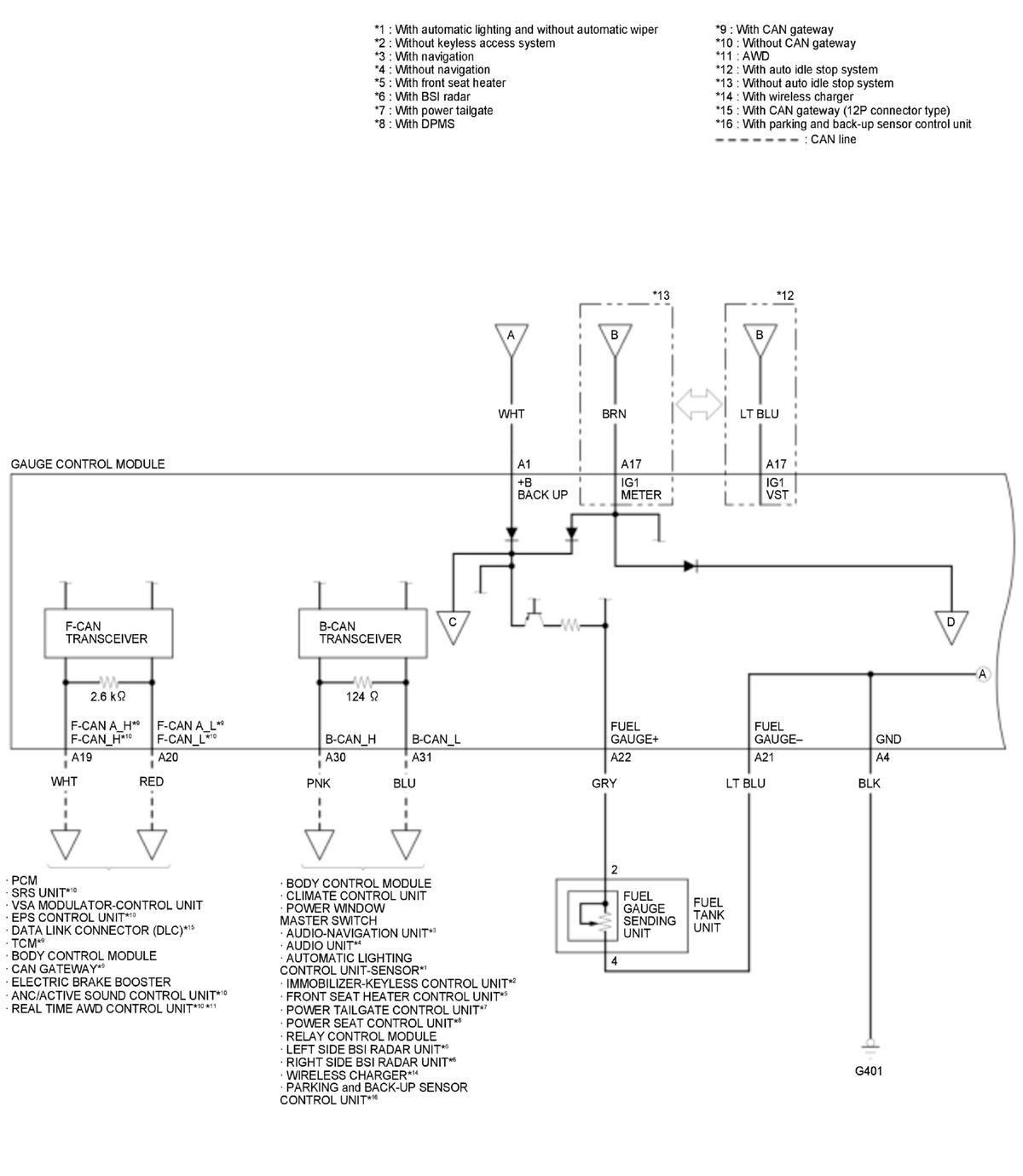

GHH428330Courtesy of HONDA, U.S.A., INC.

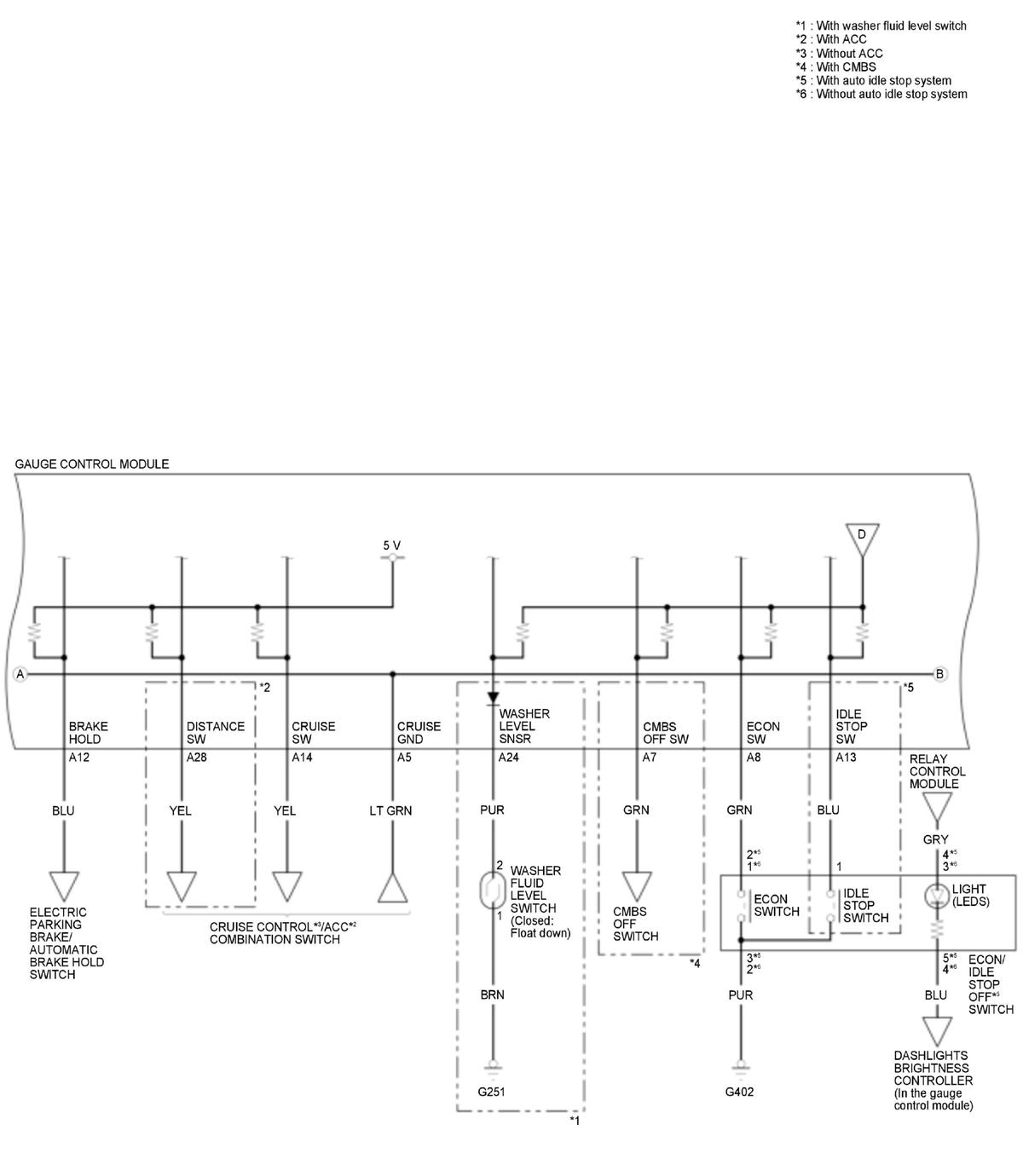

GHH428331Courtesy of HONDA, U.S.A., INC.

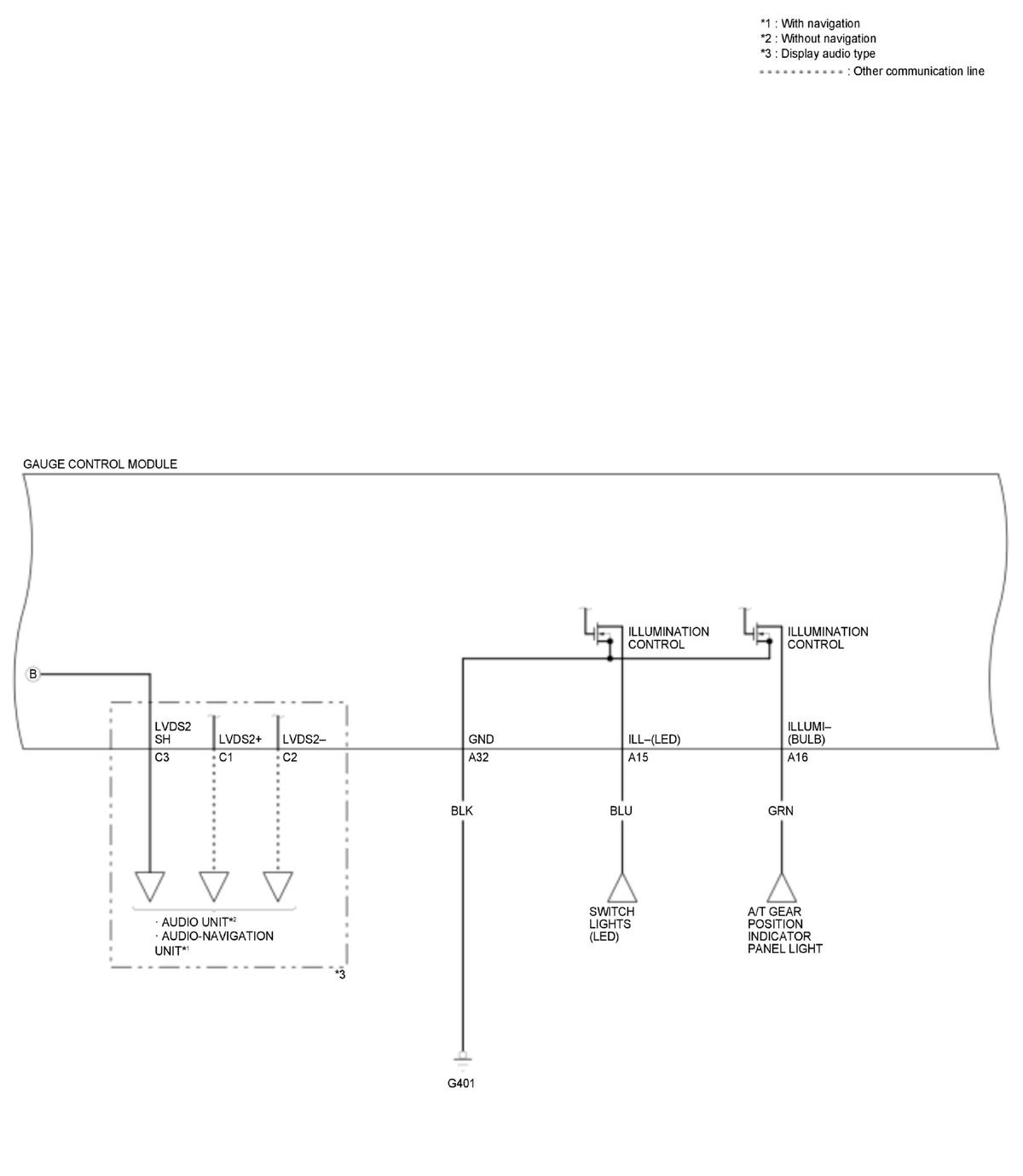

GHH428332Courtesy of HONDA, U.S.A., INC.

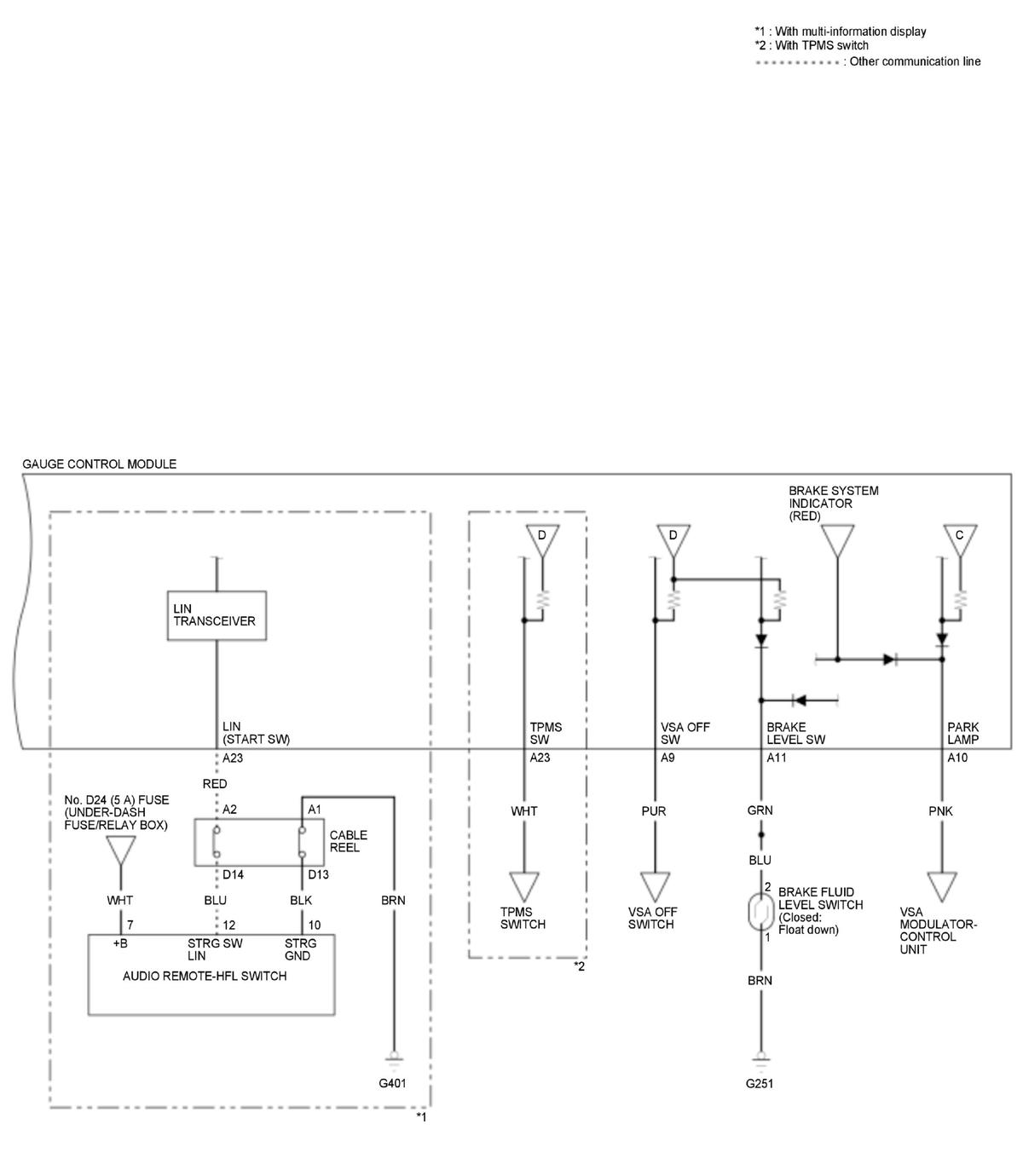

GHH428333Courtesy of HONDA, U.S.A., INC.
