Removal and Installation: 1

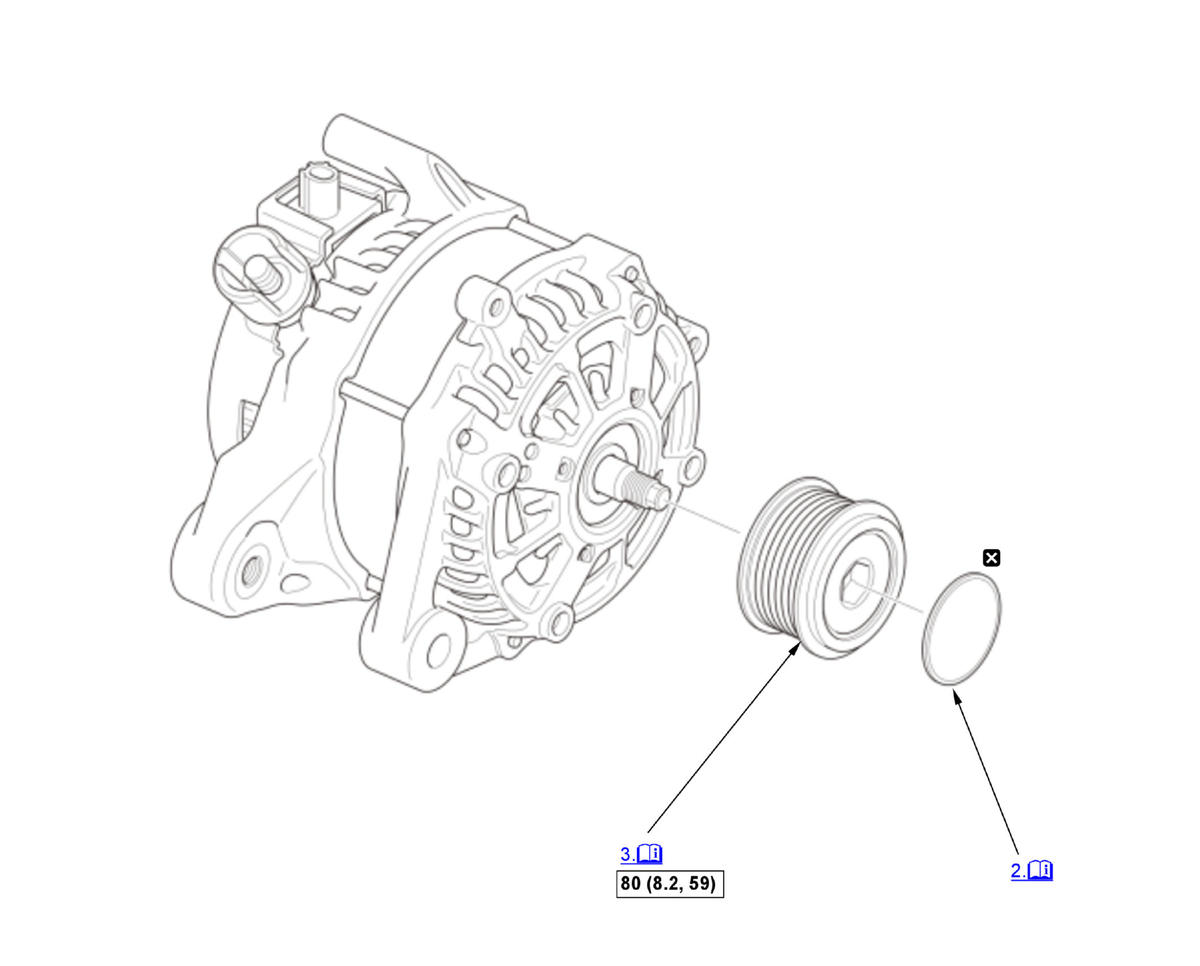

Fig 1: Over-Run Alternator Decoupler (OAD) Pulley Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace

OAD Pulley Seal Cap - Remove

Courtesy of HONDA, U.S.A., INC.

1. Clamp the alternator firmly in a vise.

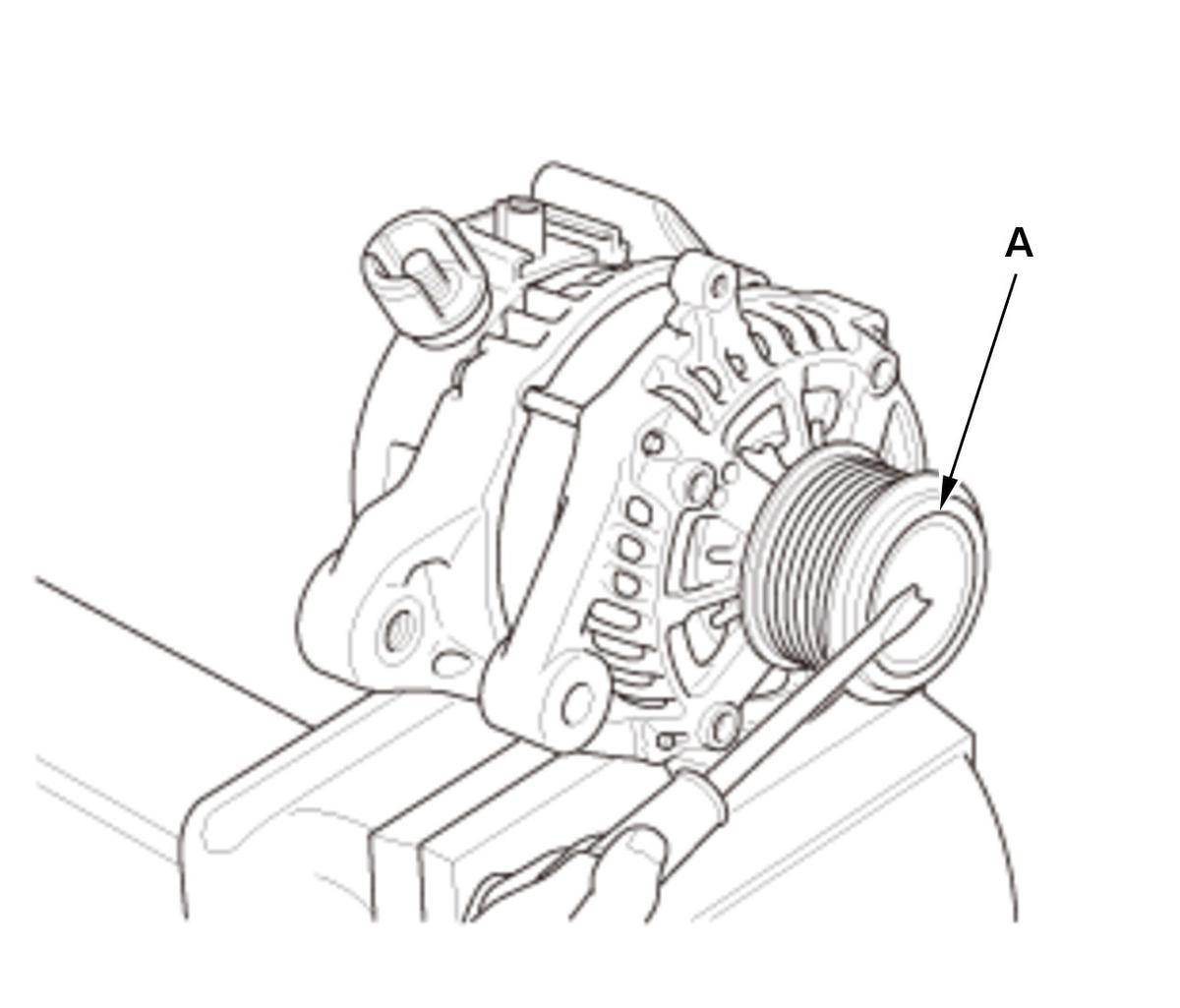

2. Remove the OAD pulley seal cap (A) by piercing the center of the rubber cap with a flat screwdriver and prying it loose.

NOTE: While the cap is off, the grease inside the OAD pulley is exposed. Do not wipe the grease off, and make sure it does not become contaminated.

OAD Pulley - Remove

Courtesy of HONDA, U.S.A., INC.

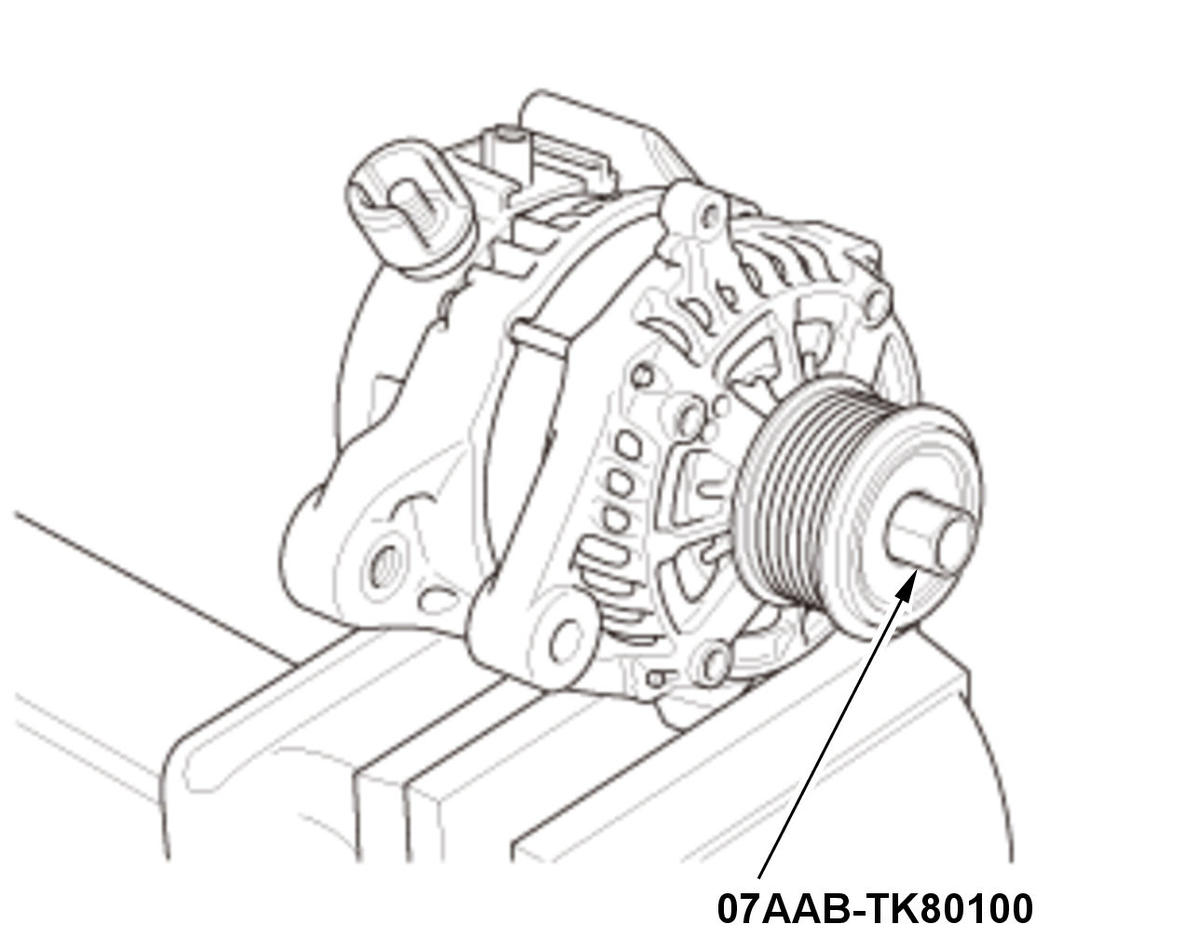

1. Insert the alternator OAD pulley holder into the OAD pulley.

Courtesy of HONDA, U.S.A., INC.

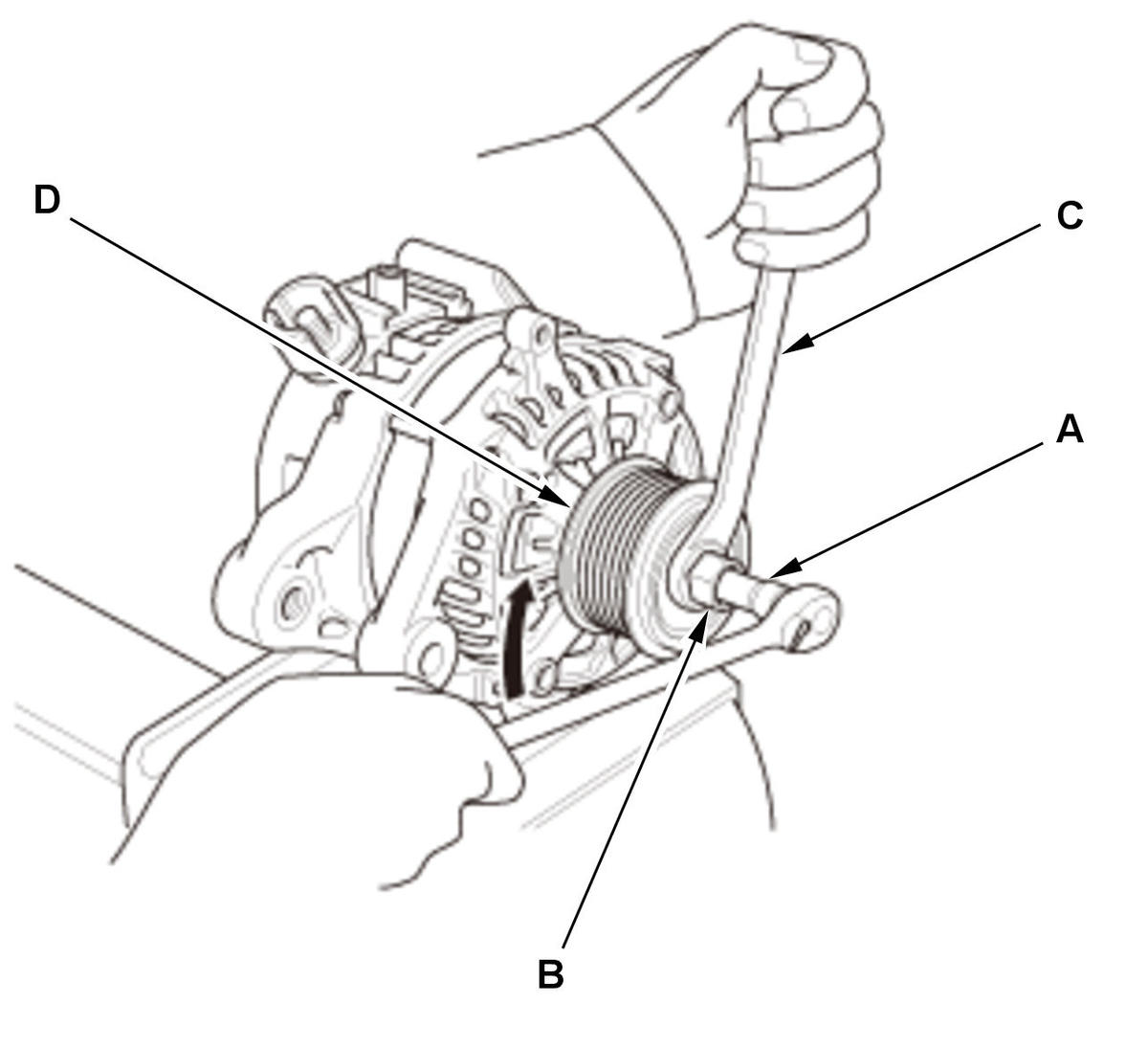

2. Place a 10 mm hex wrench (A) through center of the alternator OAD pulley holder (B), into hex in the end of the alternator shaft.

3. Hold the alternator OAD pulley holder with a 17 mm wrench (C), then turn the alternator shaft clockwise.

4. Remove the OAD pulley (D).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
NOTE:
