Over-Run Alternator Decoupler (OAD) Pulley Removal, Installation, and Inspection (2.4 L Engine) (2017 2018 2019): Inspection

OAD Pulley - Inspect

Courtesy of HONDA, U.S.A., INC.

1. Insert the alternator OAD pulley holder into the OAD pulley.

Courtesy of HONDA, U.S.A., INC.

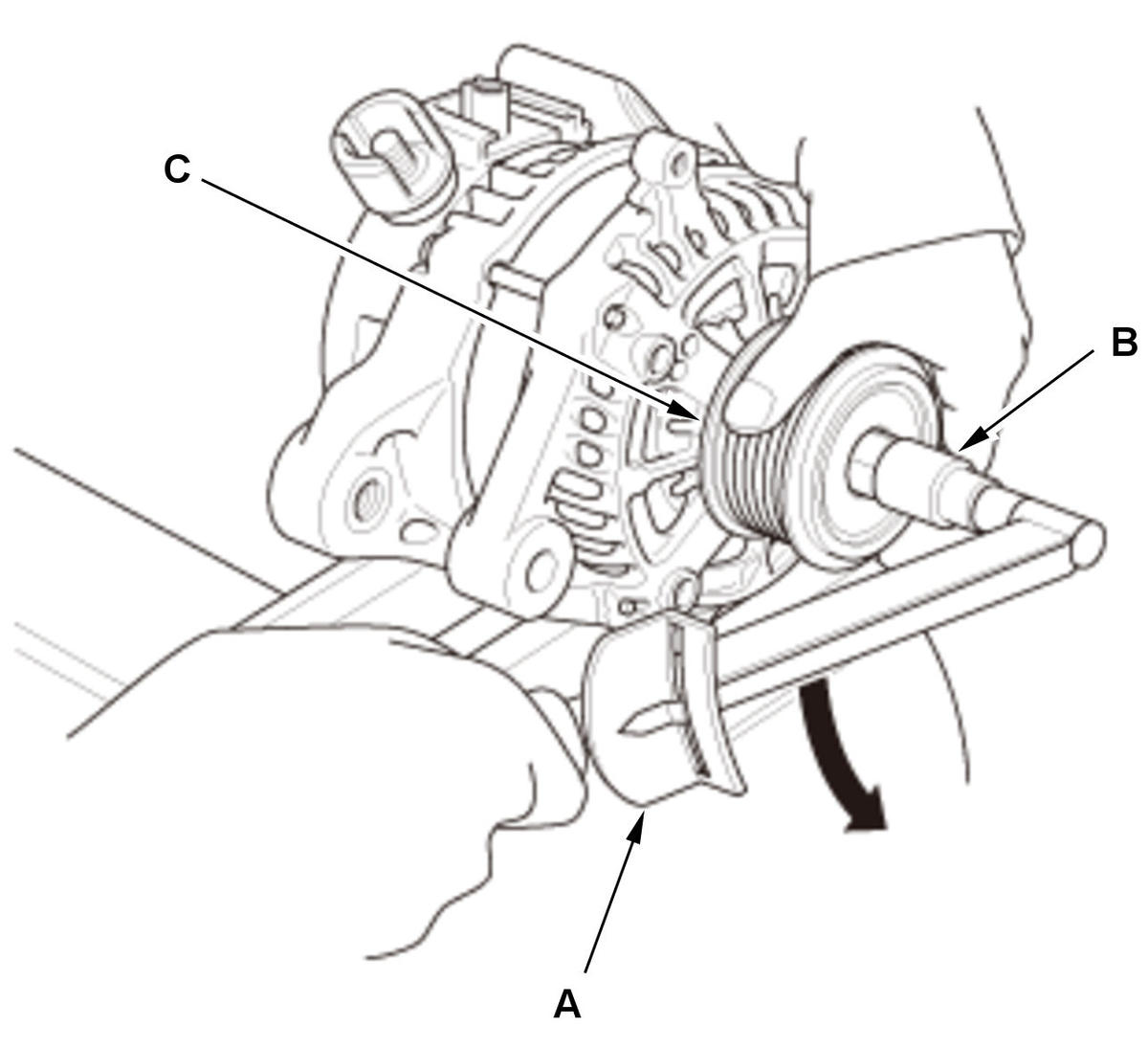

2. Place a beam type torque wrench (A) with a 17 mm socket wrench (B) on the alternator OAD pulley holder.

3. While holding the OAD pulley (C), rotate the alternator shaft counterclockwise. Make sure the alternator shaft is locked when applying the specified torque.

If the alternator shaft locks, go to step 4.
If it does not lock, replace the OAD pulley.

Specified Torque:
13 N.m (1.3 kgf.m, 10 lbf.ft)

Courtesy of HONDA, U.S.A., INC.

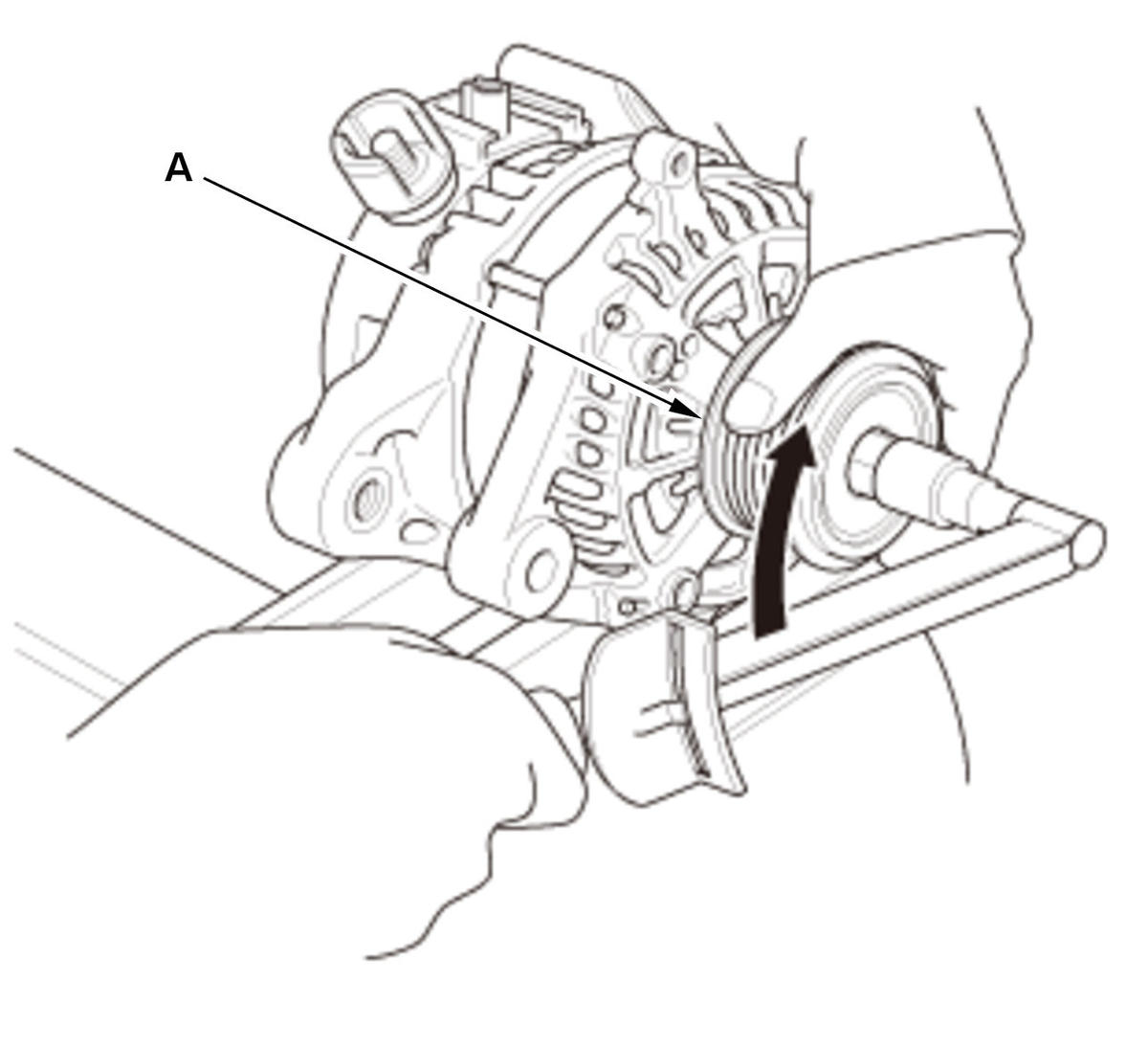

4. While holding the OAD pulley (A), rotate the alternator shaft clockwise. Check that the alternator shaft rotates at the specified torque or less.

If the alternator shaft rotates at the specified torque or less, it is normal. Install the OAD pulley seal cap.
If it does not rotate at the specified torque or less, replace the OAD pulley.

Specified Torque:
0.8 N.m (0.08 kgf.m, 0.6 lbf.ft) max.
