Removal and Installation: 1

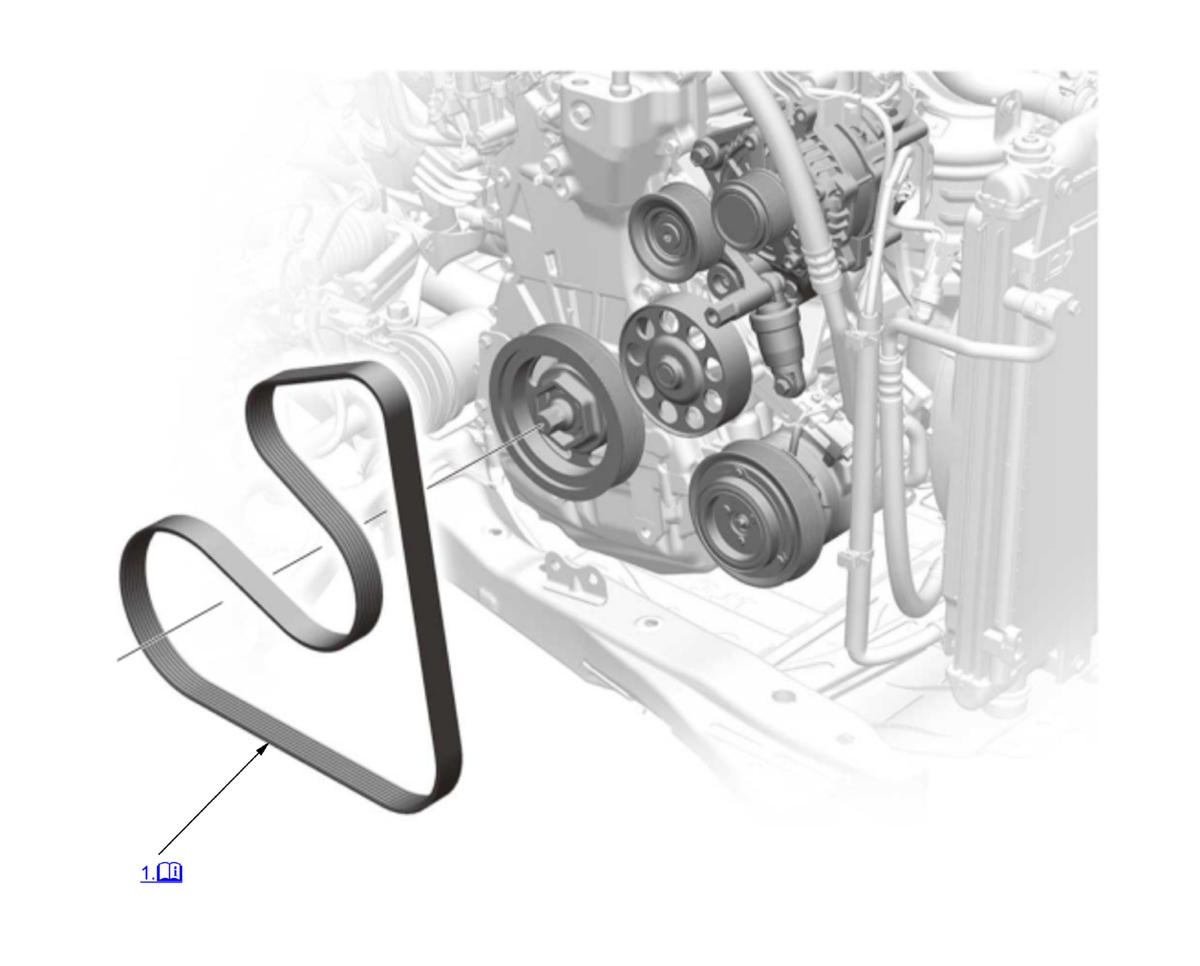

Fig 1: Drive Belt Routing (2.4L)

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes, and precautions

Drive Belt - Remove

Courtesy of HONDA, U.S.A., INC.

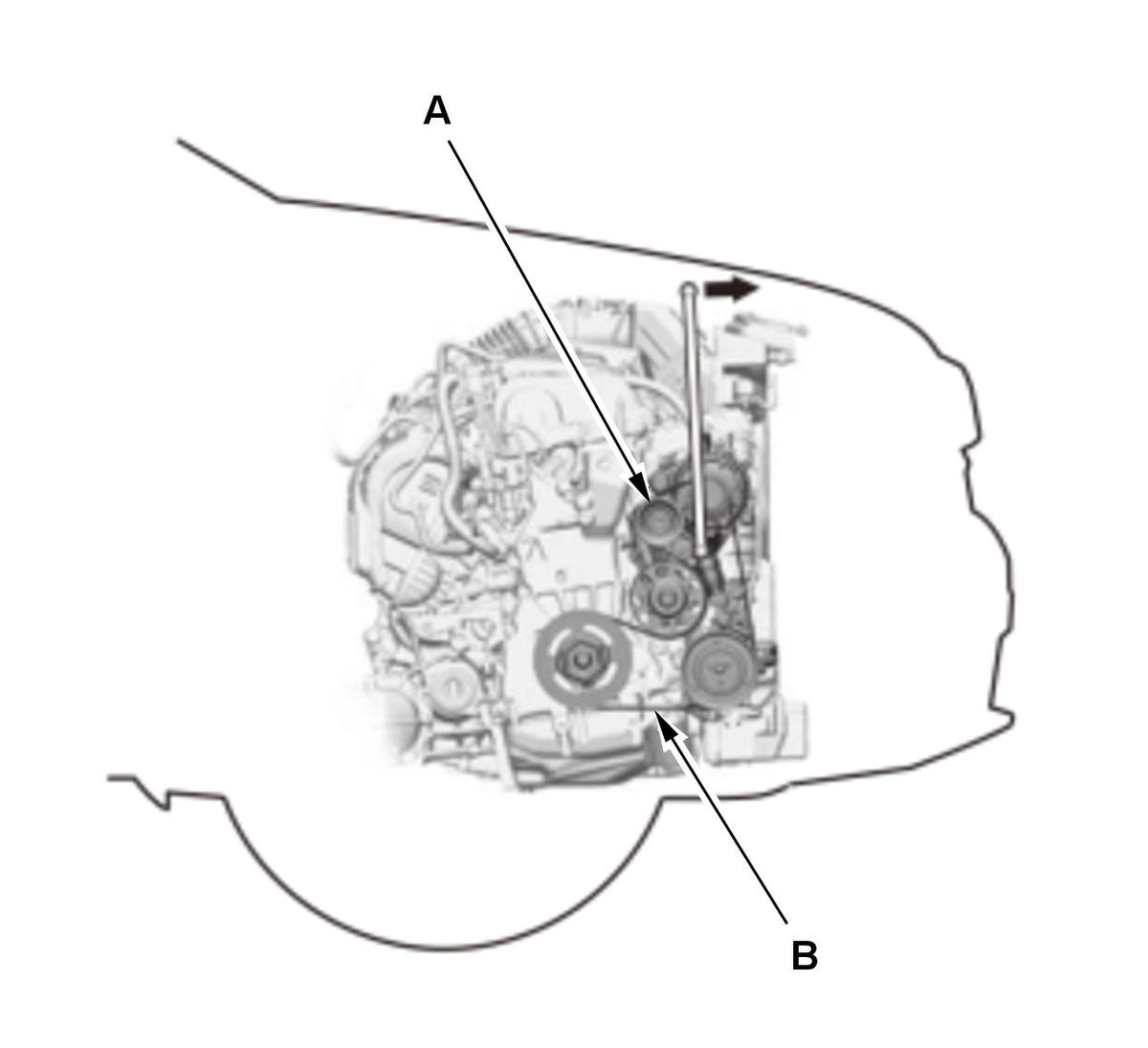

1. Set a wrench on the drive belt auto-tensioner (A), and slowly turn the wrench in the direction of the arrow, then remove the drive belt (B).
NOTE: This is a hydraulic type auto-tensioner, so you must turn the wrench slowly for at least 3 seconds.

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
