Charging System - Testing & Troubleshooting (Except Hybrid)
>>
Removal, Installation & Inspection
>>
Drive Belt Auto-Tensioner Removal, Installation, and Inspection (2.4 L Engine) (2017 2018 2019)
>>
Removal and Installation
>>
1
Removal and Installation: 1

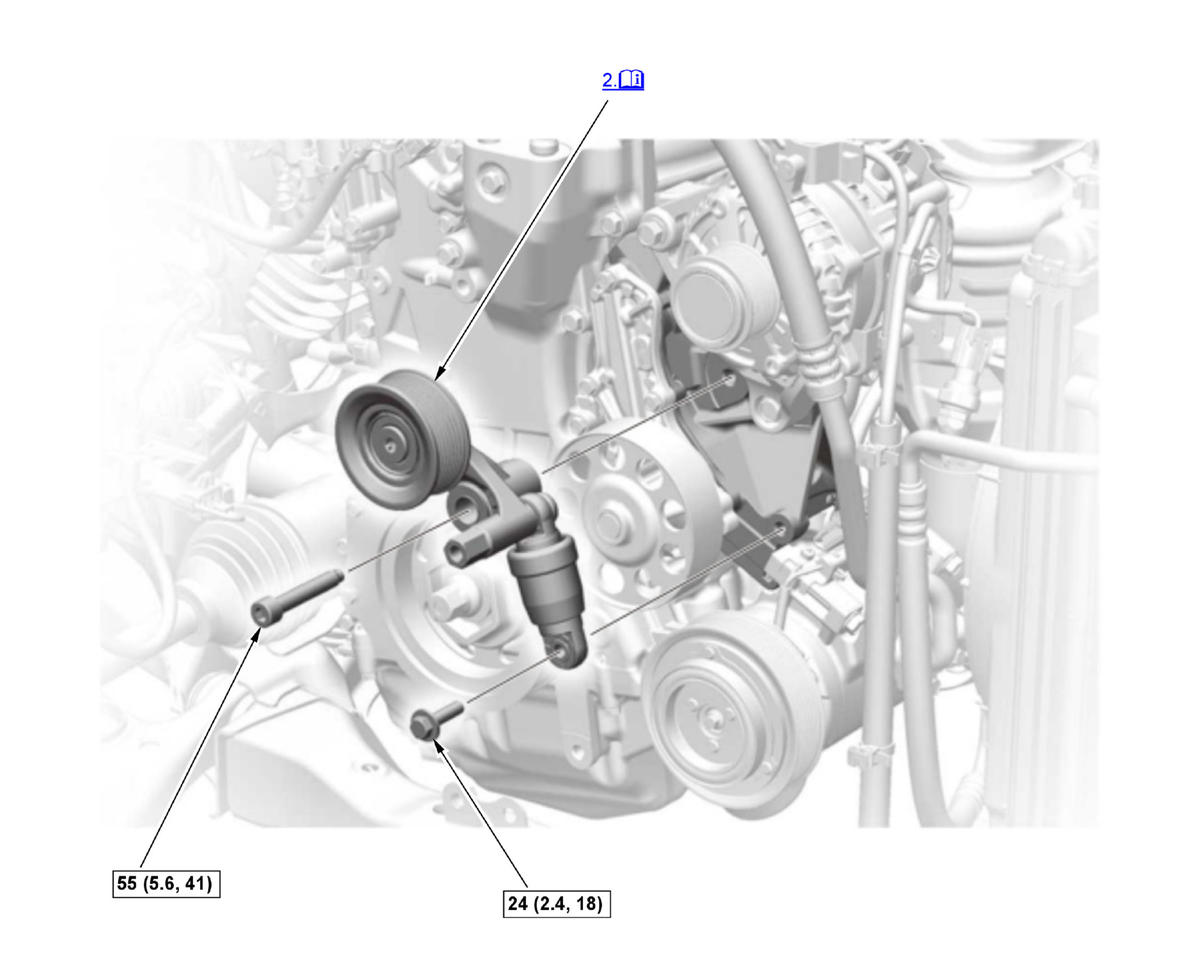

Fig 1: Drive Belt Auto-Tensioner Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
