Charging System - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

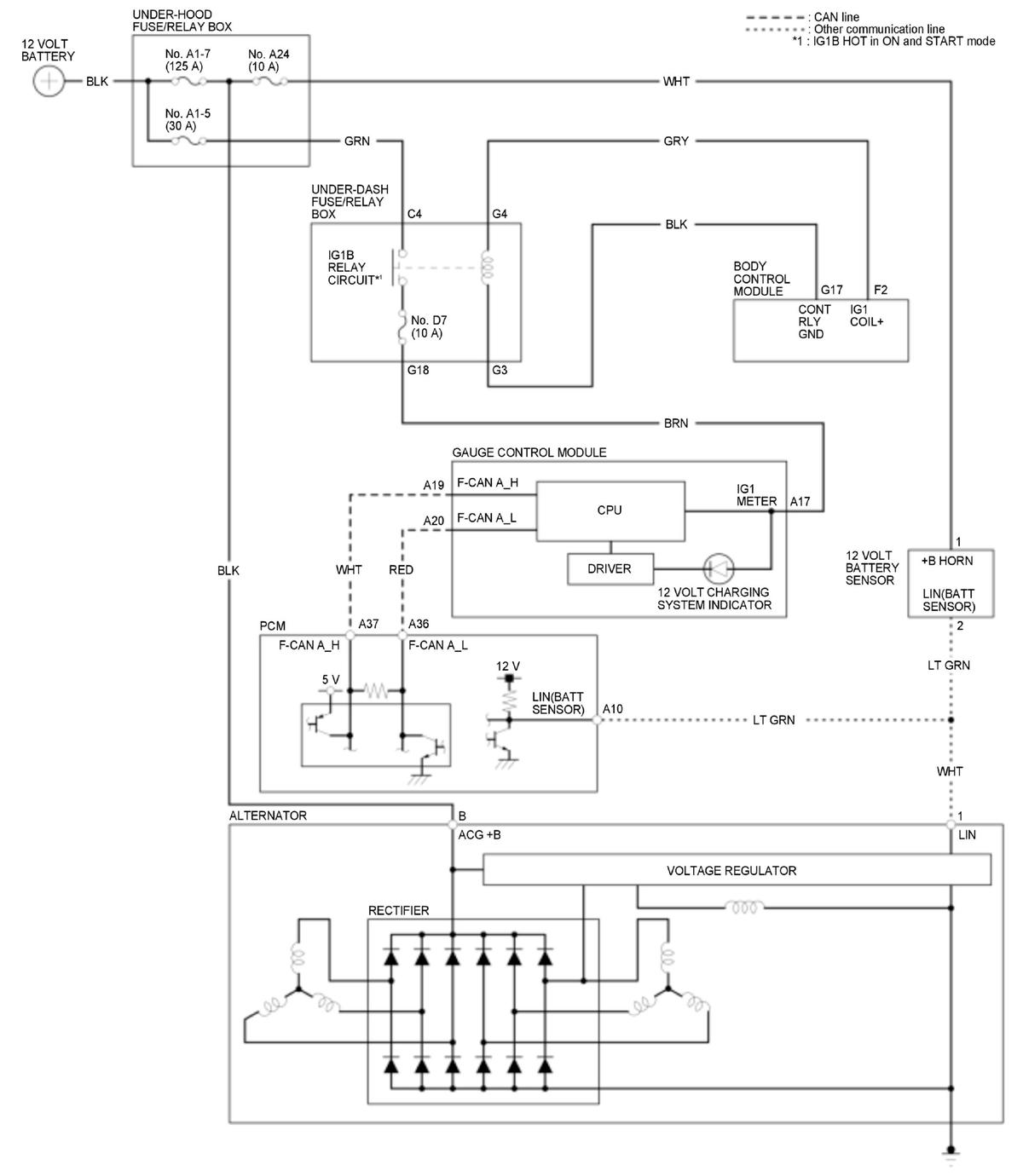

Charging System Circuit Diagram (1.5 L Engine (Without Auto Idle Stop System)) (2020 2021)
Charging System Circuit Diagram (1.5 L Engine (Without Auto Idle Stop System)) (2020 2021)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
