Alternator Overhaul (2.4 L Engine) (2017 2018 2019): Reassembly

NOTE:  Where icon is shown, see below for further information.

1

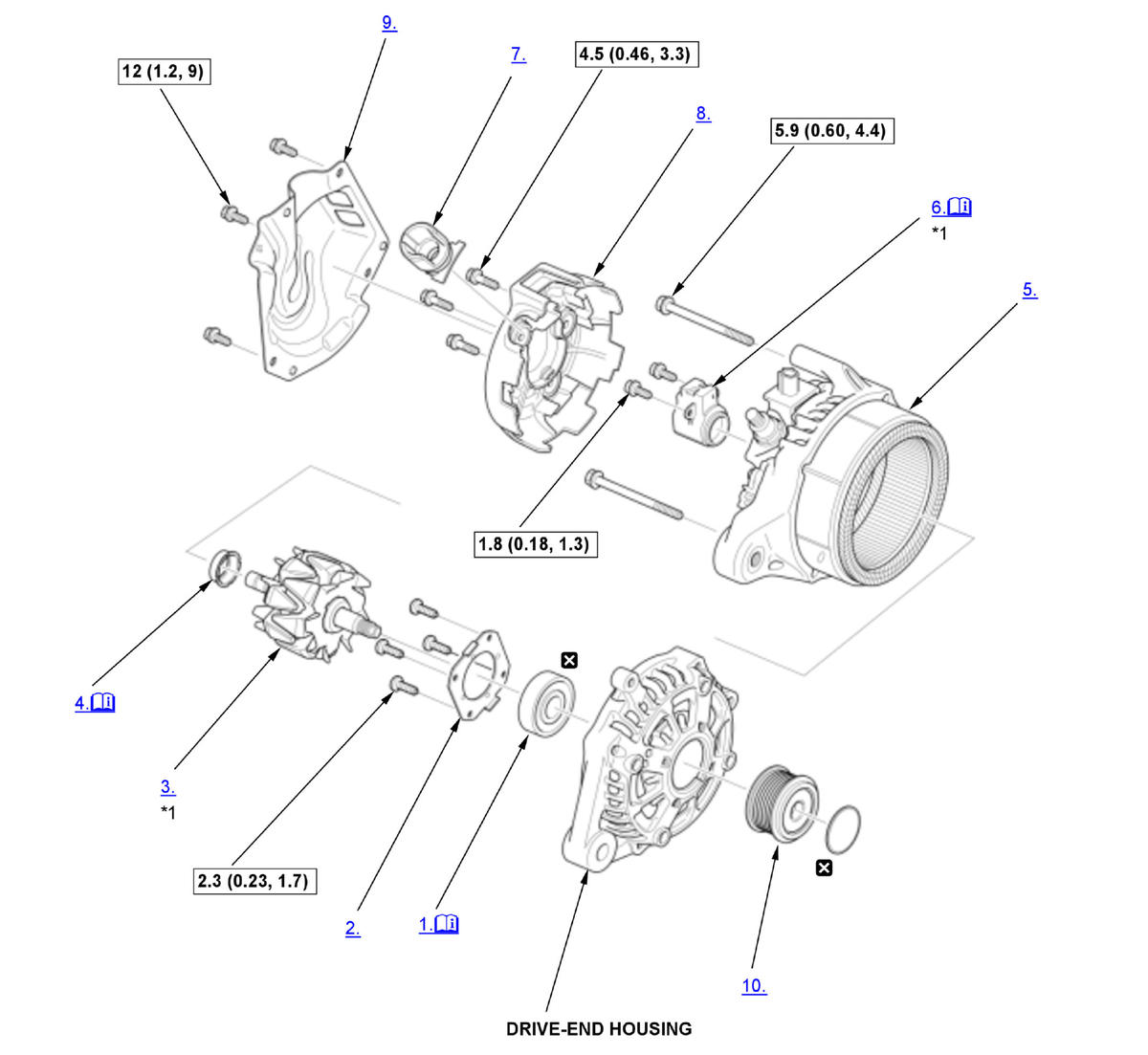

Fig 1: Alternator Exploded View With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace
*1	These parts have inspection items.

1. Front Bearing - Install

   Courtesy of HONDA, U.S.A., INC.

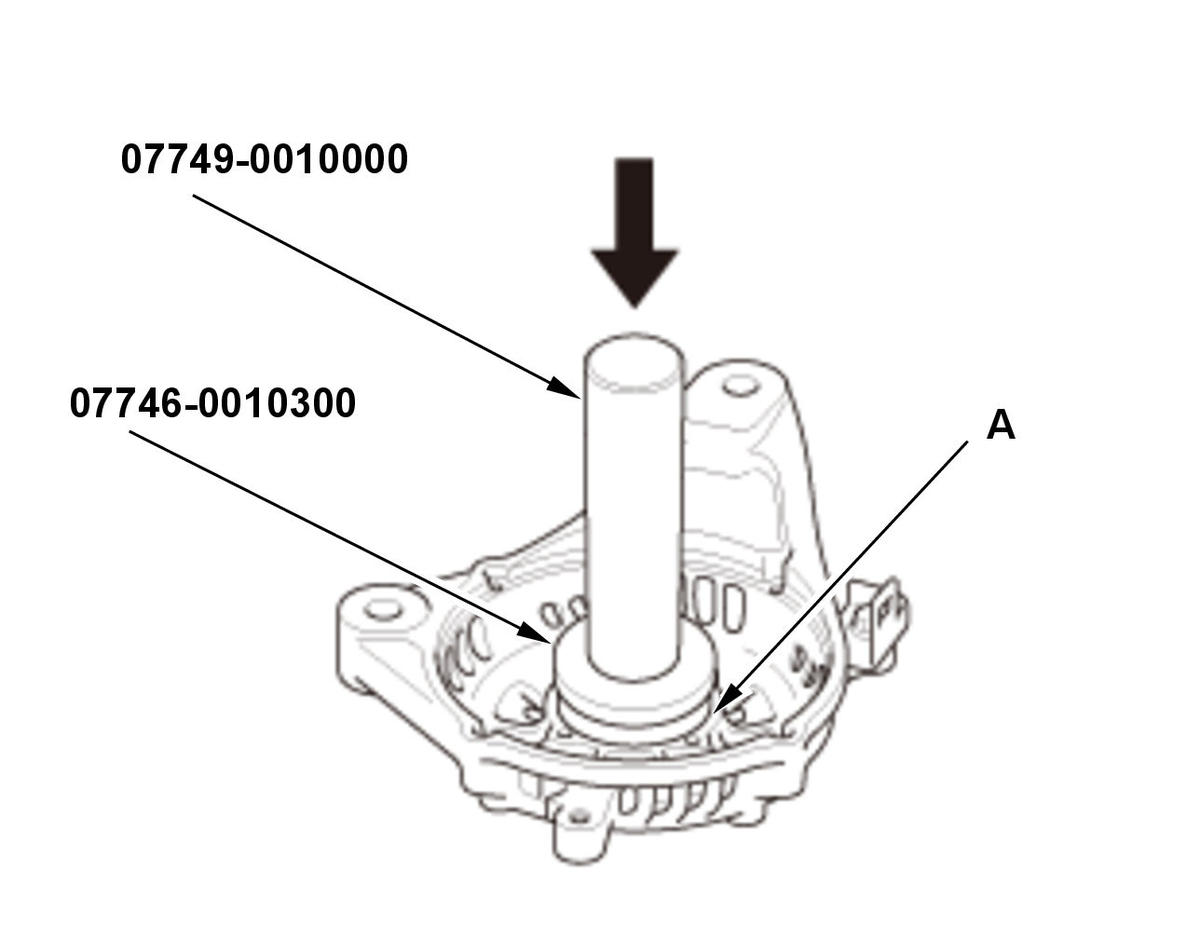

   1. Use a hand press to install a new front bearing (A) in the drive-end housing, with the driver handle, 15 x 135L, and the bearing driver attachment, 42 x 47 mm.

2. Front Bearing Retainer - Install
3. Rotor - Install
4. Bearing Holder - Install

   Courtesy of HONDA, U.S.A., INC.

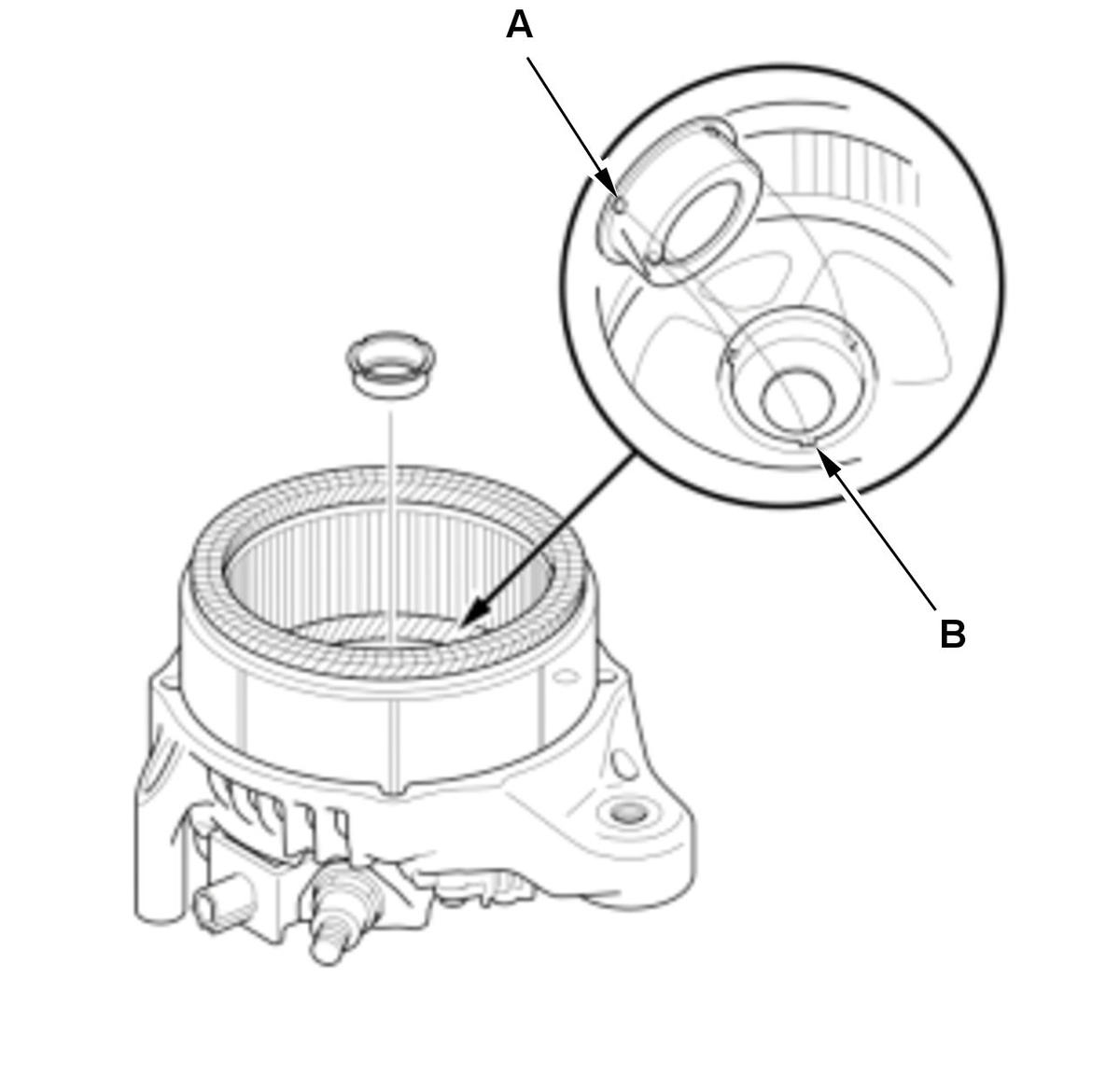

   NOTE:  Align the protrusions (A) of the bearing holder with the grooves (B) of the stator assembly.

5. Stator Assembly - Install
6. Brush Holder - Install

   Courtesy of HONDA, U.S.A., INC.

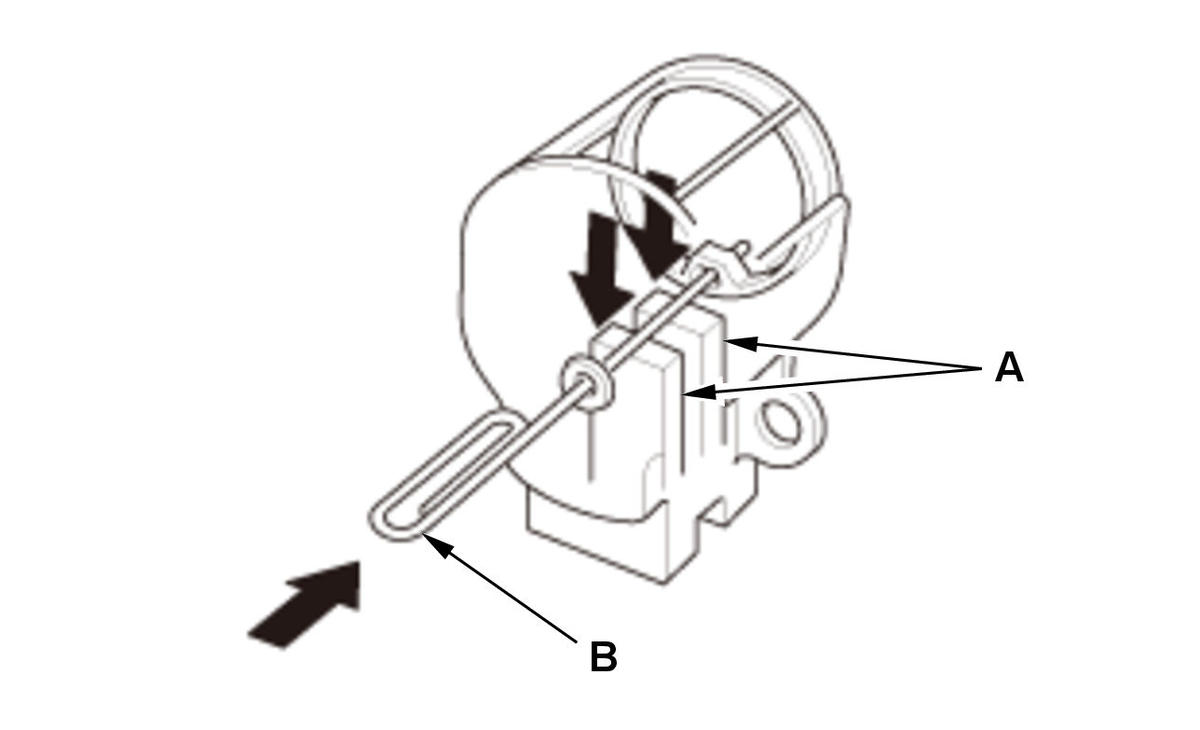

   1. Push the brushes (A) in, then insert a pin or drill bit (B) (about 1.6 mm (1/16 in) diameter) to hold them there.

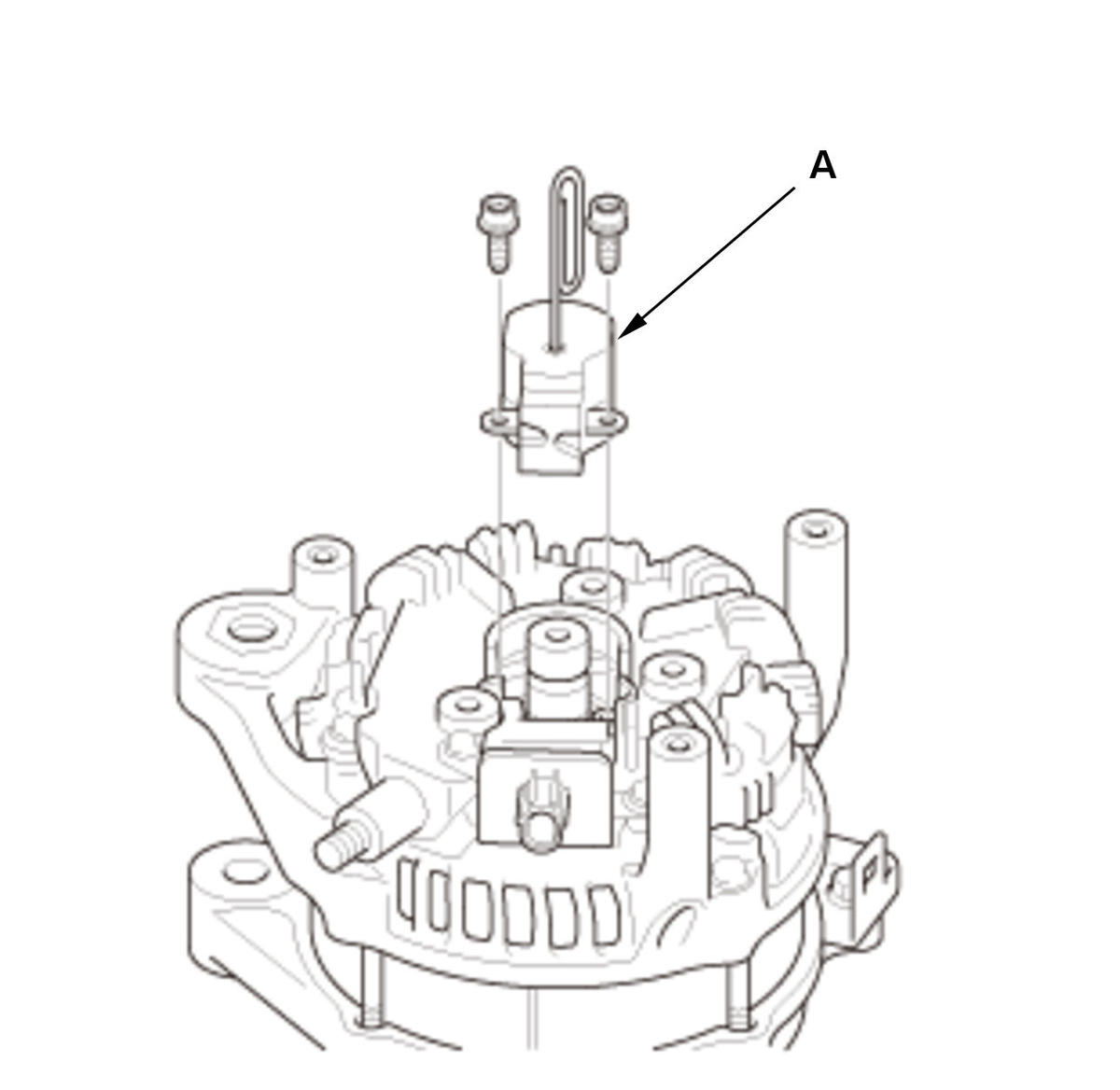

   Courtesy of HONDA, U.S.A., INC.

   2. Install the brush holder (A).

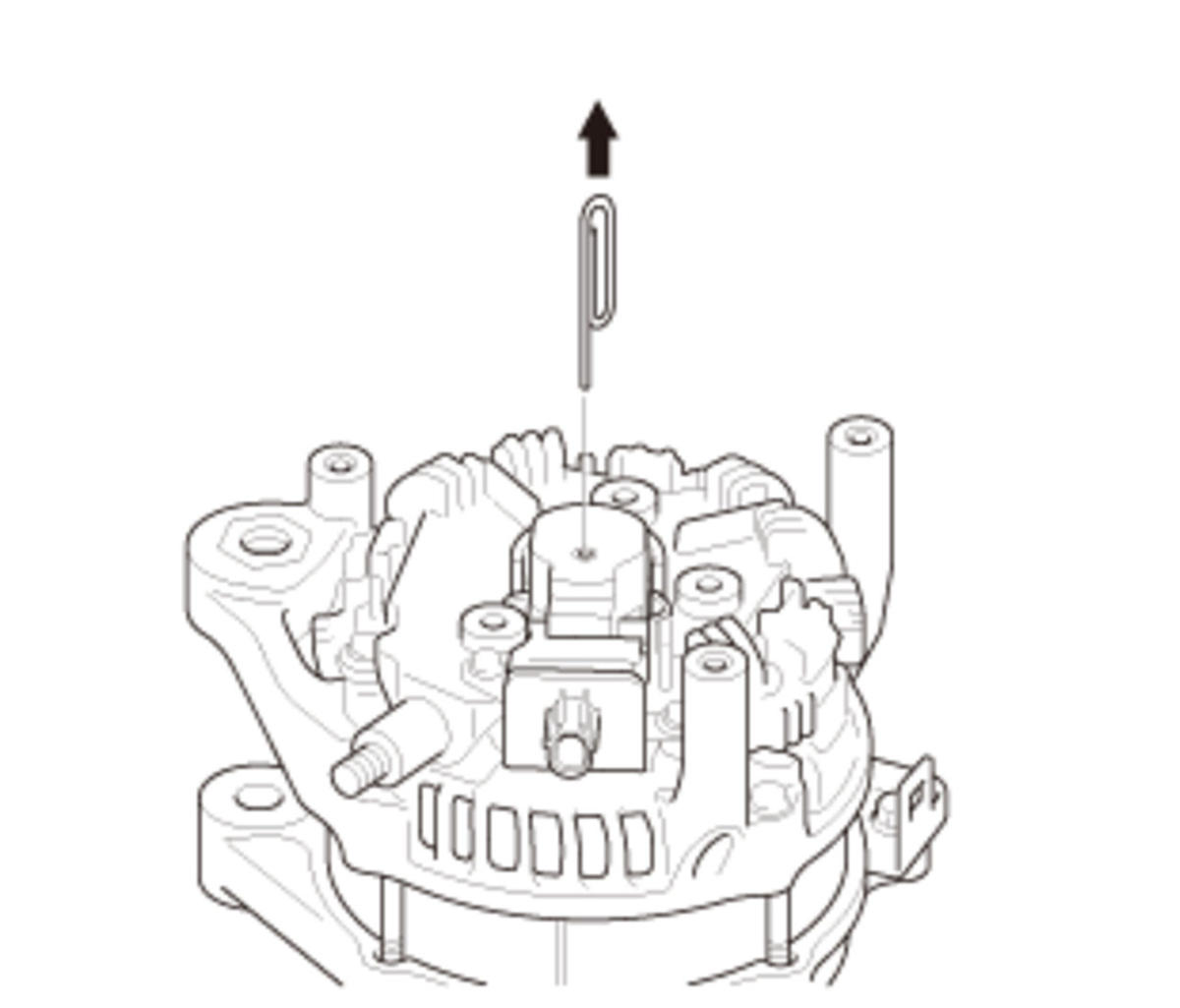

   Courtesy of HONDA, U.S.A., INC.

   3. Pull out the pin or drill bit.

7. Terminal Insulator - Install
8. End Cover - Install
9. Heat Shield - Install
10. OAD Pulley - Install
