Alternator Overhaul (2.4 L Engine) (2017 2018 2019): Disassembly

NOTE: Where icon is shown, see below for further information.

Courtesy of HONDA, U.S.A., INC.

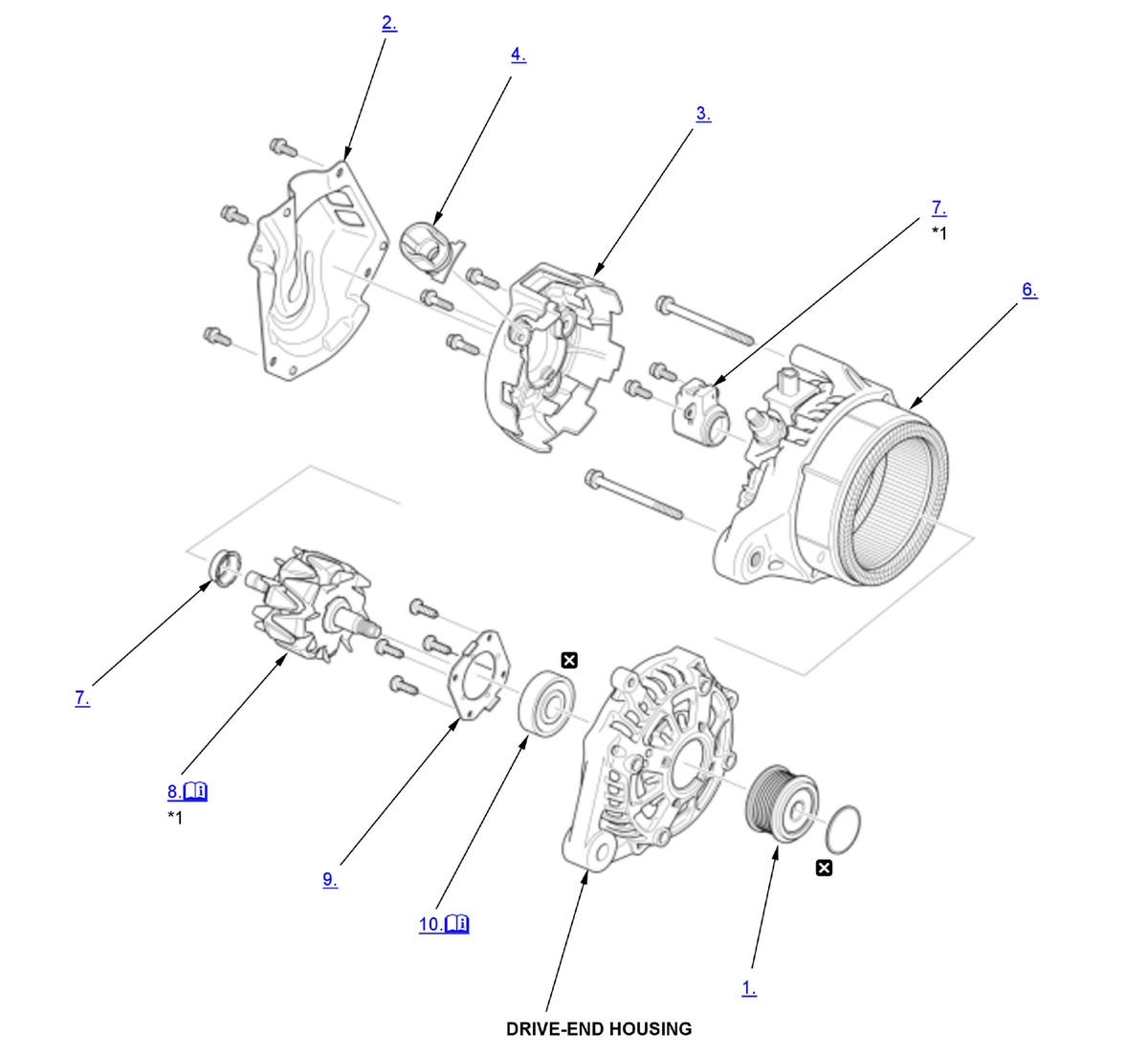

	Detailed information, notes, and precautions
	Replace
*1	These parts have inspection items.

OAD Pulley - Remove
Heat Shield - Remove
End Cover - Remove
Terminal Insulator - Remove
Brush Holder - Remove
Stator Assembly - Remove
Bearing Holder - Remove
Rotor - Remove
NOTE: Inspect the rotor shaft for scoring, and inspect the bearing journal surface in the drive-end housing for seizure marks. If the rotor is damaged, replace the rotor assembly.
Front Bearing Retainer - Remove

Front Bearing - Remove

Courtesy of HONDA, U.S.A., INC.

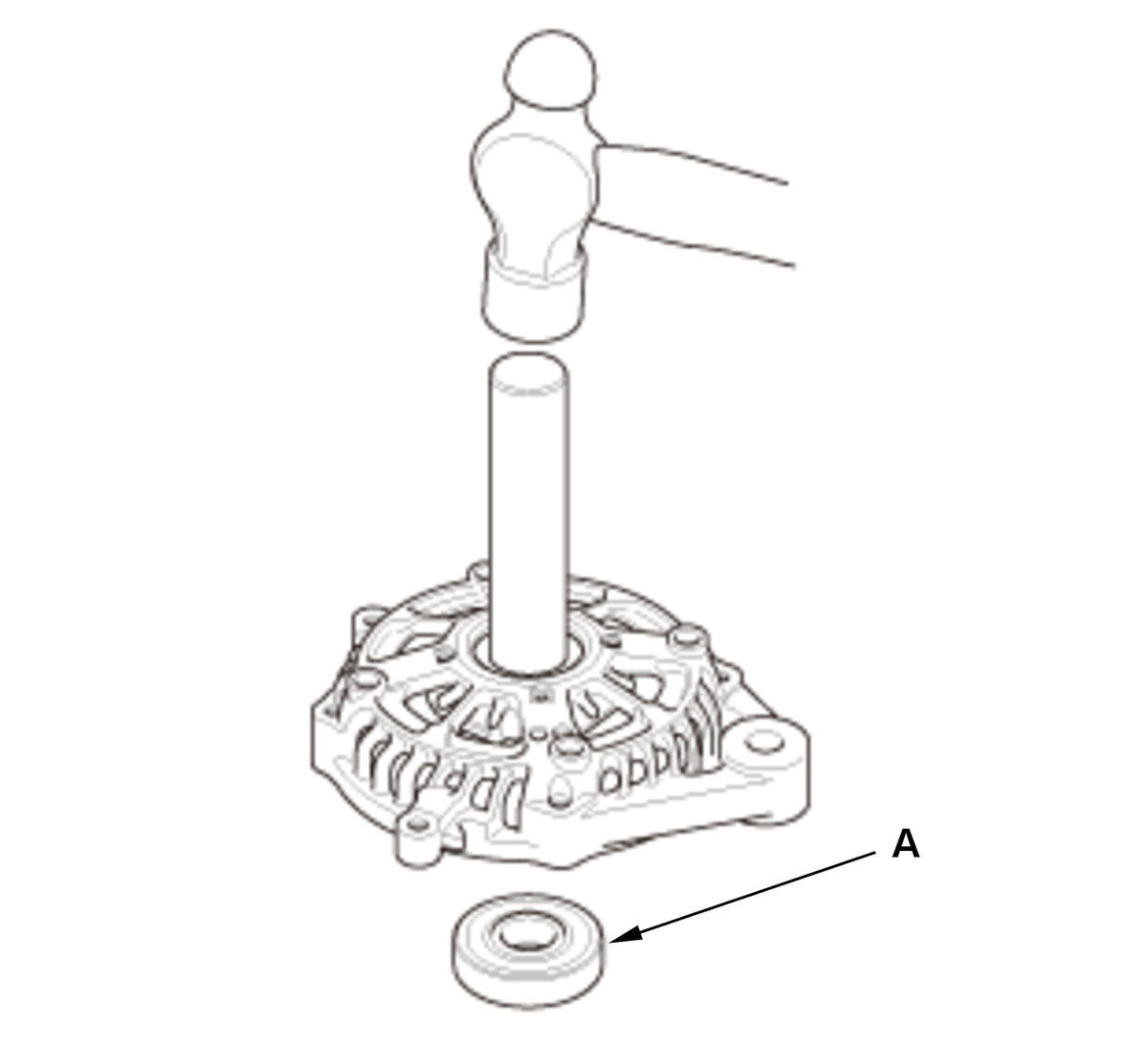

1. Drive out the front bearing (A) with a brass drift and a hammer.
