Alternator Overhaul (1.5 L Engine): Reassembly

NOTE: Where icon is shown, see below for further information.

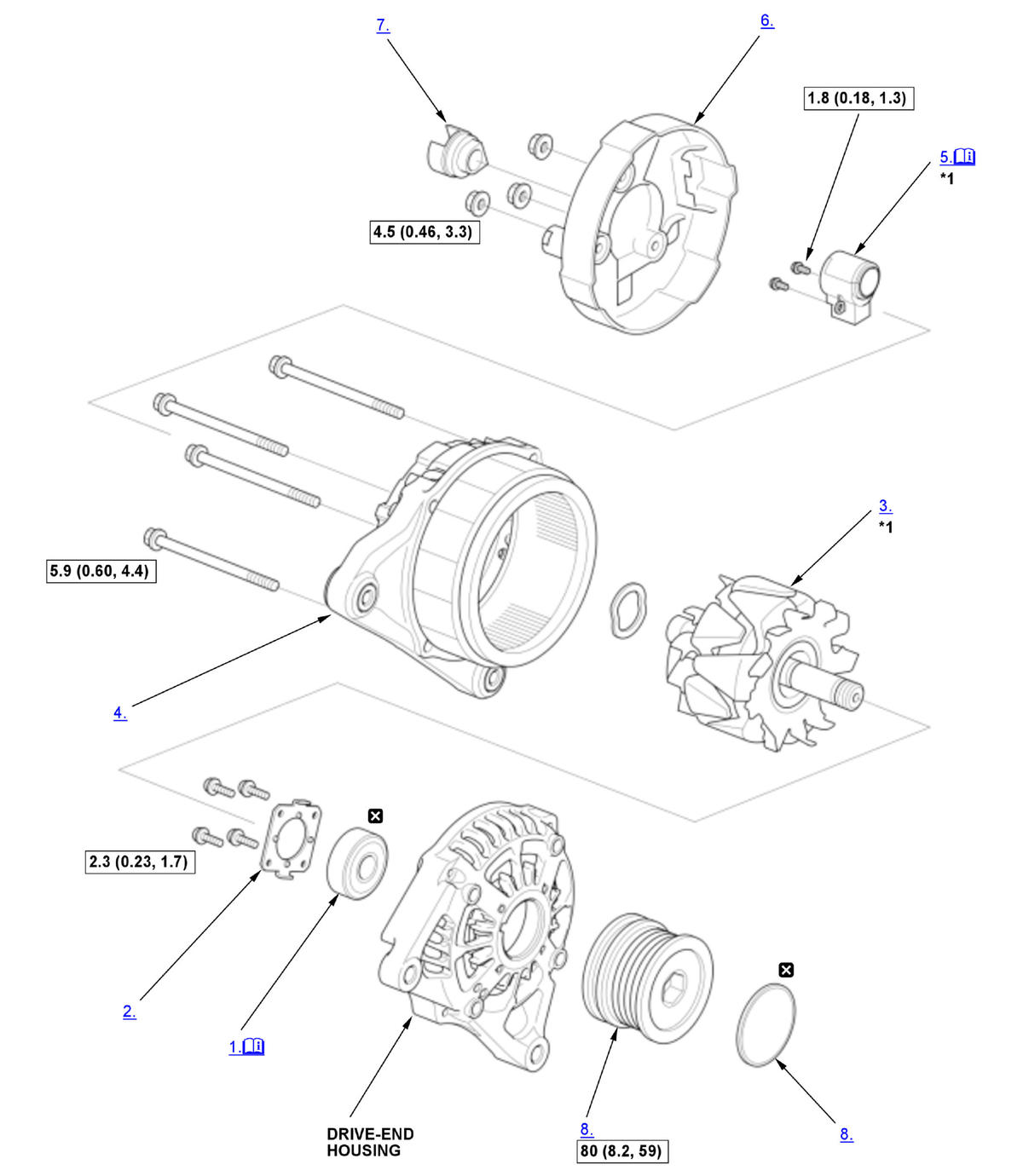

Fig 1: Alternator Exploded View With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace
*1	These parts have inspection items.

Front Bearing - Install

Courtesy of HONDA, U.S.A., INC.

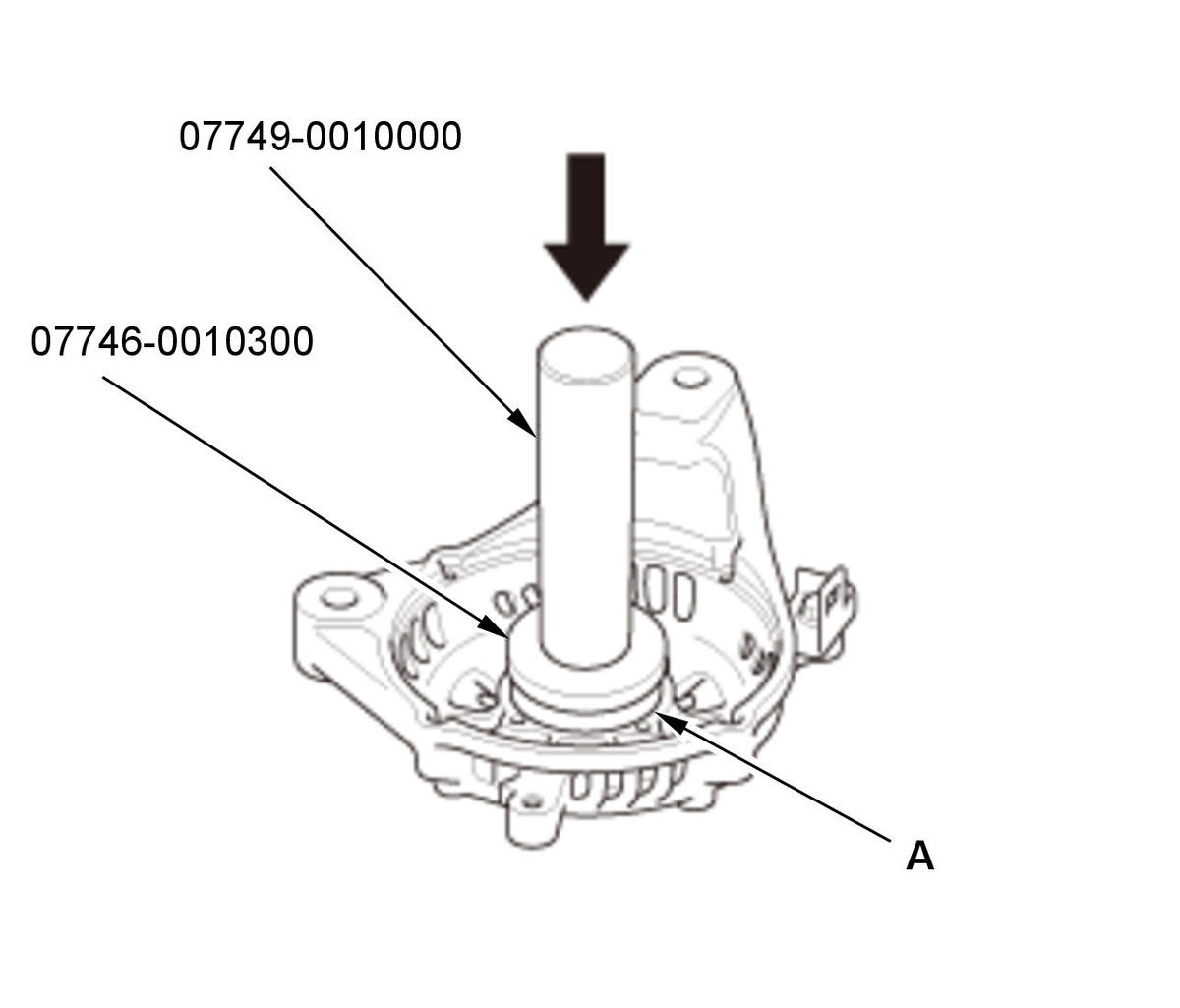

1. Use a hand press to install the front bearing (A) in the drive-end housing, with the driver handle, 15 x 135L and the bearing driver attachment, 42 x 47 mm.

Front Bearing Retainer - Install
Rotor - Install
Stator Assembly - Install

Brush Holder - Install

Courtesy of HONDA, U.S.A., INC.

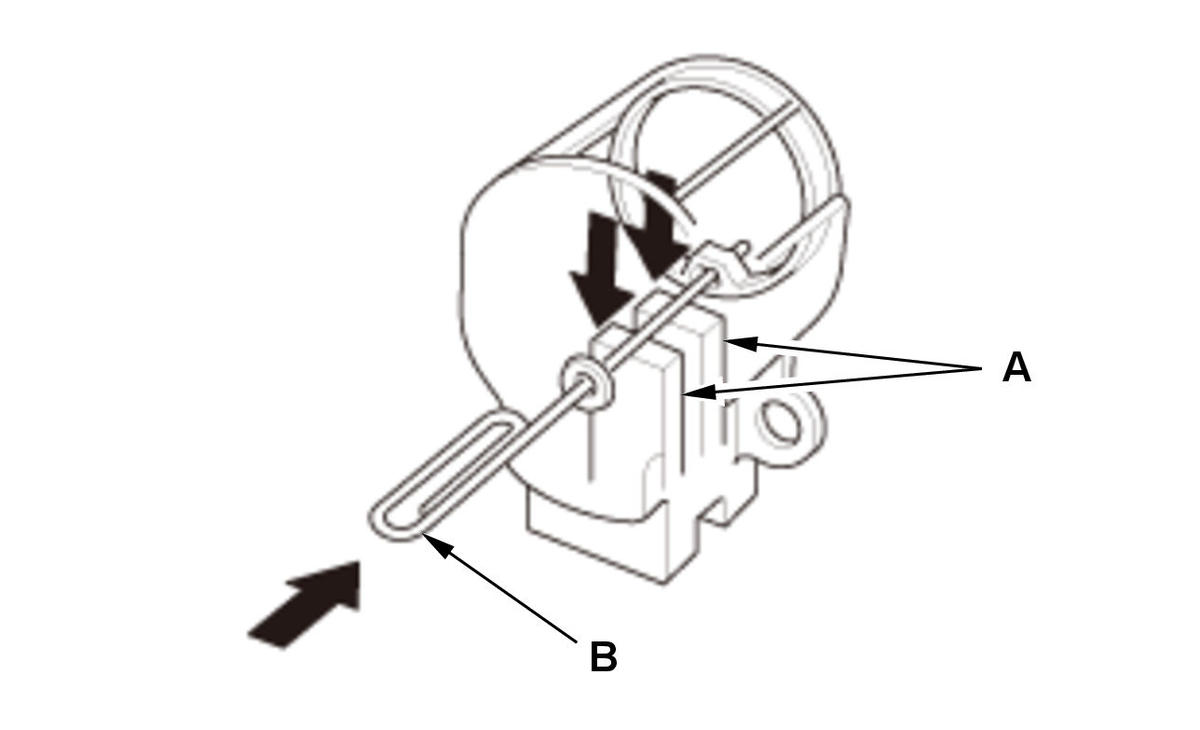

1. Push the brushes (A) in, then insert a pin or drill bit (B) (about 1.6 mm (1/16 in) diameter) to hold them there.

2. Install the brush holder.

3. Pull out the pin or drill bit.

End Cover - Install
Terminal Insulator - Install
OAD Pulley - Install
