Alternator Overhaul (1.5 L Engine): Disassembly

NOTE:  Where icon is shown, see below for further information.

1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace
*1	These parts have inspection items.

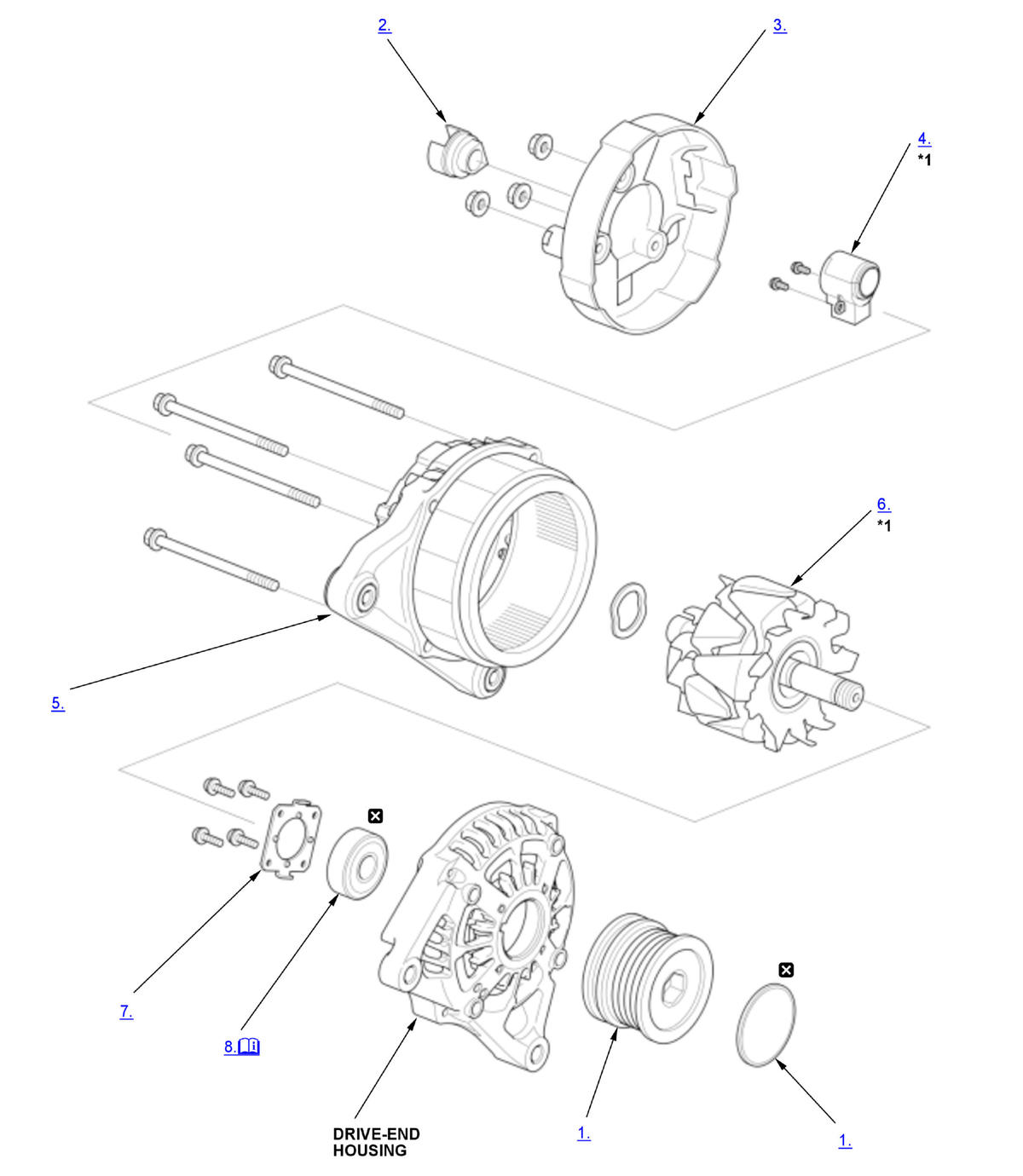

1. OAD Pulley - Remove
2. Terminal Insulator - Remove
3. End Cover - Remove
4. Brush Holder - Remove
5. Stator Assembly - Remove
6. Rotor - Remove
7. Front Bearing Retainer - Remove
8. Front Bearing - Remove

   Courtesy of HONDA, U.S.A., INC.

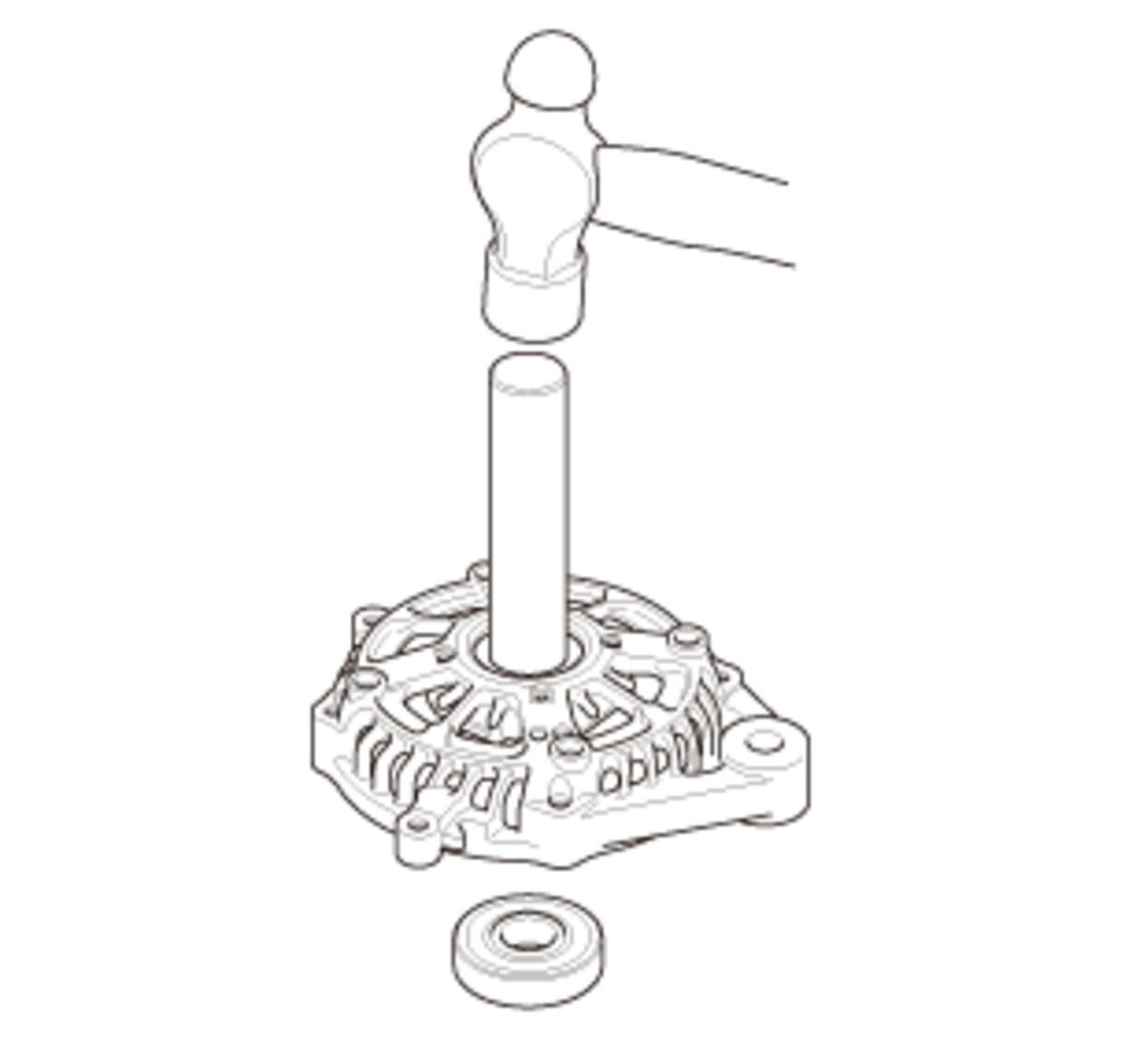

   1. Drive out the front bearing with a brass drift and a hammer.
