Differential - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

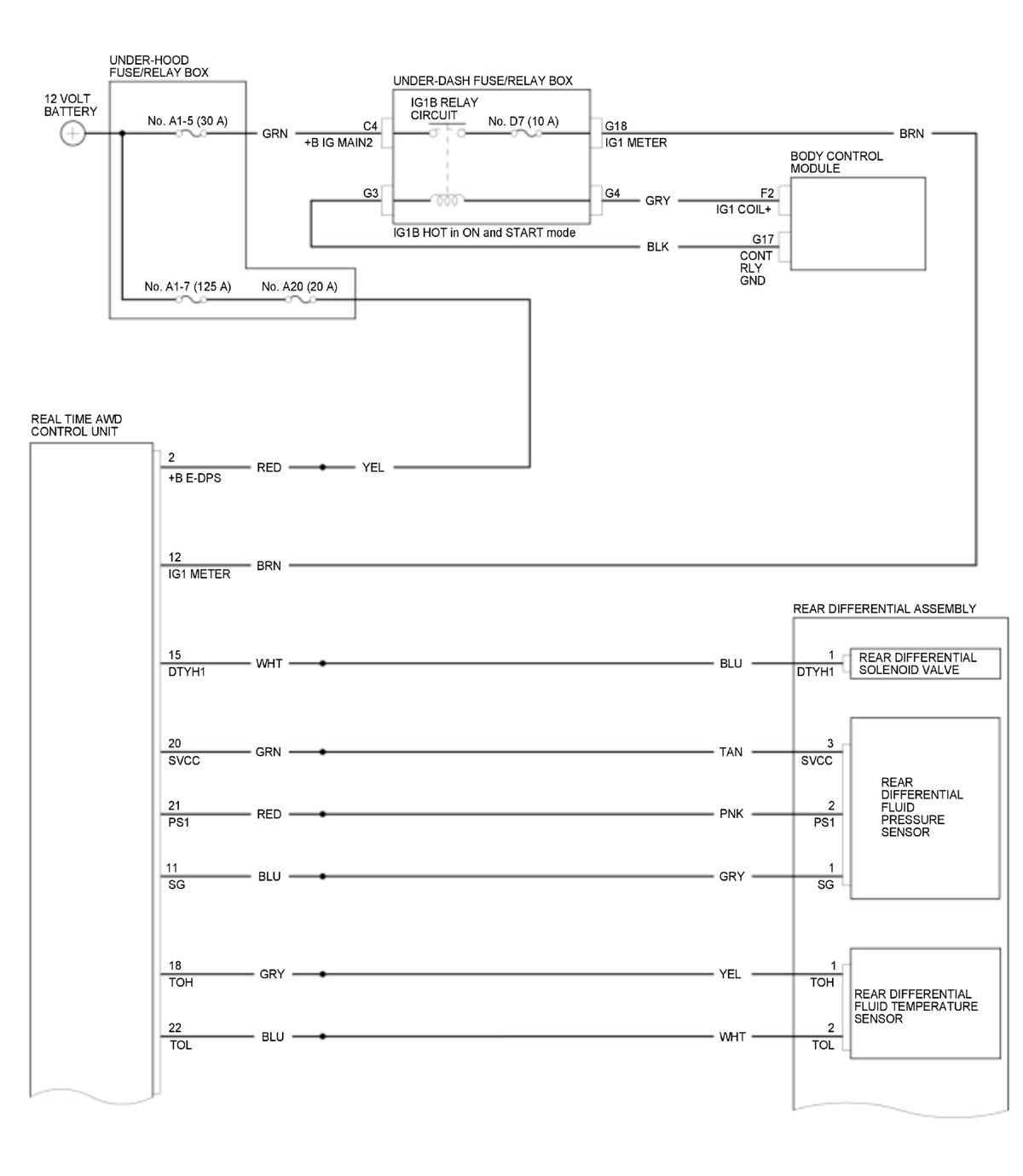

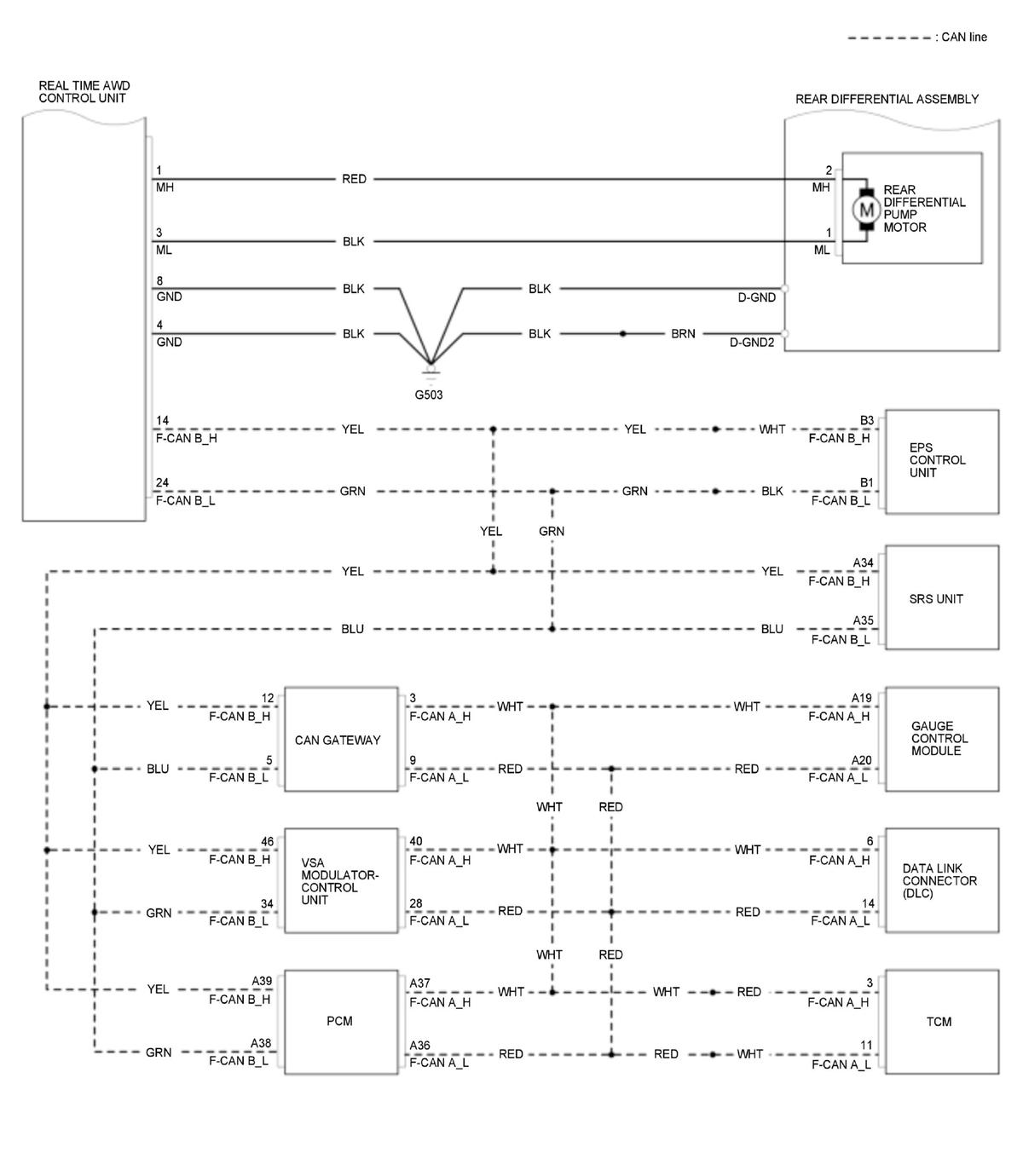

Rear Differential Circuit Diagram (AWD (With CAN Gateway)) (2017 2018 2019)
Rear Differential Circuit Diagram (AWD (With CAN Gateway)) (2017 2018 2019)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
