Rear Differential Removal and Installation (AWD) (2018 2019 2020 2021): Installation

NOTE: Where icon is shown, see below for further information.

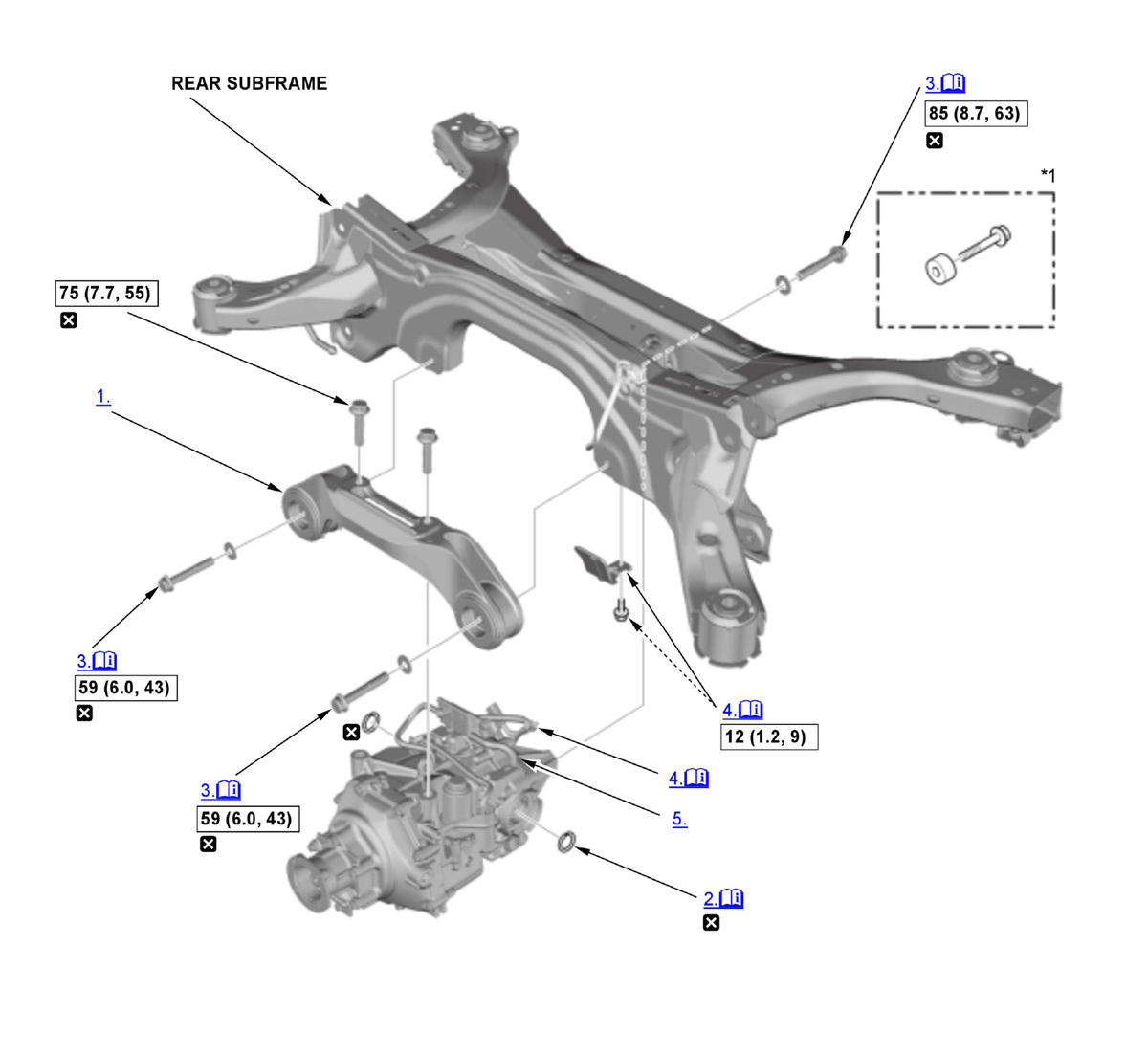

Fig 1: Rear Differential Mount Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace
*1	For some models

Rear Driveshaft Inboard Side - Connect

Courtesy of HONDA, U.S.A., INC.

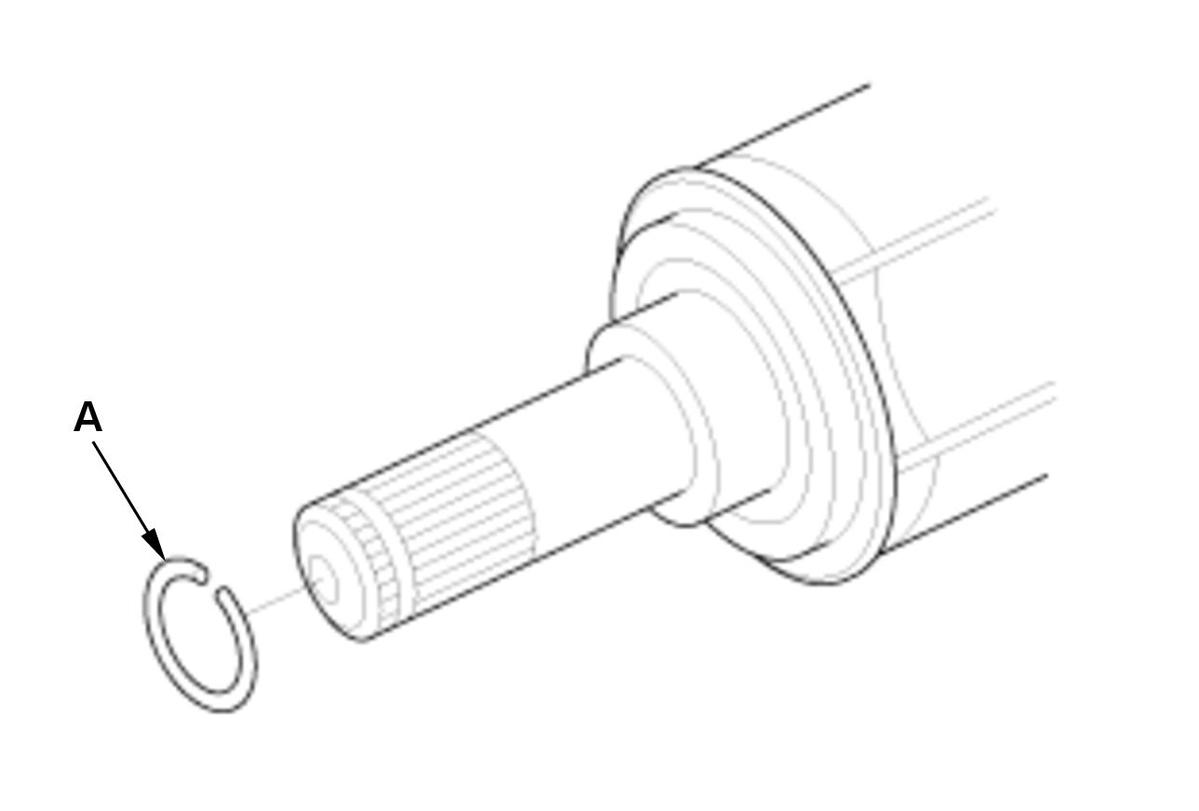

1. Install a new driveshaft inboard joint set ring (A) on both sides.

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

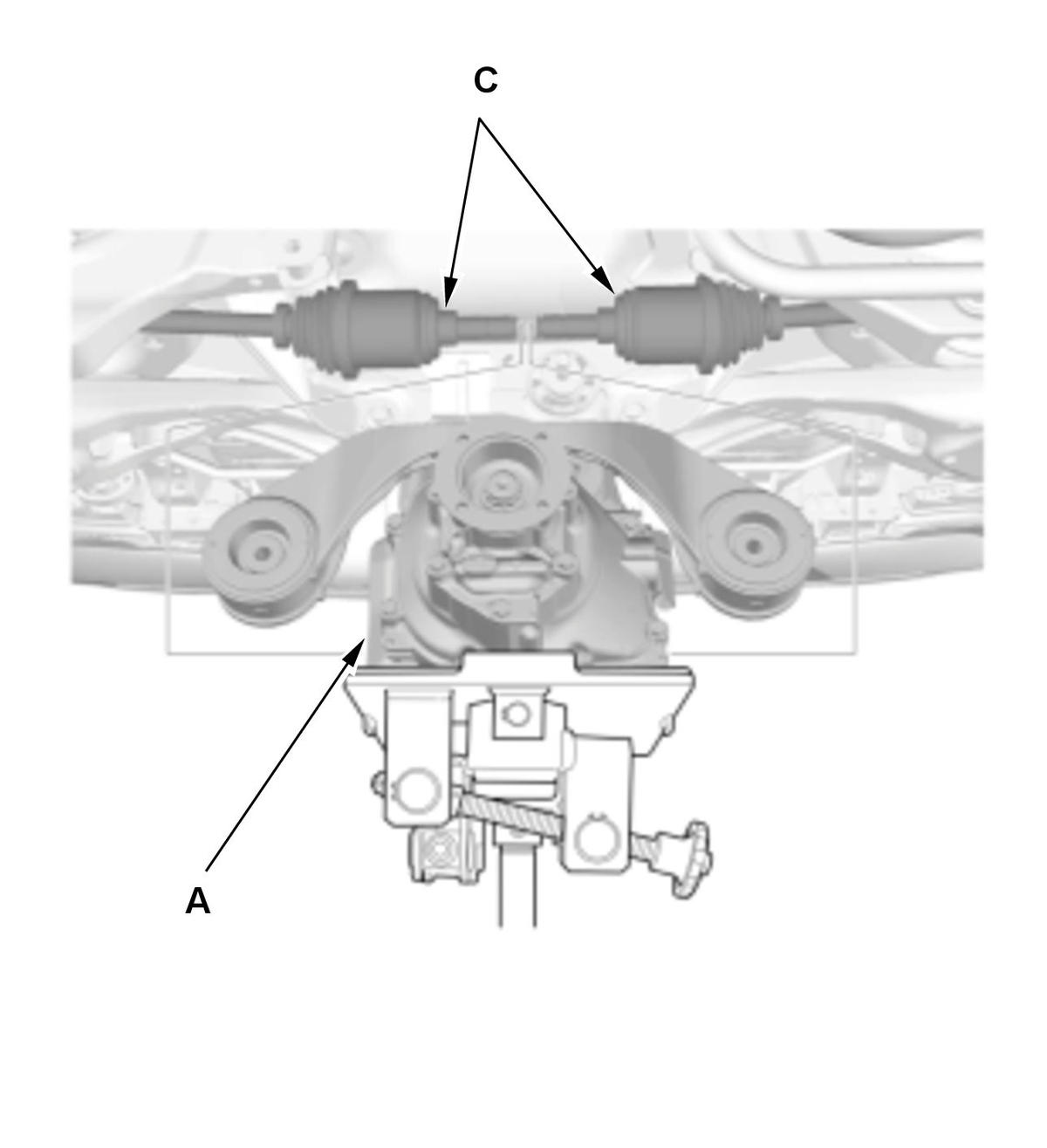

2. Lift the rear differential assembly (A) up into position.

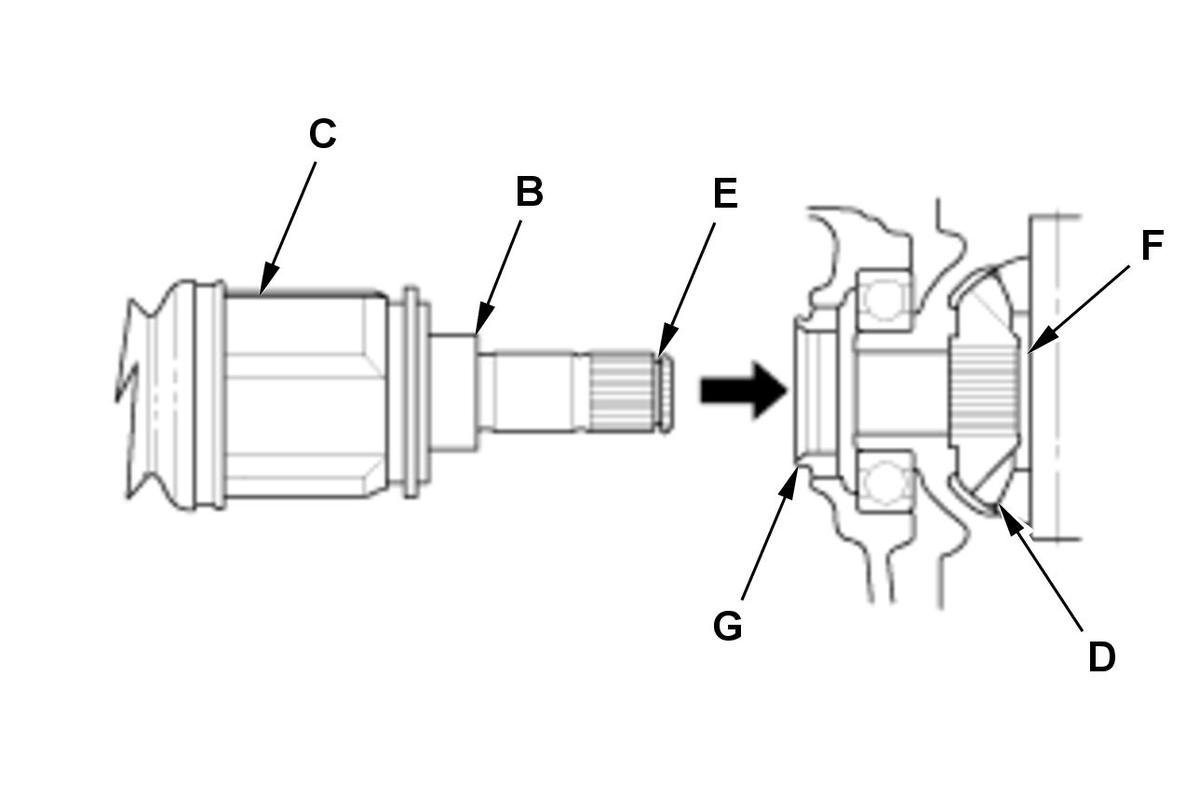

3. Insert the inboard joint (B) of the rear driveshafts (C) into the rear differential (D) until the set ring (E) locks in the groove (F).

NOTE: Insert the driveshaft horizontally to prevent damaging the oil seals (G).

Rear Differential Mounting Bolt - Install

Courtesy of HONDA, U.S.A., INC.

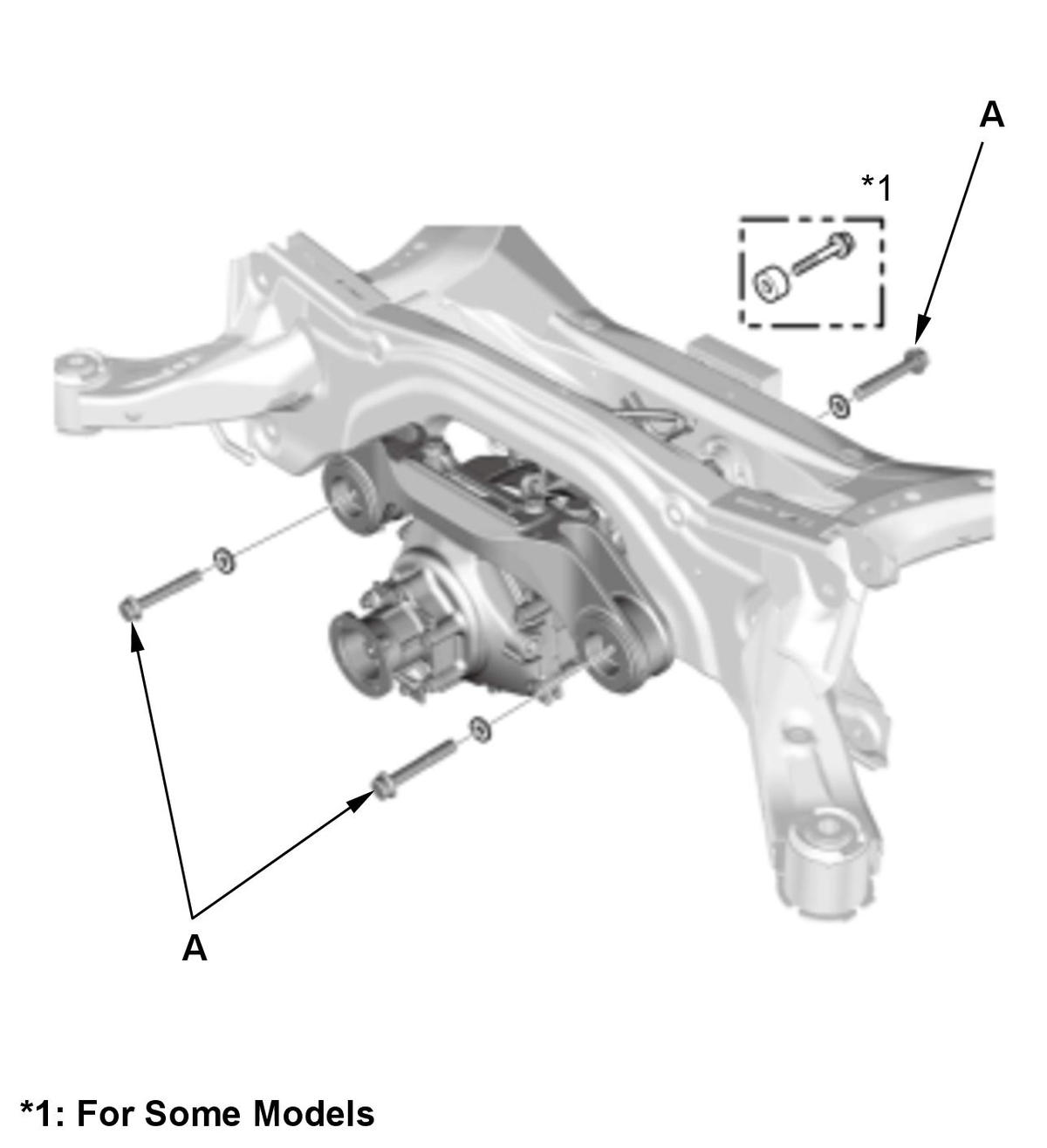

1. Loosely install the rear differential mounting bolts (A).

2. Remove the transmission jack.

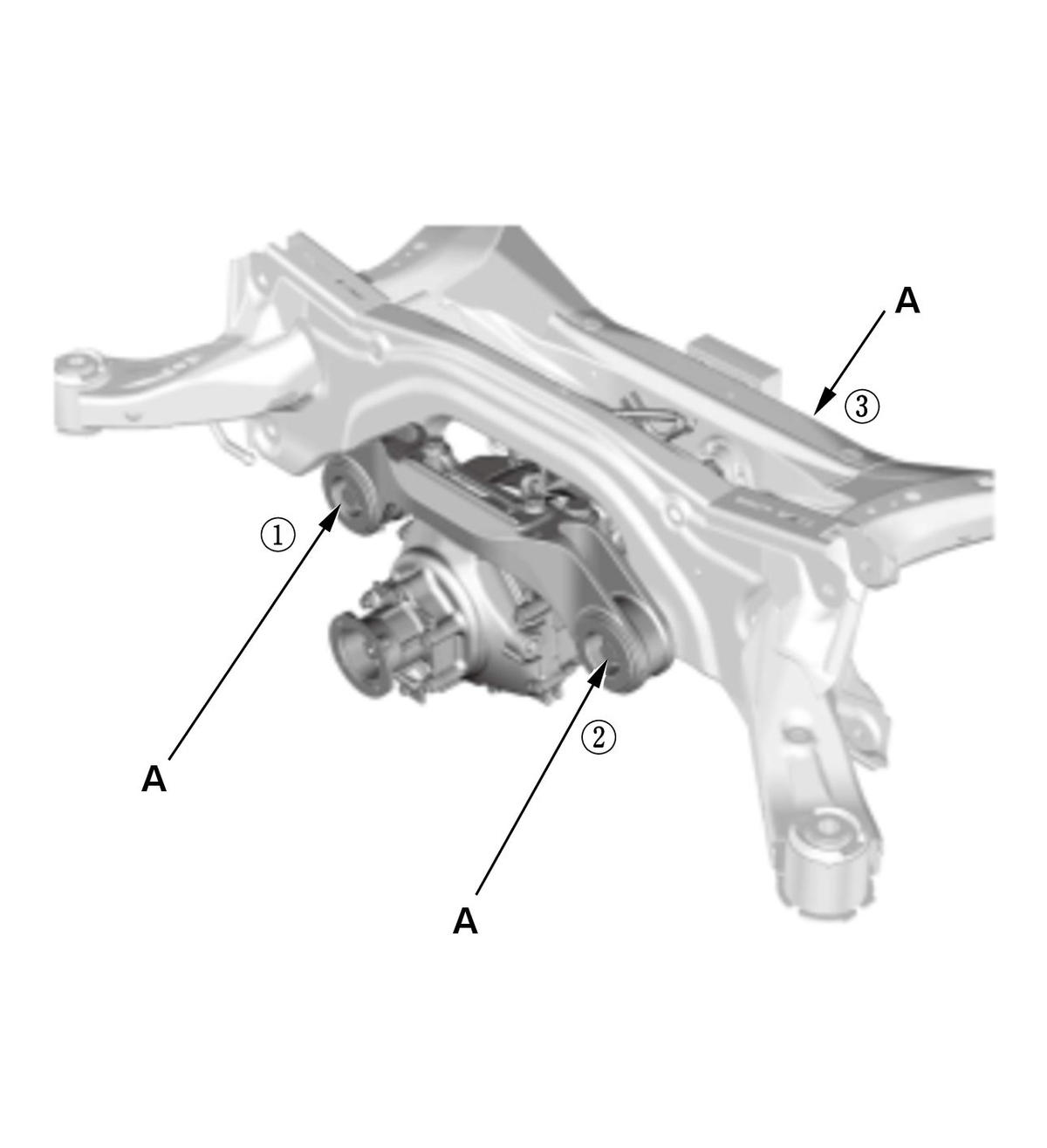

Fig 2: Rear Differential Mounting Bolts Tightening Sequence

Courtesy of HONDA, U.S.A., INC.

3. Tighten the rear differential mounting bolts (A) in the numbered sequence shown.

Connectors (Rear Differential Subharness) - Connect

Courtesy of HONDA, U.S.A., INC.

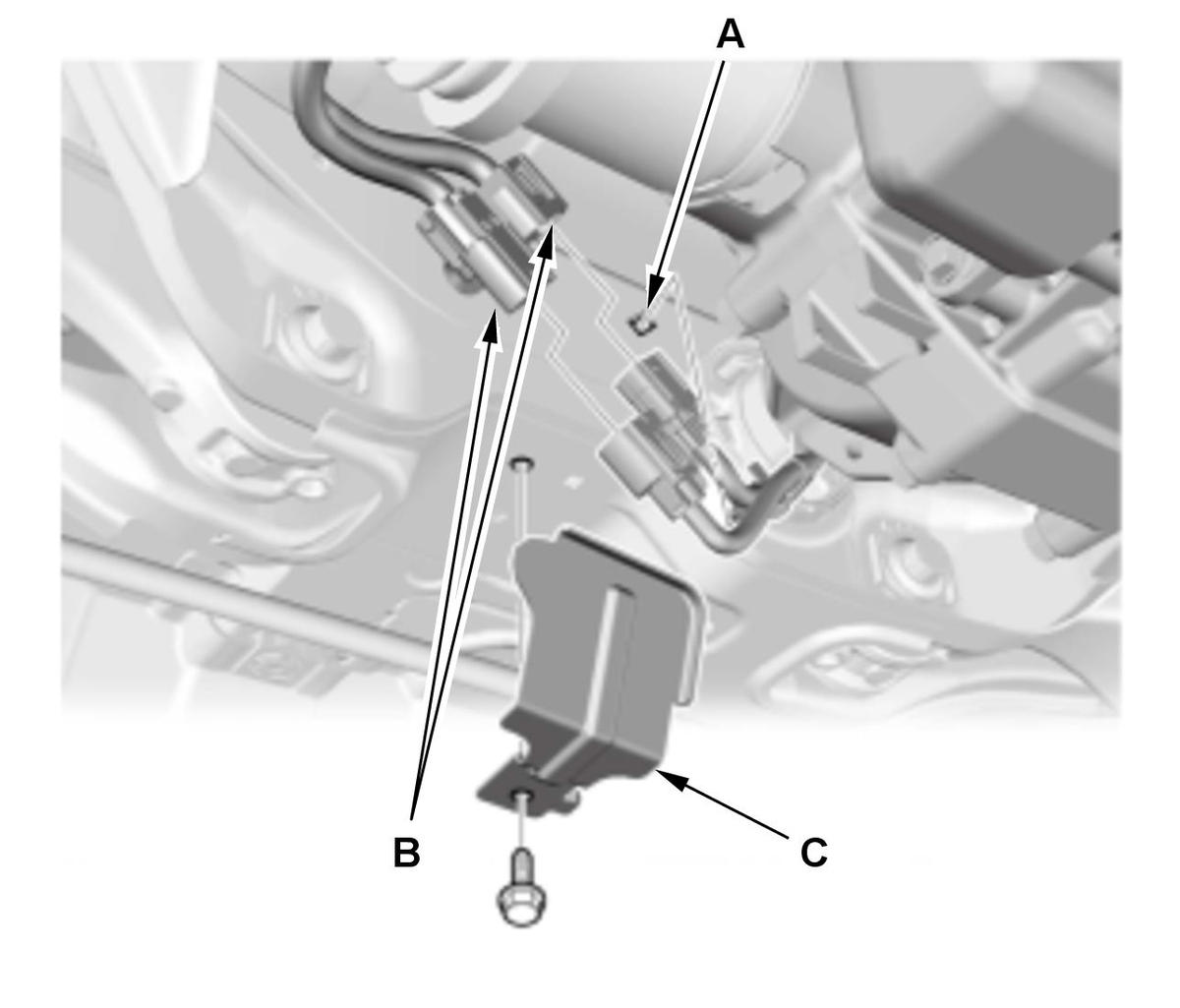

1. Install the harness clip (A).

2. Connect the connectors (B).

3. Install the cover (C).
