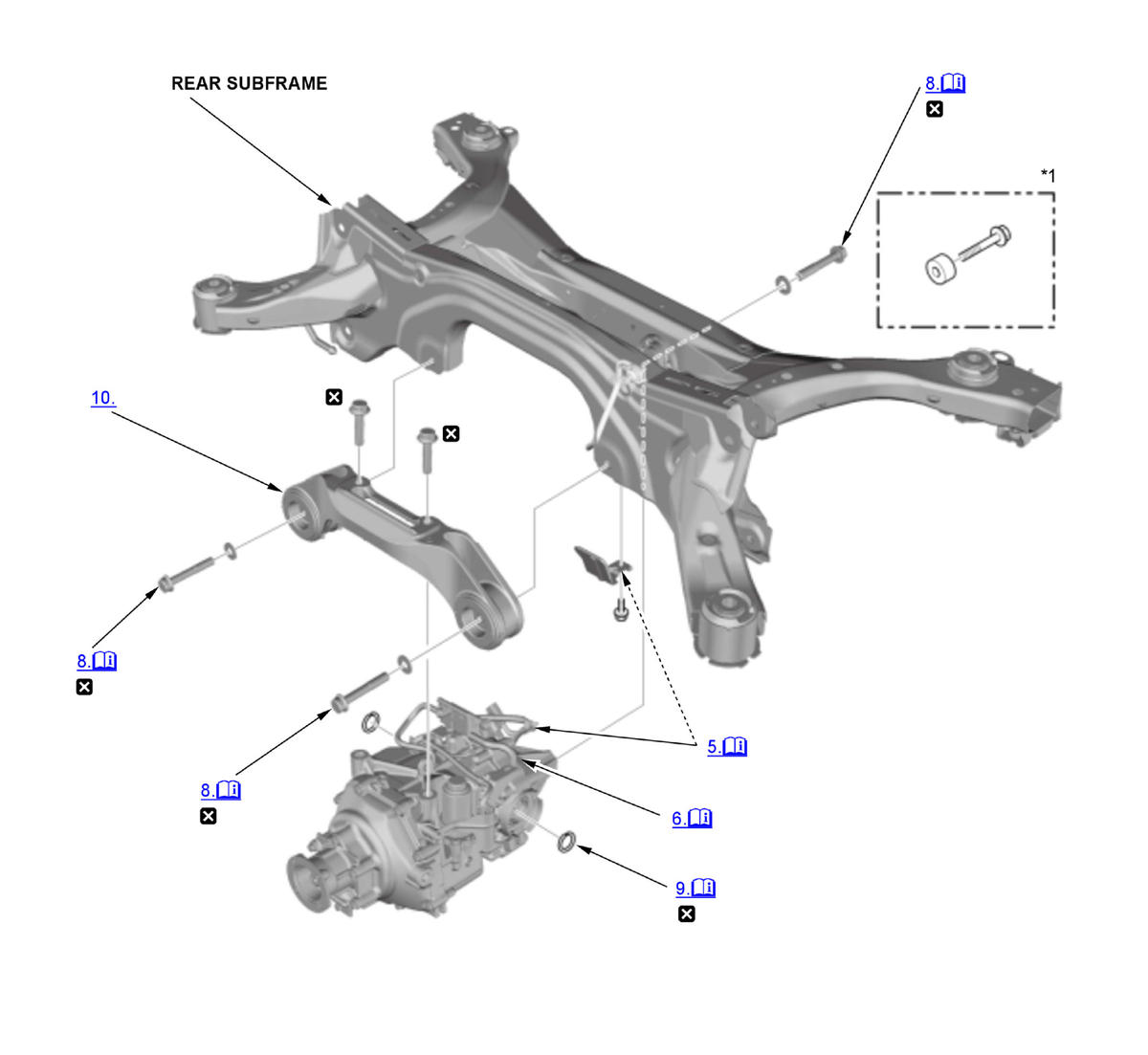

Rear Differential Removal and Installation (AWD) (2017): Removal

NOTE:  Where icon is shown, see below for further information.

1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace
*1	For some models

1. Vehicle - Lift
2. Rear Differential Fluid - Drain
3. Muffler - Remove
4. No. 2 Propeller Shaft - Disconnect

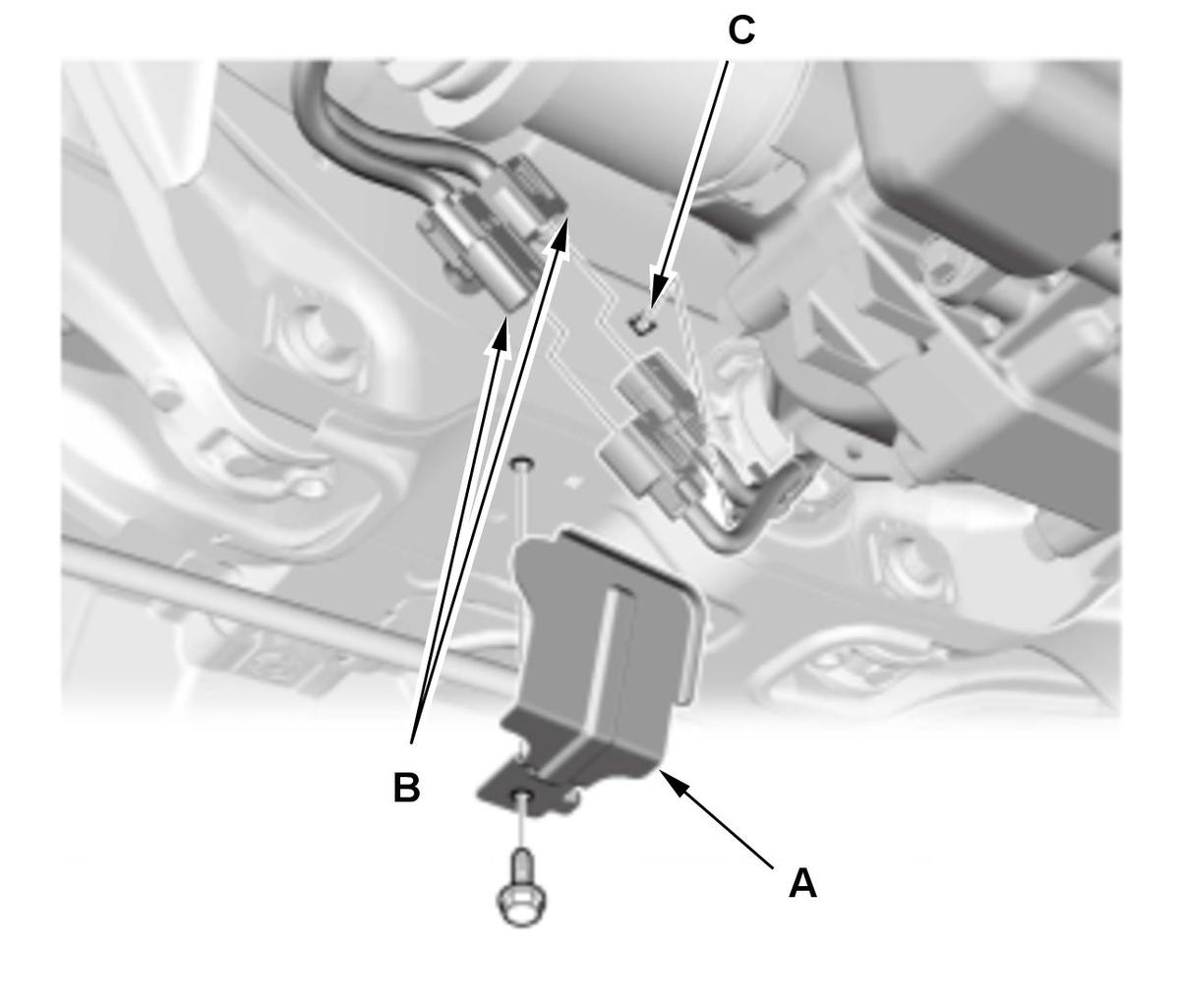

5. Connectors (Rear Differential Subharness) - Disconnect

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the cover (A). 2. Disconnect the connectors (B). 3. Remove the harness clip (C).

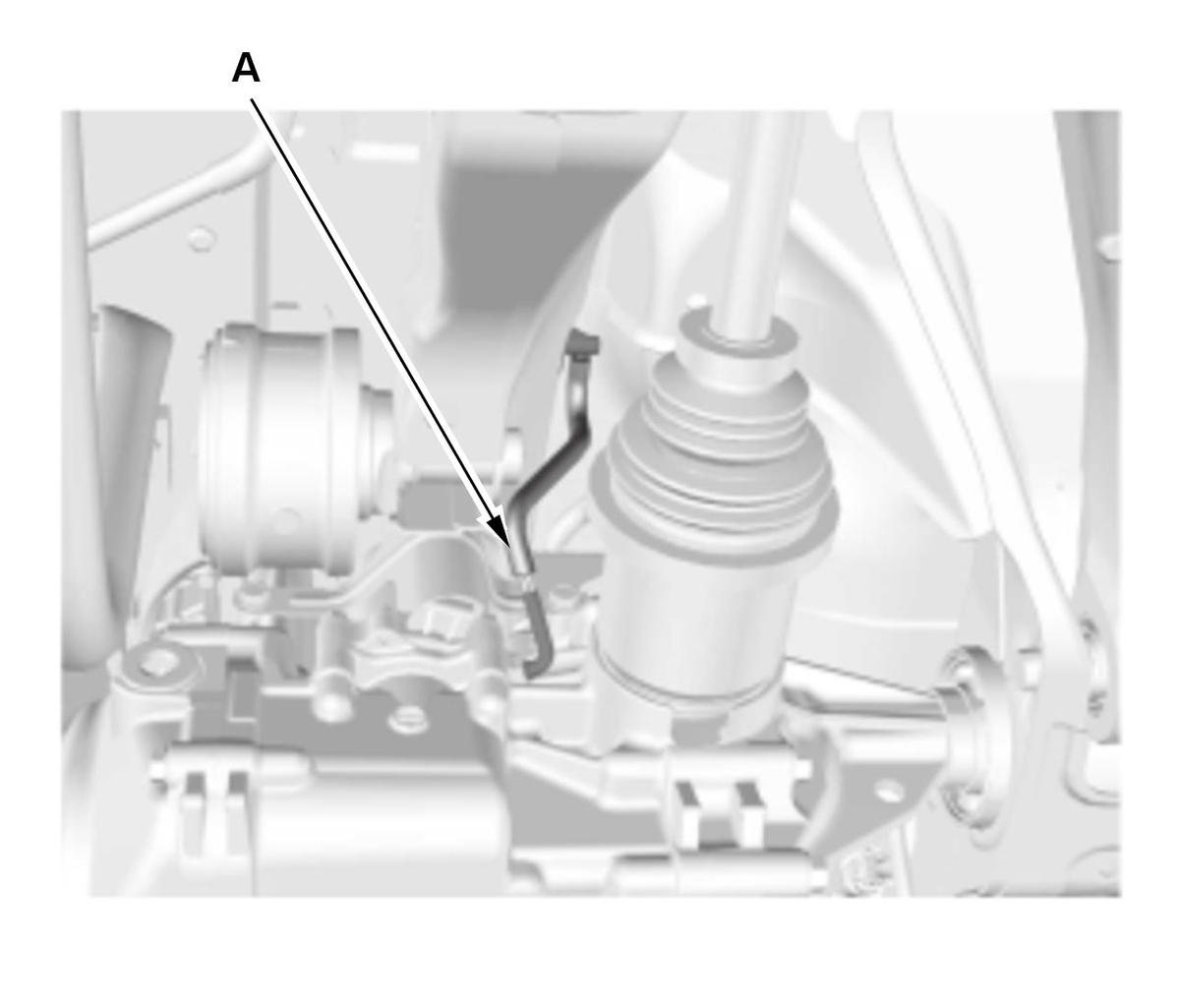

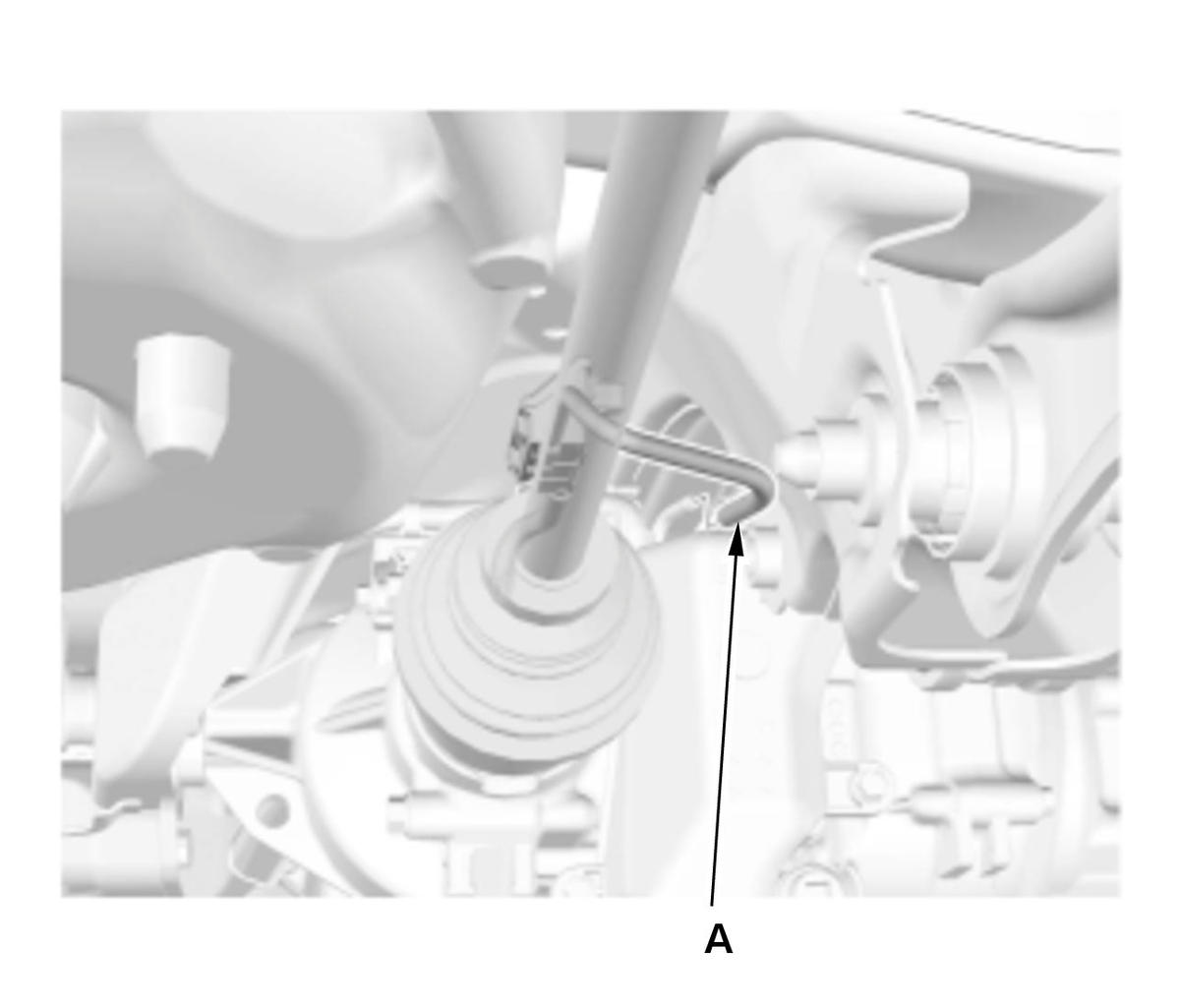

6. Breather Hose - Disconnect

   Left side  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Right side  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   1. Disconnect the breather hoses (A).

7. Rear Differential - Support

   NOTE:  Support the Rear Differential with a transmission jack.

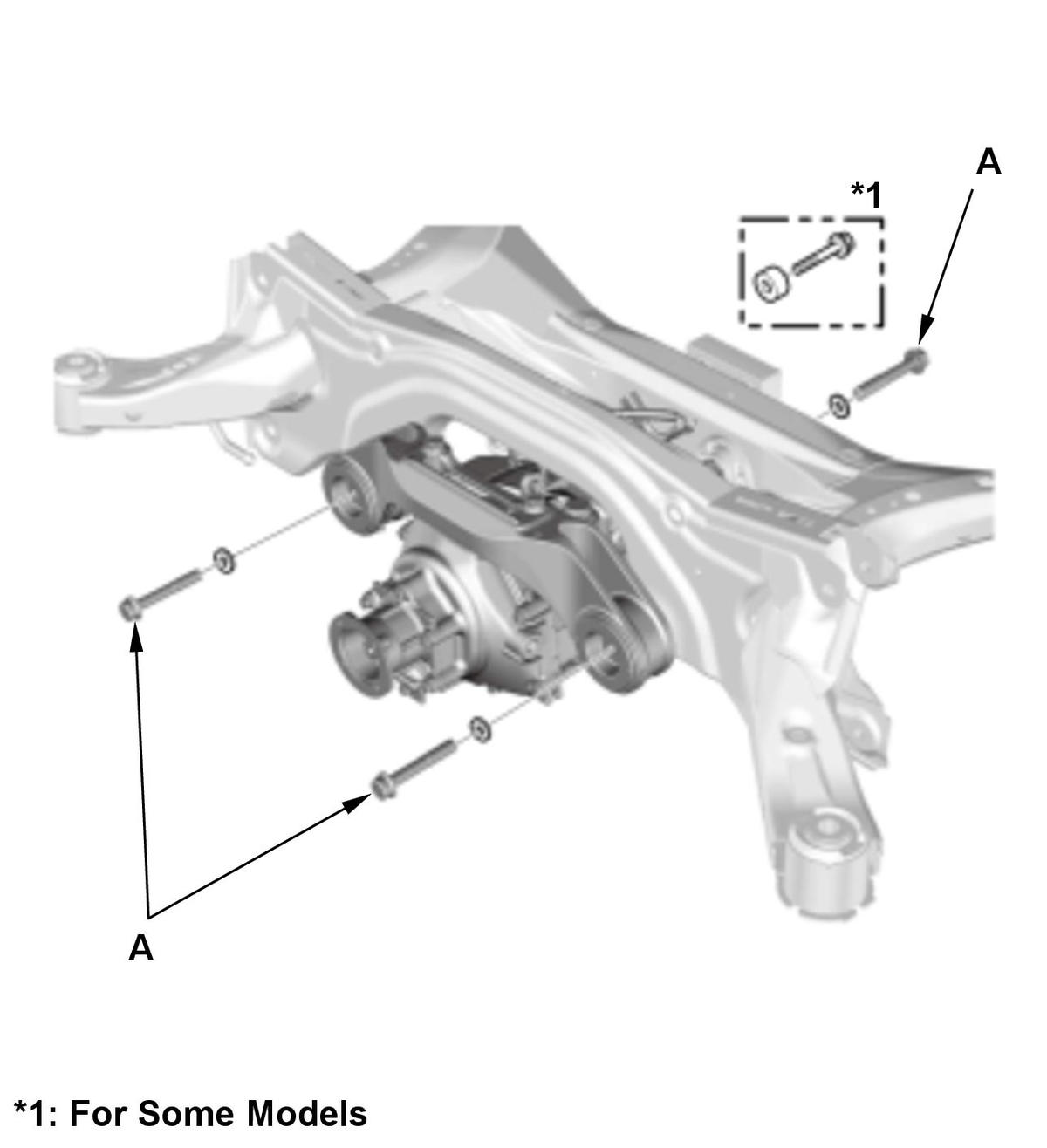

8. Rear Differential Mounting Bolt - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the rear differential mounting bolts (A).

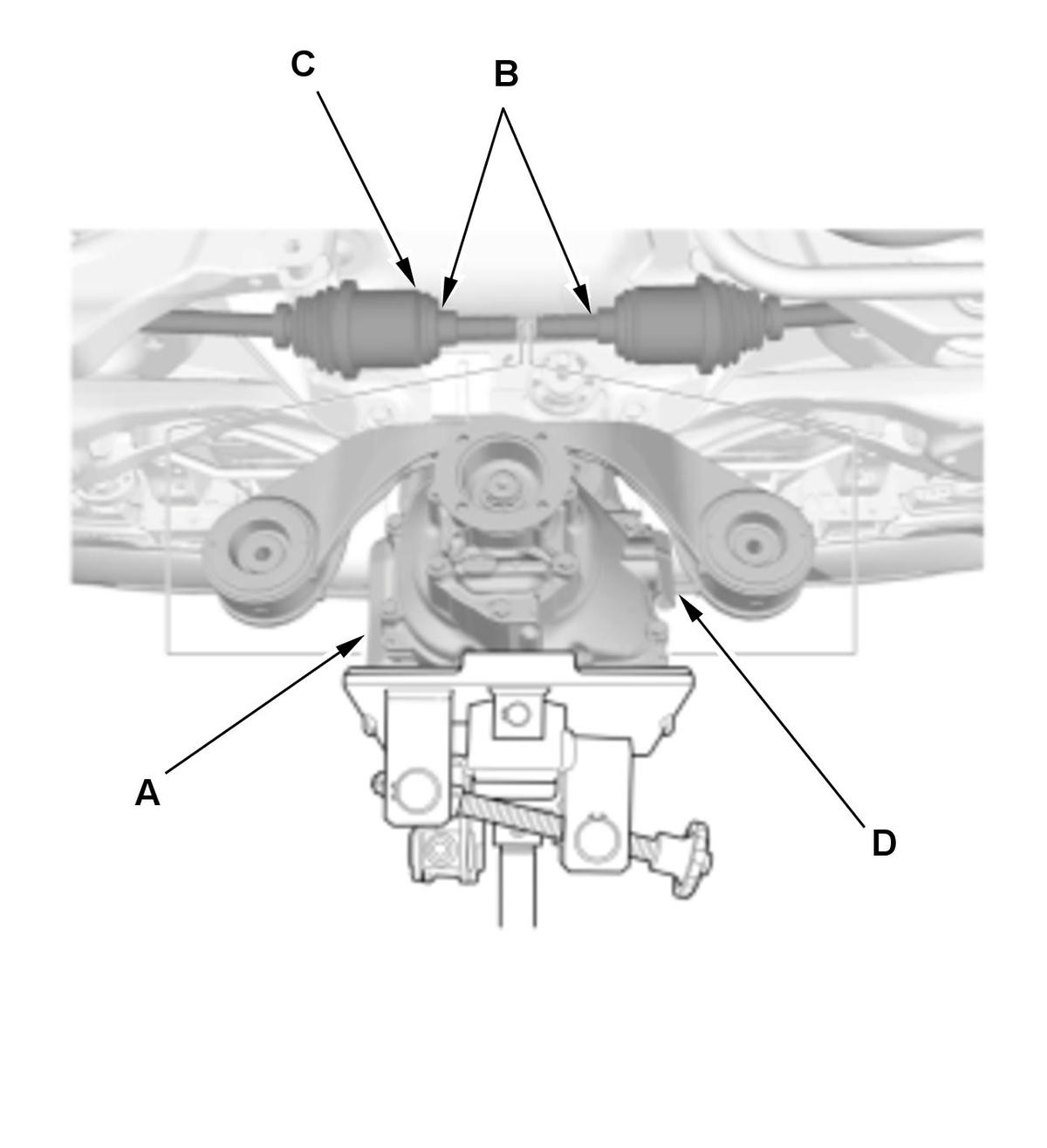

9. Rear Driveshaft Inboard Side - Disconnect

   Courtesy of HONDA, U.S.A., INC.

   1. Lower the rear differential assembly (A) while pulling both rear driveshaft inboard joints (B) out of the rear differential assembly. NOTE:  Be careful not to damage the driveshaft rings (C) when prying out the driveshaft inboard joints. Be careful not to damage the oil seals (D).

   Courtesy of HONDA, U.S.A., INC.

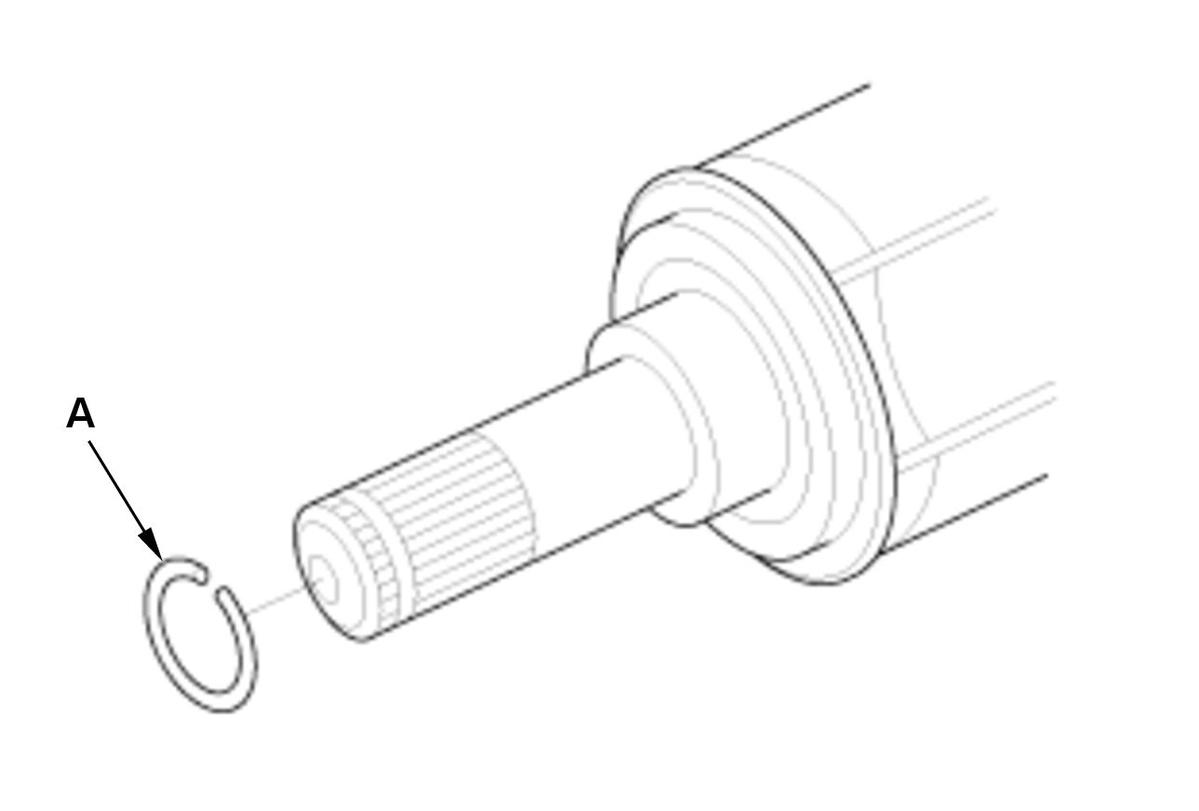

   2. Remove the driveshaft inboard joint set ring (A) on both sides.

10. Rear Differential Front Mount - Remove
