Exploded View

NOTE:  Tighten the rear differential mount bolts in the numbered sequence shown.

1. Rear Differential Mount

   1

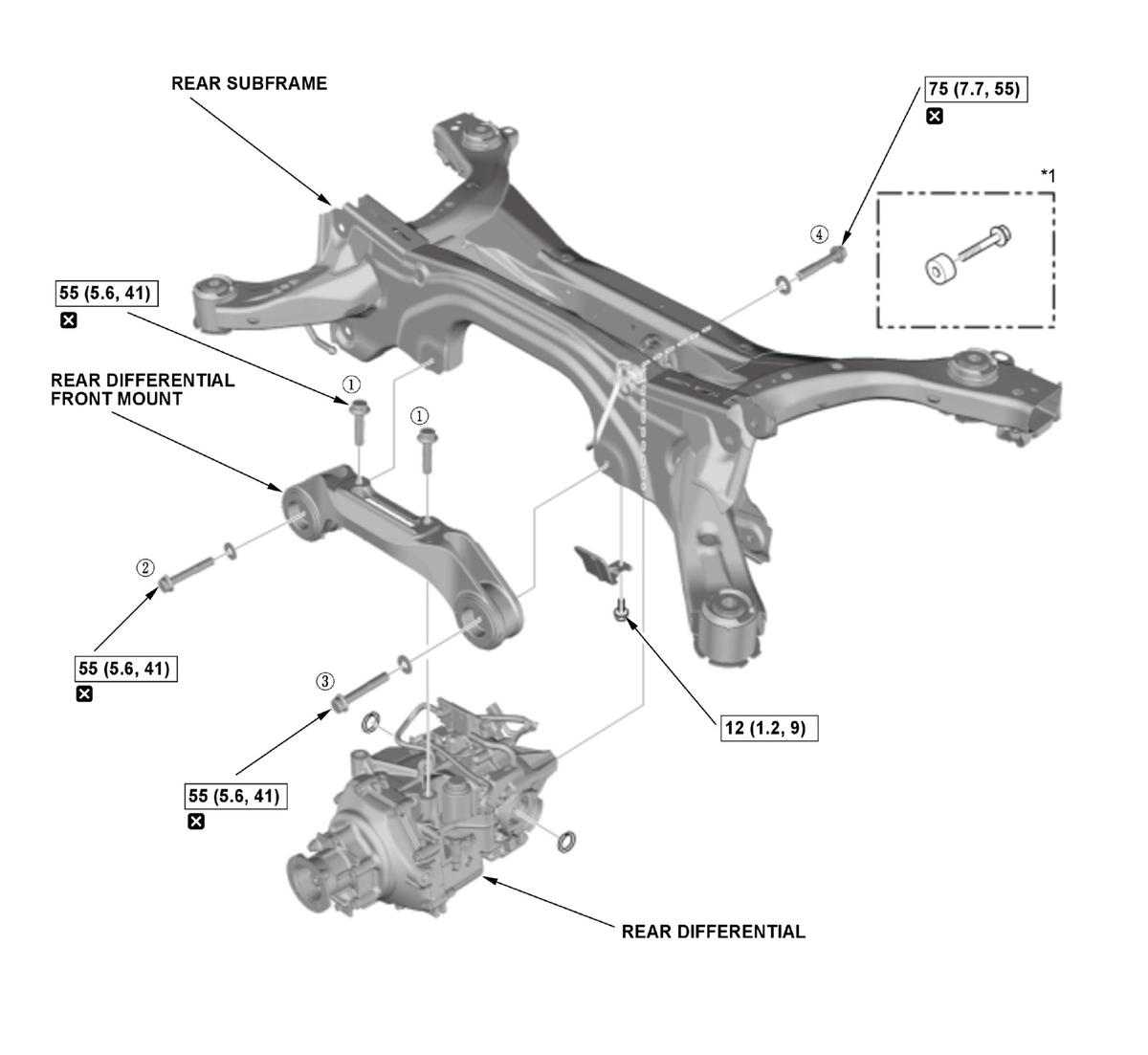

   Fig 1: Rear Differential Mount Torque Specifications & Bolt Tightening Sequence(AWD)

   Courtesy of HONDA, U.S.A., INC.

   	Torque: N.m (kgf.m, lbf.ft)
   	Replace
   *1	For some models
