Removal and Installation

1

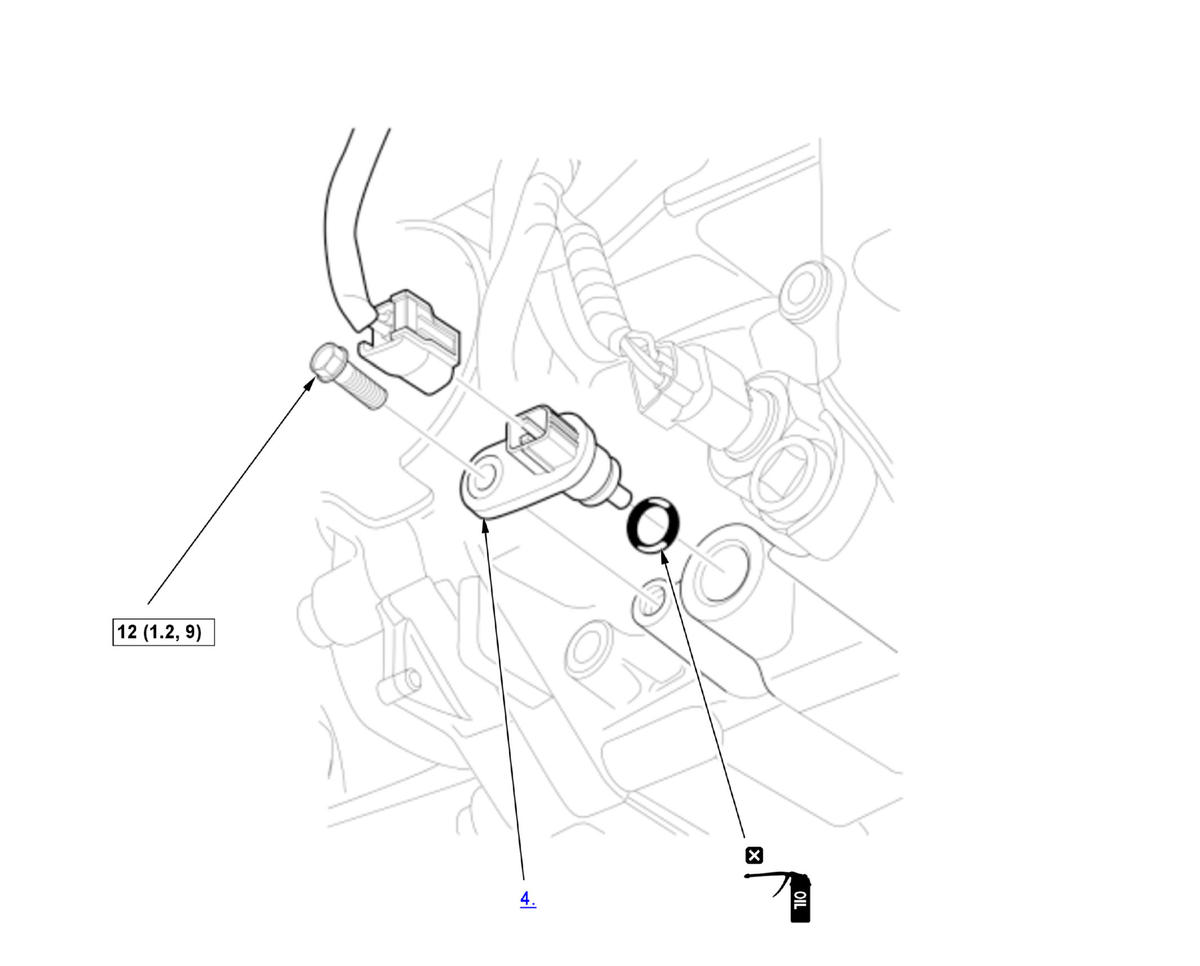

Fig 1: Rear Differential Fluid Temperature Sensor Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace
	Rear differential fluid

1. Vehicle - Lift
2. Rear Differential Fluid - Drain
3. Sensor Cover - Remove
4. Rear Differential Fluid Temperature Sensor - Remove
5. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

6. Rear Differential Fluid - Refill
