AWD Control Unit Removal and Installation (AWD): Removal

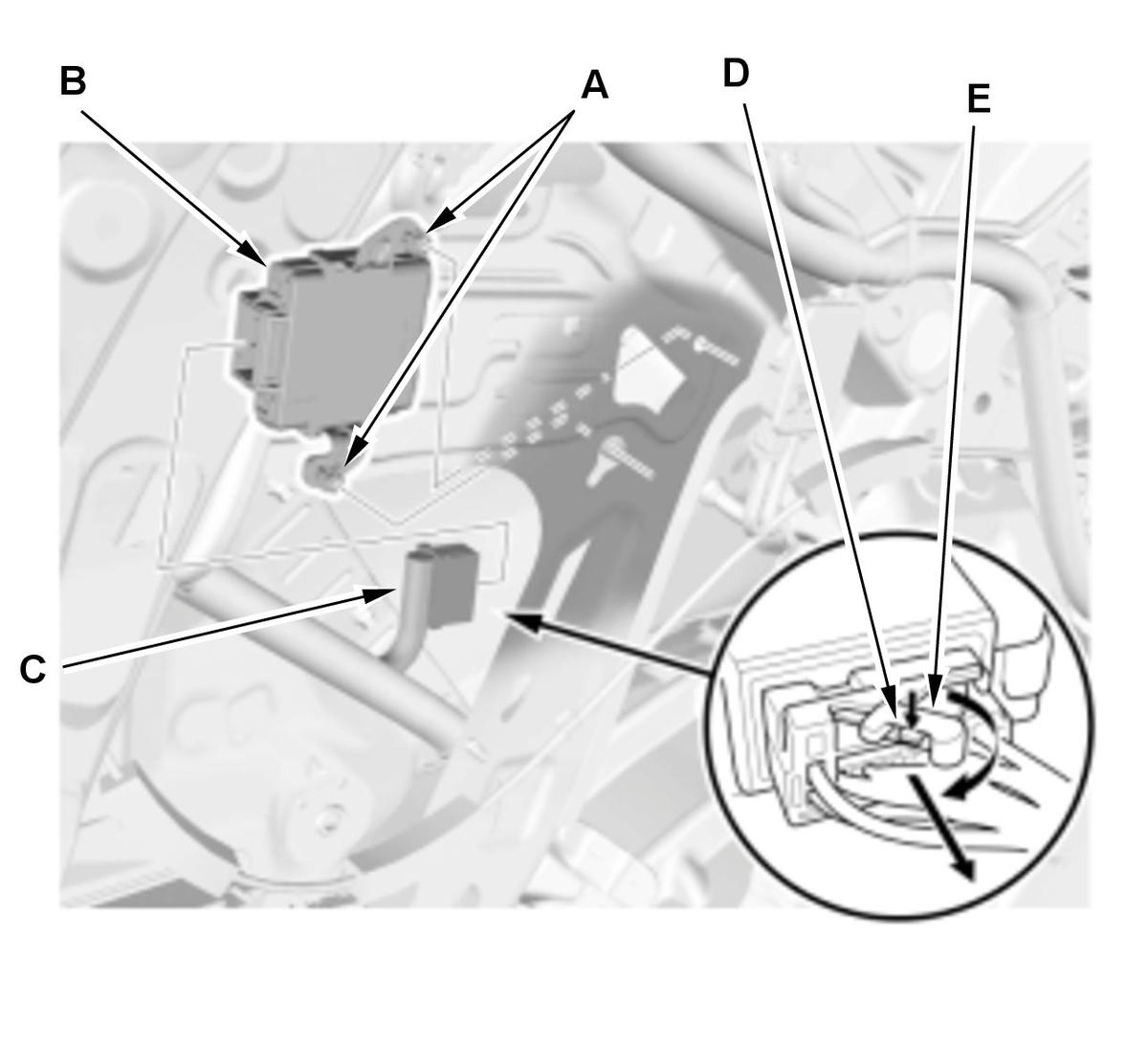

AWD Control Unit - Remove

Courtesy of HONDA, U.S.A., INC.

1. Turn the vehicle to the OFF (LOCK) mode.

2. Loosen the AWD control unit mounting bolts (A) and remove the AWD control unit (B).

3. Disconnect connector (C) by pushing the lock (D) and pulling up the lever (E); the connector disconnects itself.
