AWD Control Unit Removal and Installation (AWD): Installation

NOTE:

• How to read the torque specifications .
• The AWD control unit must be initialized after replacement, otherwise the AWD with intelligent control system will not function.

1. AWD Control Unit - Install

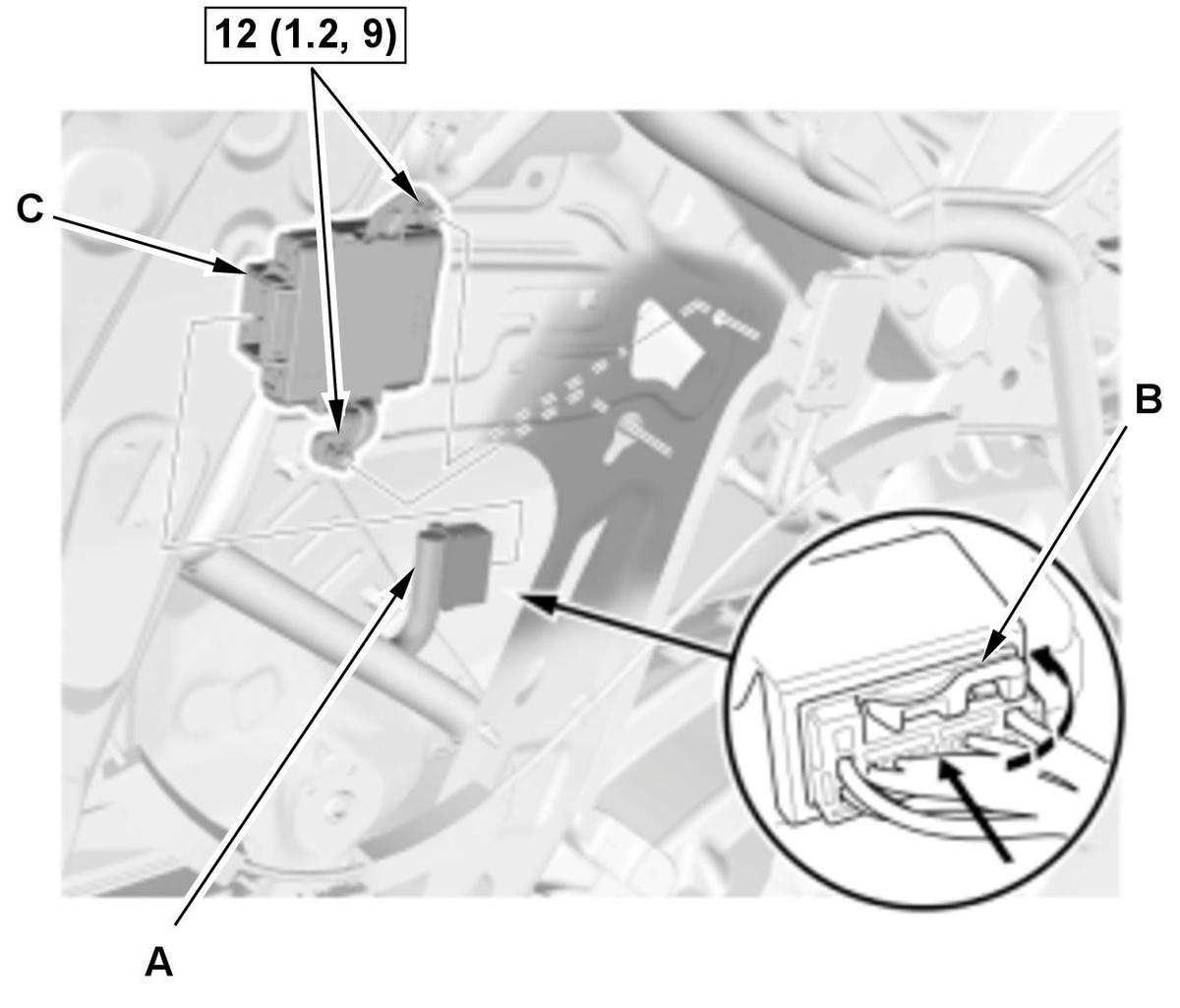

   Fig 1: AWD Control Unit (C) Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Align the connecting surface of the connector (A). 2. Pull down the lever (B) of the connector, then confirm the connector is fully seated. 3. Install the AWD control unit (C).

2. Rear Left Side Trim Panel - Install
3. AWD Control Unit - Initialization
