Rear Differential Disassembly and Reassembly (AWD) (2018 2019 2020 2021): Disassembly

NOTE: Where icon is shown, see below for further information.

Courtesy of HONDA, U.S.A., INC.

Replace

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

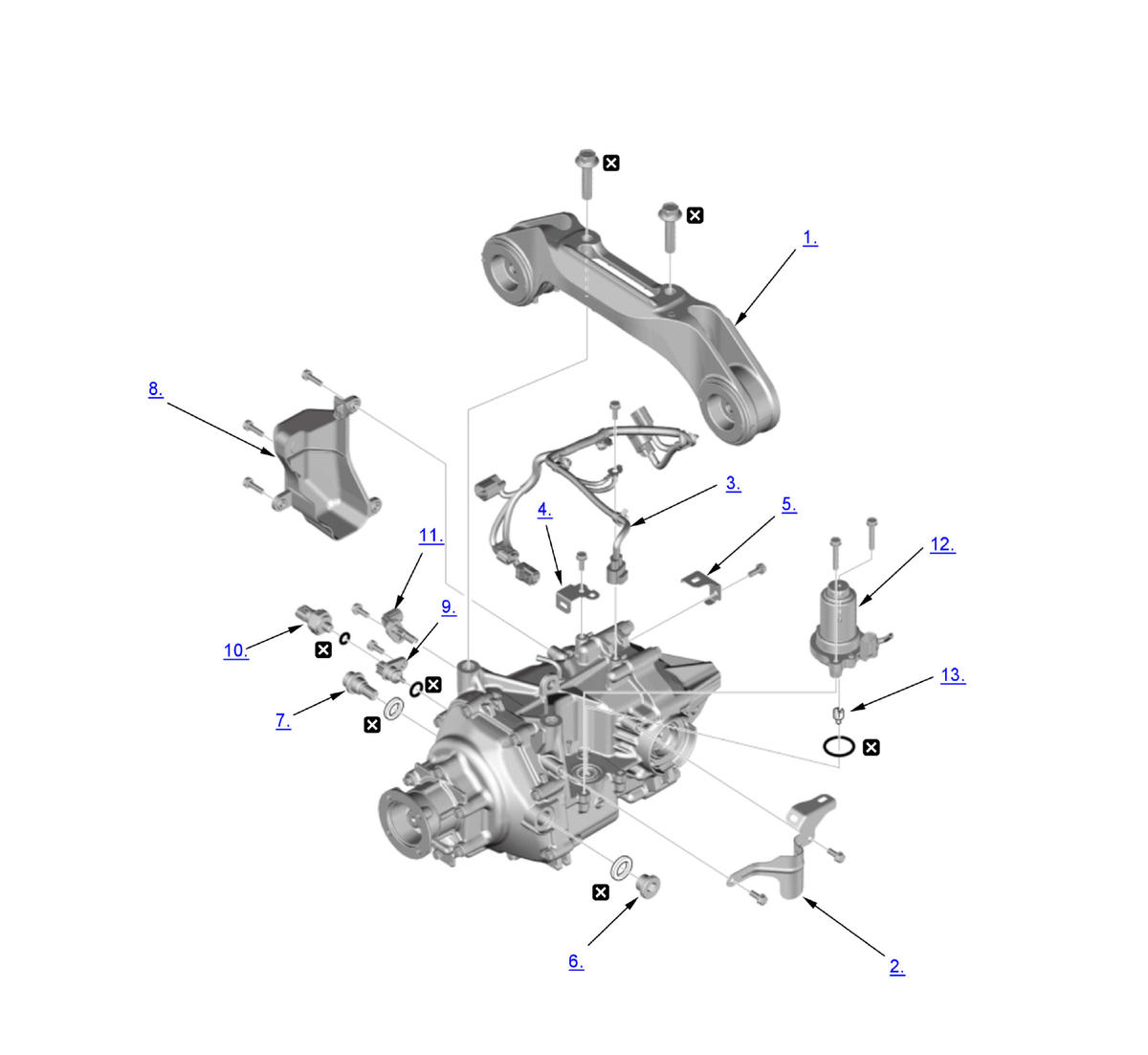

Rear Differential Front Mount - Remove
Harness Bracket A - Remove
Rear Differential Harness - Remove
Harness Bracket B - Remove
Harness Bracket D - Remove
Filler Plug - Remove
Drain Plug - Remove
Sensor Cover - Remove
Rear Differential Fluid Temperature Sensor - Remove
Rear Differential Fluid Pressure Sensor - Remove
Rear Differential Solenoid Valve Connector Assembly - Remove
Rear Differential Pump Motor - Remove
Pump Drive Joint - Remove

Locknut - Remove

Courtesy of HONDA, U.S.A., INC.

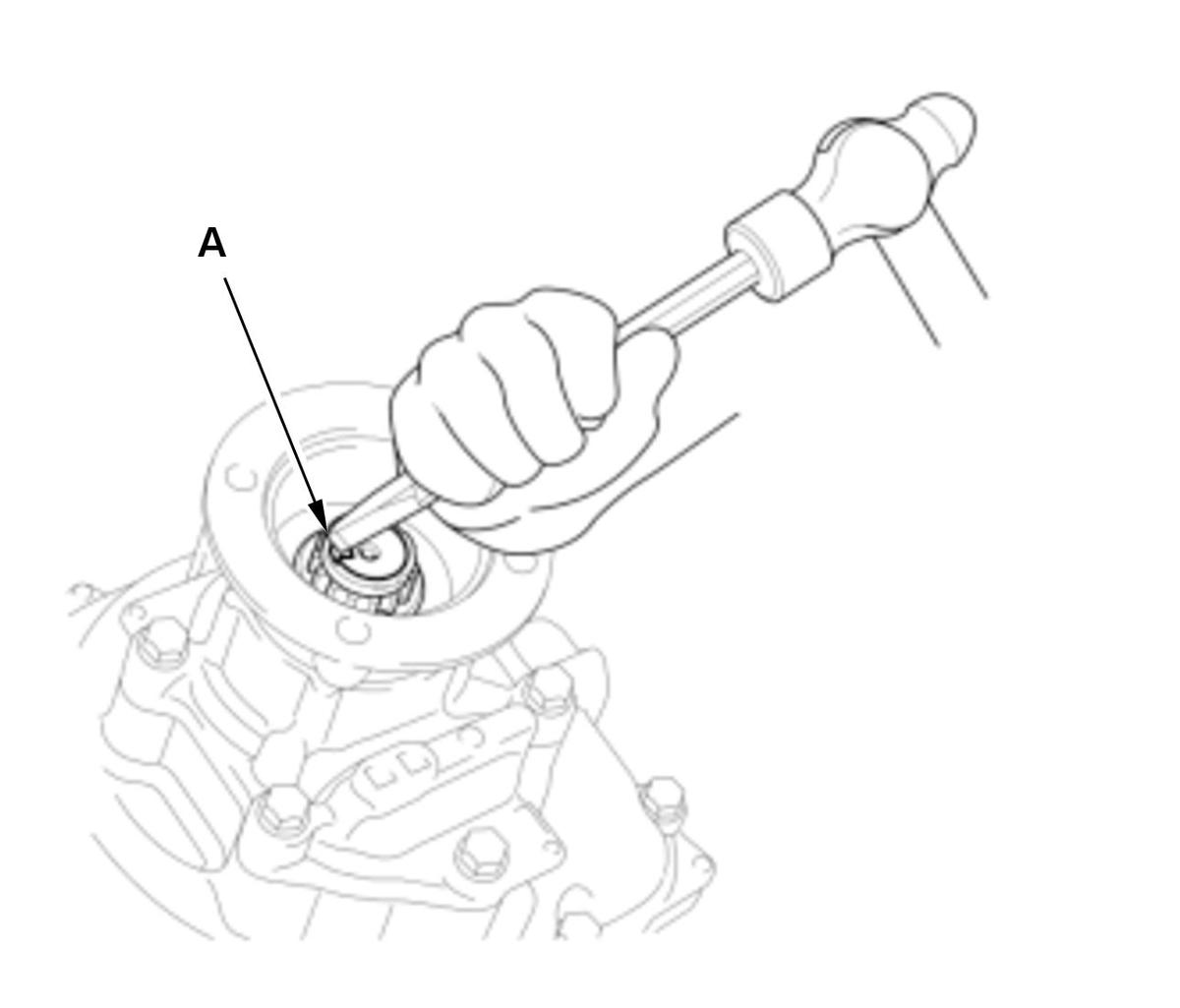

1. Pry up the stake on the locknut (A) from the groove of the clutch guide shaft, making sure the tab completely clears the groove to prevent damaging the clutch guide shaft.

Courtesy of HONDA, U.S.A., INC.

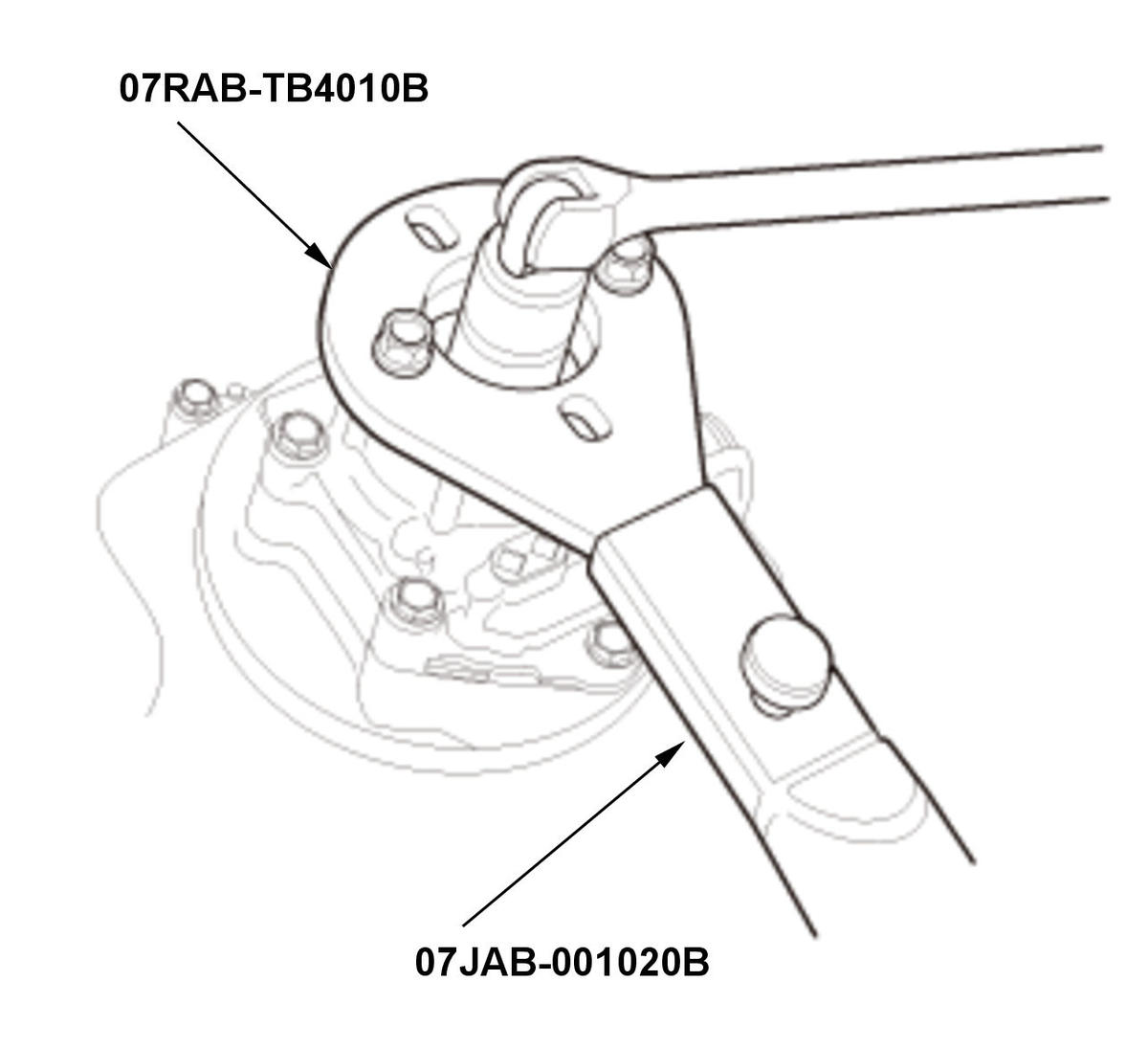

2. Install the companion flange holder and the holder handle on the companion flange.

Courtesy of HONDA, U.S.A., INC.

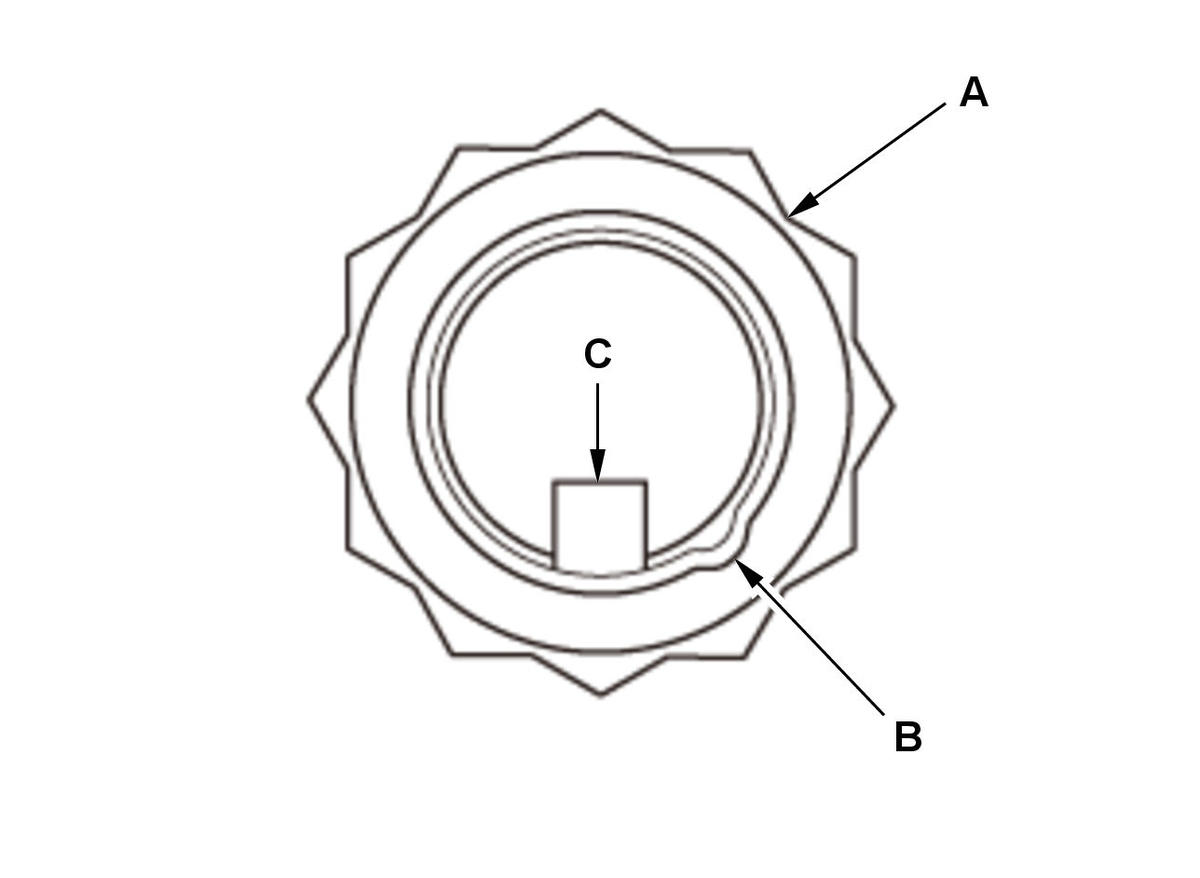

3. Loosen the locknut (A) counterclockwise so its tab (B) comes out from the groove (C) in the clutch guide shaft.

Courtesy of HONDA, U.S.A., INC.

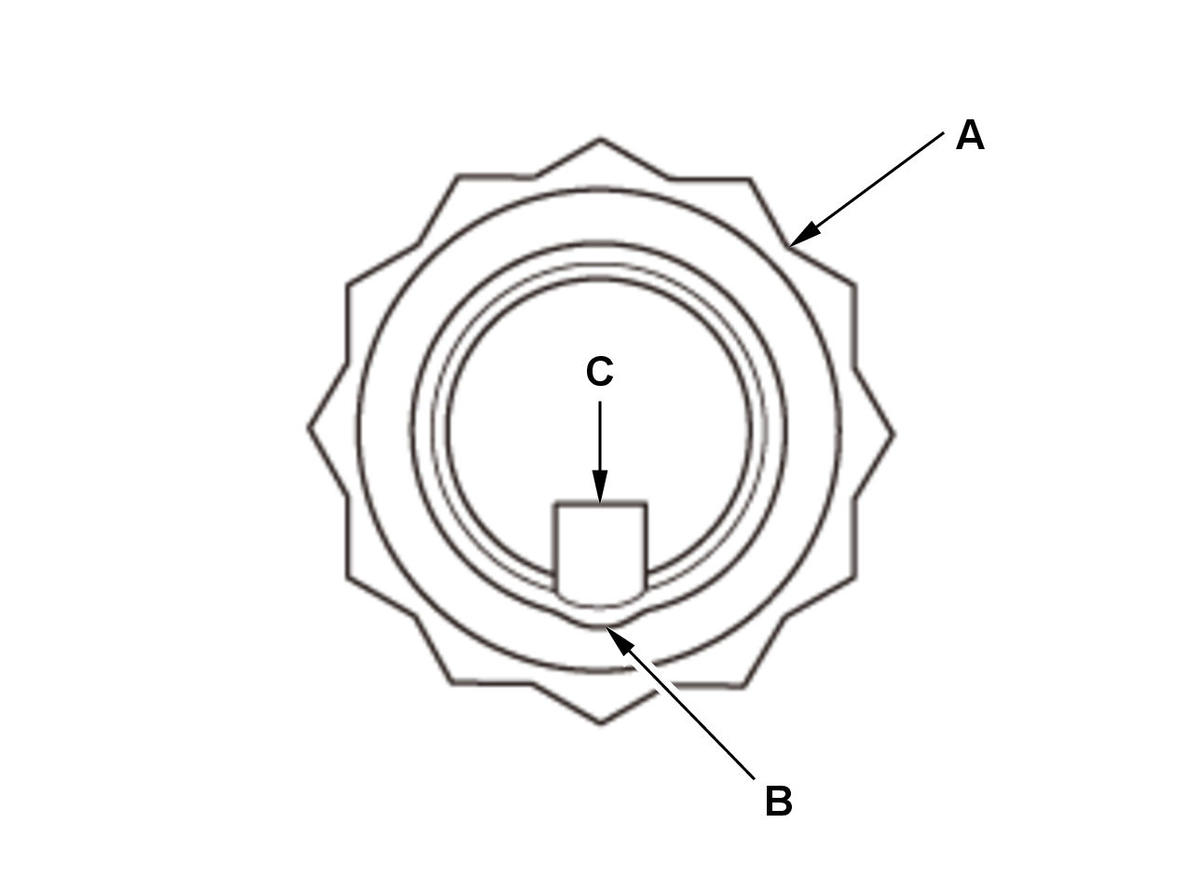

4. Tighten the locknut (A) until its tab (B) aligns with the groove (C).

5. Clean any dirt from inside the groove in the clutch guide shaft, then loosen the locknut.

Spring Washer - Remove
Back-Up Ring - Remove

Companion Flange - Remove

Courtesy of HONDA, U.S.A., INC.

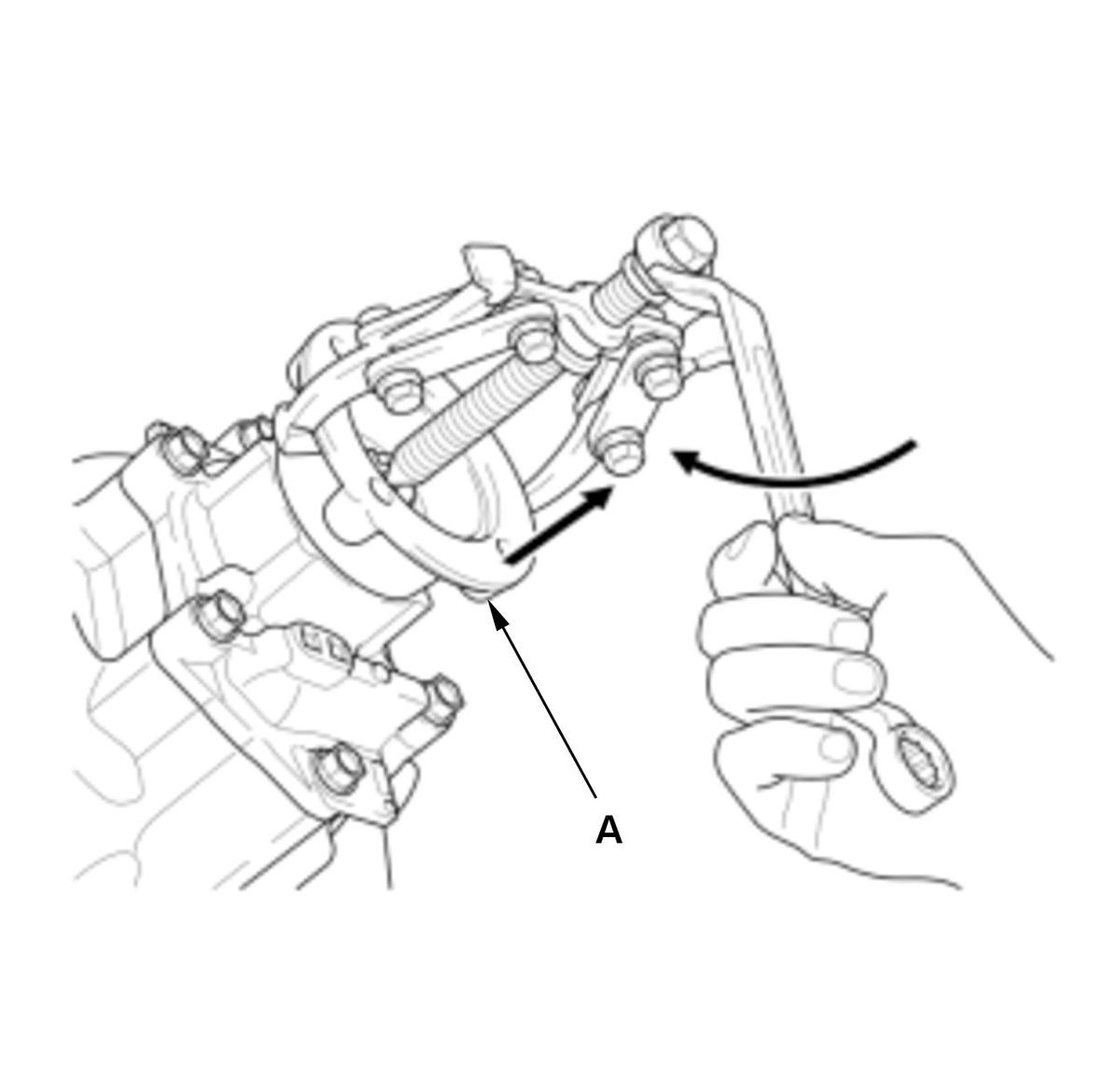

1. Remove the companion flange (A) with a commercially available puller.

Oil Seal - Remove

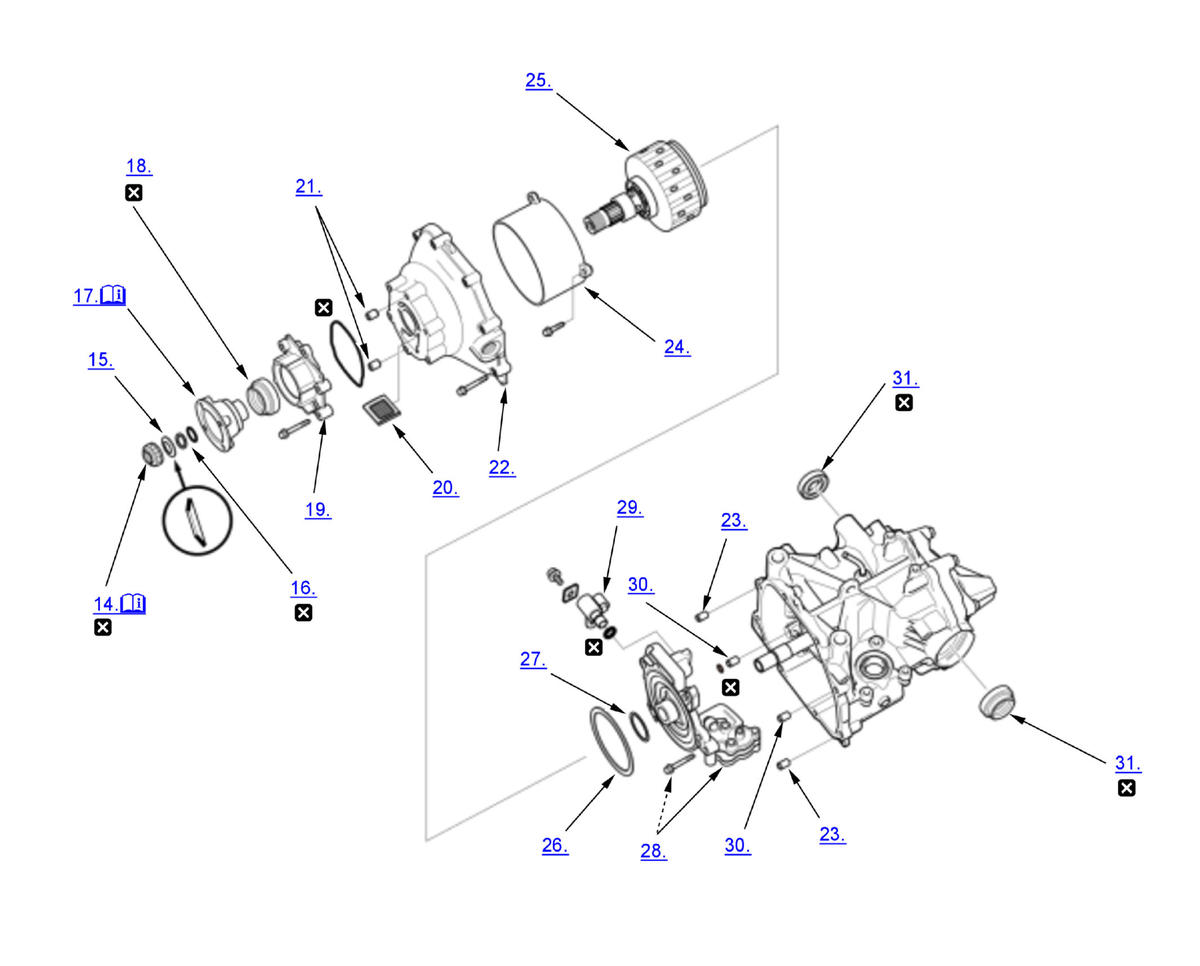

Oil Pump Cover - Remove
Fluid Strainer - Remove
8 x 10 mm Dowel Pins - Remove
Oil Pump Case - Remove
8 x 10 mm Dowel Pins - Remove
Baffle Cover - Remove
Differential Clutch Assembly - Remove
94.6 mm Shim - Remove
32.3 mm Shim - Remove
Oil Pump Body Assembly - Remove
Rear Differential Solenoid Valve - Remove
8 x 10 mm Dowel Pins - Remove
Oil Seals - Remove
