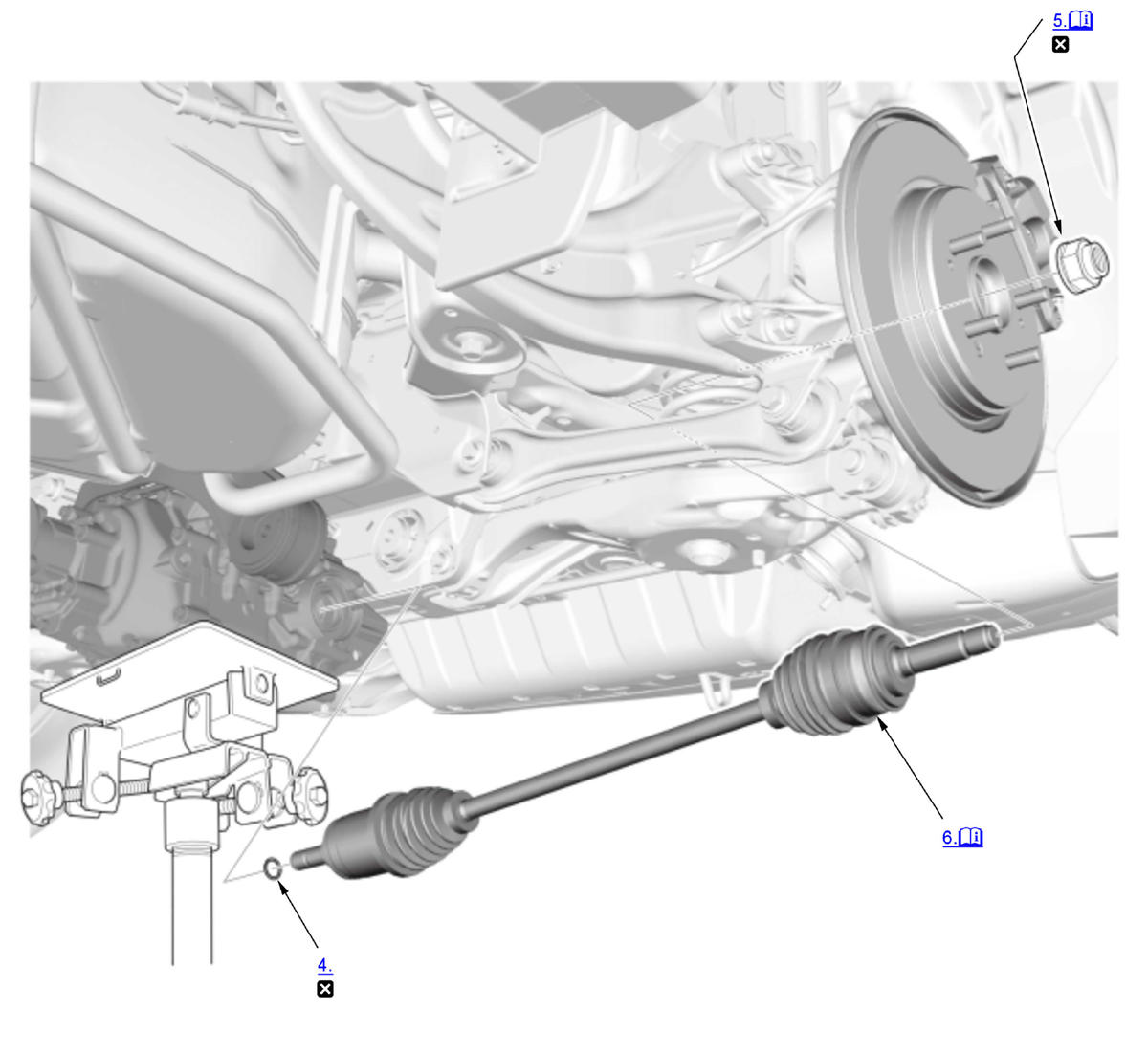

Rear Driveshaft Removal and Installation (AWD): Removal

NOTE:  Where icon is shown, for further information continue to the information below.

1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

1. Vehicle - Lift
2. Rear Wheel - Remove
3. Rear Differential - Remove
4. Set Ring - Remove

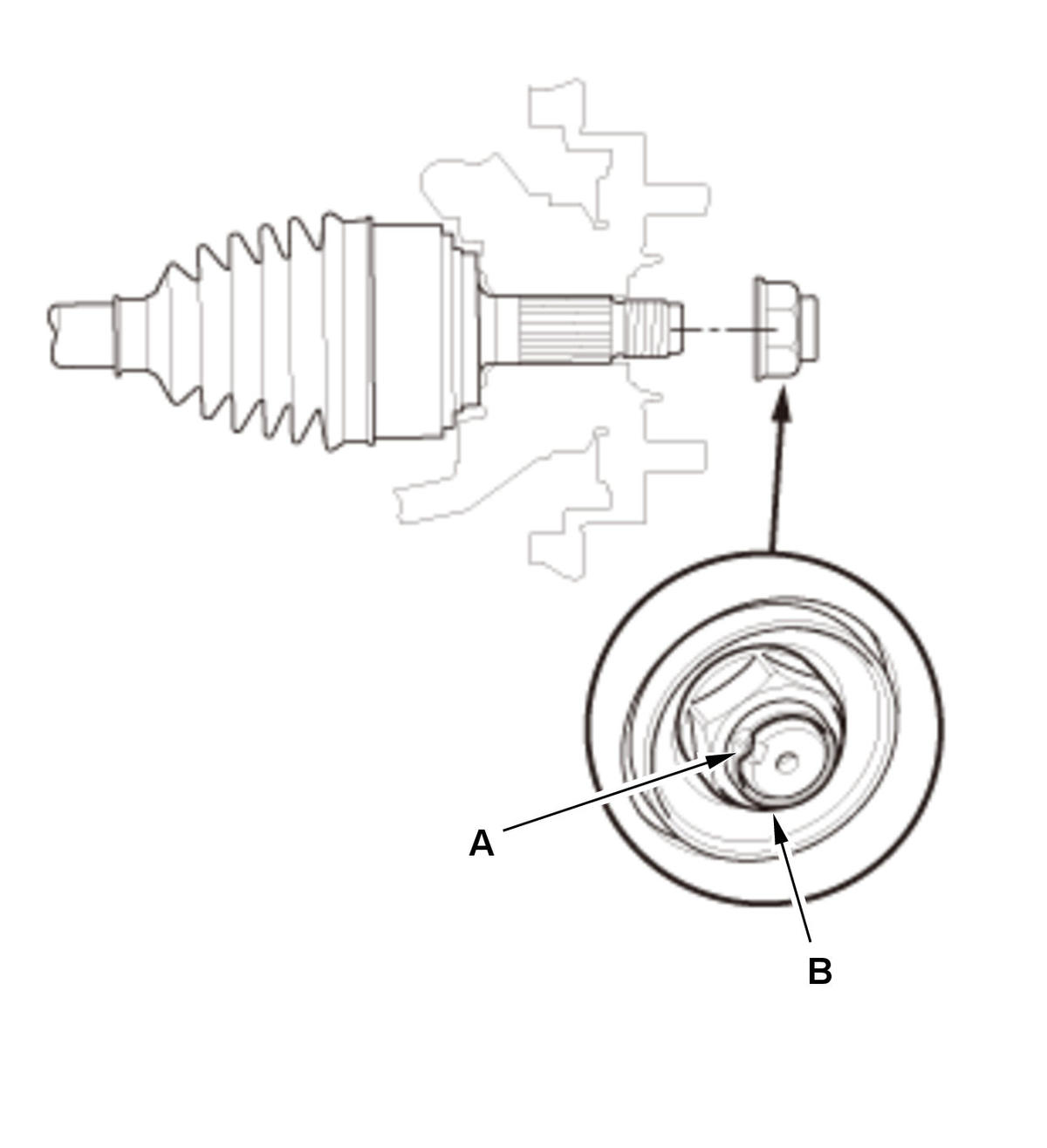

5. Spindle Nut - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Pry up the stake (A) on the spindle nut (B). 2. Remove the spindle nut.

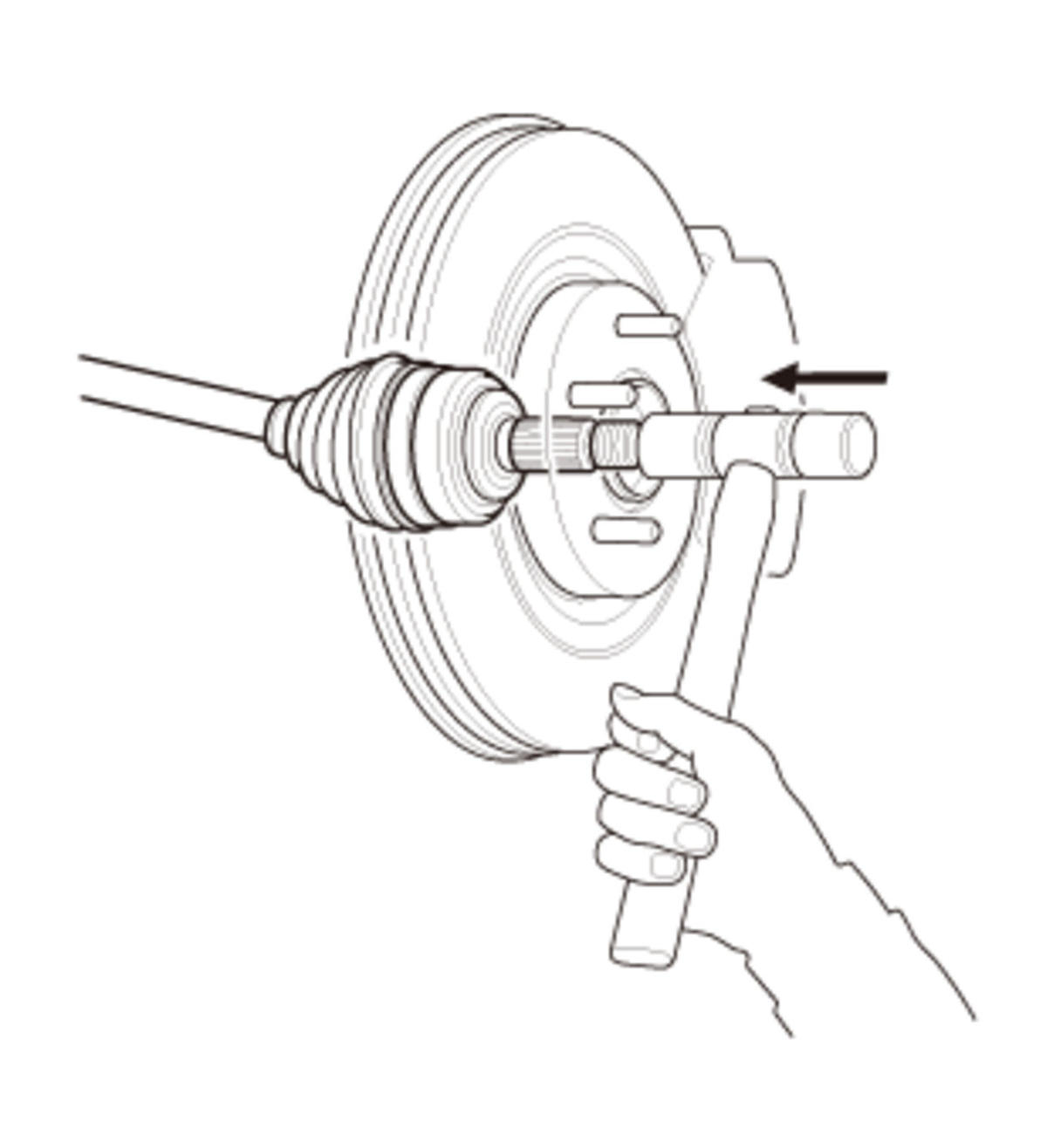

6. Outboard Joint - Disconnect

   Courtesy of HONDA, U.S.A., INC.

   NOTE:  Be careful not to damage the outboard joint threads and the wheel speed sensor.
