Front Driveshaft Removal and Installation: Removal

NOTE:  Where icon is shown, for further information continue to the information below.

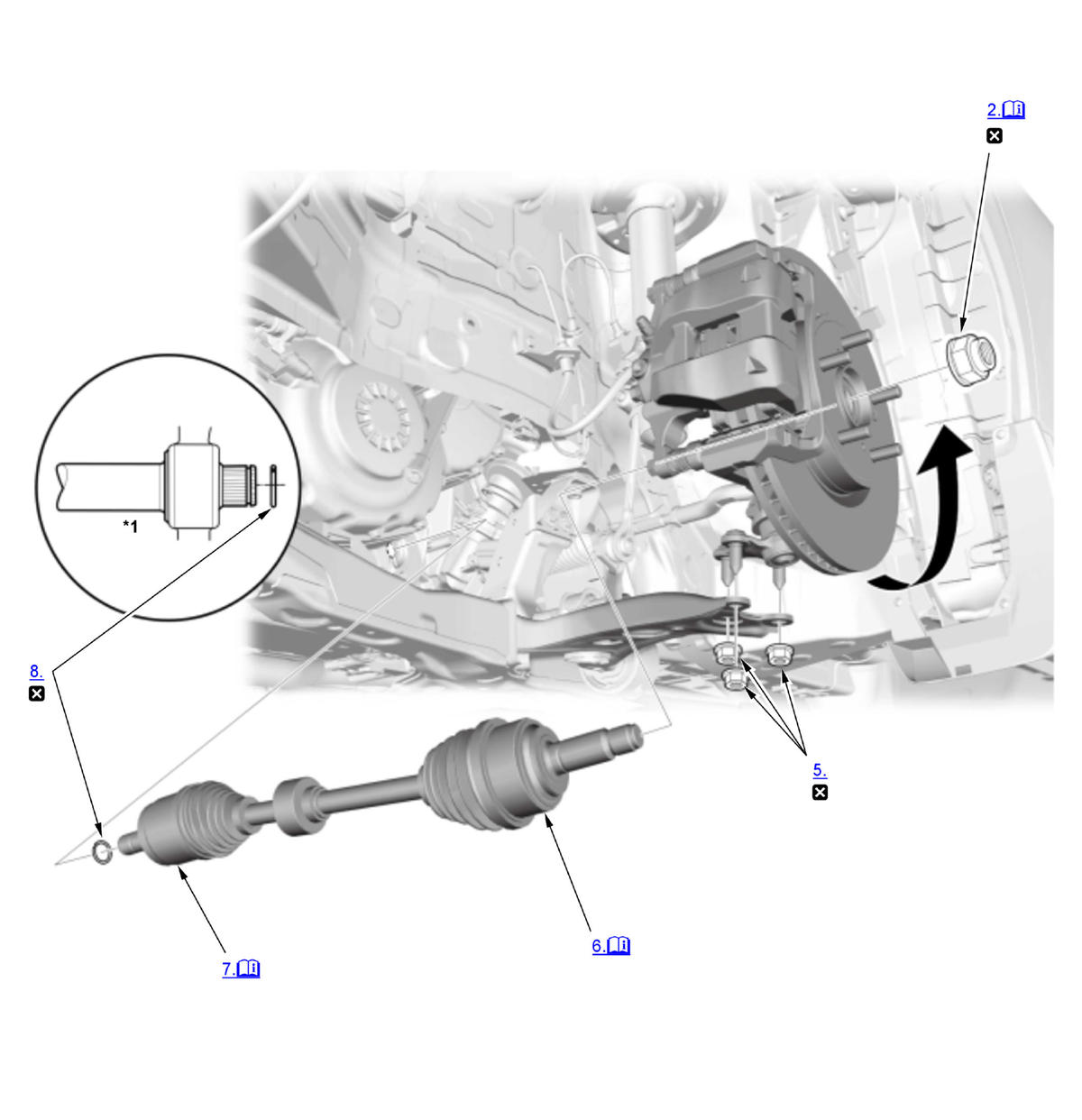

1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace
*1	Intermediate shaft

1. Front Wheel - Remove
2. Spindle Nut - Remove

   Courtesy of HONDA, U.S.A., INC.

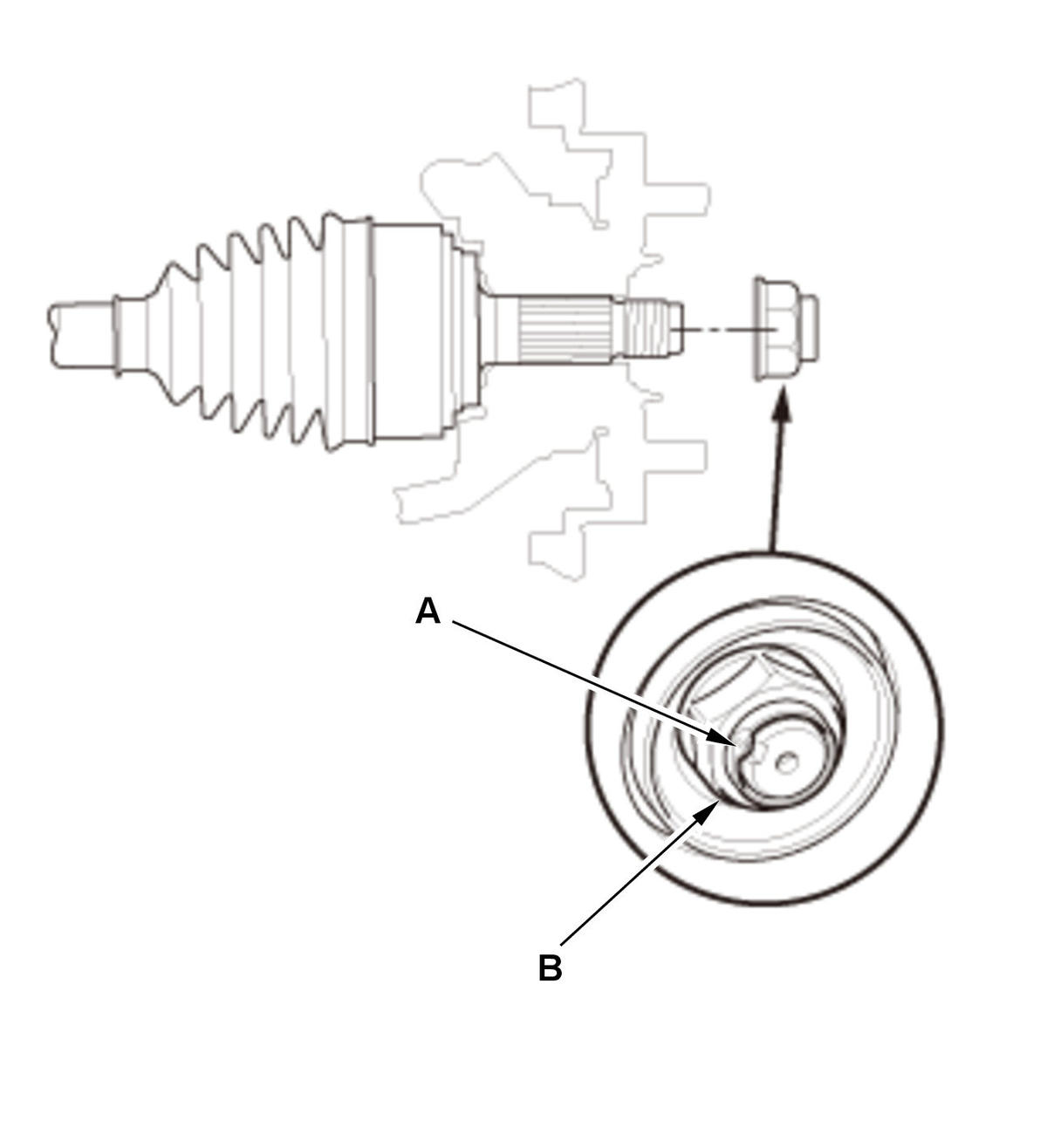

   1. Pry up the stake (A) on the spindle nut (B). 2. Remove the spindle nut.

3. Engine Undercover - Remove
4. Transmission Fluid - Drain
5. Lower Arm Ball Joint - Disconnect

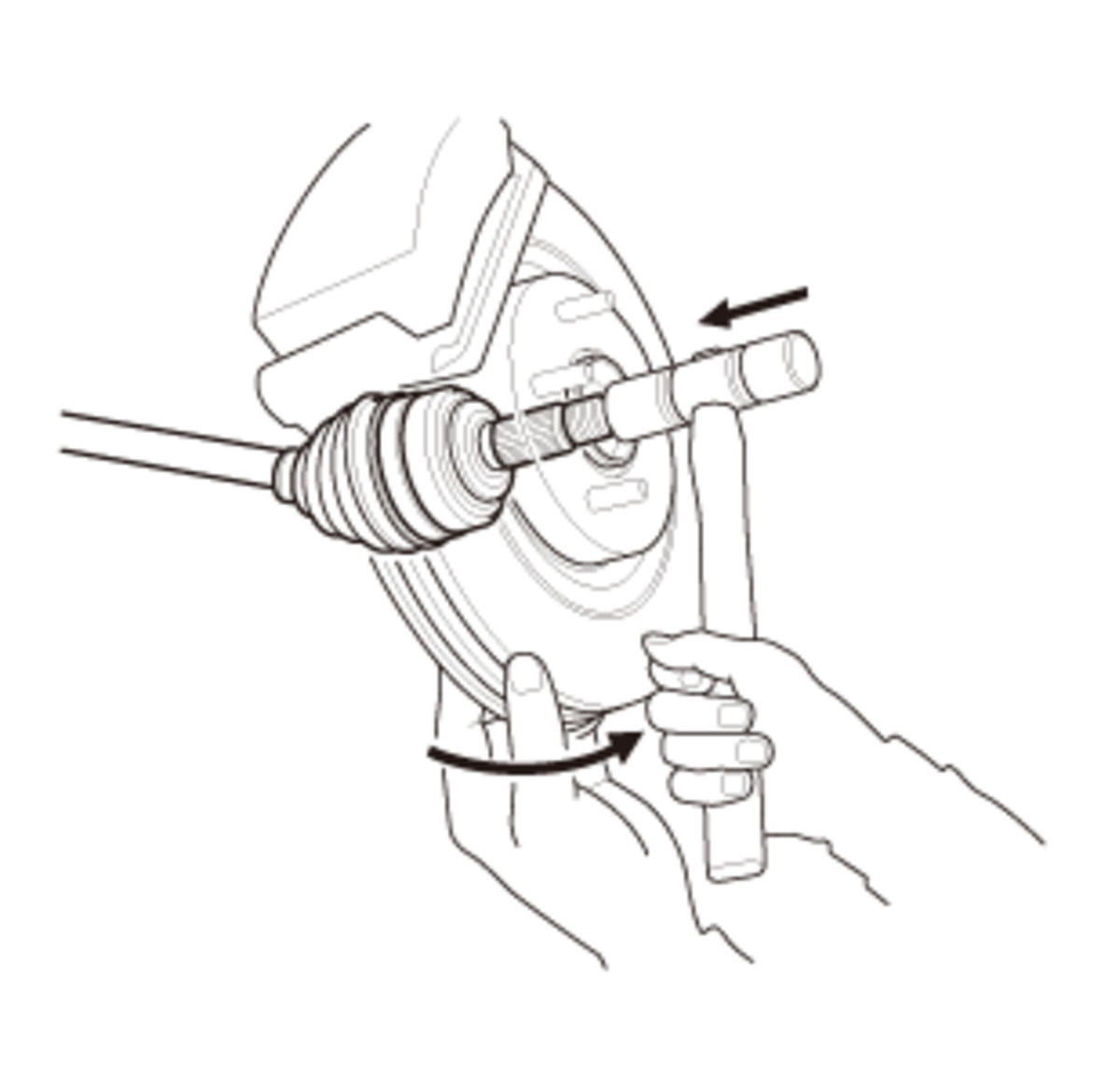

6. Outboard Joint - Disconnect

   Courtesy of HONDA, U.S.A., INC.

   NOTE:  Be careful not to damage the outboard joint threads and the wheel speed sensor.

7. Inboard Joint - Disconnect (Both Sides)

   Courtesy of HONDA, U.S.A., INC.

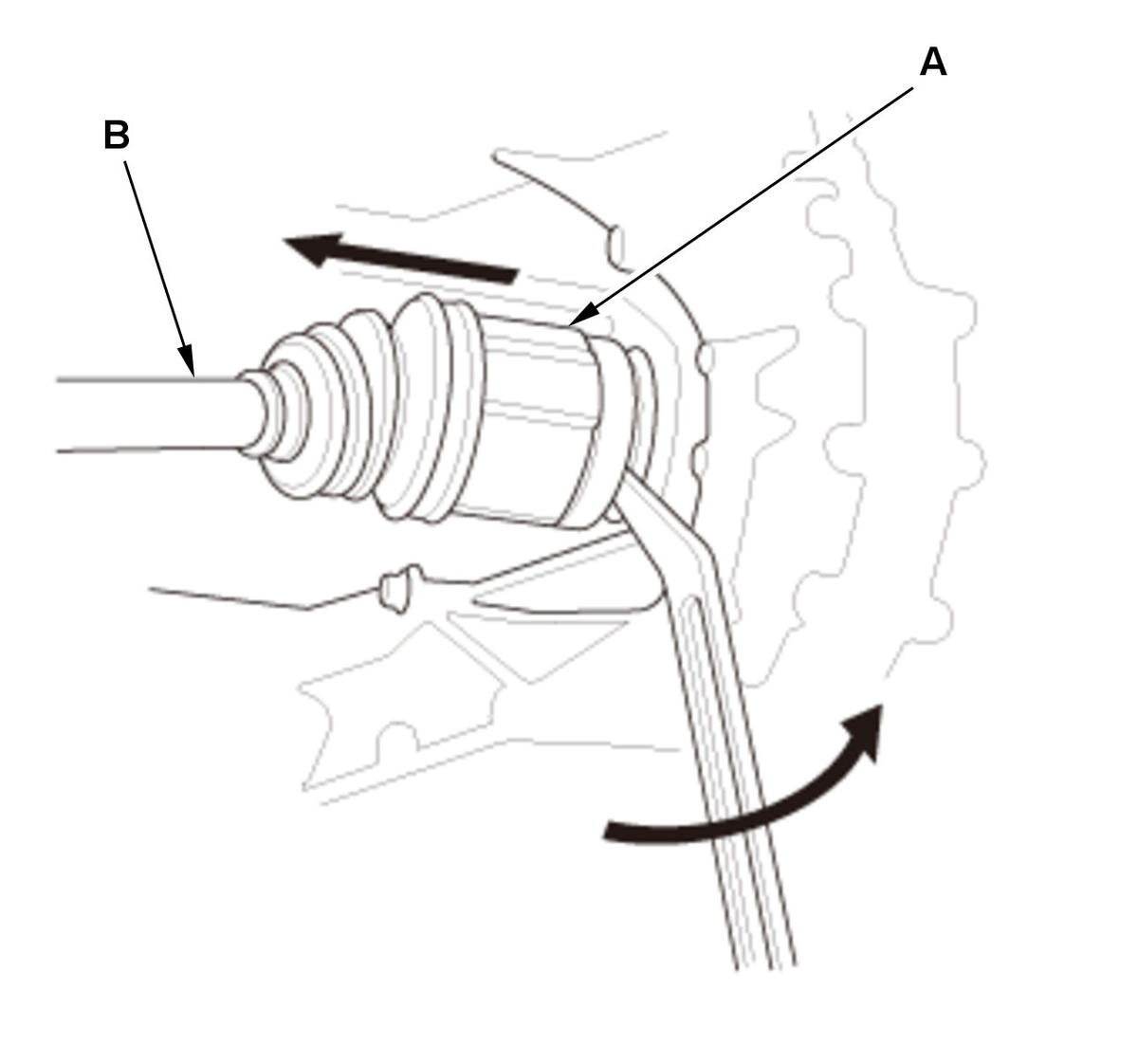

   Left driveshaft

   1. Pry the inboard joint (A) using a pry bar.

   NOTE:  Be careful not to damage the oil seal or the end of the inboard joint with the pry bar.

   2. Remove the driveshaft as an assembly.

   NOTE:  Do not pull on the driveshaft (B), or the inboard joint may come apart. Pull the inboard joint straight out to avoid damaging the oil seal.

   Courtesy of HONDA, U.S.A., INC.

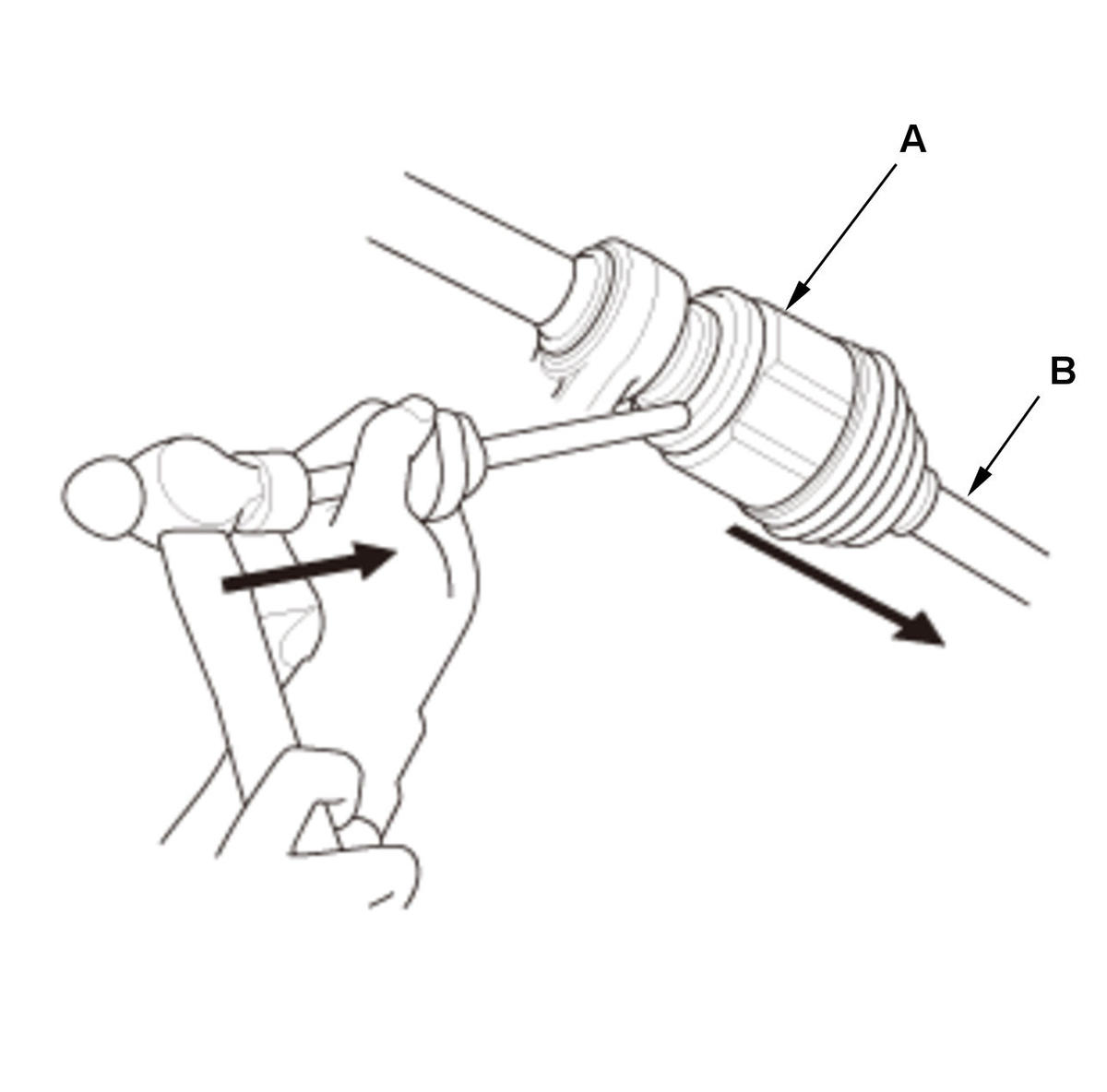

   Right driveshaft

   1. Drive the inboard joint (A) off of the intermediate shaft using a drift punch and a hammer.

   2. Remove the driveshaft as an assembly.

   NOTE:  Do not pull on the driveshaft (B), or the inboard joint may come apart. Pull the inboard joint straight out.

8. Set Ring - Remove
