Intermediate Shaft Disassembly and Reassembly: Reassembly

• Where icon is shown, for further information continue to the information below.
• Clean the disassembled parts with solvent, then dry the disassembled parts with compressed air. Do not wash the rubber parts with solvent.

1

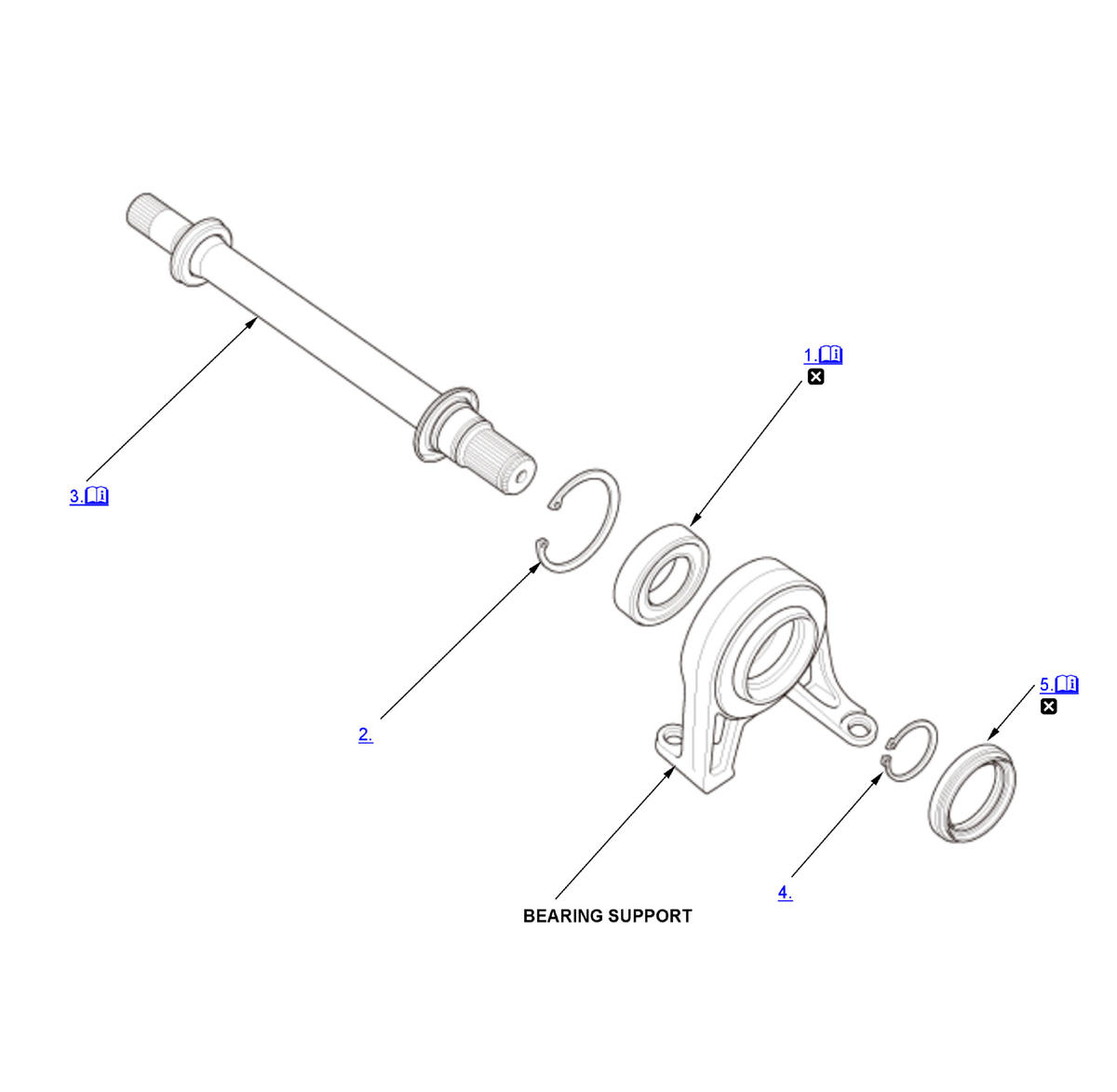

1.5 L engine

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

2

2.4 L engine

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

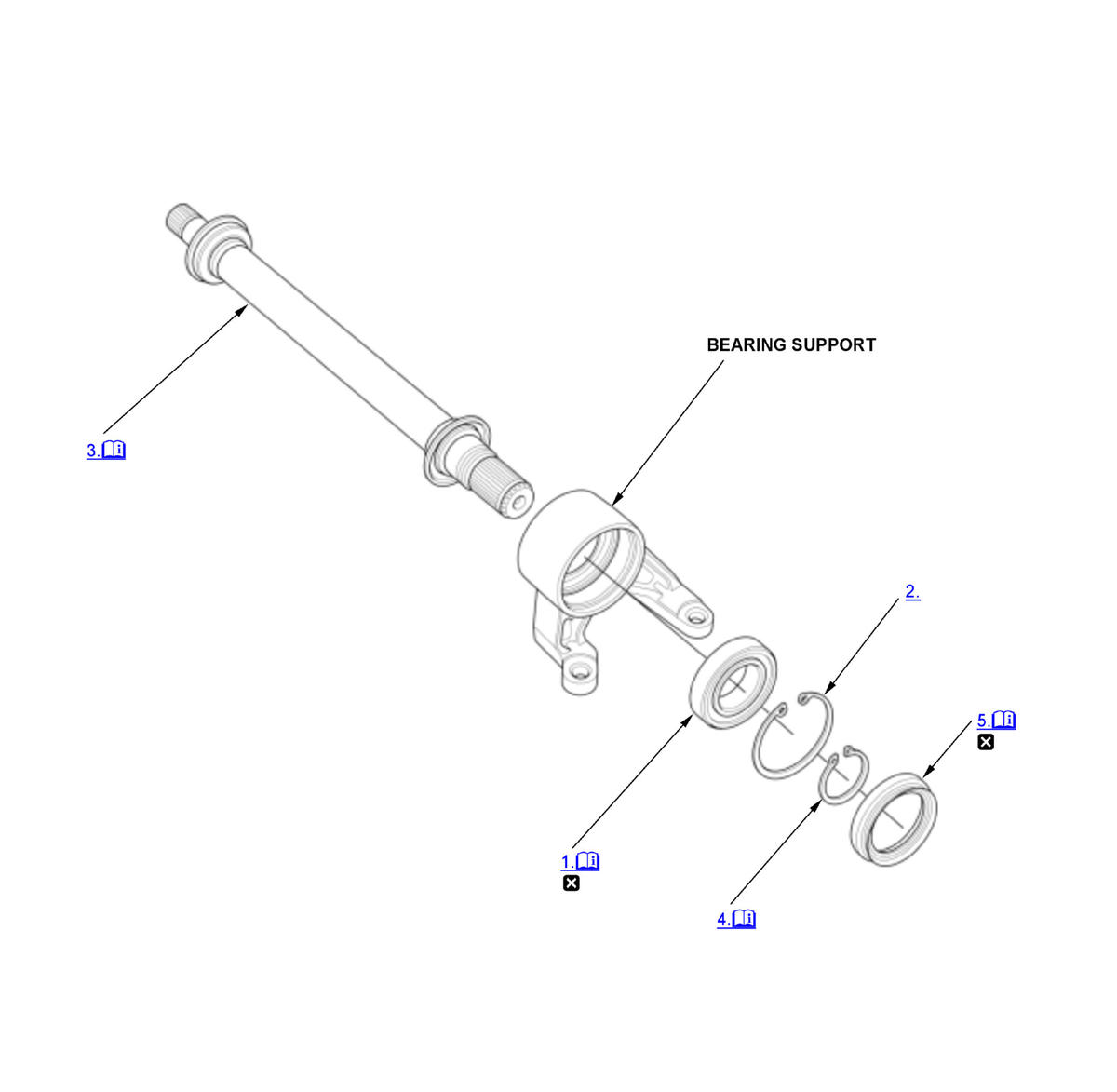

1.5 L engine

1. Intermediate Shaft Bearing - Install

   Courtesy of HONDA, U.S.A., INC.

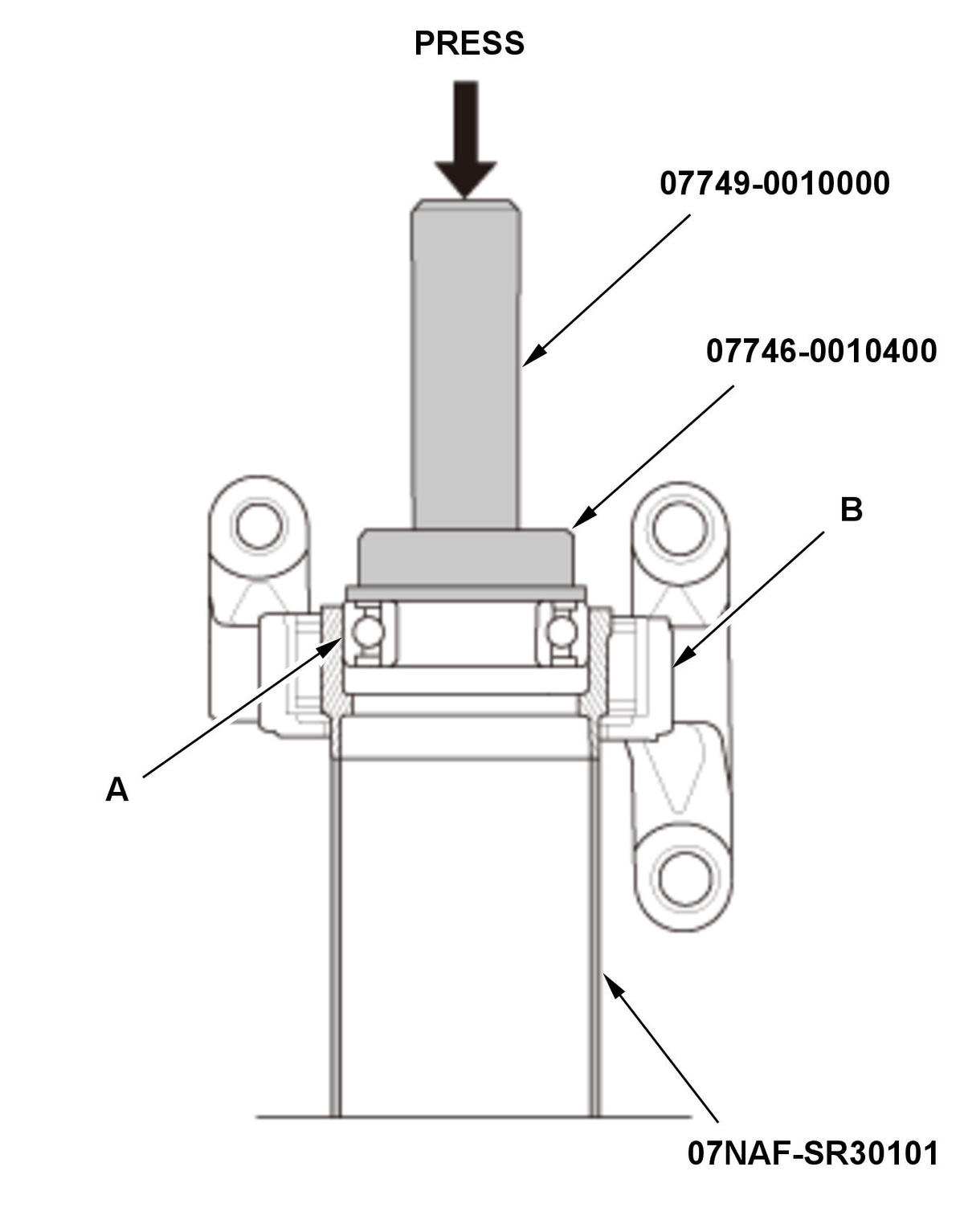

   1. Press a new intermediate shaft bearing (A) into the bearing support (B) using the 52 x 55 mm bearing driver attachment, the 15 x 135L driver handle, the half shaft base and a press.

2. Internal Snap Ring - Install
3. Intermediate Shaft - Install

   Courtesy of HONDA, U.S.A., INC.

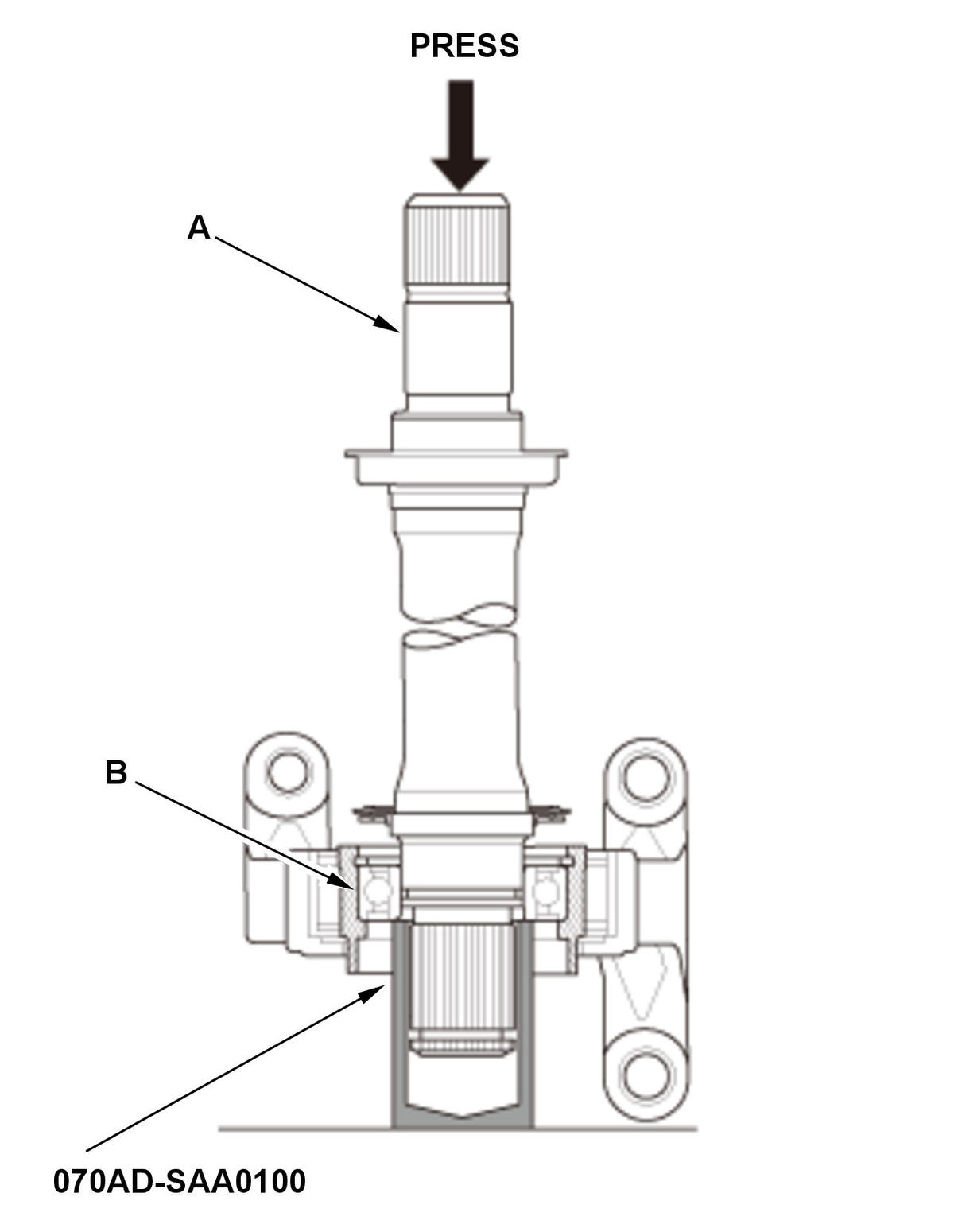

   1. Press the intermediate shaft (A) into the shaft bearing (B) using the 32.5 mm driver and a press.

4. External Snap Ring - Install
5. Outer Seal - Install

   Courtesy of HONDA, U.S.A., INC.

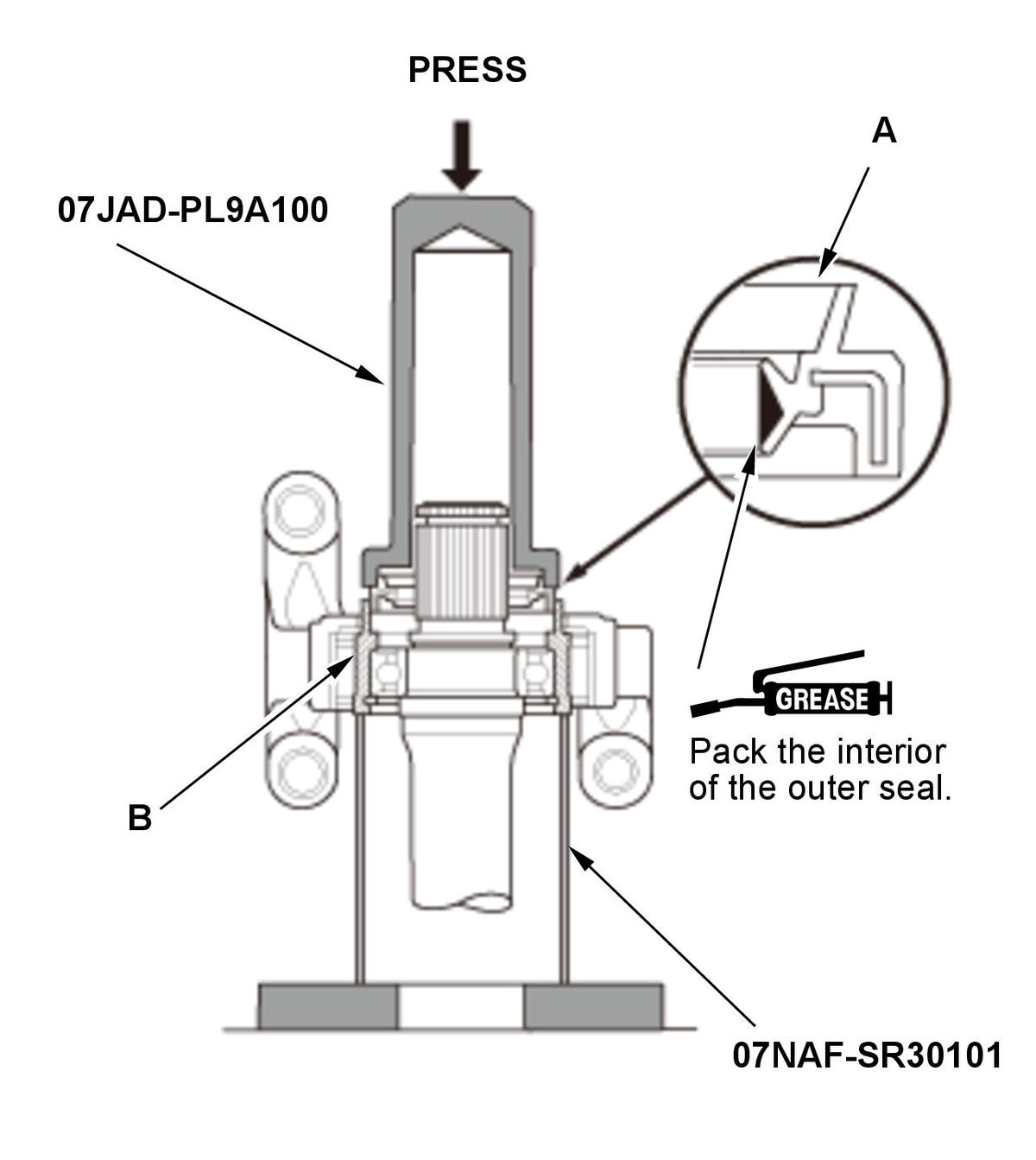

   1. Install a new outer seal (A) into the bearing support (B) using the 65 mm oil seal driver, the half shaft base and a press. Press in the seal until it is even with the surface of the bearing support.

   2.4 L engine

6. Intermediate Shaft Bearing - Install

   Courtesy of HONDA, U.S.A., INC.

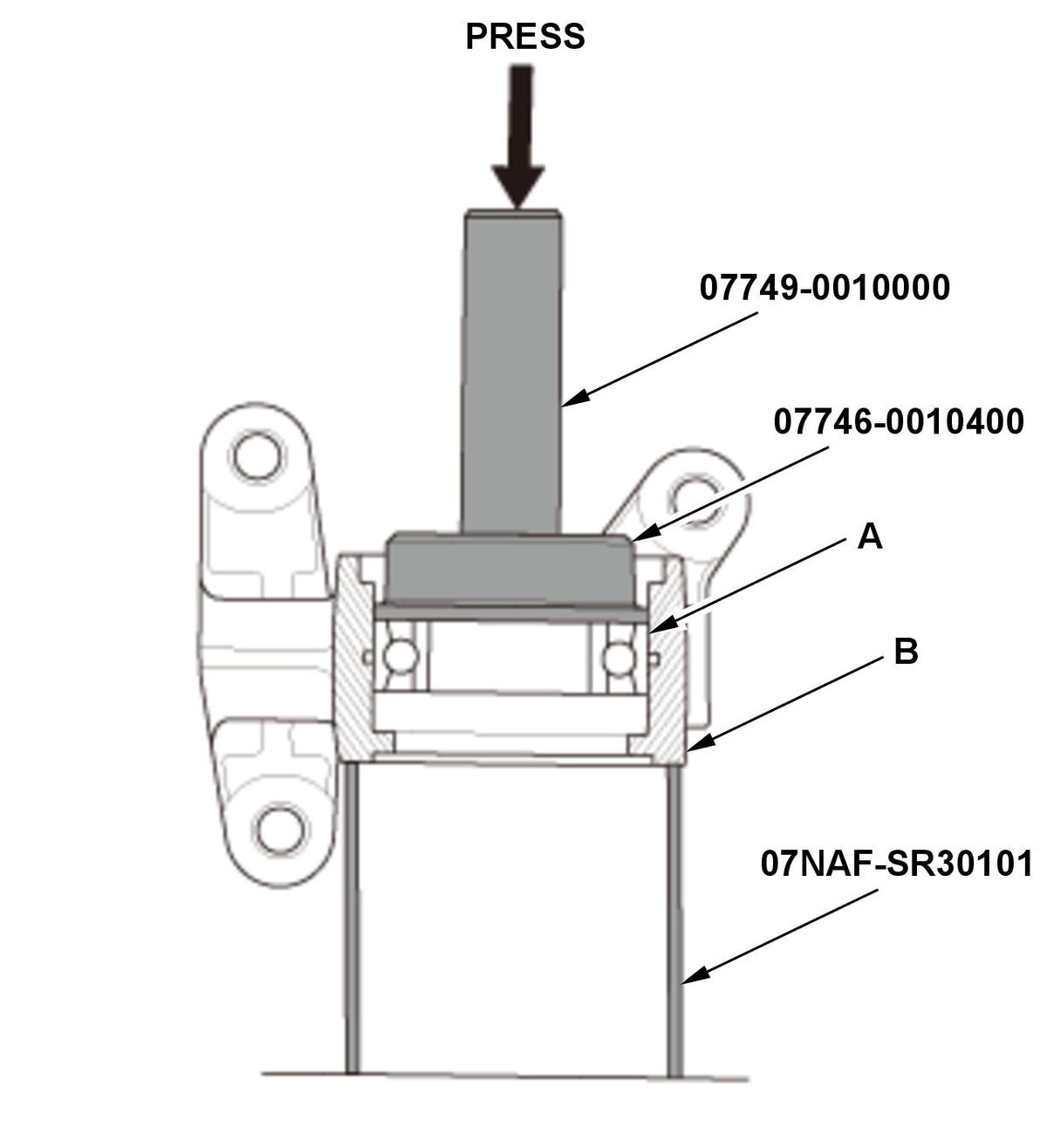

   1. Press a new intermediate shaft bearing (A) into the bearing support (B) using the 52 x 55 mm bearing driver attachment, the 15 x 135L driver handle, the half shaft base, and a press.

7. Internal Snap Ring - Install
8. Intermediate Shaft - Install

   Courtesy of HONDA, U.S.A., INC.

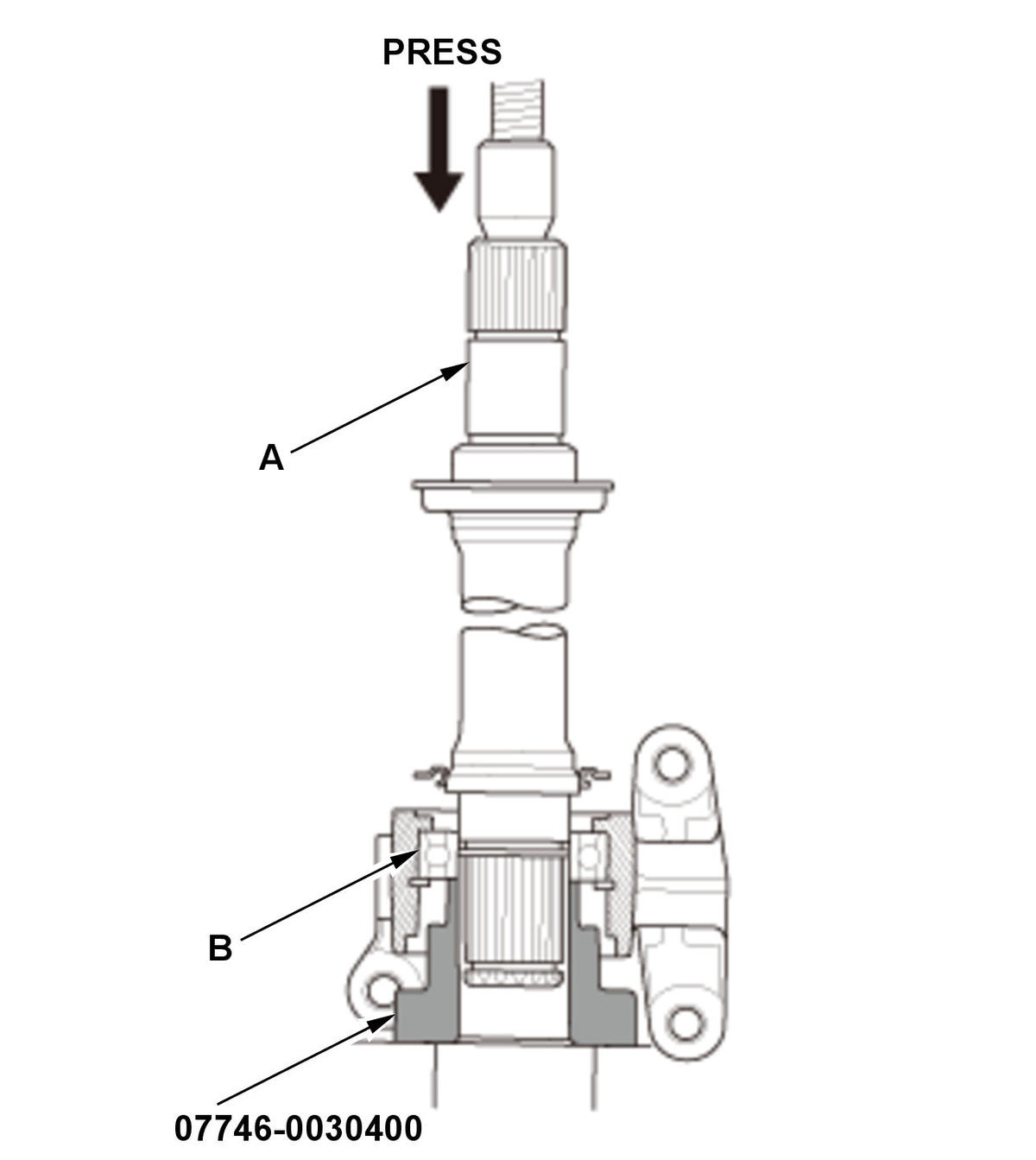

   1. Press the intermediate shaft (A) into the shaft bearing (B) using the 35 mm I.D. bearing driver attachment and a press.

9. External Snap Ring - Install

   Courtesy of HONDA, U.S.A., INC.

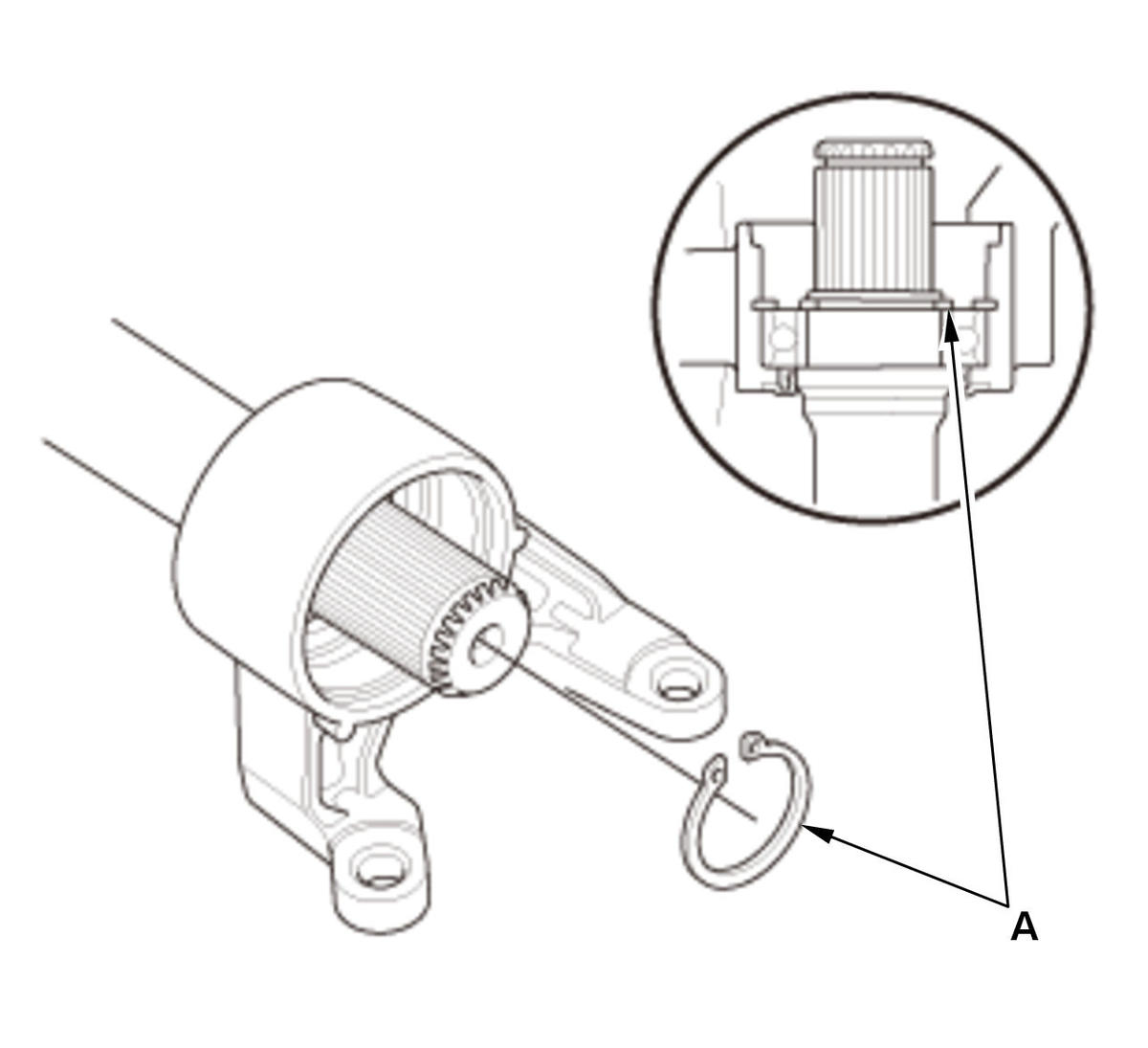

   1. Install the external snap ring (A).

10. Outer Seal - Install

    Courtesy of HONDA, U.S.A., INC.

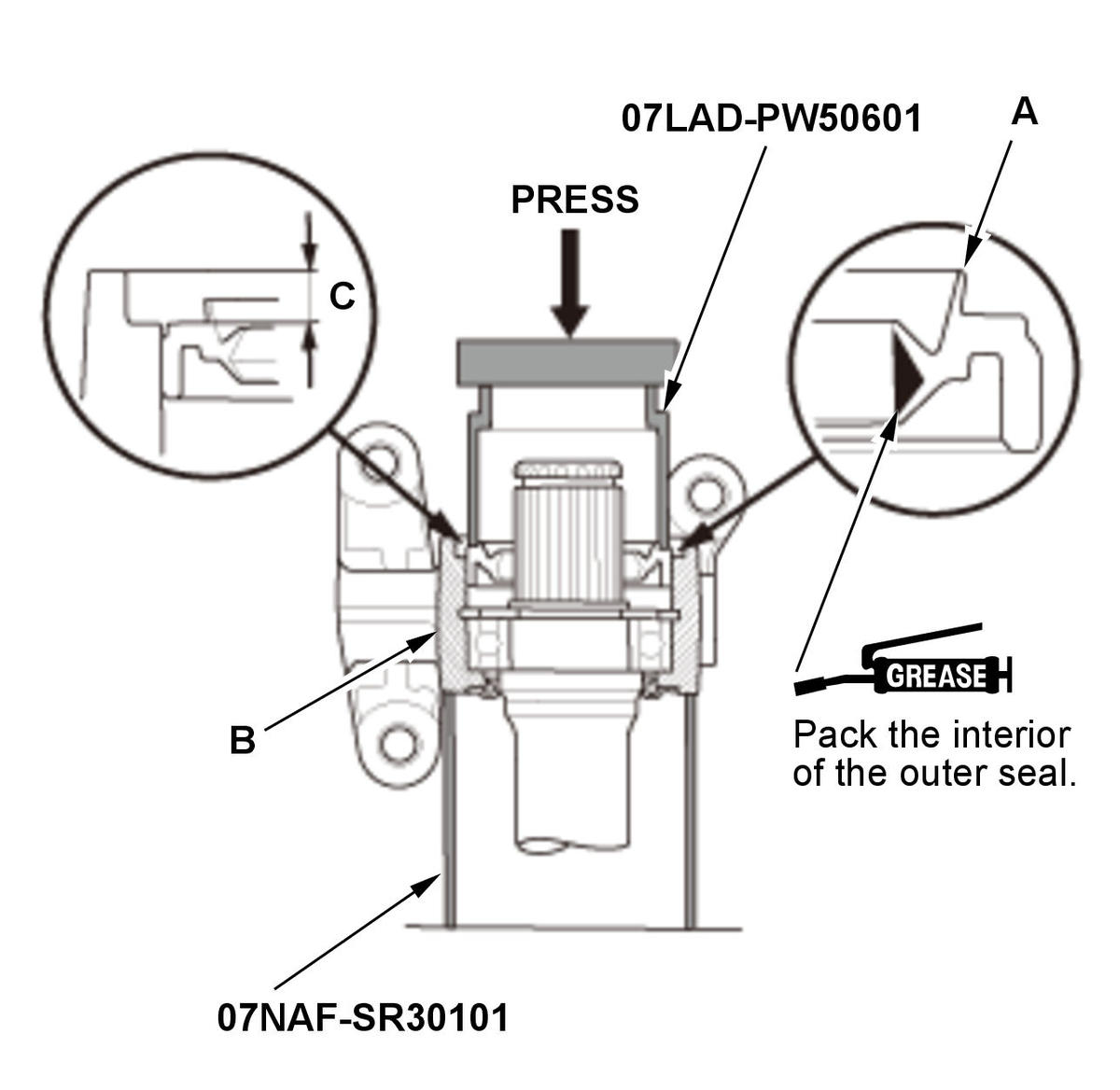

    Install a new outer seal (A) into the bearing support (B) using the 40 mm installer attachment, the half shaft base, and a press. Press in the seal until it is 4 0.2 mm (0.16 0.008 in) (C) below the surface of the bearing support end.
