Intermediate Shaft Disassembly and Reassembly: Disassembly

• Where icon is shown, for further information continue to the information below.
• Clean the disassembled parts with solvent, then dry the disassembled parts with compressed air. Do not wash the rubber parts with solvent.

1

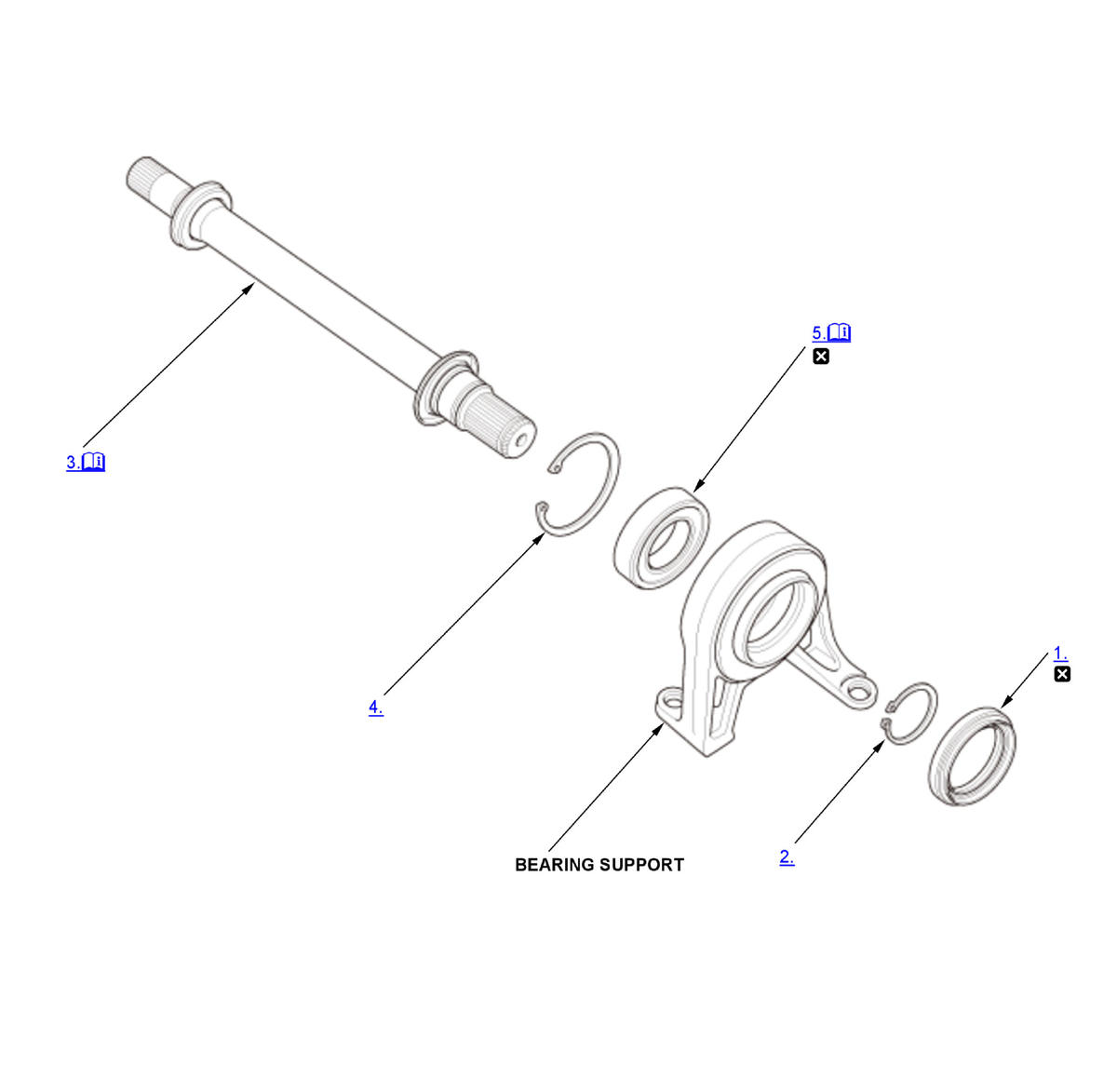

1.5 L engine

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

2

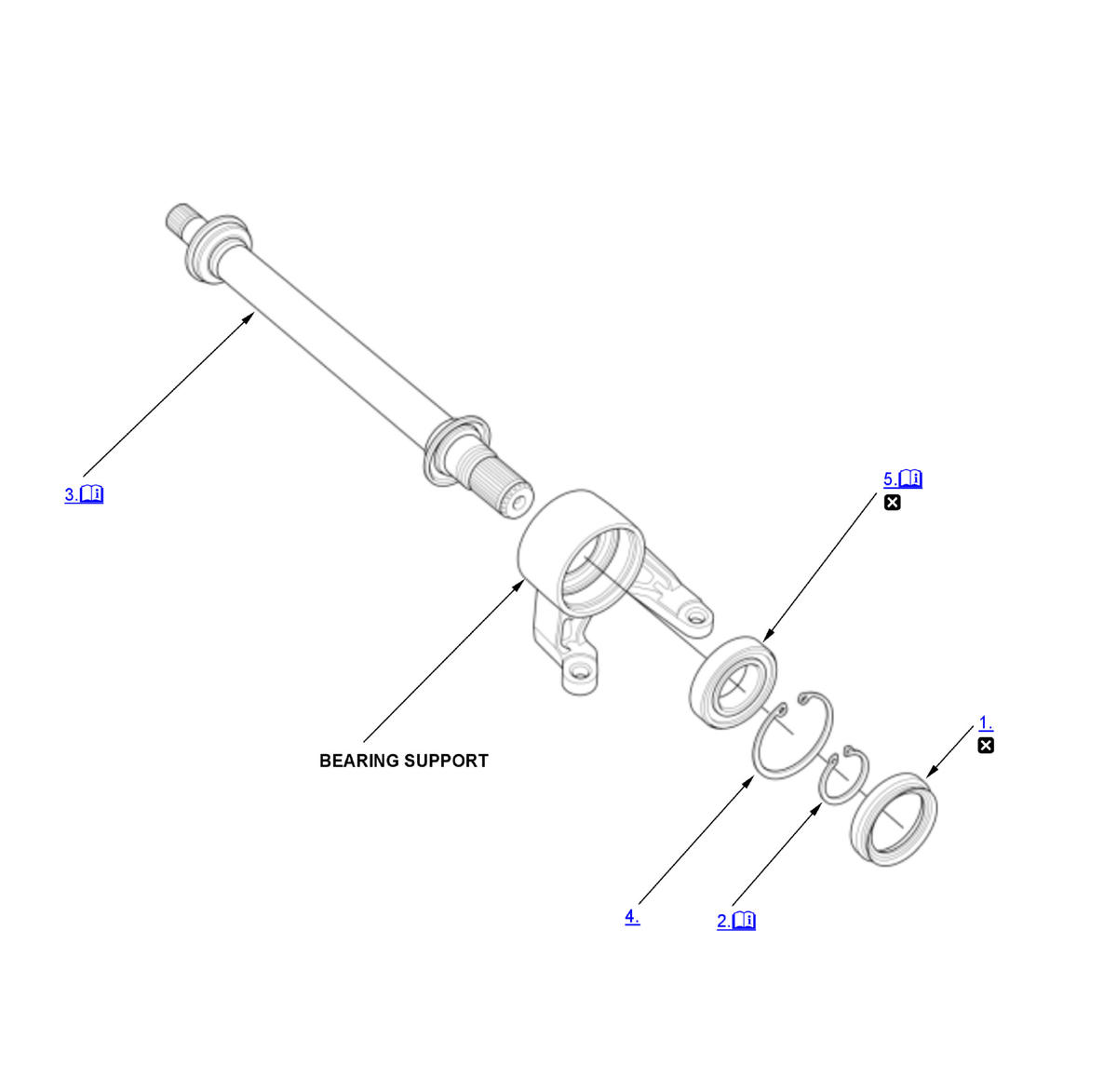

2.4 L engine

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

1.5 L engine

1. Outer Seal - Remove
2. External Snap Ring - Remove
3. Intermediate Shaft - Remove

   Courtesy of HONDA, U.S.A., INC.

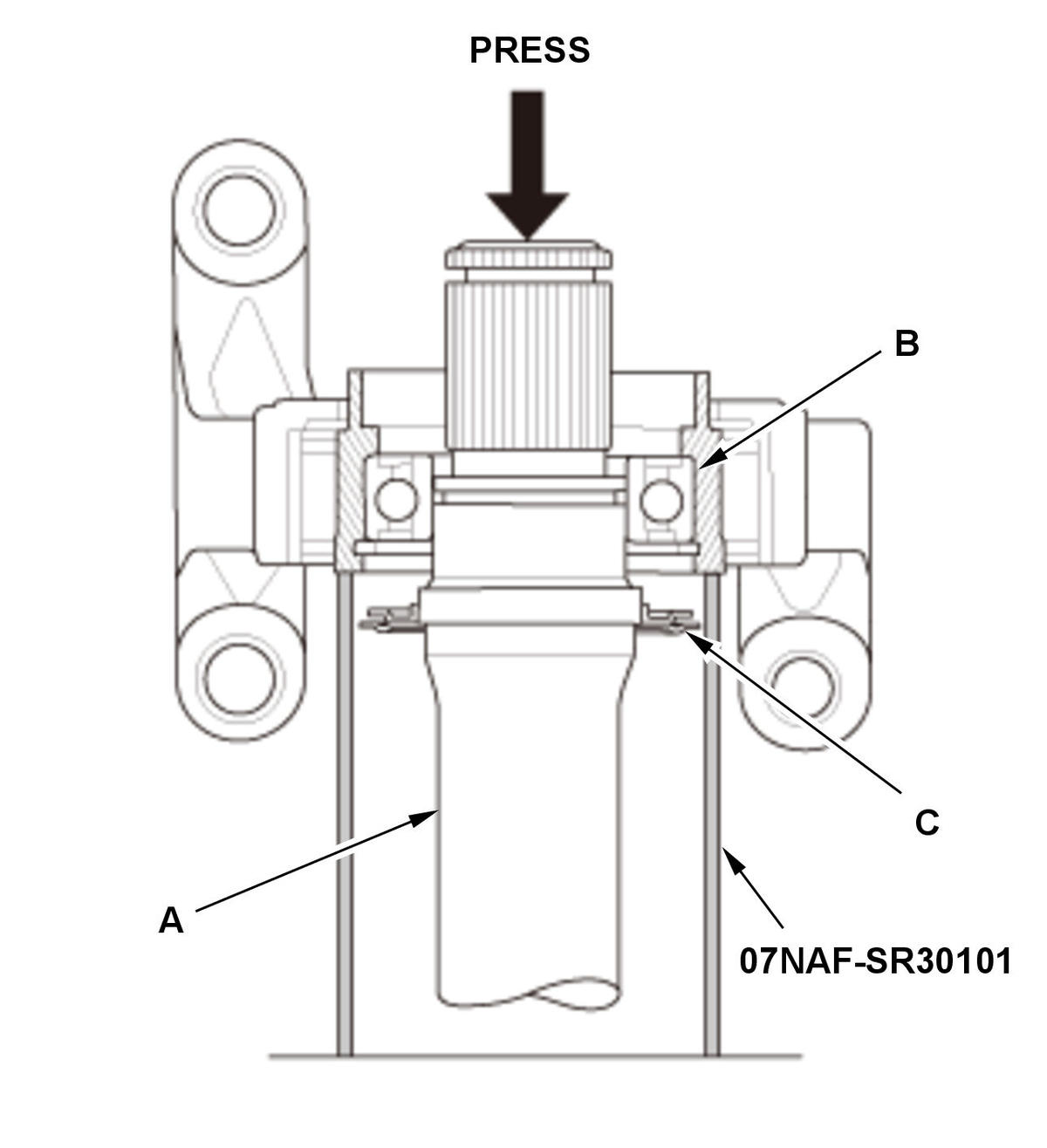

   1. Press the intermediate shaft (A) out of the intermediate shaft bearing (B) using the half shaft base and a press. NOTE:  Be careful not to damage the bearing support ring (C) on the intermediate shaft during disassembly.

4. Internal Snap Ring - Remove
5. Intermediate Shaft Bearing - Remove

   Courtesy of HONDA, U.S.A., INC.

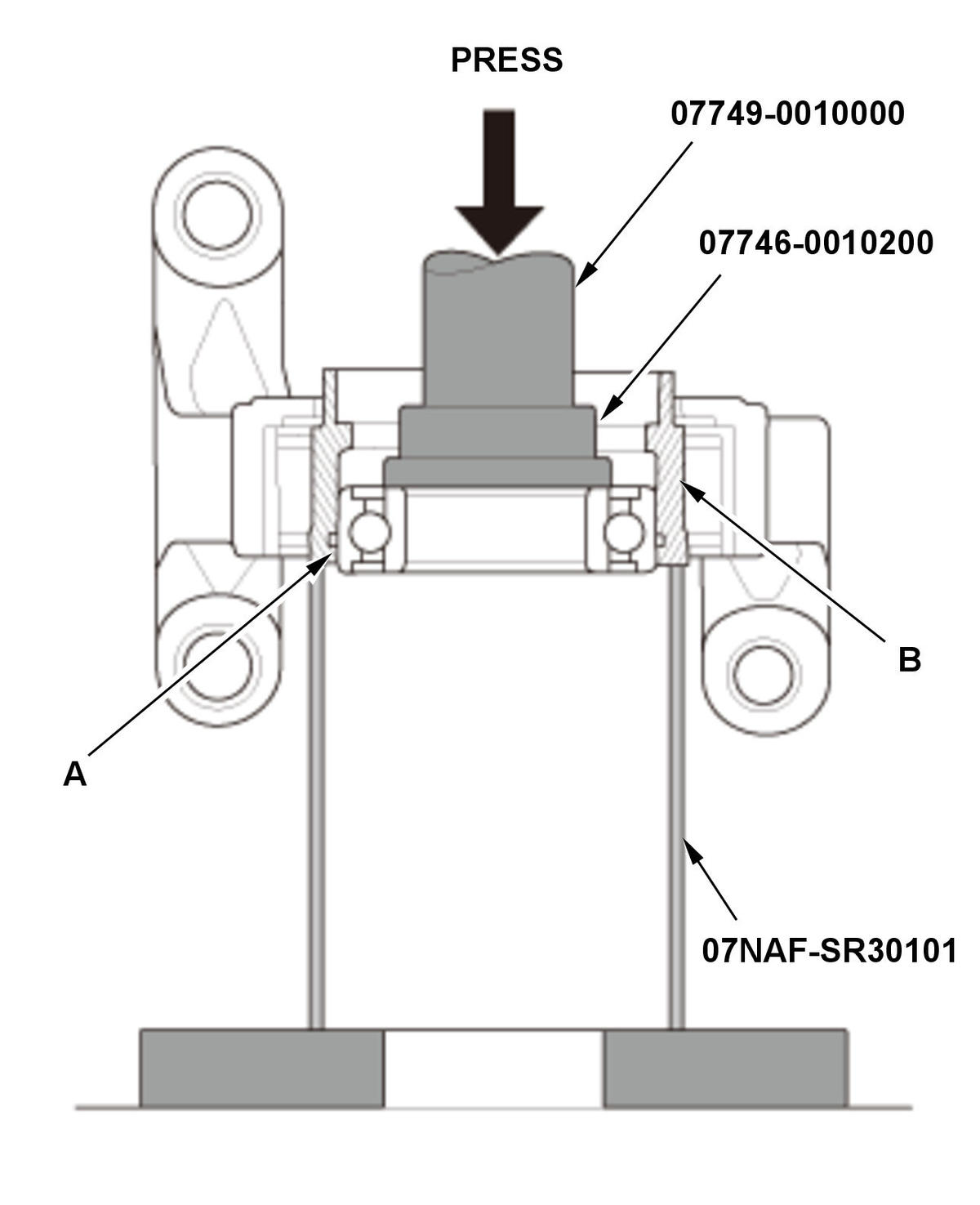

   1. Press the intermediate shaft bearing (A) out of the bearing support (B) using the 15 x 135L driver handle, the half shaft base, the 37 x 40 mm bearing driver attachment and a press.

   2.4 L engine

6. Outer Seal - Remove
7. External Snap Ring - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the external snap ring (A).

8. Intermediate Shaft - Remove

   Courtesy of HONDA, U.S.A., INC.

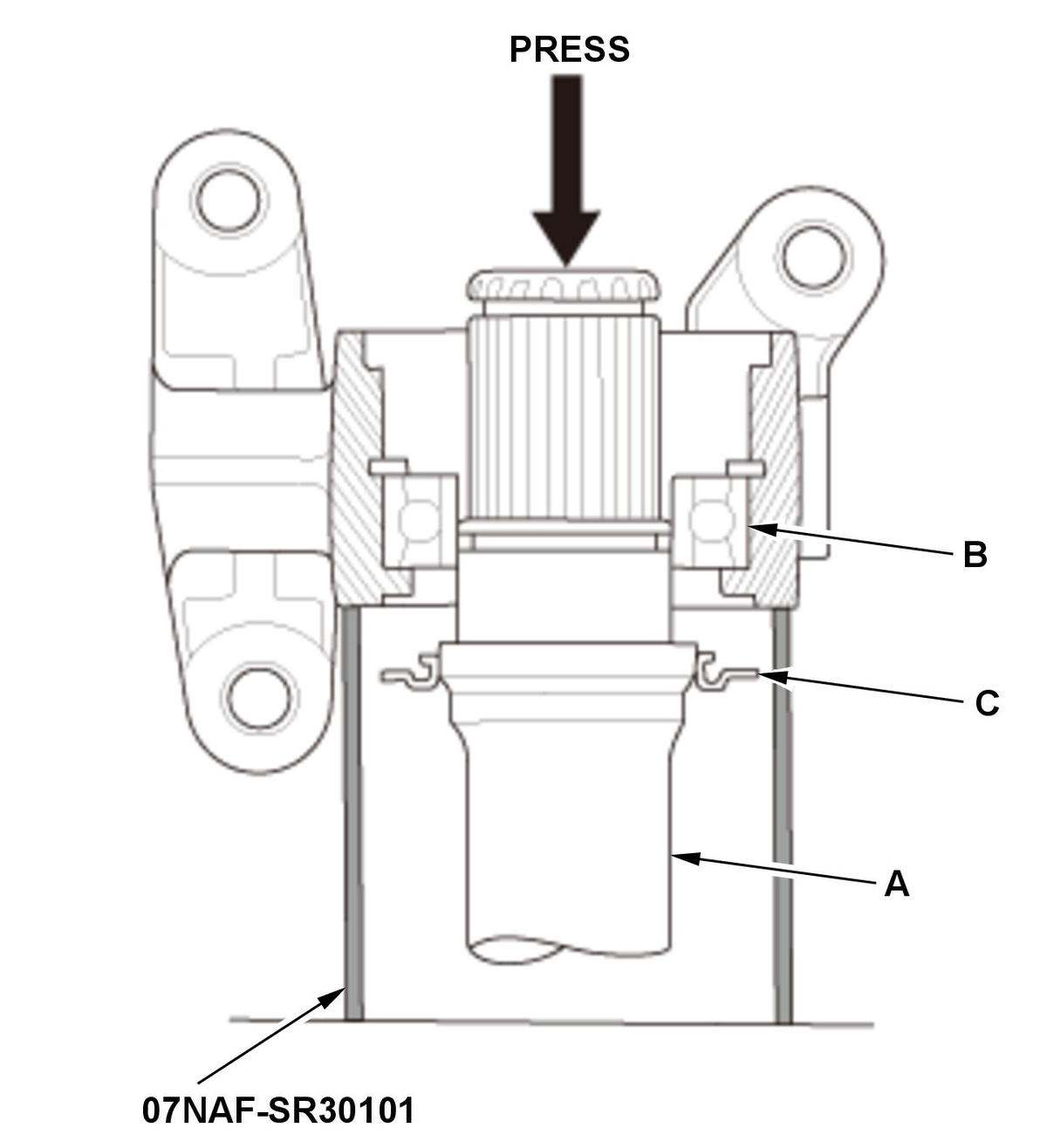

   1. Press the intermediate shaft (A) out of the intermediate shaft bearing (B) using the half shaft base and a press. NOTE:  Be careful not to damage the bearing support ring (C) on the intermediate shaft during disassembly.

9. Internal Snap Ring - Remove
10. Intermediate Shaft Bearing - Remove

    Courtesy of HONDA, U.S.A., INC.

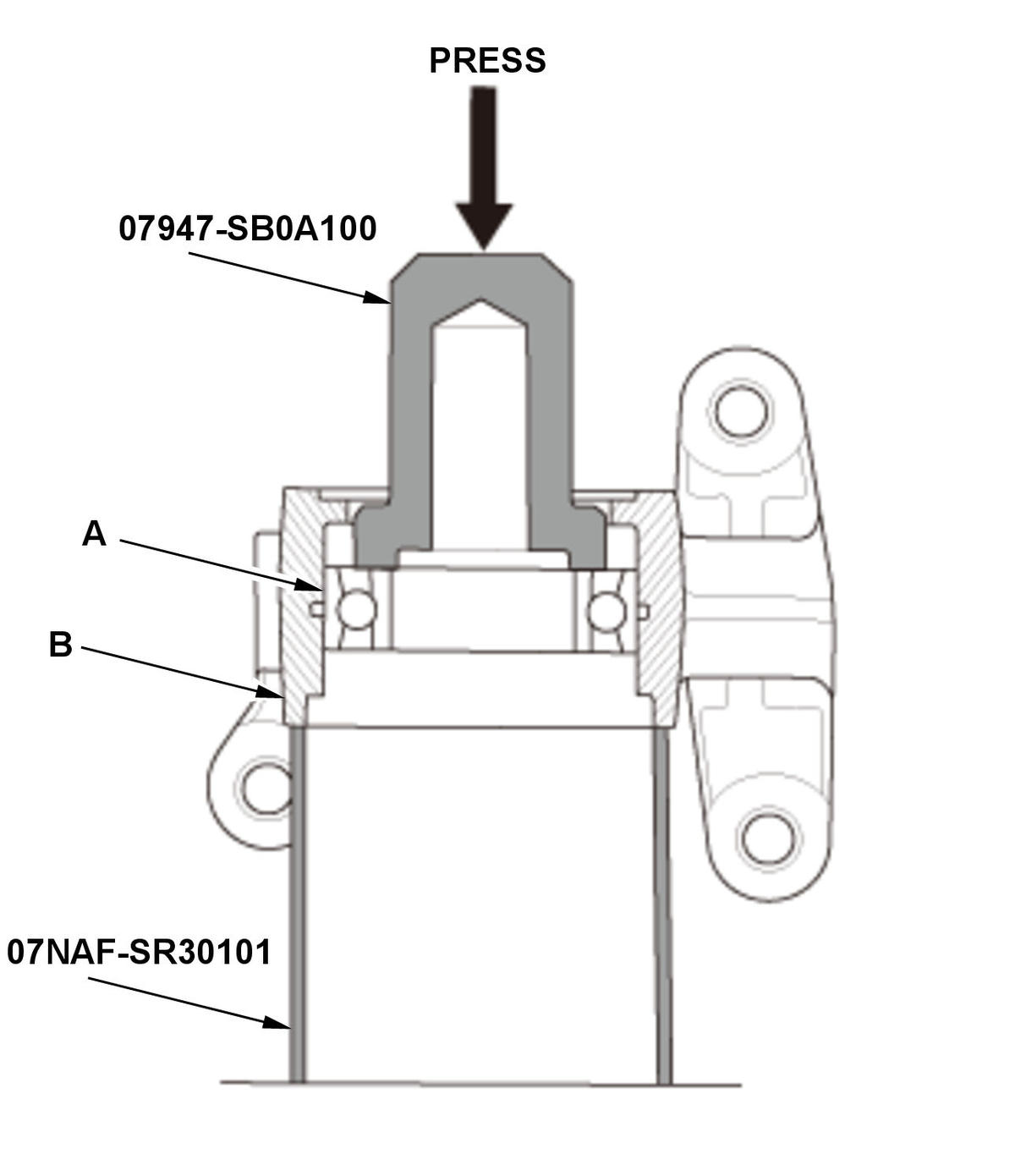

    1. Press the intermediate shaft bearing (A) out of the bearing support (B) using the 44.5 mm oil seal driver, the half shaft base, and a press.
