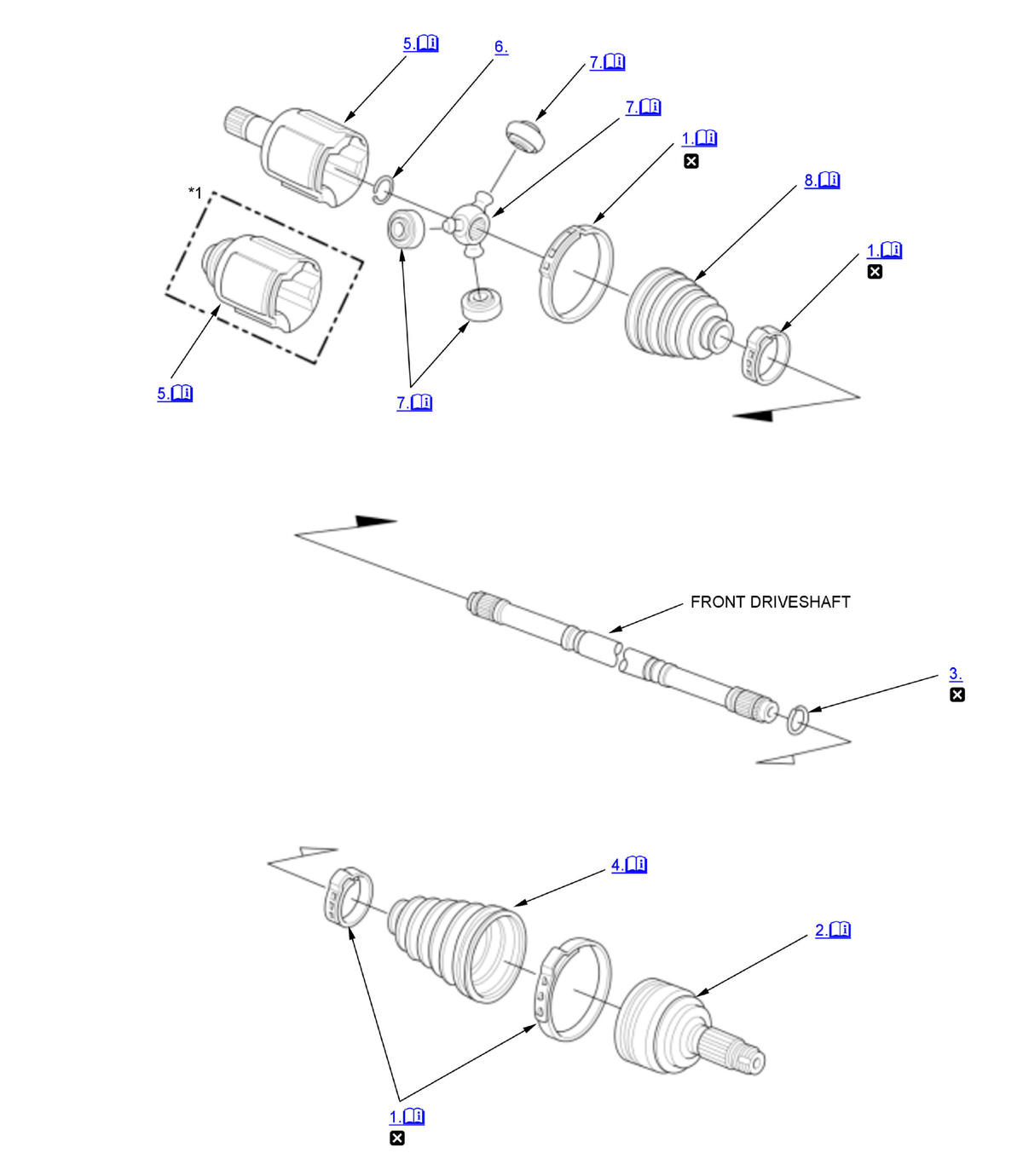

Front Driveshaft Disassembly and Reassembly: Disassembly

NOTE:

• Where icon is shown, for further information continue to the information below.
• Be careful not to damage the boot.
• Make marks on the disassembled parts to be able to reassemble them in their original positions.
• Use the bands included in the boot set.

1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace
*1	Right driveshaft

1. Boot Bands - Remove

   Courtesy of HONDA, U.S.A., INC.

   Ear clamp type

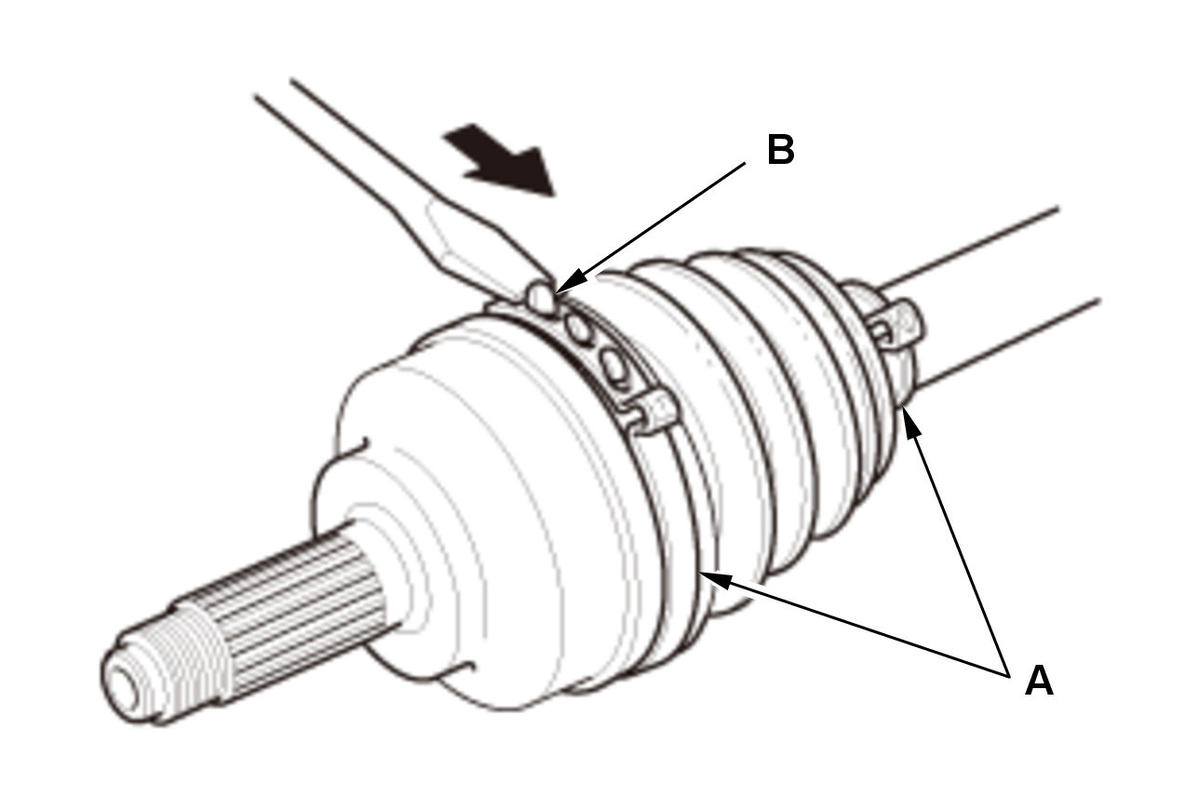

   1. If the boot band is an ear clamp type (A), lift up the tabs (B) using a flat-tipped screwdriver.

   Courtesy of HONDA, U.S.A., INC.

   Low profile type

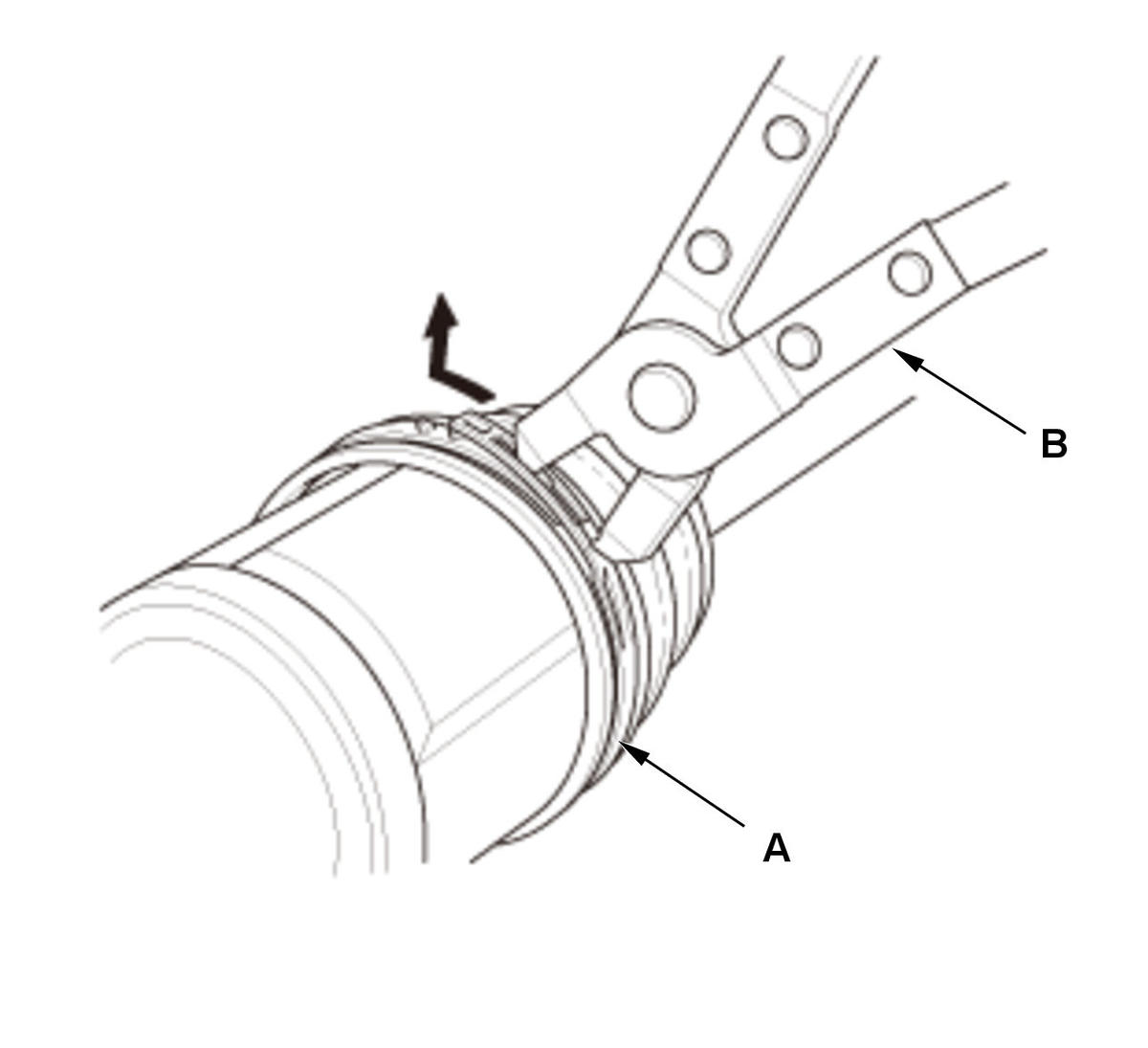

   1. If the boot band is a low profile type (A), pinch the boot band using commercially available pincer CV Boot Clamp Pliers (30500) (B).

2. Outboard Joint - Remove

   Courtesy of HONDA, U.S.A., INC.

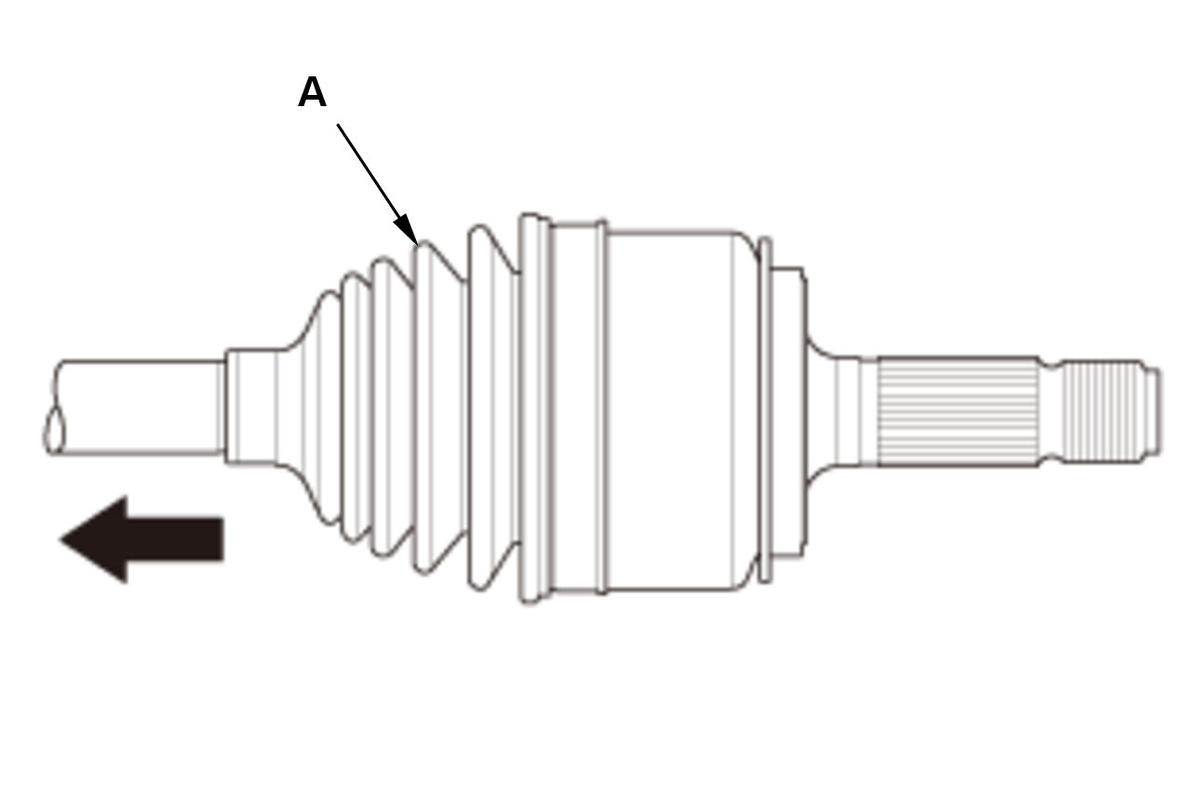

   1. Slide the outboard boot (A) partially toward the inboard joint side. 2. Wipe off the grease to expose the driveshaft and the outboard joint inner race.

   Courtesy of HONDA, U.S.A., INC.

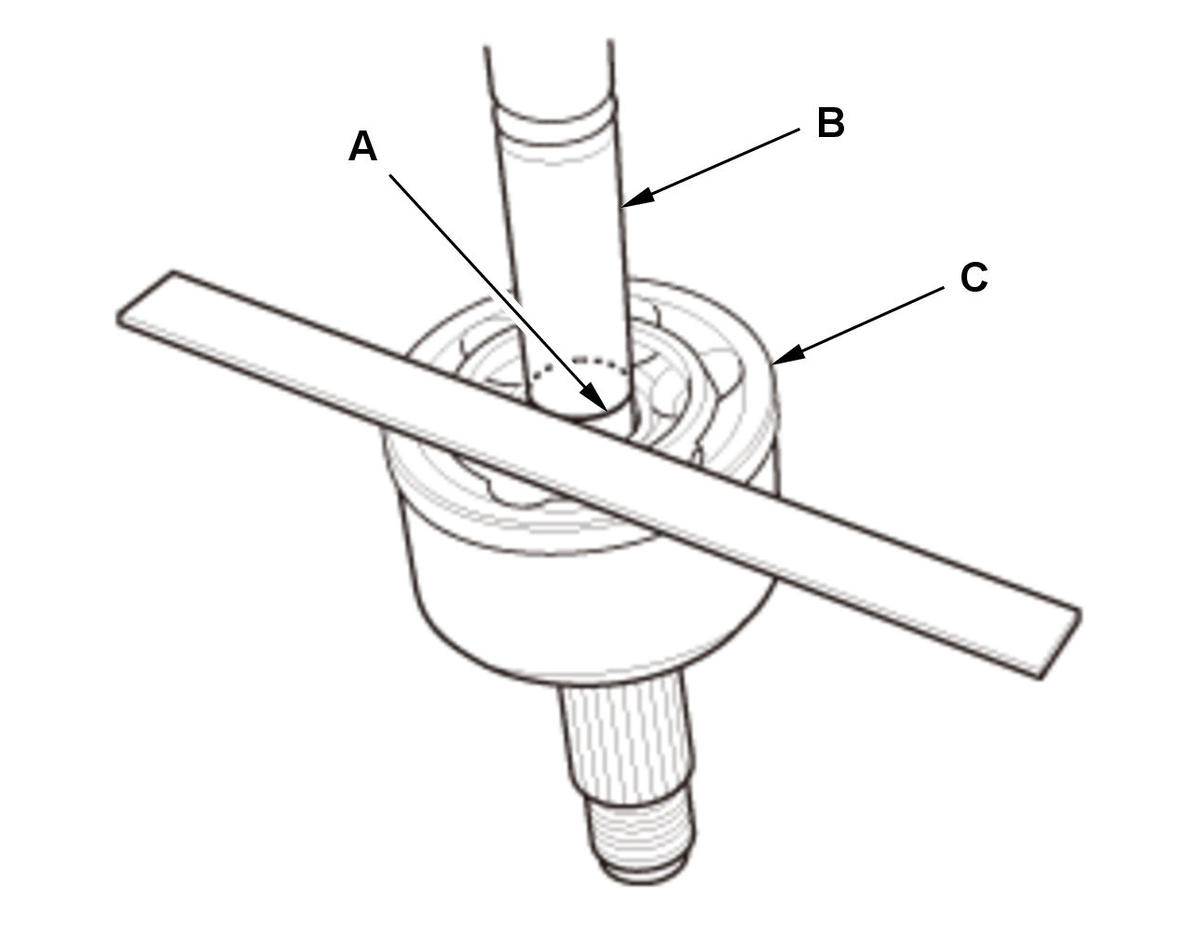

   3. Make a mark (A) on the driveshaft (B) at the same level as the outboard joint end (C).

   Courtesy of HONDA, U.S.A., INC.

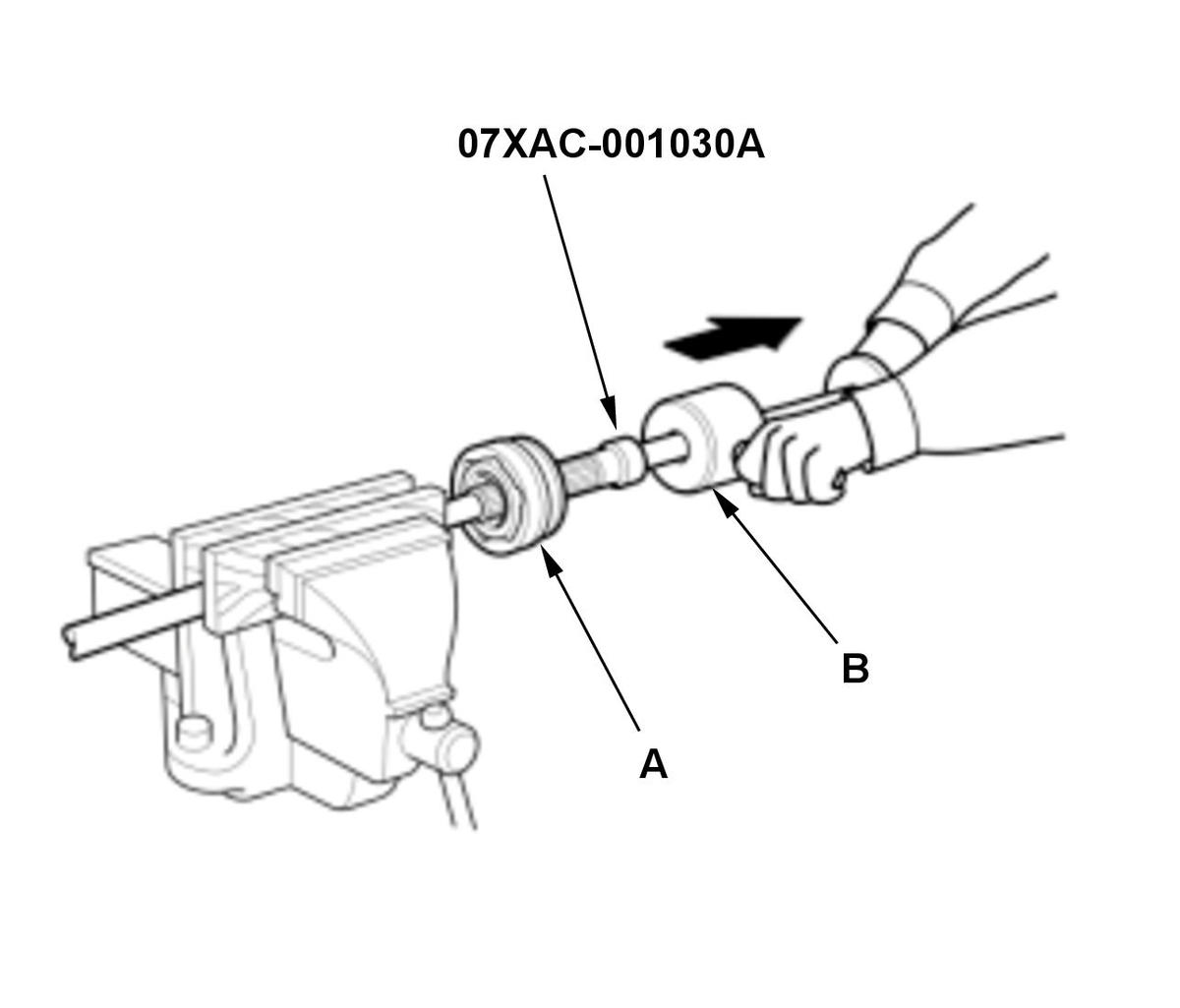

   4. Securely clamp the driveshaft in a bench vise with the wood blocks. 5. Remove the outboard joint (A) using the 26 x 1.5 mm threaded adapter and a commercially available 5/8"-18 UNF slide hammer (B). NOTE:  Check inside of the outboard joint and on the serrations for wear and tear. 6. Remove the driveshaft from the bench vise.

3. Stop Ring - Remove
4. Outboard Boot - Remove

   Courtesy of HONDA, U.S.A., INC.

   NOTE:

   • Check the outboard boot (A) for cracks and damage. If any damage is found, replace the outboard boot.

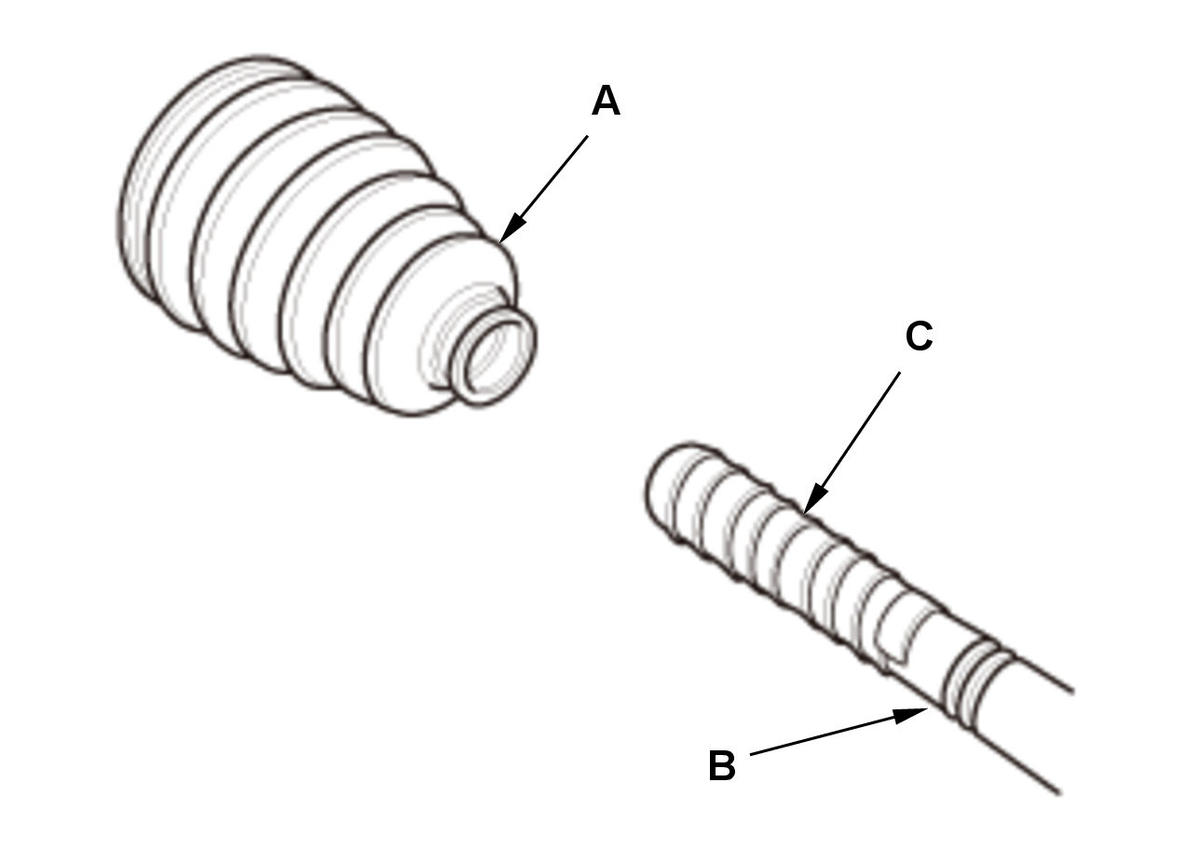

   • Wrap the splines on the driveshaft (B) with vinyl tape (C) to prevent damaging the outboard boot.
5. Inboard Joint - Remove

   Courtesy of HONDA, U.S.A., INC.

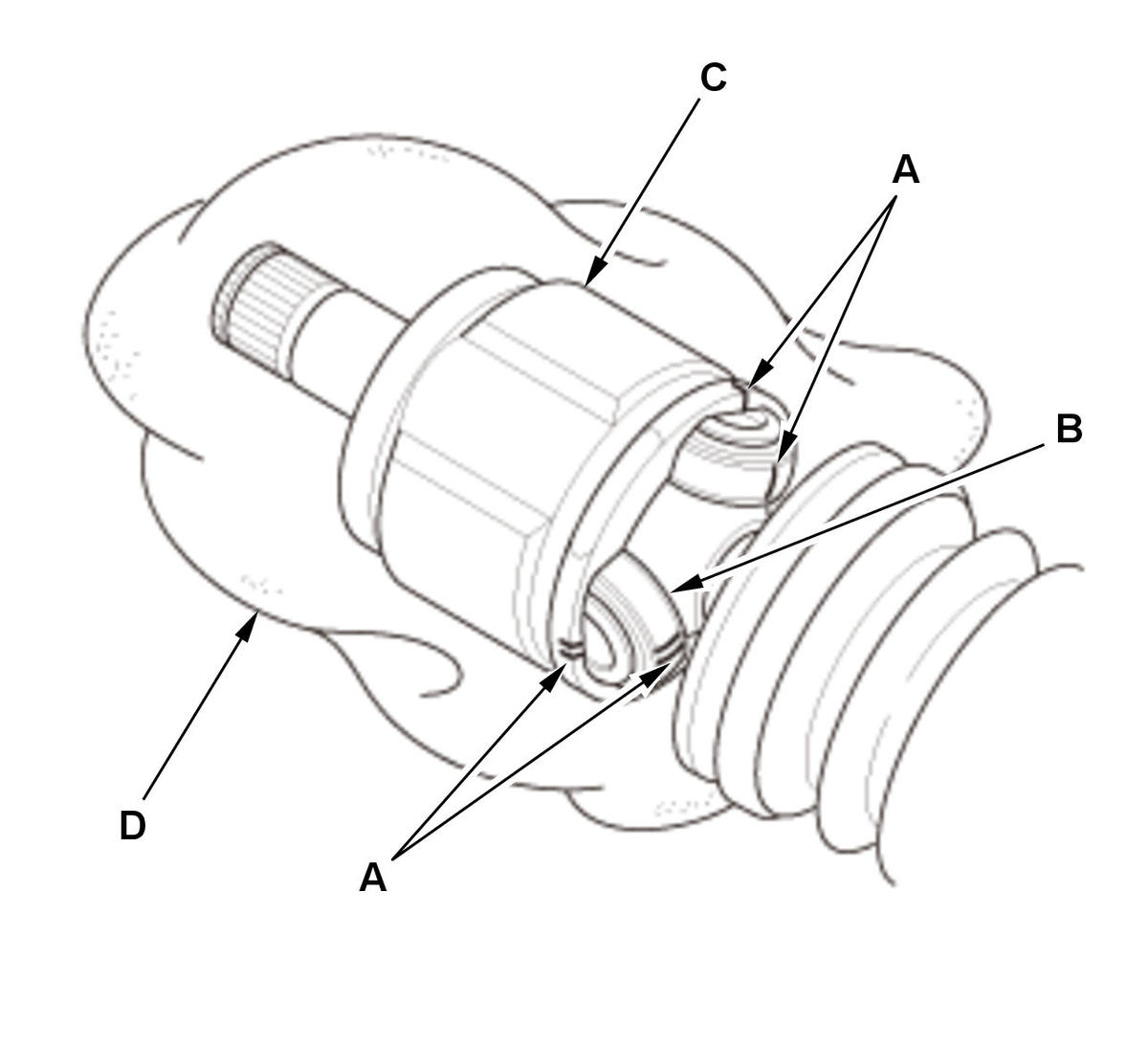

   1. Make marks (A) on each roller (B) and the inboard joint (C) to identify the locations of the rollers to the grooves in the inboard joint. NOTE:  Do not engrave or scribe any marks on the rolling surface. 2. Remove the inboard joint and place it on a clean shop towel (D). Be careful not to drop the rollers when separating them from the inboard joint. NOTE:  Check inside of the inboard joint and on the serrations for wear and tear.

6. Circlip - Remove
7. Roller and Spider - Remove

   Courtesy of HONDA, U.S.A., INC.

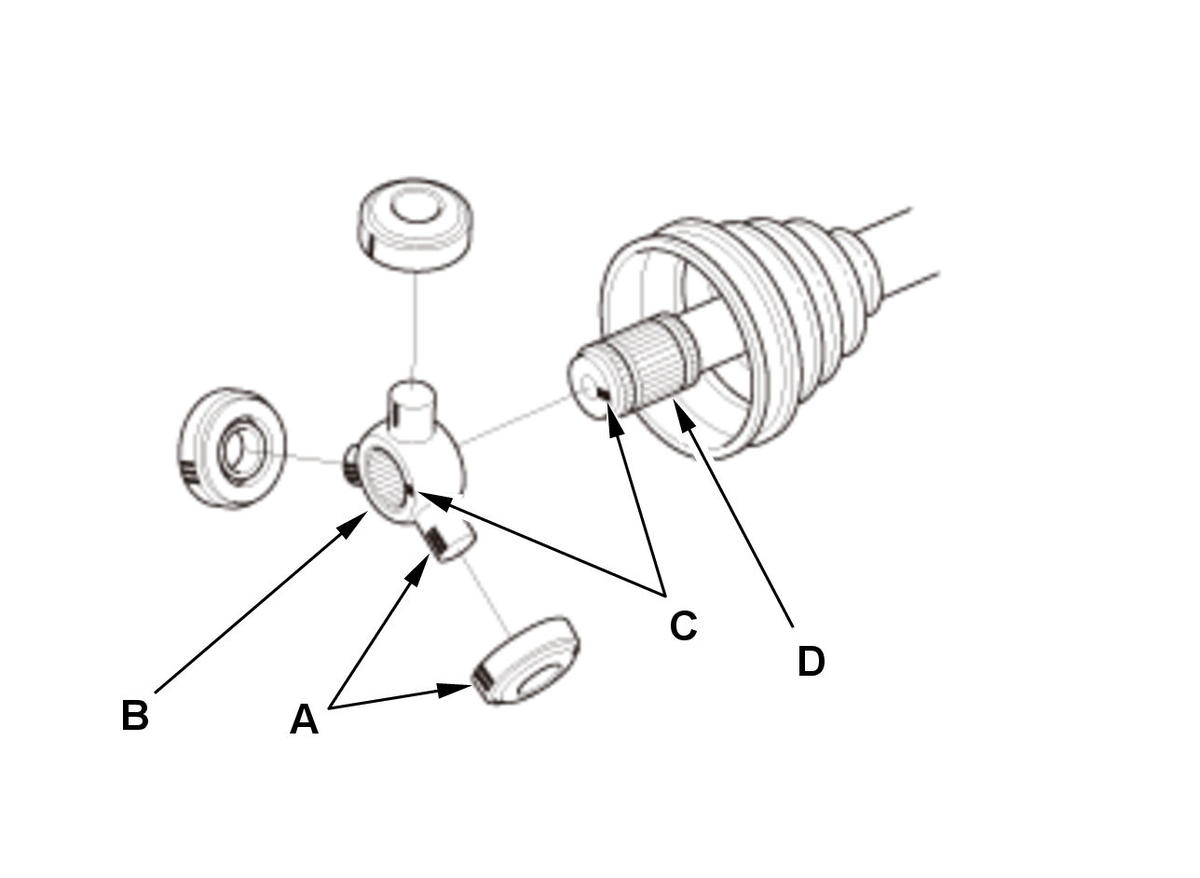

   1. Make marks (A) on the spider (B) that match the marks on the rollers. NOTE:  Do not engrave or scribe any marks on the rolling surfaces. 2. Remove the rollers. 3. Make marks (C) on the spider and the driveshaft (D) to identify the position of the spider on the shaft. 4. Remove the spider. NOTE:  If necessary, use a commercially available bearing puller while being careful not to damage the spider.

8. Inboard Boot - Remove

   Courtesy of HONDA, U.S.A., INC.

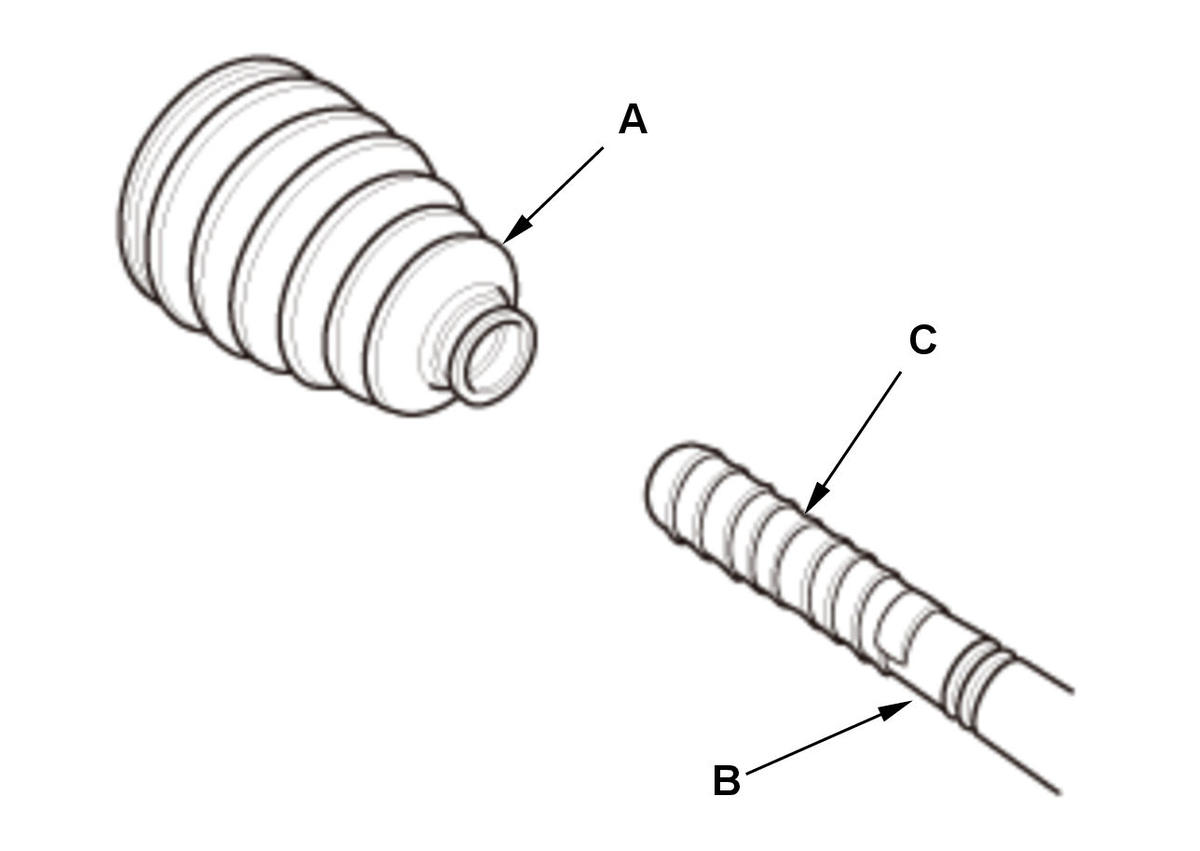

   NOTE:

   • Check the inboard boot (A) for cracks and damage. If any damage is found, replace the boot.
   • Wrap the splines on the driveshaft (B) with vinyl tape (C) to prevent damaging the inboard boot.
