Removal and Installation

NOTE: How to read the torque specifications .

1. Vehicle - Lift
2. Engine Undercover - Remove
3. Middle Floor Undercover - Remove
4. Propeller Shaft - Remove

   1. Remove the propeller shaft protector (A).

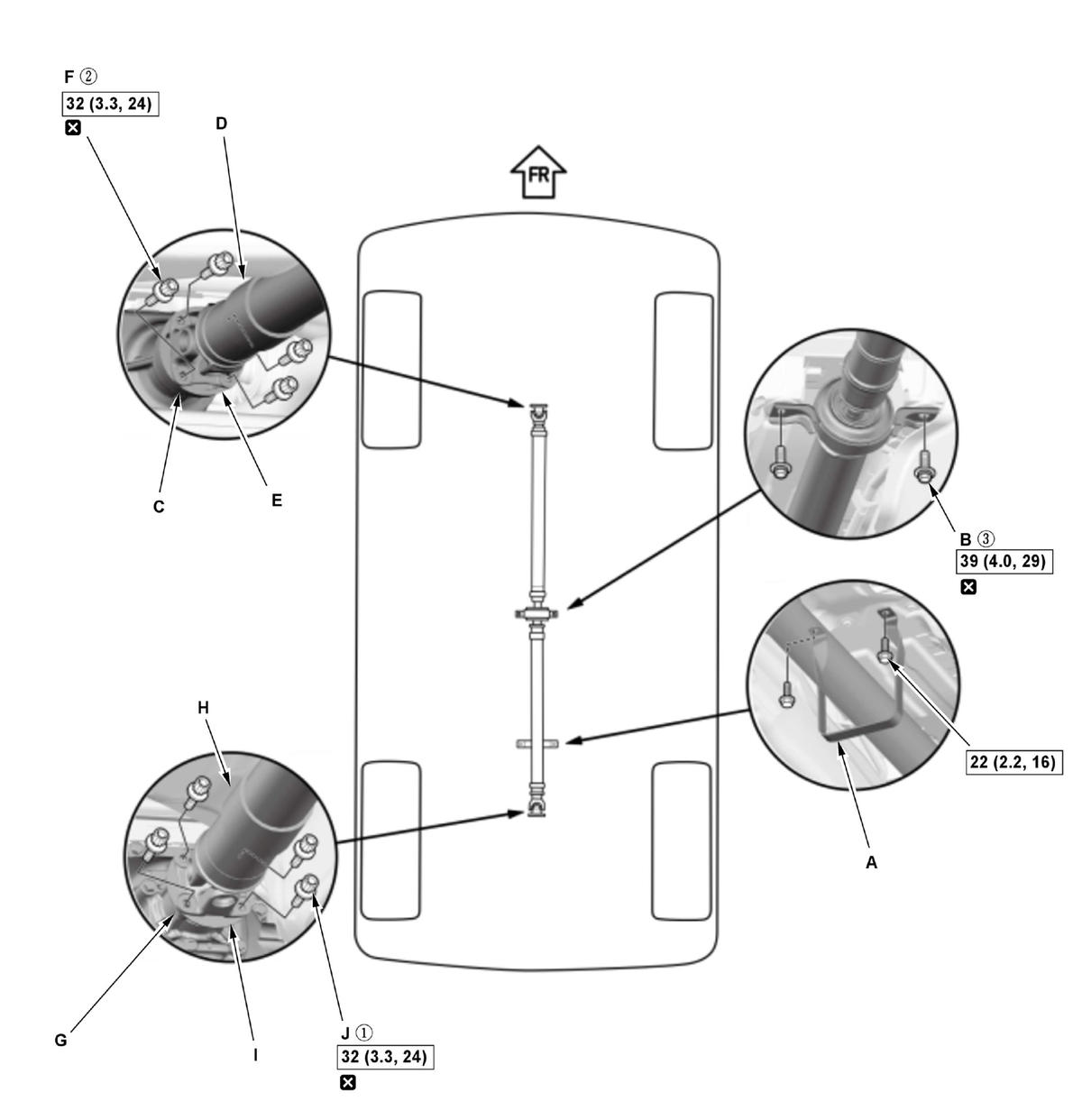

   Fig 1: Tightening Propeller Shaft In Sequence With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   2. Remove the center support bearing mounting bolts (B).

   3. Make a reference mark (C) across the No. 1 propeller shaft (D) and the transfer companion flange (E).

   4. Remove the No. 1 propeller shaft flange bolts (F).

   5. Make a reference mark (G) across the No. 2 propeller shaft (H) and the rear differential companion flange (I).

   6. Remove the No. 2 propeller shaft flange bolts (J).

5. All Removed Parts - Install

   1. Install the parts in the reverse order of removal. NOTE: Tighten the propeller shaft flange bolts, the center support bearing mounting bolts in the numbered sequence shown in illustration.
