VSA System Circuit Diagram (With CAN Gateway (With Auto Idle Stop System)) (2020 2021)

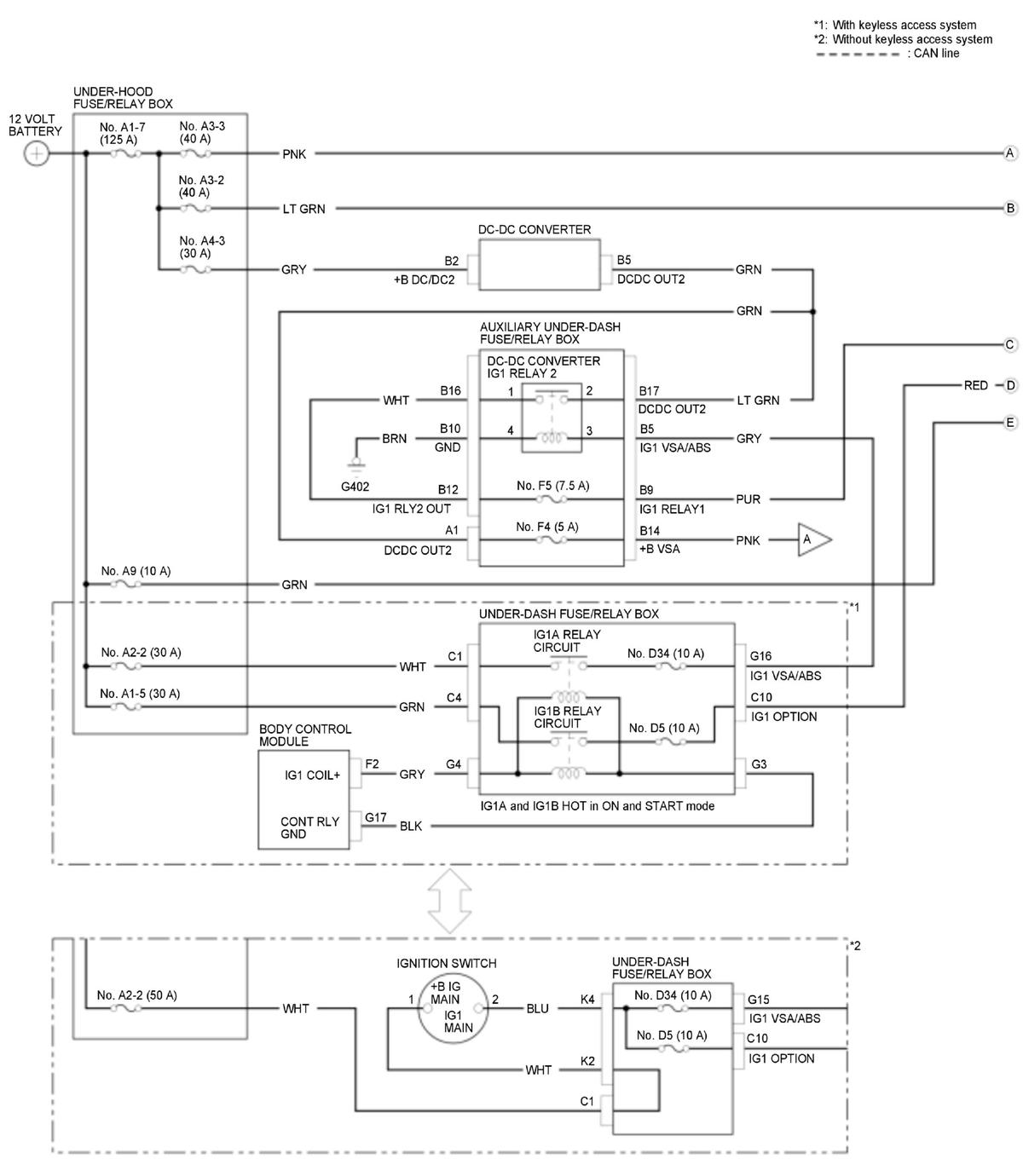

GHH431728Courtesy of HONDA, U.S.A., INC.

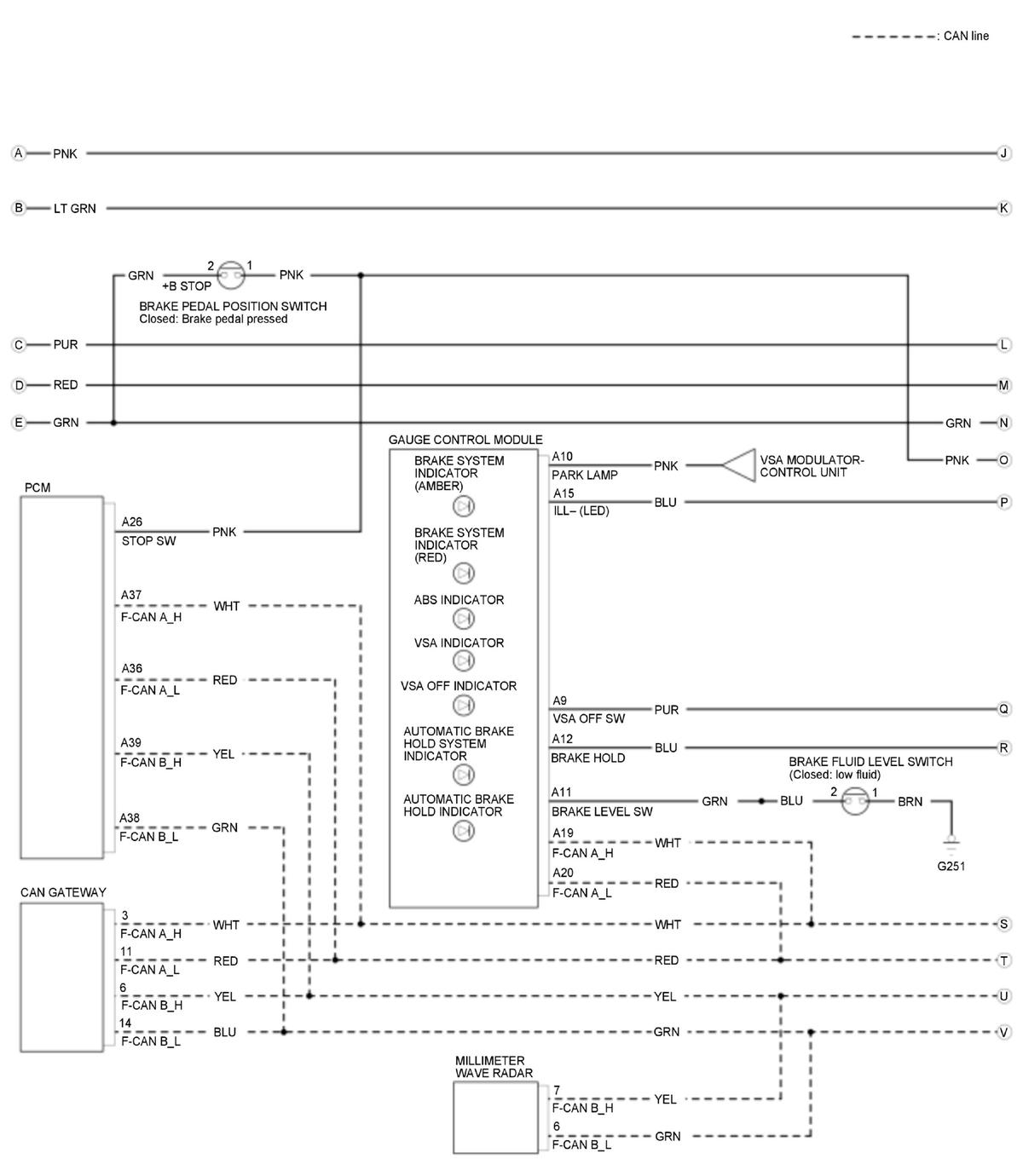

GHH431729Courtesy of HONDA, U.S.A., INC.

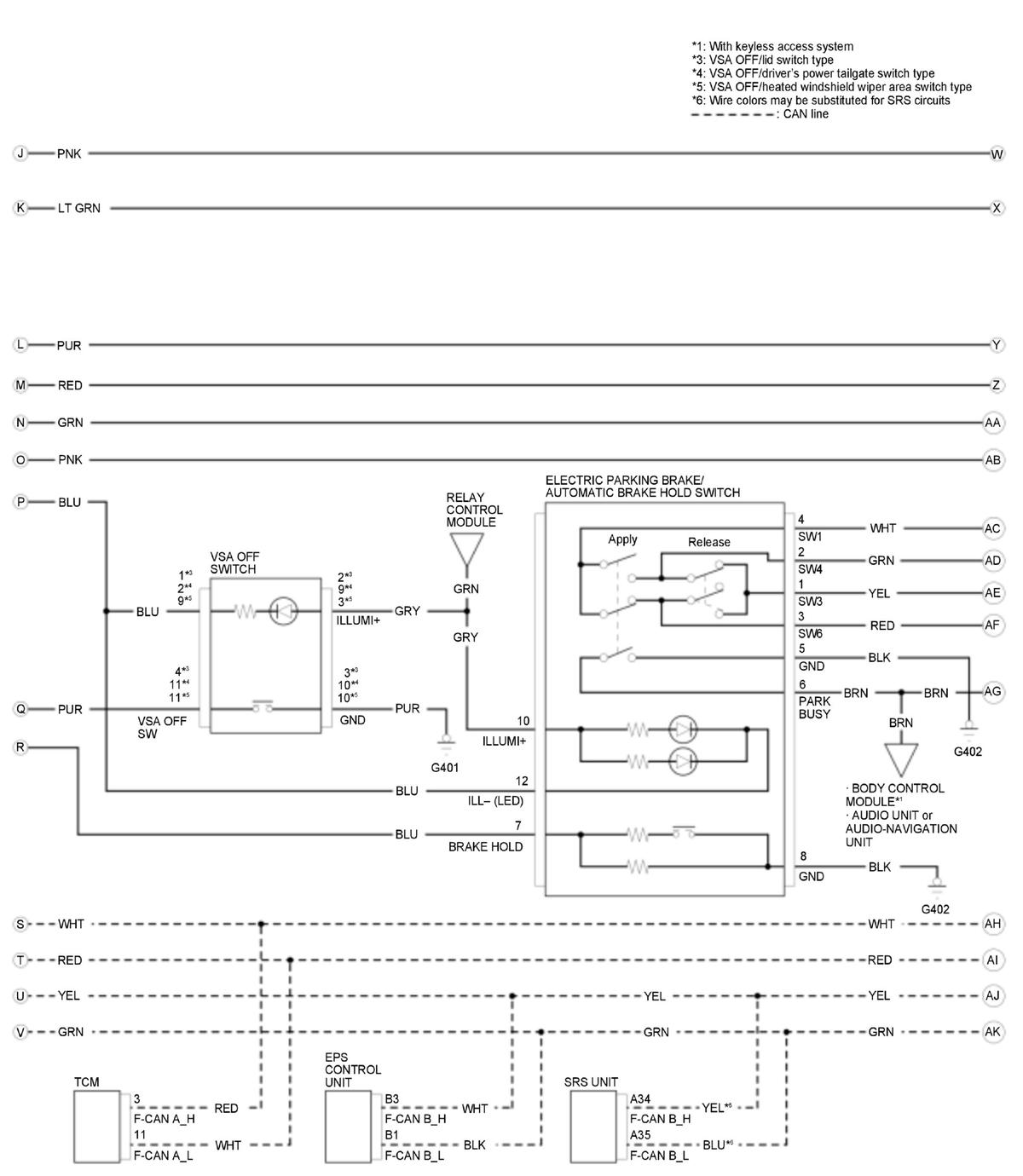

GHH431730Courtesy of HONDA, U.S.A., INC.

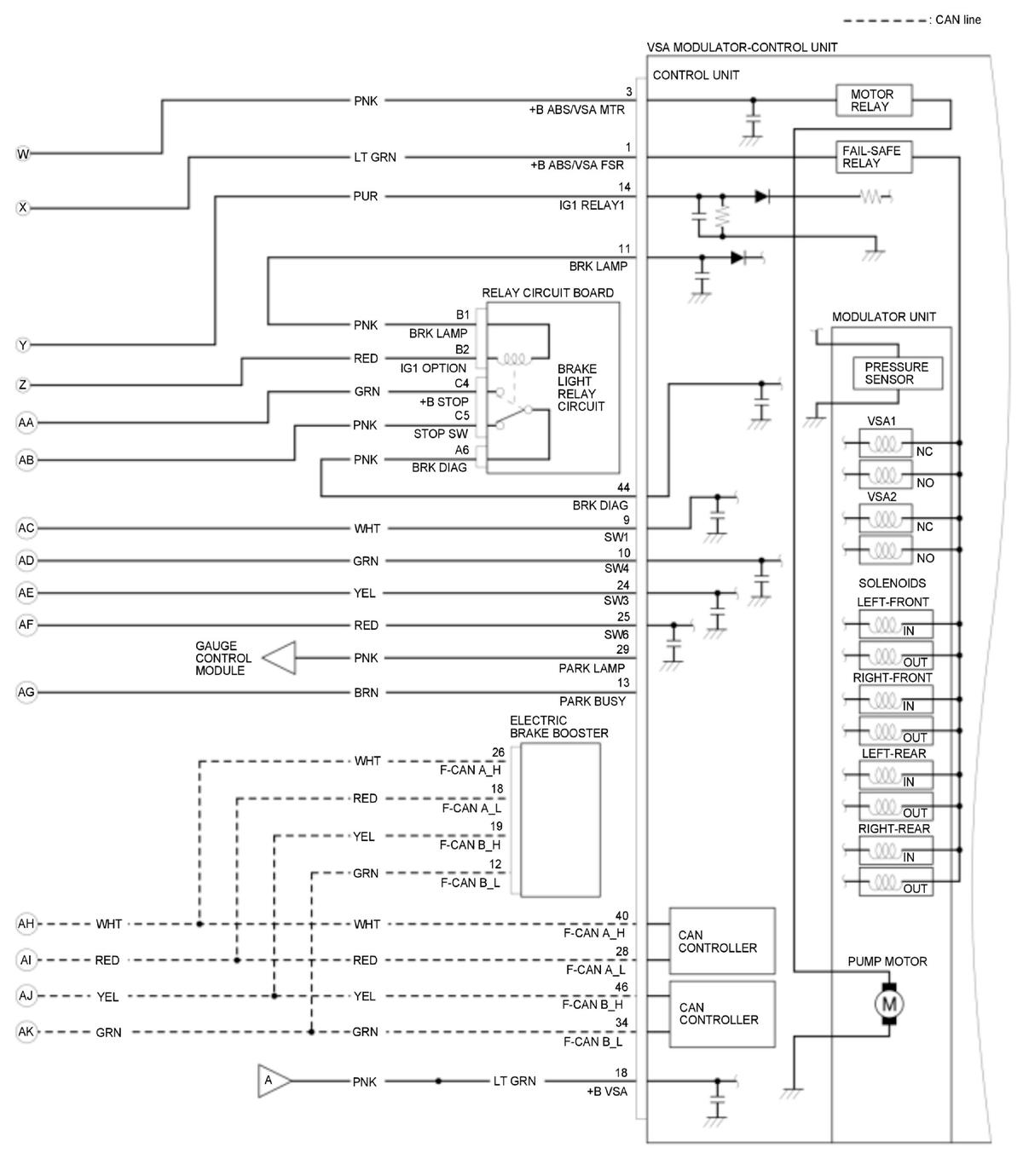

GHH431731Courtesy of HONDA, U.S.A., INC.

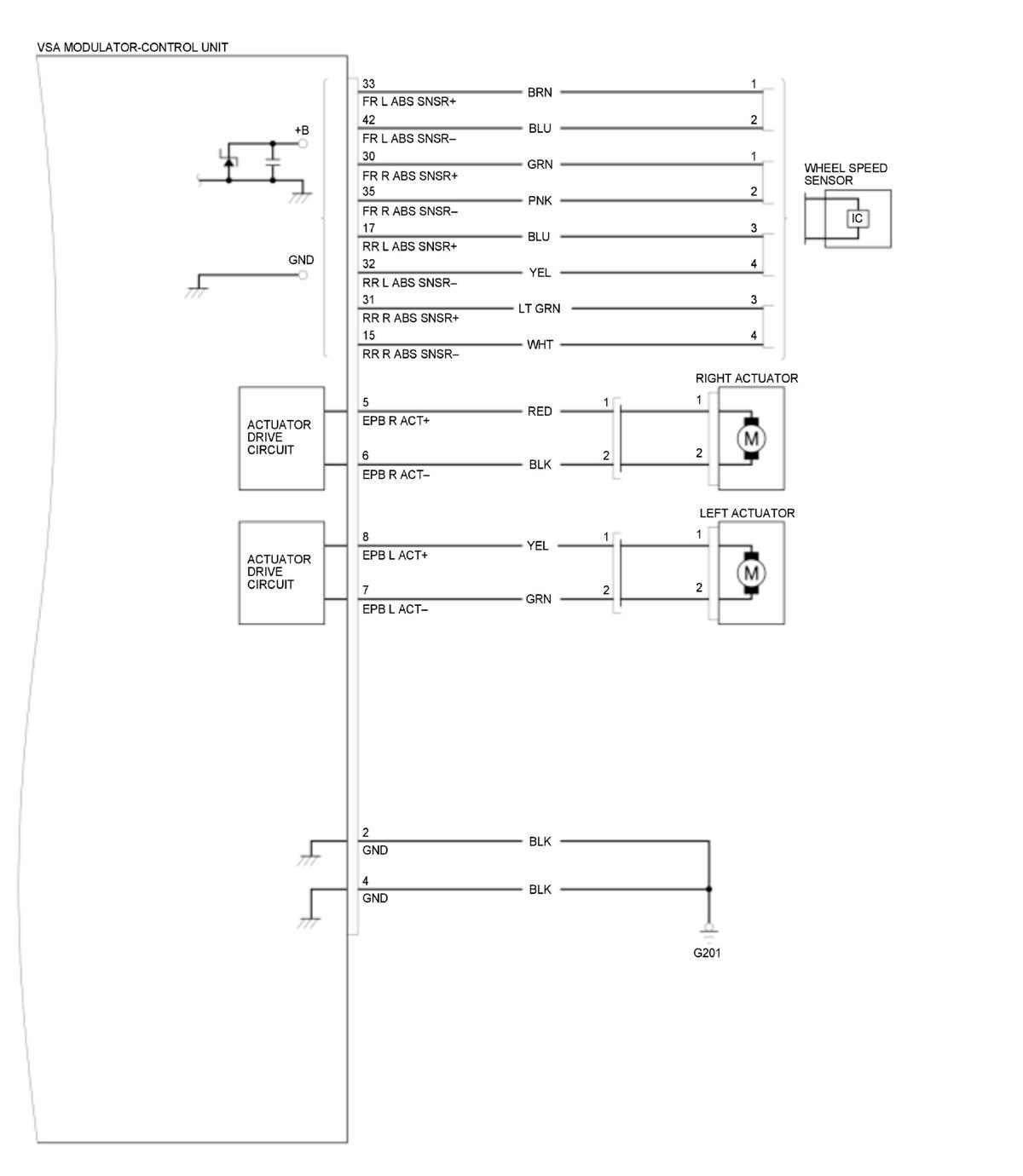

GHH431732Courtesy of HONDA, U.S.A., INC.
