VSA Modulator-Control Unit Removal and Installation: Removal

NOTE:

• Review the Service Precautions before doing repairs or service .
• Do not damage or drop the VSA modulator-control unit as it is sensitive.
• Do not use power tools when removing the VSA modulator-control unit.
• When replacing the VSA modulator-control unit, do the immobilizer system registration.

1. 12 Volt Battery Terminal - Disconnect

   1. Open the driver's door, and wait 3 minutes or more. NOTE: Do not turn the vehicle to the ON mode. 2. Do the 12 volt battery terminal disconnection procedure .

2. VSA Modulator-Control Unit - Remove

   Courtesy of HONDA, U.S.A., INC.

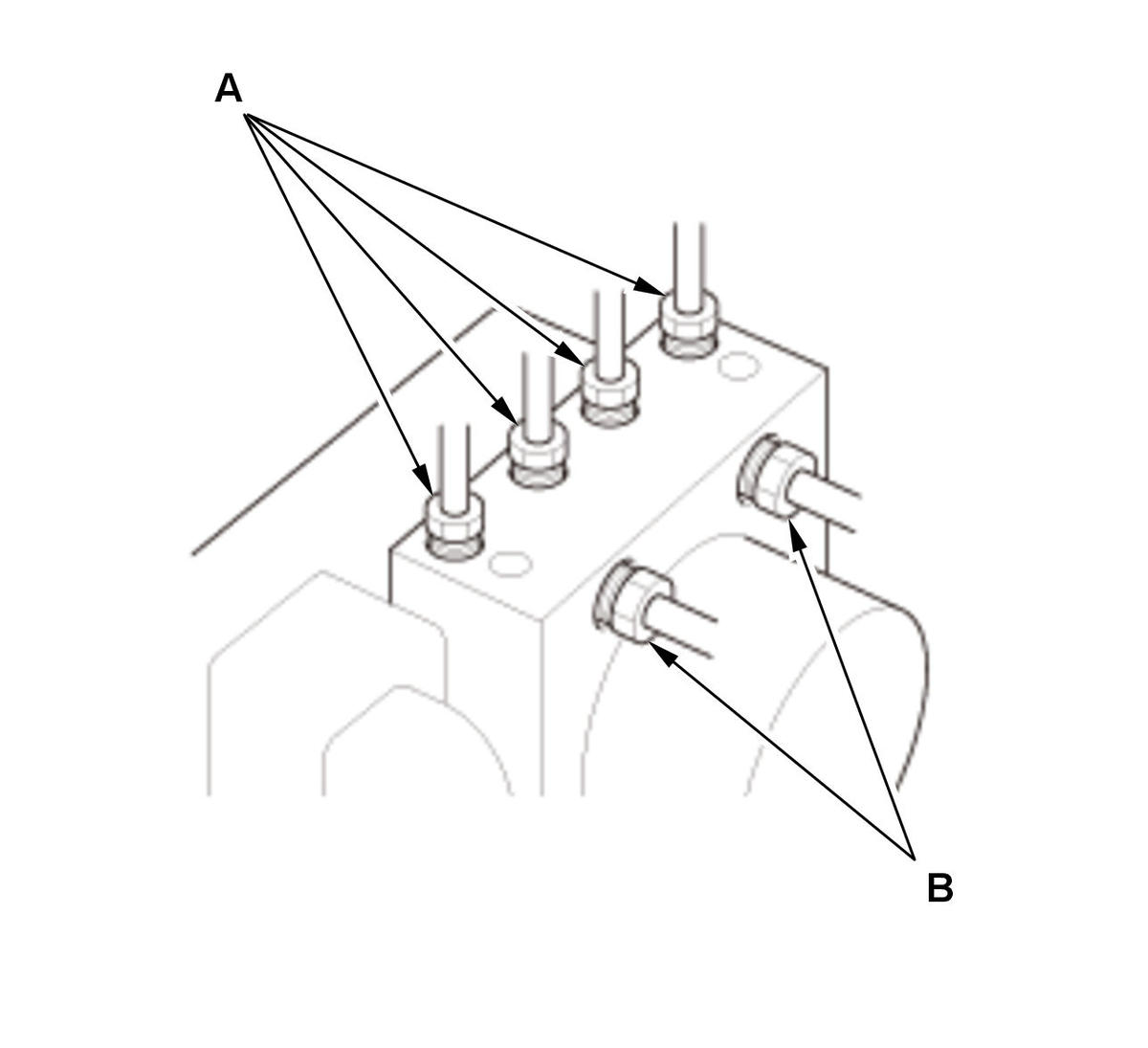

   1. Disconnect the 10 mm brake lines (A). NOTE: Before disconnecting the brake lines from the VSA modulator, mark them or make note of their original location. 2. Disconnect the 12 mm brake lines (B).

   Courtesy of HONDA, U.S.A., INC.

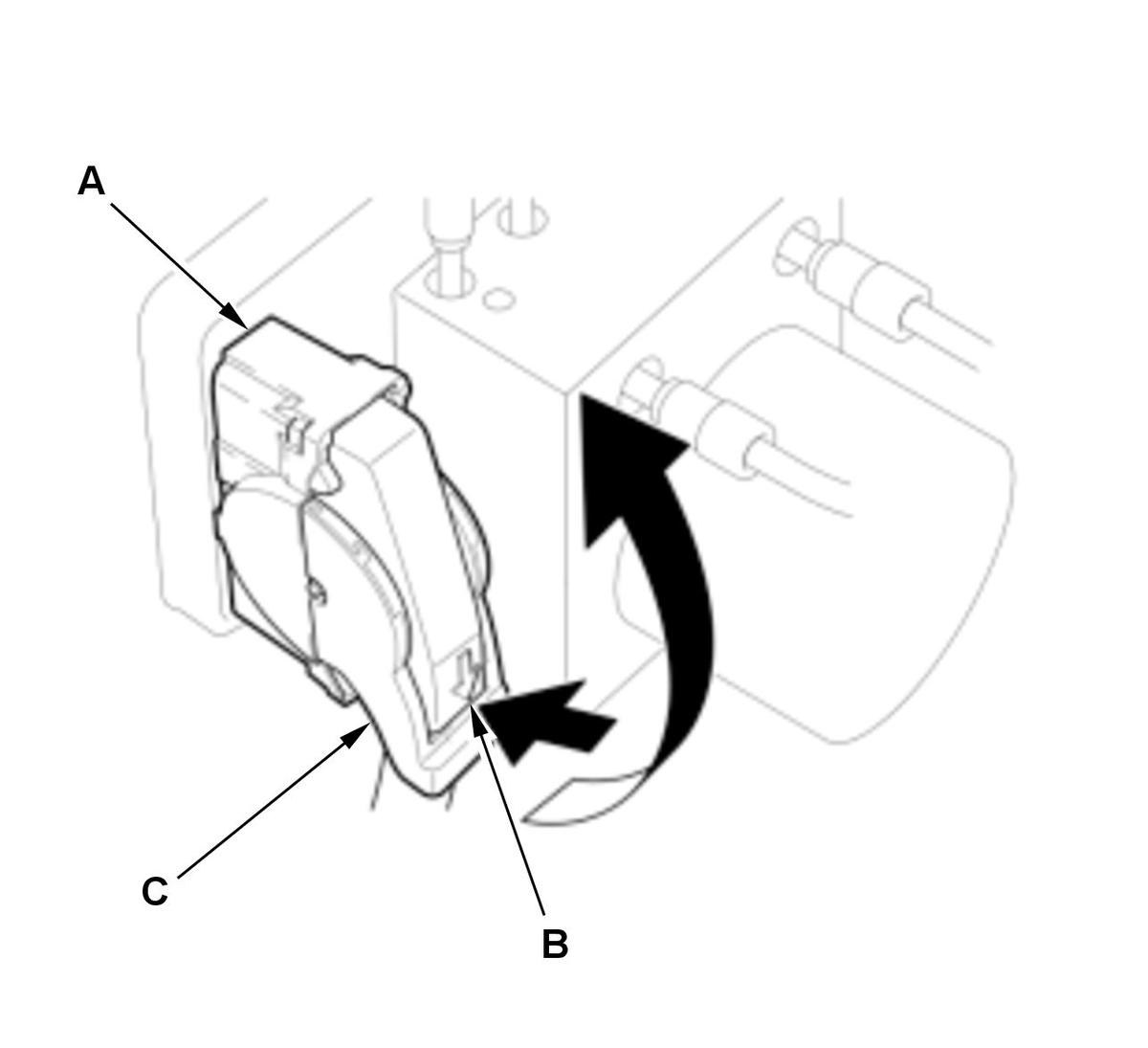

   3. Disconnect the connector (A) by pushing the lock (B) and pulling up the lever (C); the connector disconnects itself.

   Courtesy of HONDA, U.S.A., INC.

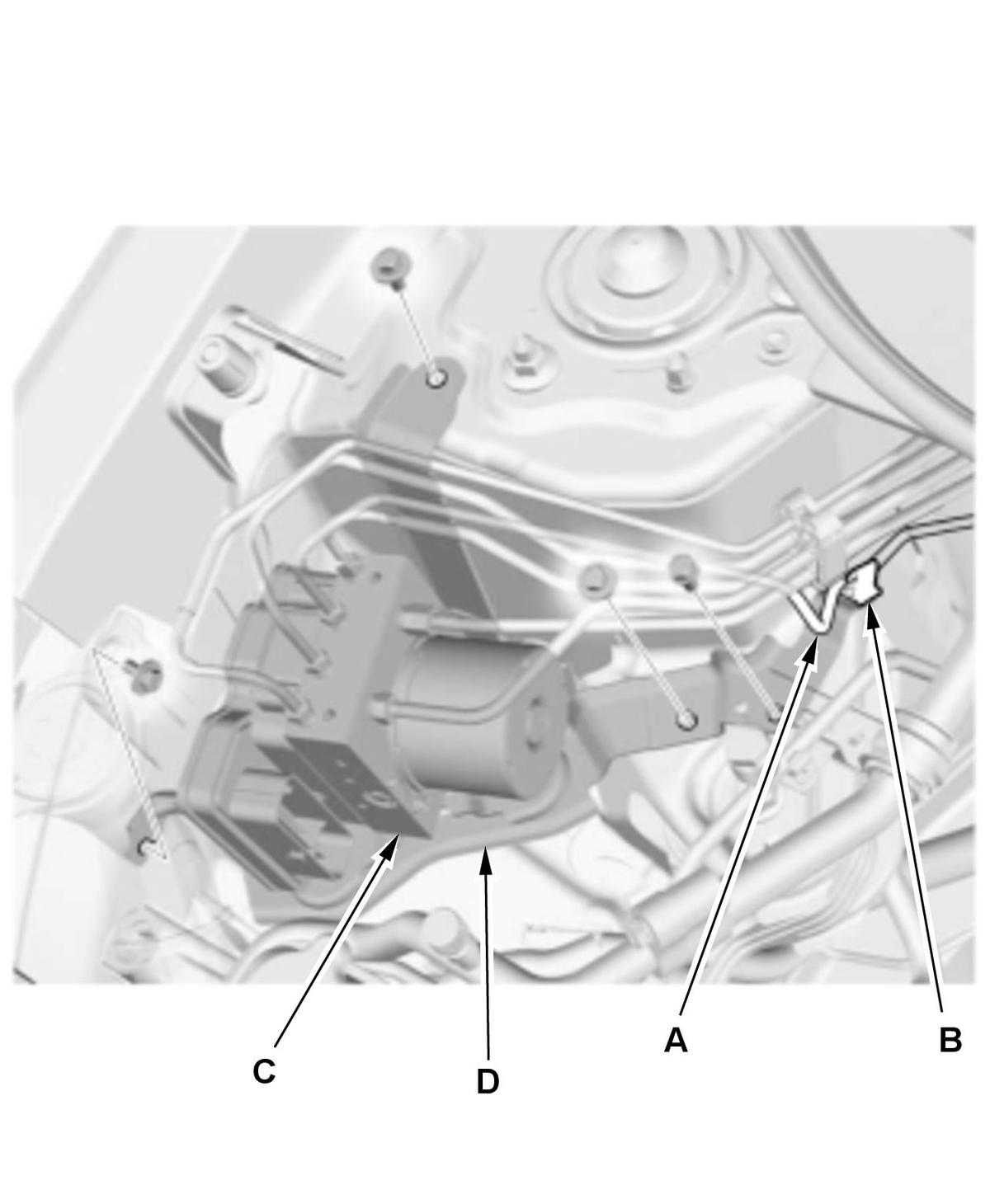

   4. Remove the brake line (A) from the brake line clamp (B). 5. Remove the VSA modulator-control unit (C) with the bracket (D).

3. VSA Modulator-Control Unit Bracket - Remove

   Courtesy of HONDA, U.S.A., INC.

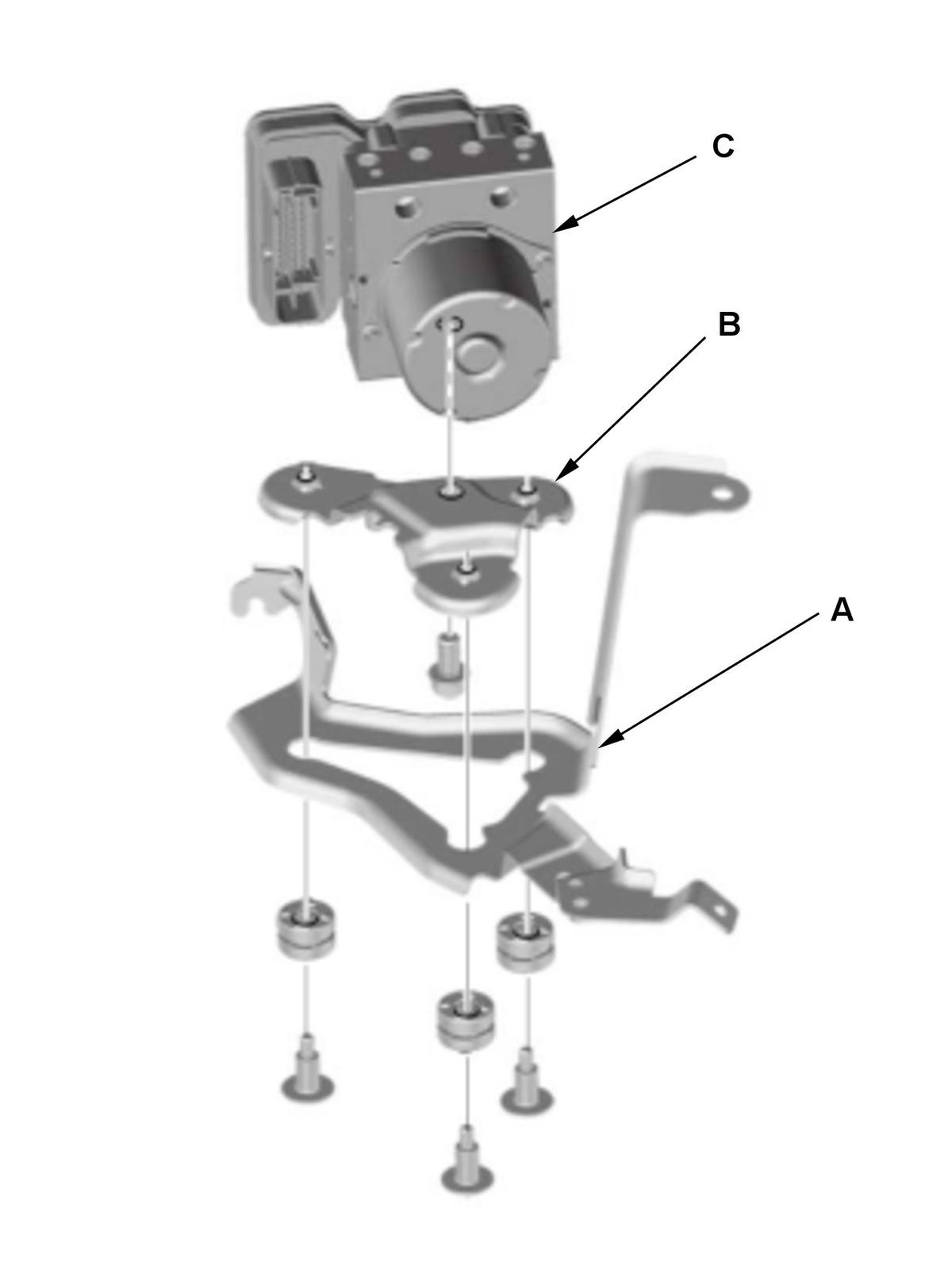

   1. Remove the modulator bracket (A) from the modulator sub bracket (B). 2. Remove the VSA modulator-control unit (C) from the modulator sub bracket.
