VSA Off Switch Removal, Installation, and Test: Test

VSA Off Switch - Test

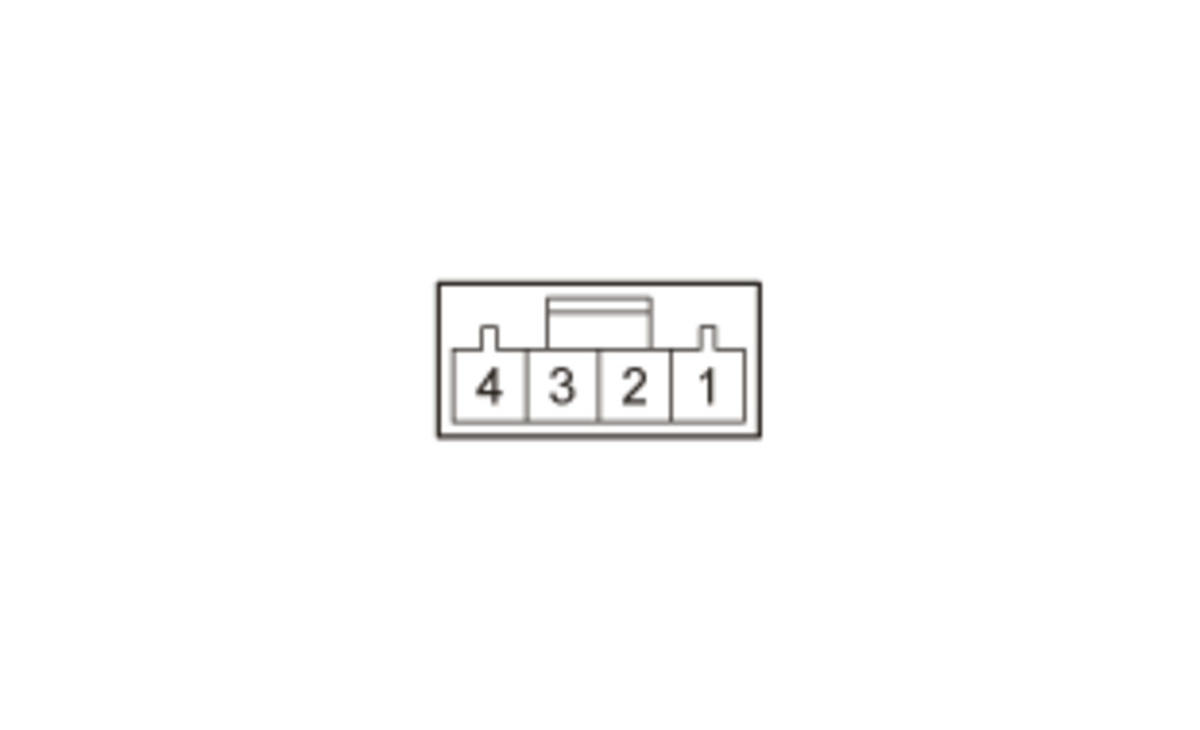

VSA OFF/lid switch 4P connector

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

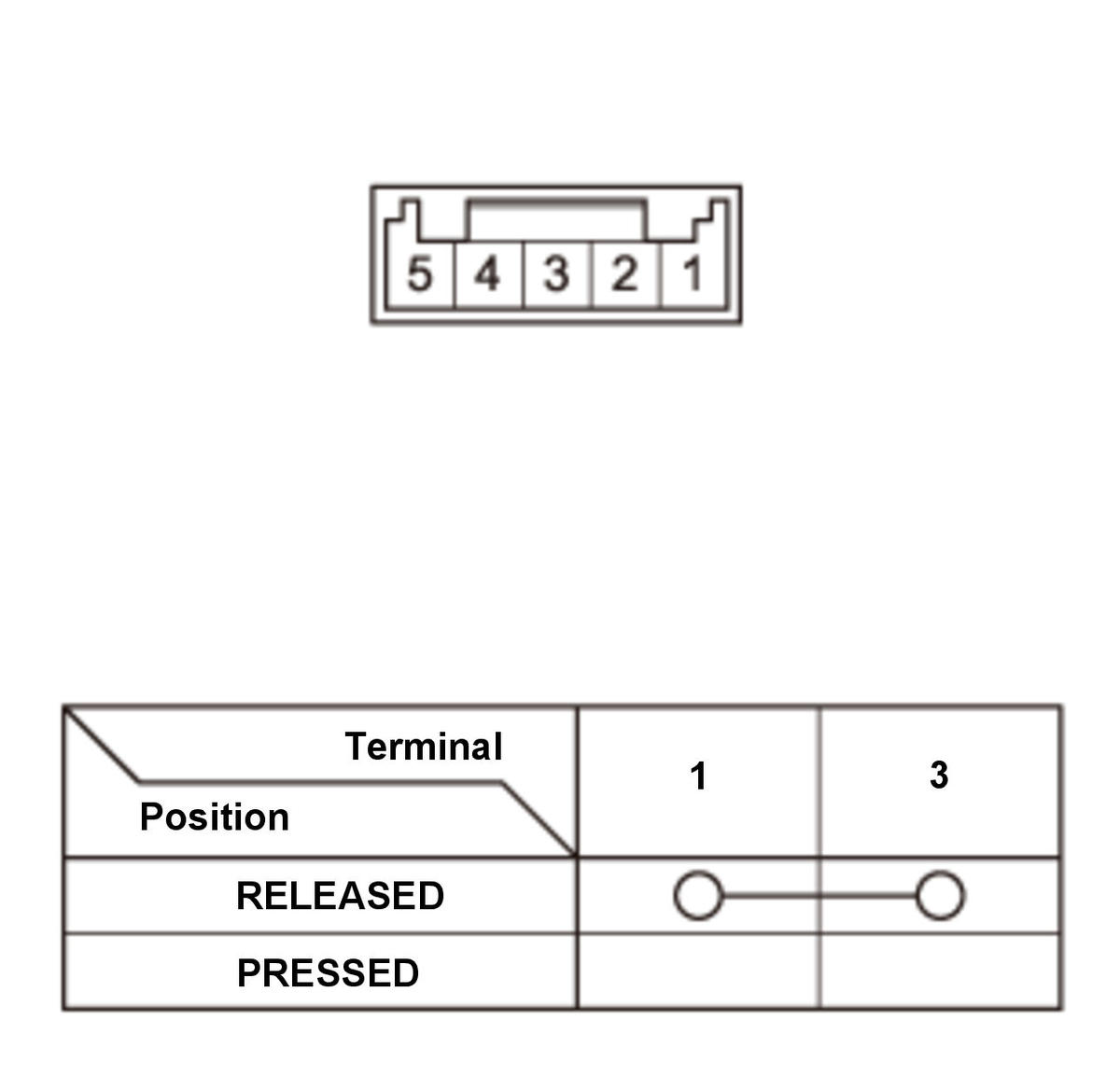

VSA OFF/TPMS switch 5P connector

Courtesy of HONDA, U.S.A., INC.

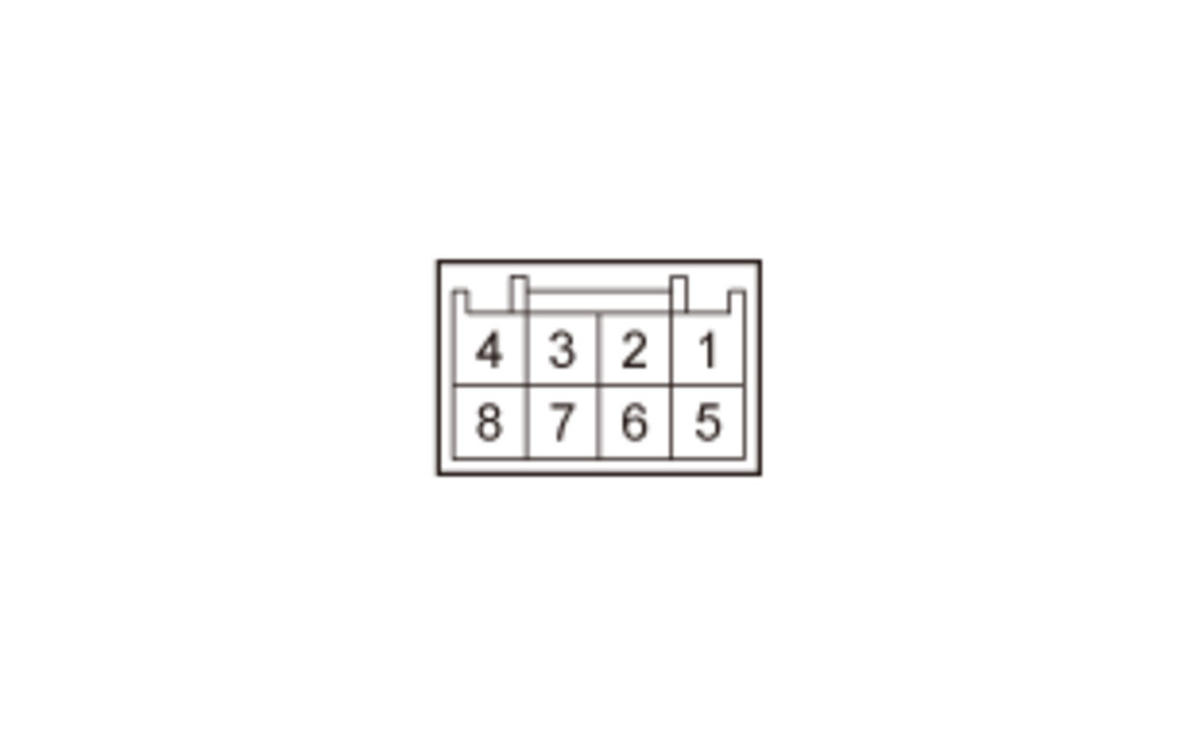

VSA OFF/parking and back-up sensor switch 8P connector

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

VSA OFF/driver's power tailgate switch 12P connector

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

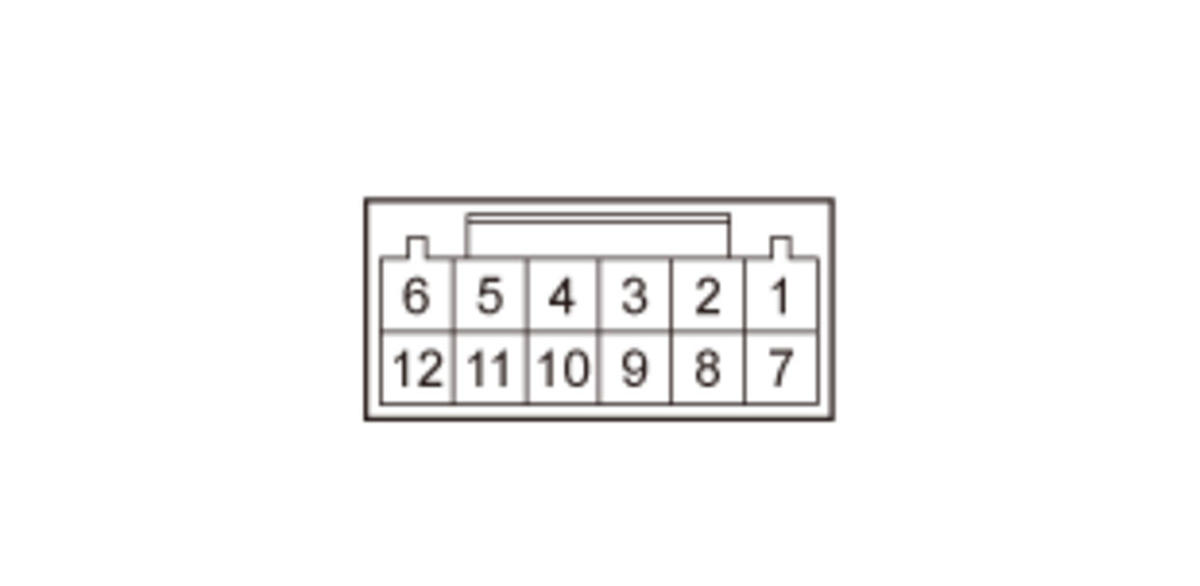

VSA OFF/heated windshield wiper area switch 12P connector

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Switch Internal Continuity Check:

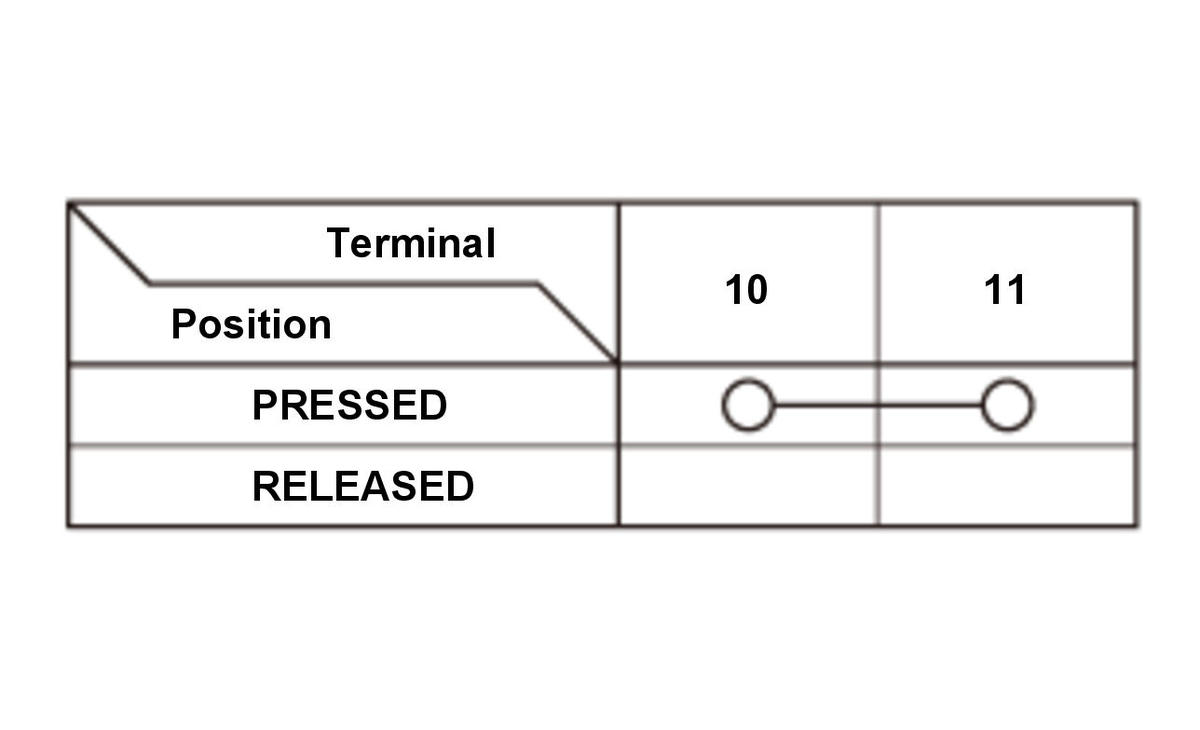

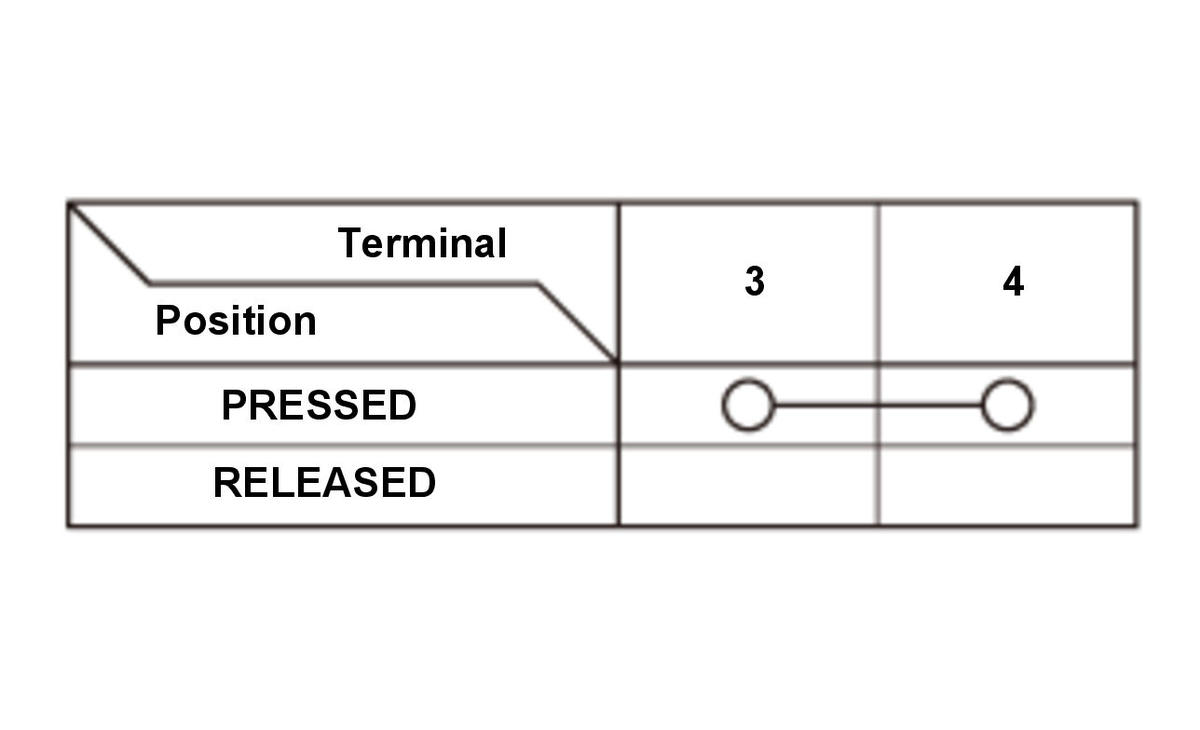

1. On the switch side, check for continuity between the connector terminal in each switch position according to the table.

2. If the switch does not works as described in the table, replace the switch.

VSA OFF/lid switch 4P connector

Courtesy of HONDA, U.S.A., INC.

VSA OFF/TPMS switch 5P connector

Courtesy of HONDA, U.S.A., INC.

VSA OFF/parking and back-up sensor switch 8P connector

Courtesy of HONDA, U.S.A., INC.

VSA OFF/driver's power tailgate switch 12P connector

Courtesy of HONDA, U.S.A., INC.

VSA OFF/heated windshield wiper area switch 12P connector

Courtesy of HONDA, U.S.A., INC.

Switch Illumination Circuit Check:

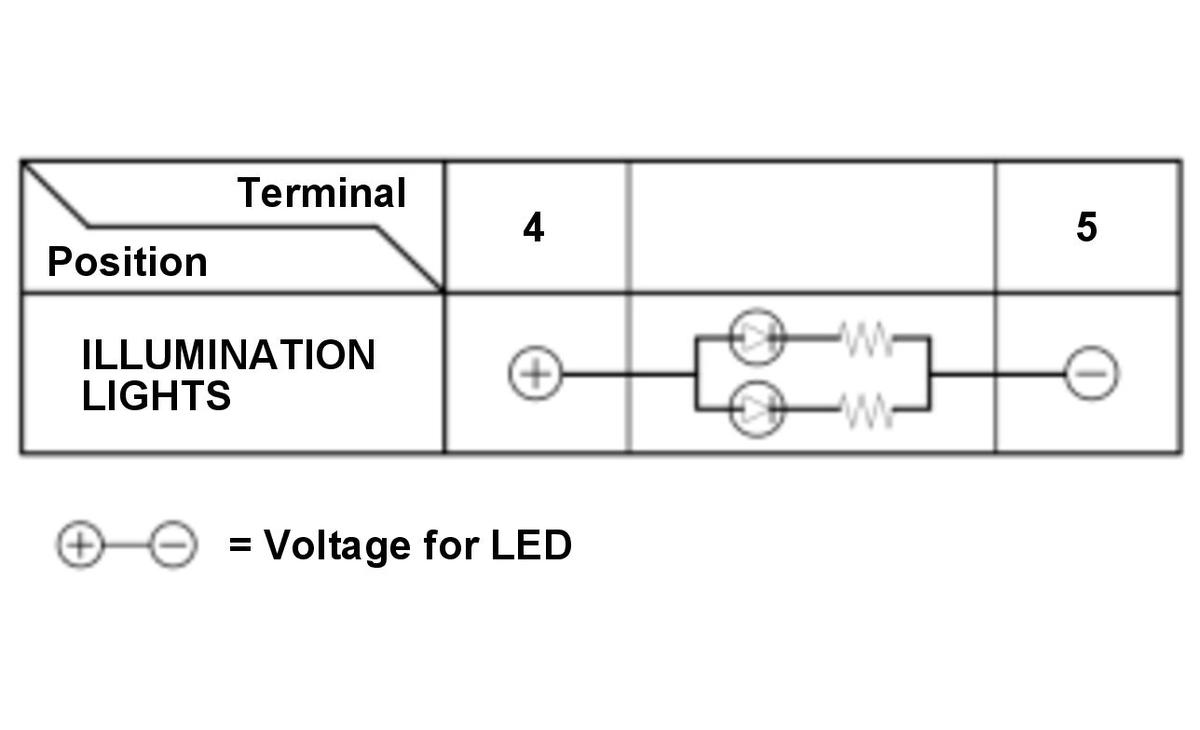

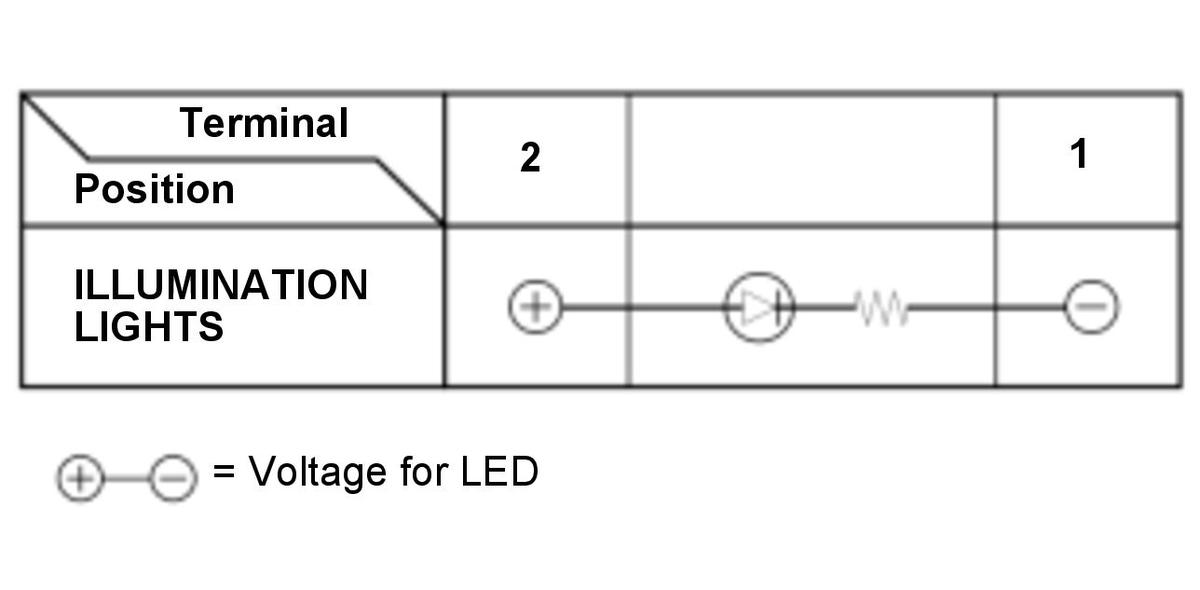

1. On the switch side, check the LED for illumination by applying power and ground to the terminals according to the table.NOTE:

Important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

2. If the result is not as specified, replace the switch.
